Product movie

YouTube thumbnail

Machining processes of F600X1

  • F600X1 Machining example (Steel)

  • Facing

  • Plunging

YouTube thumbnail

Machining processes of M140X2

  • M140X2 Machining example (Aluminium)

  • Machining

  • Turning

Product lineup

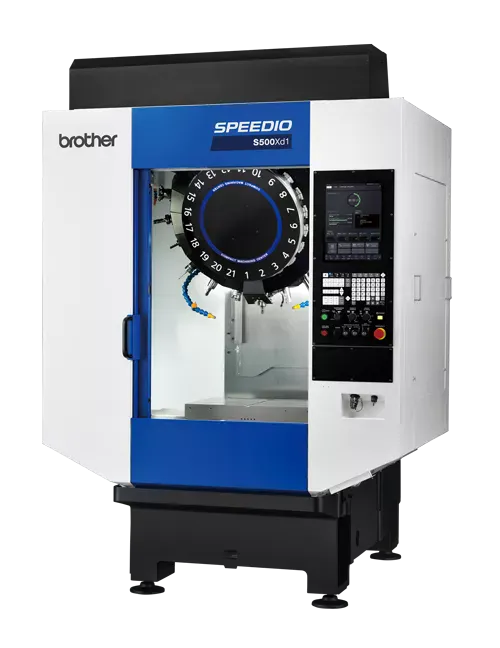

Compact machining center SPEEDIO

The SPEEDIO Series is a series of #30 spindle compact machining center, higher productivity than our CNC Tapping Center Series and demonstrates excellent environmental performance and machining capability.

New SPEEDIO Model
"High machining capabilities" and "stable machining" have been achieved.

  • SPEEDIO's highest level machining capabilities
    [Table traverse]
  • Travels (mm)
    X: 600 Y: 400 Z: 350
  • Tool storage capacity (pcs.)
    14/22
  • Max. spindle speed (min-1)
    10,000 high-torque


"Machining larger workpieces using #30 machine" The release of the S1000X1 machining center sees an override in the conventional machining areas of #30 machines.

  • Machining larger workpieces using
    #30 machine
    [Table traverse]
  • Travels (mm)
    X: 1,000 Y: 500 Z: 300

  • Tool storage capacity (pcs.)
    14/21
  • Max. spindle speed (min-1)
    10,000
    10,000 high-torque(Optional)
    16,000 (Optional)

The SPEEDIO maximizes productive efficiency improvement of mass-production parts such as automobile, motorcycle and information technology.

  • High-performance modelapplicable to broad range of machining
    [Table traverse]
  • Travels (mm)
    S700X1) X: 700 Y: 400 Z: 300
    S500X1) X: 500 Y: 400 Z: 300
    S300X1) X: 300 Y: 400 Z: 300
  • Tool storage capacity (pcs.)
    14/21
  • Max. spindle speed (min-1)
    10,000
    10,000 high-torque (Optional)
    16,000 (Optional)
    27,000 (Optional)

The SPEEDIO maximizes productive efficiency improvement of mass-production parts such as automobile, motorcycle and information technology.

  • High-performance modelapplicable to broad range of machining
    [Table traverse]
  • Travels (mm)
    S700X2) X: 700 Y: 400 Z: 300
    S500X2) X: 500 Y: 400 Z: 300
    S300X2) X: 300 Y: 400 Z: 300
  • Tool storage capacity (pcs.)
    14/21
  • Max. spindle speed (min-1)
    10,000
    10,000 high-torque (Optional)
    16,000 (Optional)
    27,000 (Optional)

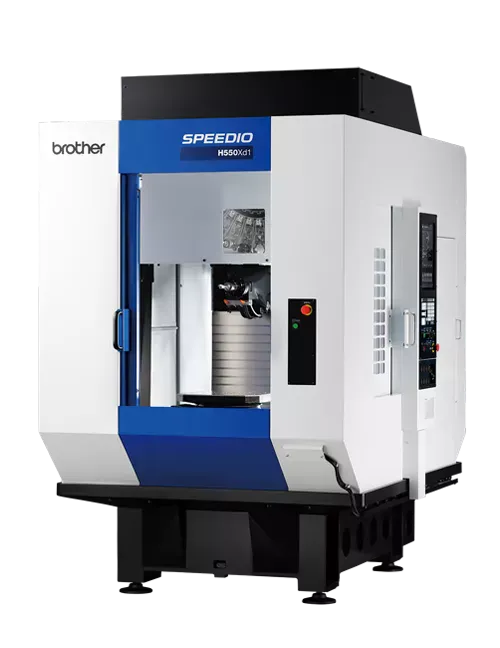

A pallet changer is standardly equipped for
This model of SPEEDIO series that achieve overwhelming productivity.
Quest for "Wasted Time = Zero"

  • high-speed 2-face pallet changer
    [Column traverse]
  • Travels (mm)
    X: 450 Y: 320 Z: 305

  • Tool storage capacity (pcs.)
    14/22
  • Max. spindle speed (min-1)
    10,000
    10,000 high-torque(Optional)
    16,000 (Optional)

Equipped with SPEEDIO's Largest Tool Magazine!
Large Jig Mountable Pallet Changer Machine

  • high-speed 2-face pallet changer
    [Column traverse]
  • Travels (mm)
    14/22pcs.) X: 650 Y: 400 Z: 305
    40pcs.) X: 650 Y: 400 Z: 435
  • Tool storage capacity (pcs.)
    14 / 22 / 40
  • Max. spindle speed (min-1)
    10,000
    10,000 high-torque(Optional)
    16,000 (Optional)

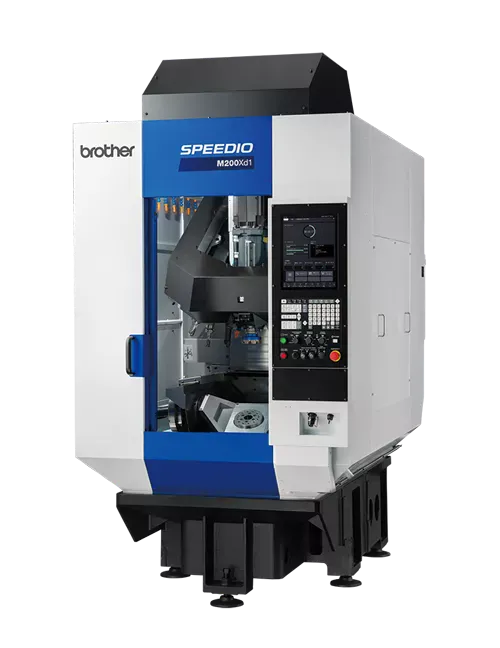

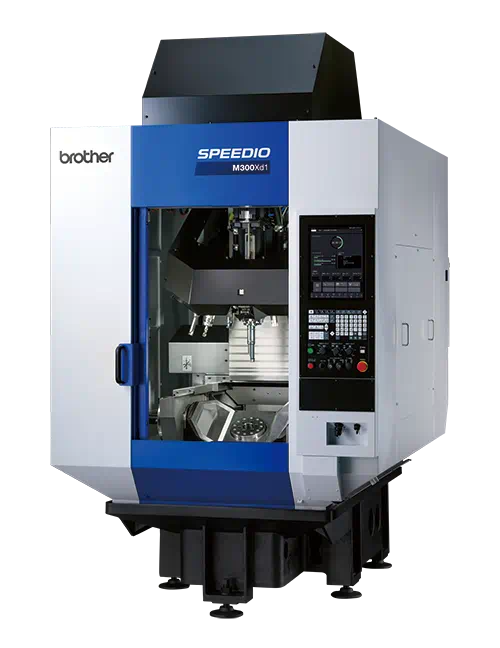

Multi-Tasking Machine SPEEDIO

The compact multi-tasking machines, equipped with turning and tilt axes, enable turning and machining processes through one-time chucking.
Two new models have been added that can handle larger workpieces and with an option to install a manpower reduction unit.

  • The compact multi-tasking machines enable turning and machining processes through one-time chucking.
  • Travels (mm)
    M300X3) X: 300 Y: 440 Z: 305
    M200X3) X: 200 Y: 440 Z: 305
    A: 120~30deg. C: 360deg.
  • Tool storage capacity (pcs.)
    22
  • Max. spindle speed (min-1)
    10,000
    16,000(Optional)

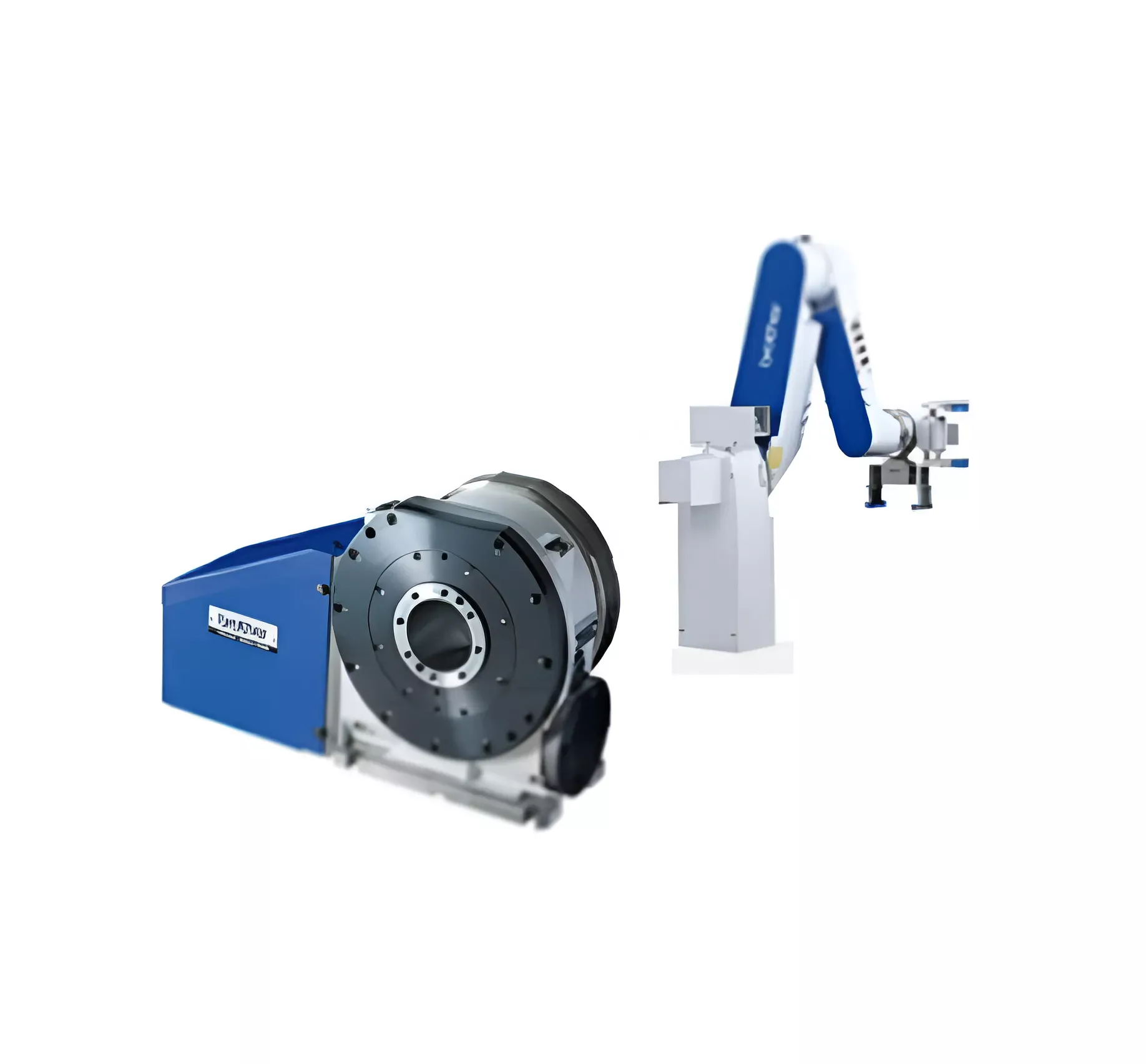

Special SPEEDIO Option

High accuracy, High productivity, Extended service life.

  • Option for SPEEDIO
  • high speed
  • high accuracy
  • Maintenance free

SIMPLE & COMPACT

  • Supported models: S300X2 / S500X2
  • Specialized for loading/ unloading workpieces
  • Compactly installed on the side of machine
  • Controller incorporated in machine's control box

Customer Success

Introduction of Customer Success Stories.

Douwa Kougyou Corporation
