BT30 Machining Center
SPEEDIO is a BT30 machine brand offering an extensive product range.
Beyond the capabilities of conventional BT30 machines, we have refined
the features and usability for long-term, confident operation.
SPEEDIO helps solve your shop-floor challenges.
3 Strengths
-
Strength #1
Outstanding high
productivity achieved
by accumulated technologiesIn addition to the lightweight and low-inertia features of BT30 machines,
both mechanical design and control technologies have been continuously refined to achieve smooth,
high-speed spindle acceleration and deceleration, tool changes, and other operations,

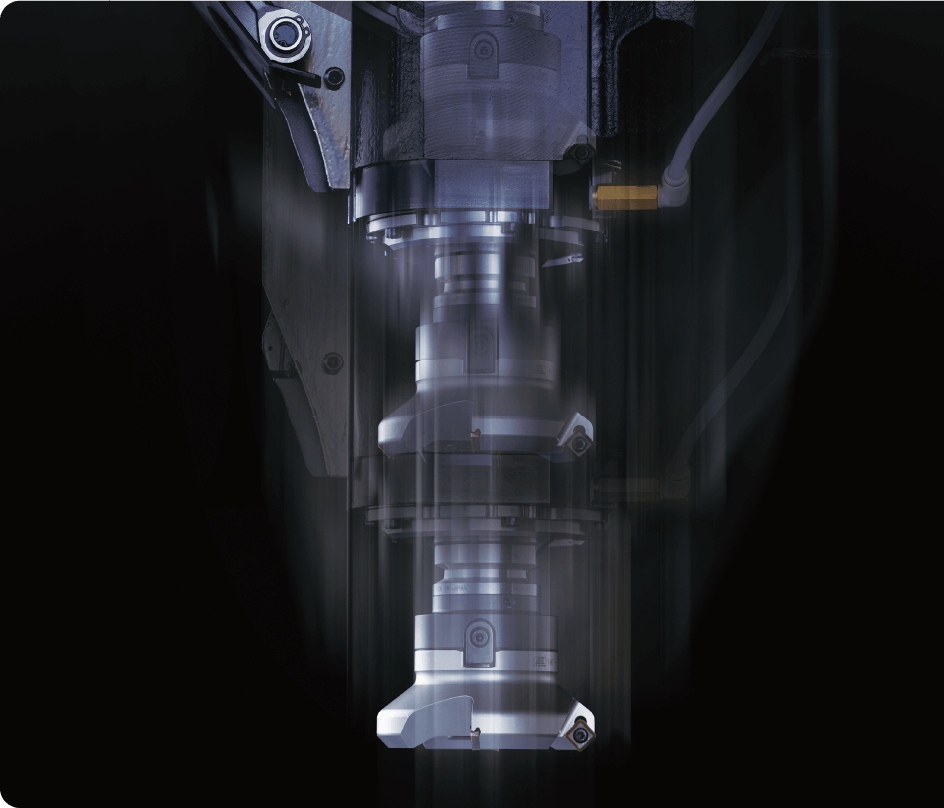

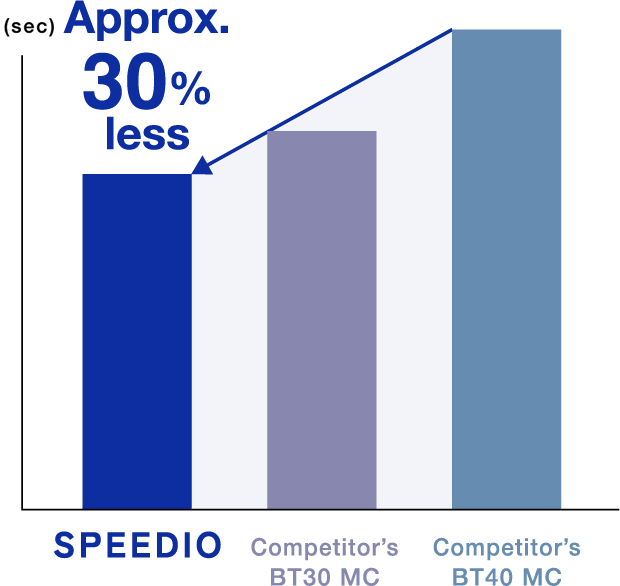

significantly reducing cycle time.Shorten cycle time
by high-speed machining
-

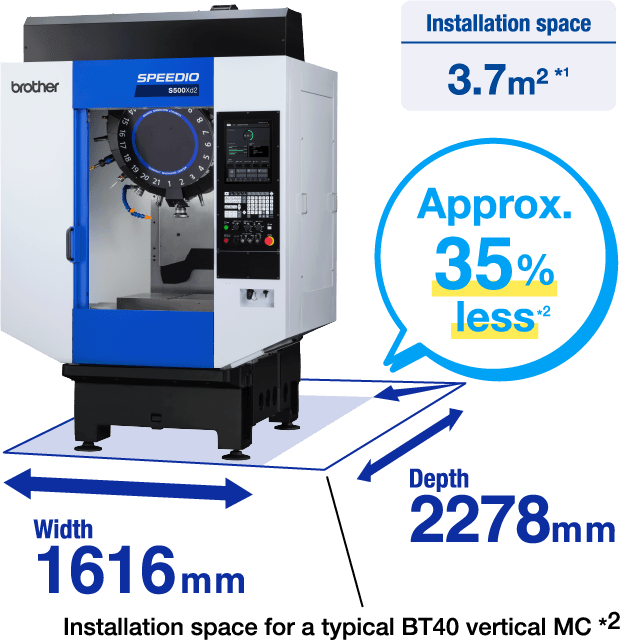

Strength #2

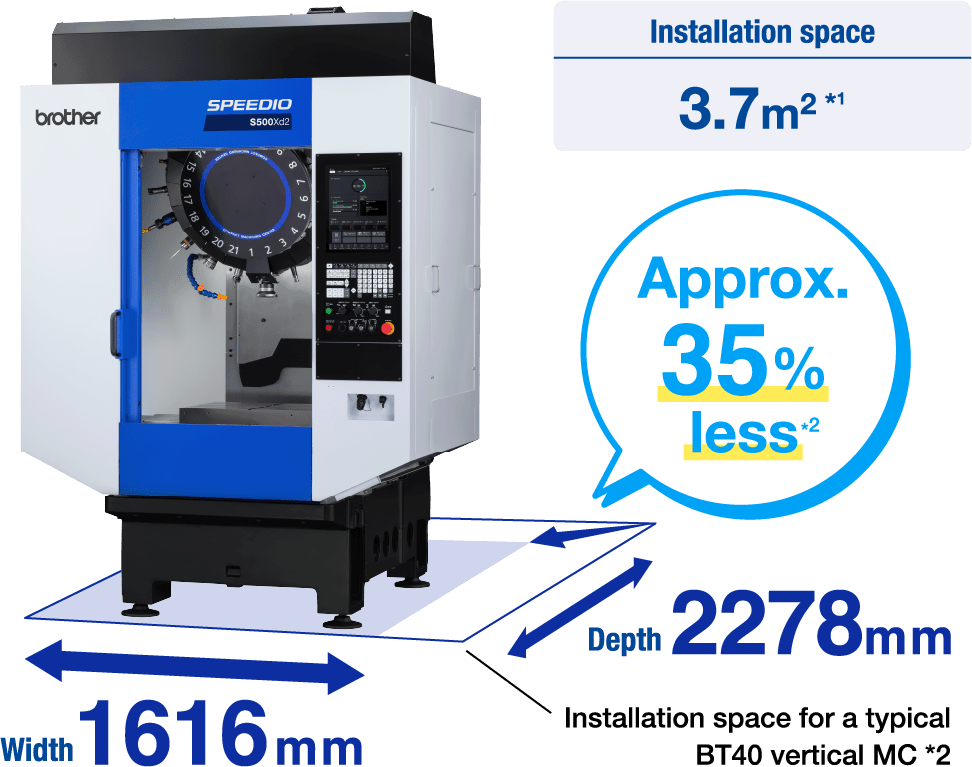

Compact size that
makes effective
use of limited
on-site spaceCompact and with
fewer restrictions
on installation locations*1 Dimension including coolant tank
*2 Compared to BT40 vertical MC with equivalent travels
*1 Dimension including coolant tank

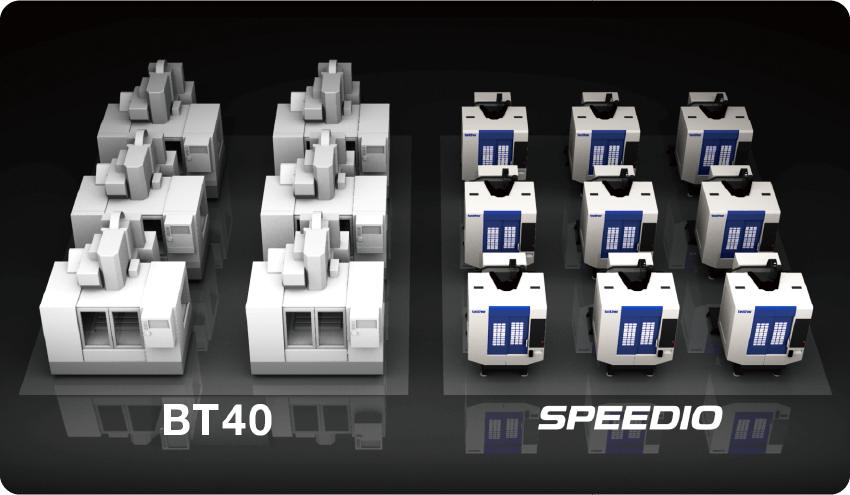

*2 Compared to BT40 vertical MC with equivalent travelsThree SPEEDIO units
can be installed in the space
of two BT40 machines
-

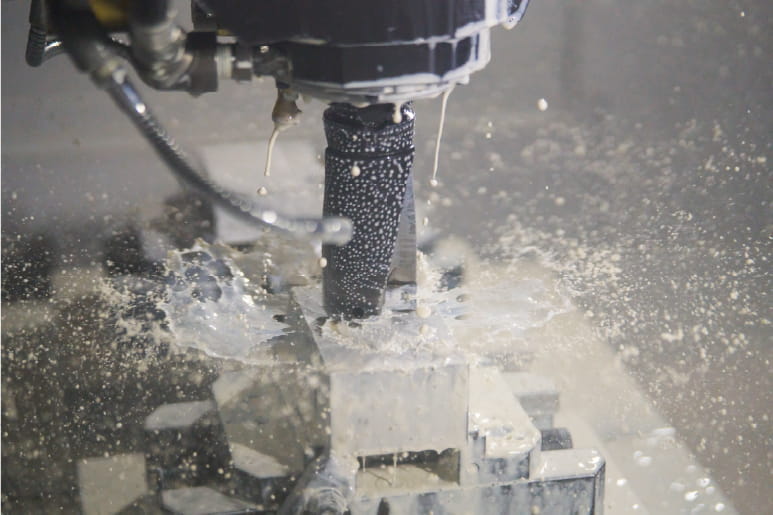

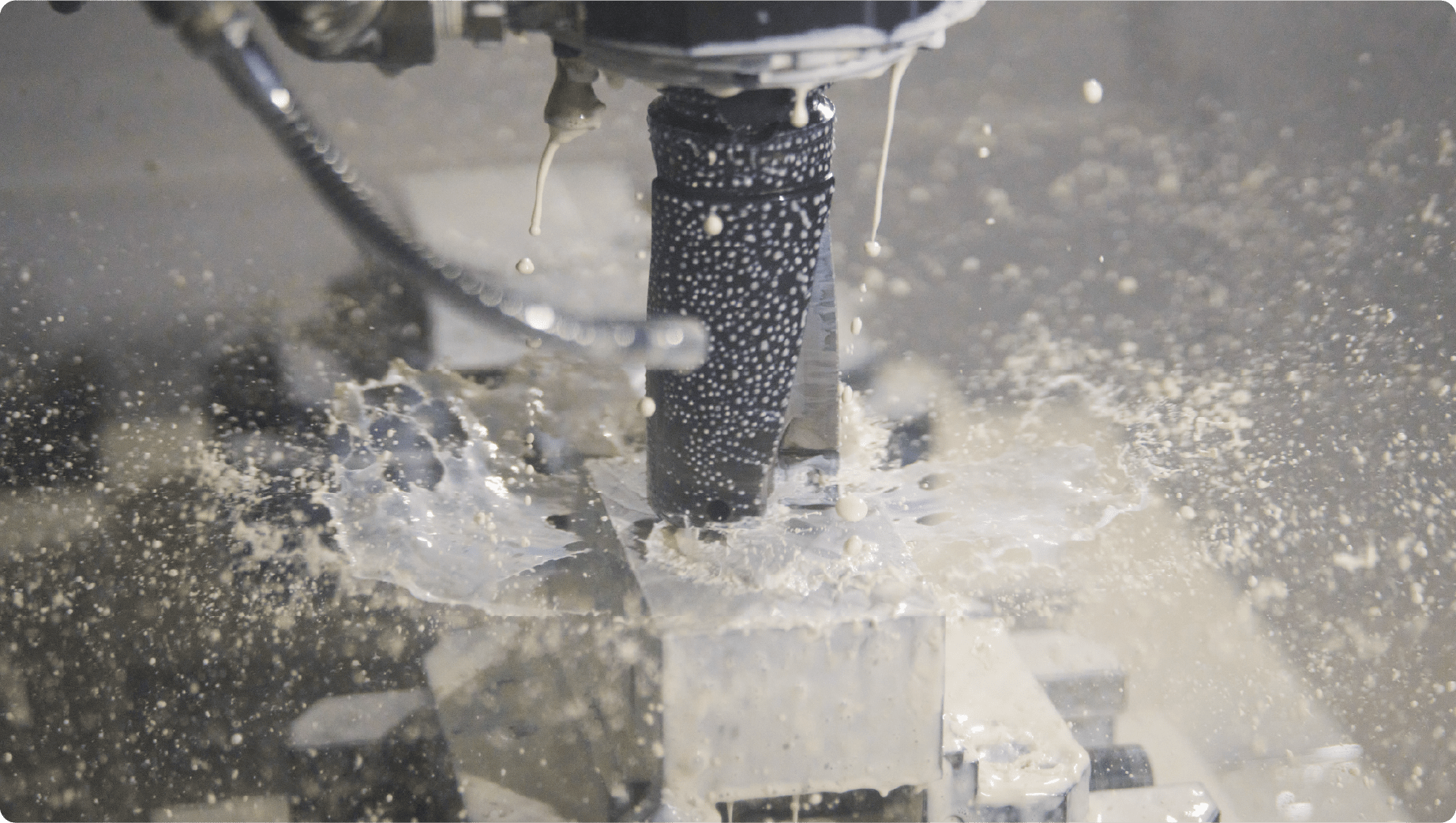

Strength #3
High-level cutting
performance
that defies the image
of BT30 machinesThe highly rigid machine structure and high-power spindle motor enable
a wide range of machining
from high-efficiency machining to heavy-duty machining.
Demonstration video of the M33P3.0
tapping on steel (S50C).
Check SPEEDIO's cutting ability!
Anyone can use
with confidence
With intuitive NC controls, anyone can operate SPEEDIO easily, reducing the risk of trouble.
In addition, enhanced functions help prevent machine downtime and machining defects.
Even first-time users can use SPEEDIO with confidence.

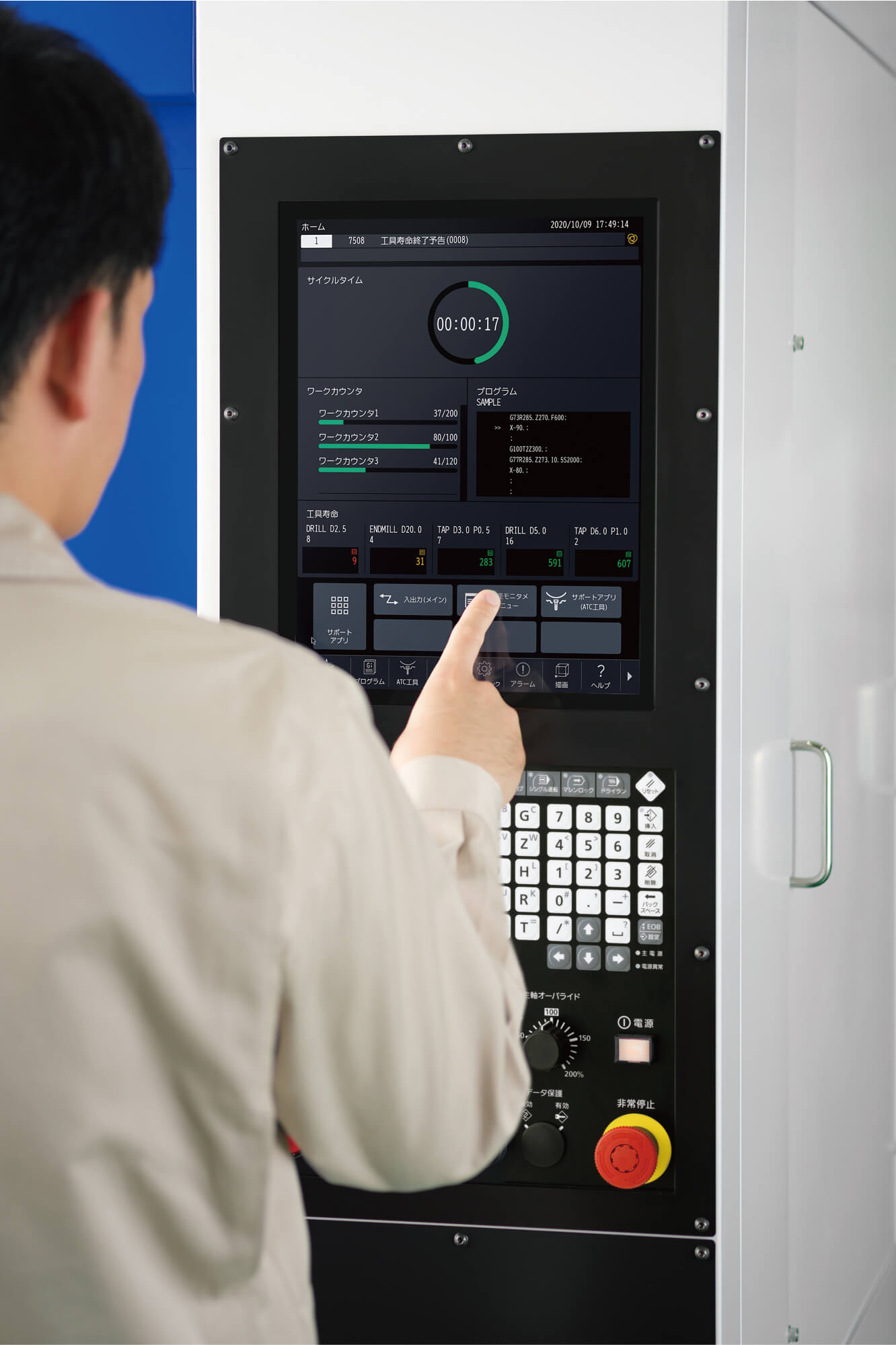

Intuitive NC enables
easy operation for anyone,
reducing the risk of trouble
Easy-to-use apps and touch panels
promote the correct usage of
the machines and reduce the risk of trouble.

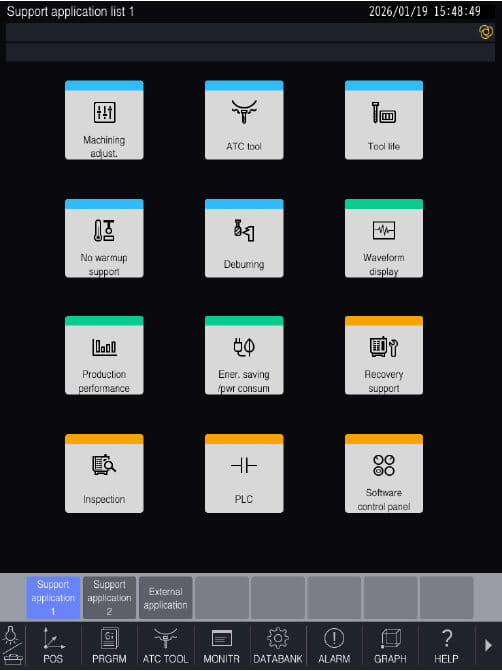

Intuitive operation
using touch panels
Large-screen touch panel and highly visible icon display.
It enables intuitive operation for anyone, reducing the operational errors.
Support apps for the
entire manufacturing
process
without complex operations
A variety of support apps are provided that require no complex operations, such as a machining parameter adjustment app that optimizes machining conditions and a recovery support app that enables restoration following guidance in cases of trouble.
- Customer Success Stories
-
SPEEDIO Is an Extremely
User-Friendly Machine
with Simple OperationsMIZUNAMI SEIKI Co., Ltd.
Enhanced functions
reduce machine downtime
and machining defects
to achieve stable production
Equipped with functions that can
prevent possible defects in daily
production sites, such as chip problems, tool abrasion,
omission of tool attachment, and
re-machining of the same workpiece.

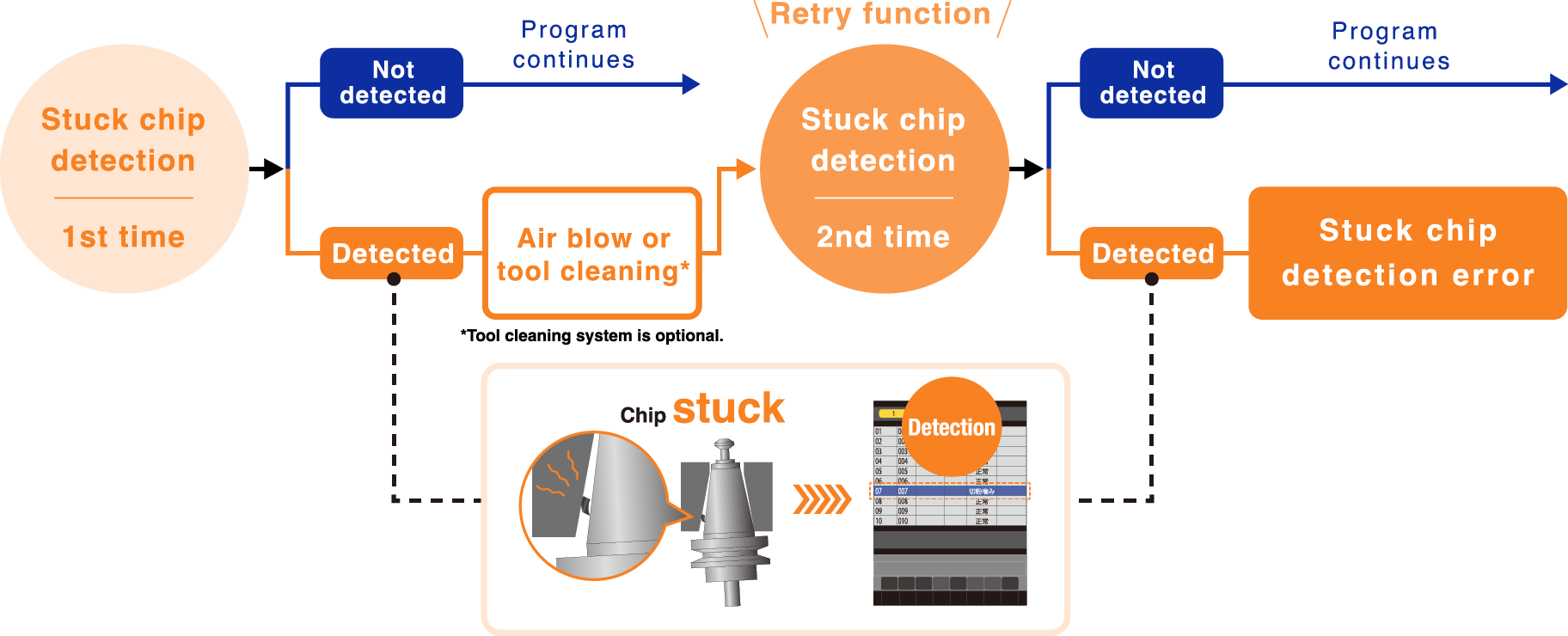

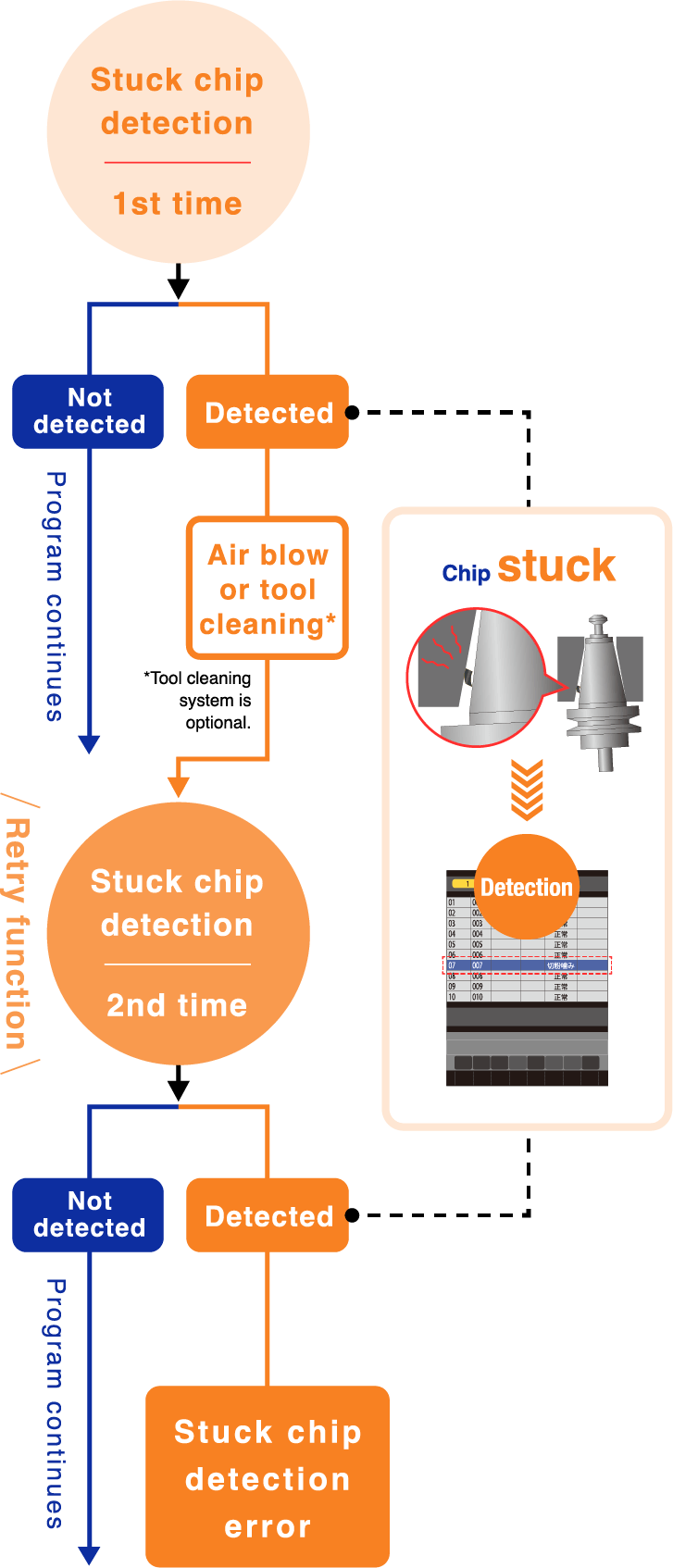

Stuck chip detection function
Detects the stuck chips that caught between the spindle and the holder during ATC without sensors,
preventing machining defects.
Troublesome short-period stoppages can also be reduced by automatically cleaning and retrying.
*Some models are not equipped with this function.
Please check the detailed information for each model.

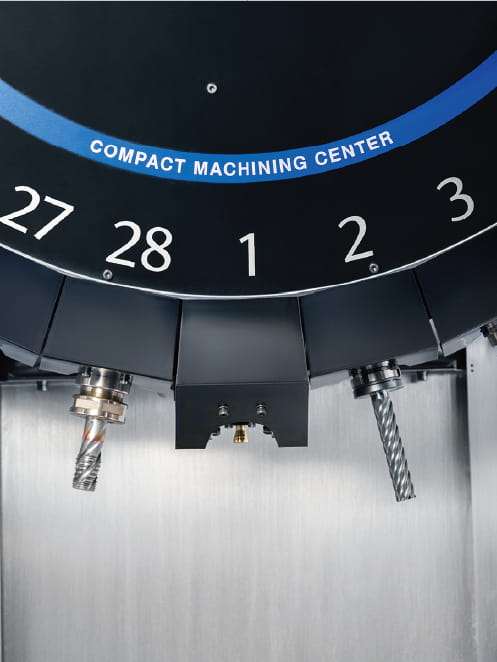

ATC tool monitoring
Checks the presence of a spindle tool before and after tool change, tool over key etc. without using a sensor.
*Not equipped on the R650Xd1 40-tool specification.
Spindle tool check

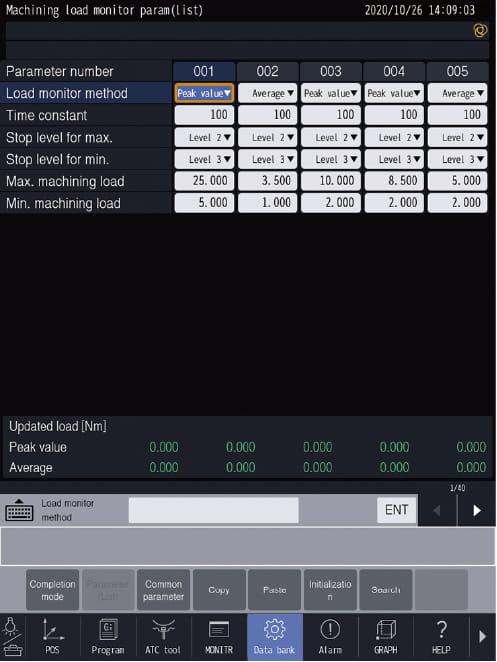

Machining load monitoring
Machining load applied to the spindle is monitored to issue an alarm when the load is not within the preset value.
Setting screen
Solid Track Record
Interview with a company maintaining
stable production with SPEEDIO.
- Customer Success Stories
-
Nearly 100 units installed,
backed by immense trust
in evolving performanceTAIYO CO., LTD.
-
POINT 1
Zero defects
after installing
the rotary table! -
POINT 2
Enhanced operational
efficiency
with an intuitive interface! -
POINT 3
Machine structure
designed for
easy maintenance!

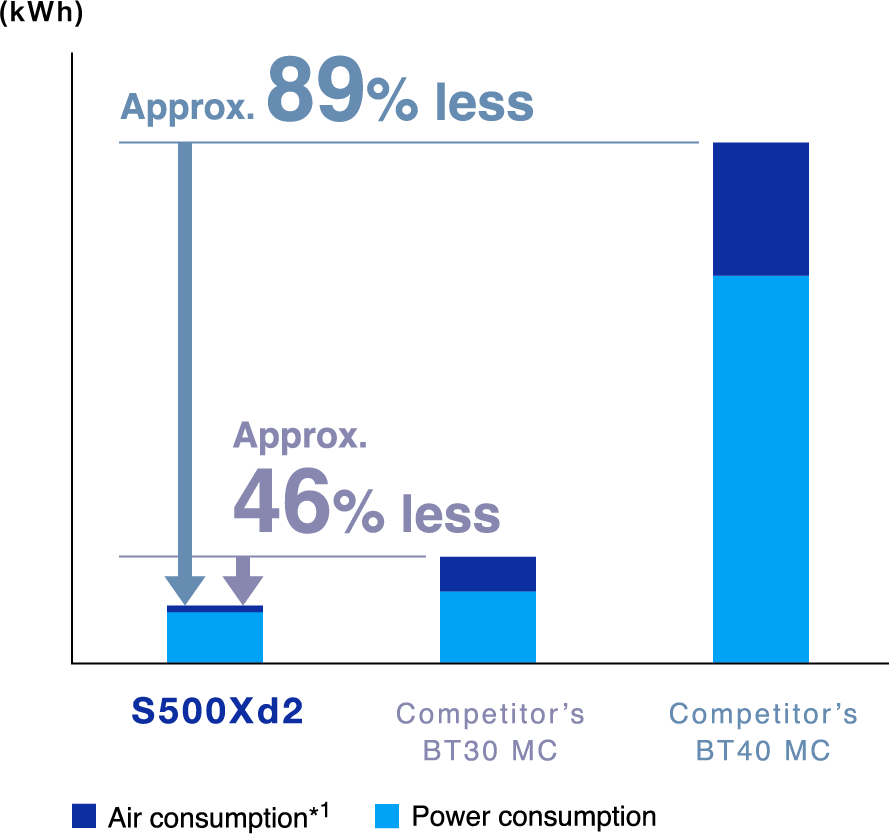

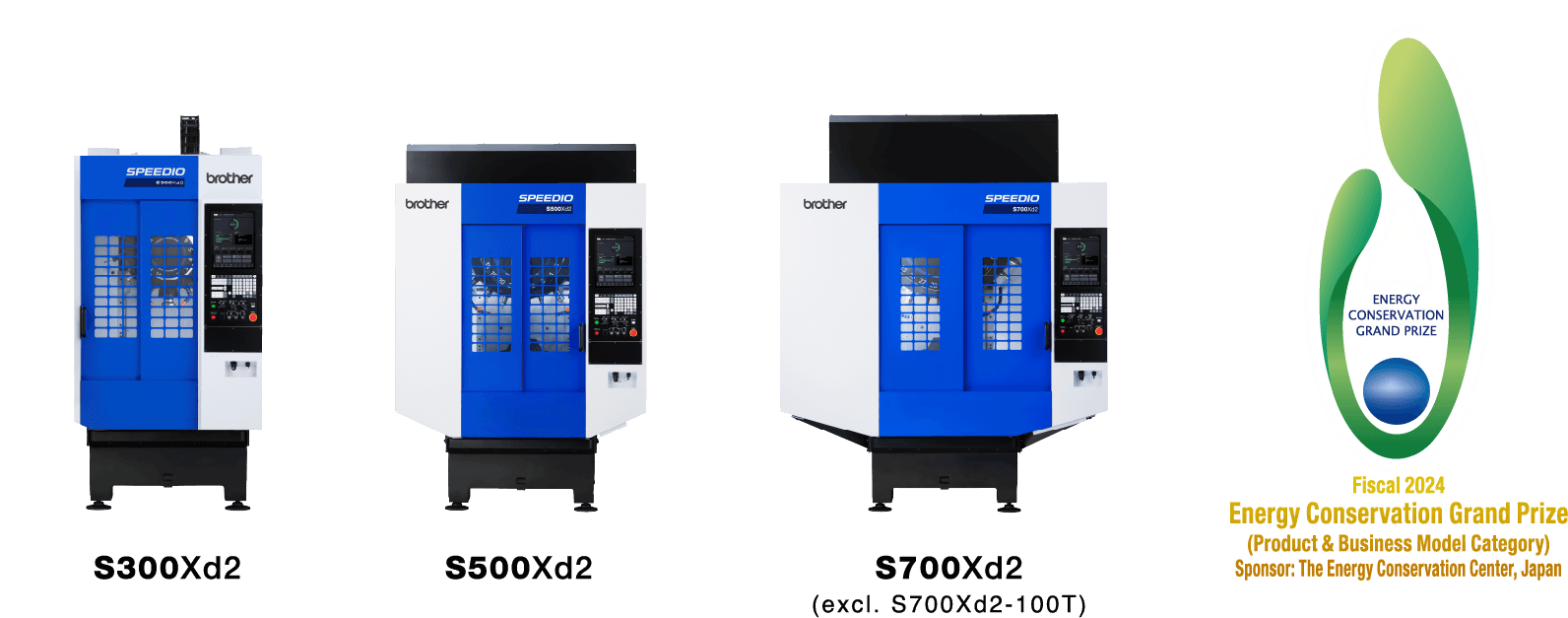

SPEEDIO Blue Technology
eliminates
all waste to
achieve high energy
efficiency
Optimal design eliminates all
waste, including excessive power
consumption and air flowrate,
achieving industry-leading
energy-saving performance.
-
*1 Value when air converted to power

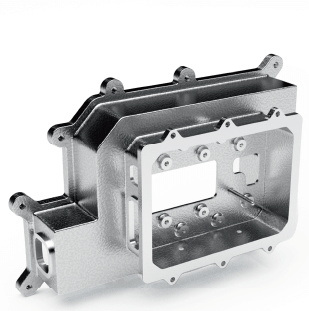

*This is an example of an inverter case machined with SPEEDIO. -
■Machining conditions
- Machining program

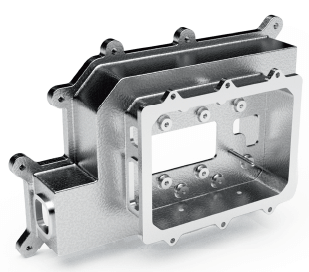

- Inverter case
■Main machining details
- Facing
- D50 face mill and others
- Drilling
- D4.0 drill and others
- Milling
- D20 end mill and others
- Tapping
- M5 x 0.8 tap and others
■Machined image
For more details, click here
Extensive lineup
to meet
a diverse range of needs
SPEEDIO offers an extensive lineup to meet diverse machining needs,
such as the high-speed machining of aluminum, the heavy-duty machining of steel,
machining for large and small workpieces, and even multi-face machining
and complex machining by turning and milling.
-
A variety of
materials
-
A variety of
sizes -

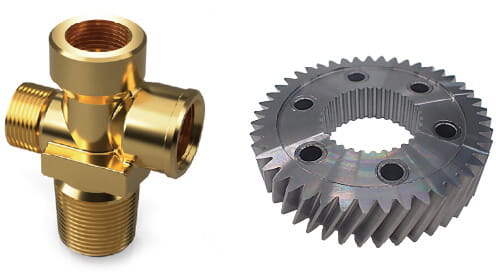

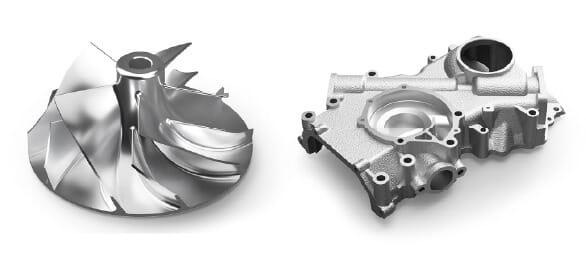

A variety of
machining
-

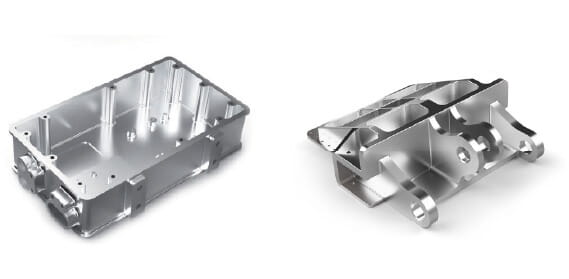

High-speed machining
of aluminum
-
Resin
-

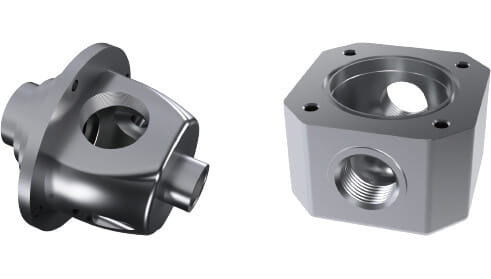

Heavy-duty machining
of steel
Product Lineup
Find the best machine
for your needs.
-
Looking for a standard
model
that combines
high productivity and
energy efficiency?01
-

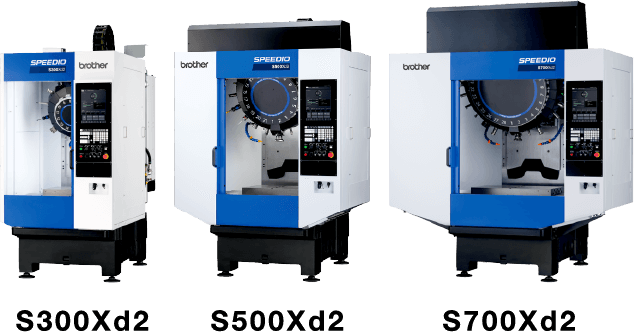

“Recommended Solution:
The S series”Standard vertical model featuring
high productivity and
energy efficiency
-
Looking for a machine
that can handle large
workpieces?02
-

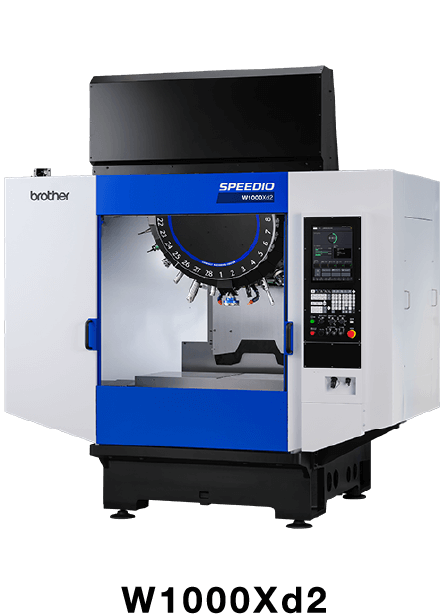

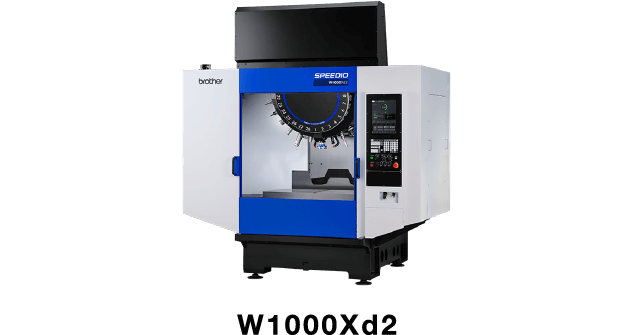

“Recommended Solution:
The W series”Wide model offering the largest
machining area among
BT30 machines

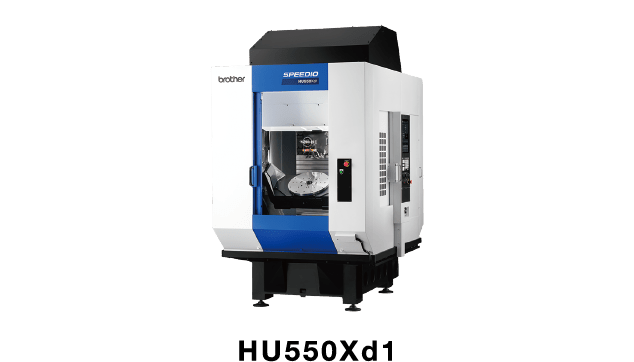

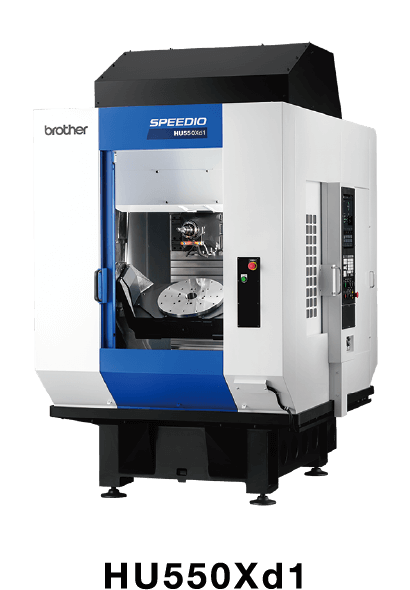

“Recommended Solution:
The HU series”Horizontal model with
a tilting rotary table
with a jig area of ø680 mm
-
Looking for a multi-face
machine
capable of
machining complex
shapes?03
-

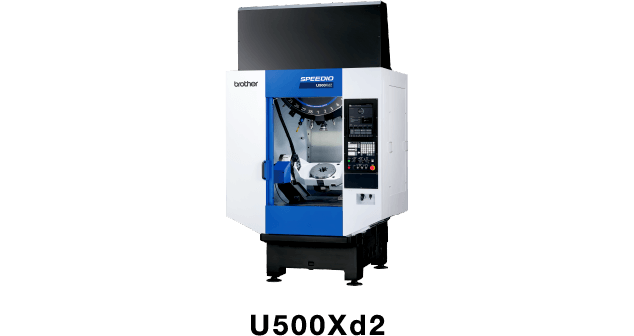

“Recommended Solution:
The U series”Multi-face machining center with
a tilting rotary table with
a jig area of ø500 mm
“Recommended Solution:
The HU series”Horizontal model with
a tilting rotary table
with a jig area of ø680 mm “Recommended Solution:

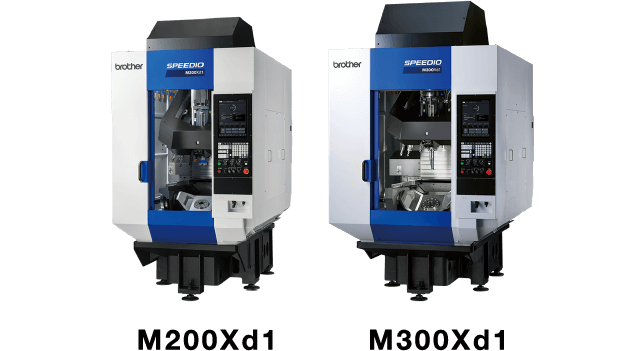

The M series”Multi-tasking machine
capable of turning
and milling in a single setup
-
Looking for
a horizontal machine
with a large jig area?04
-

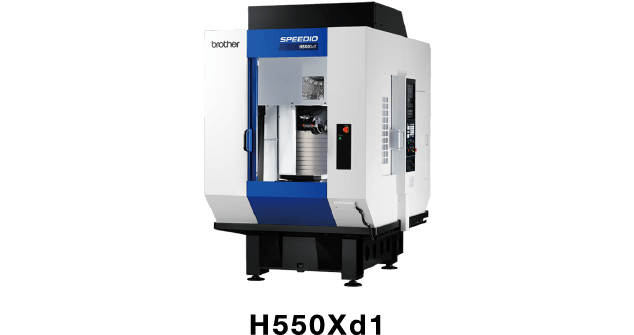

“Recommended Solution:
The H series”Compact horizontal
4-axis model
with ample jig area
“Recommended Solution:
The HU series”Horizontal model with
a tilting rotary table
with a jig area of ø680 mm
-
Looking for
a multi-tasking machine
capable of both turning and
machining?05
-

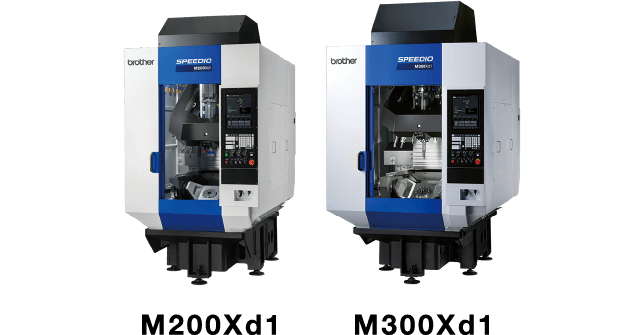

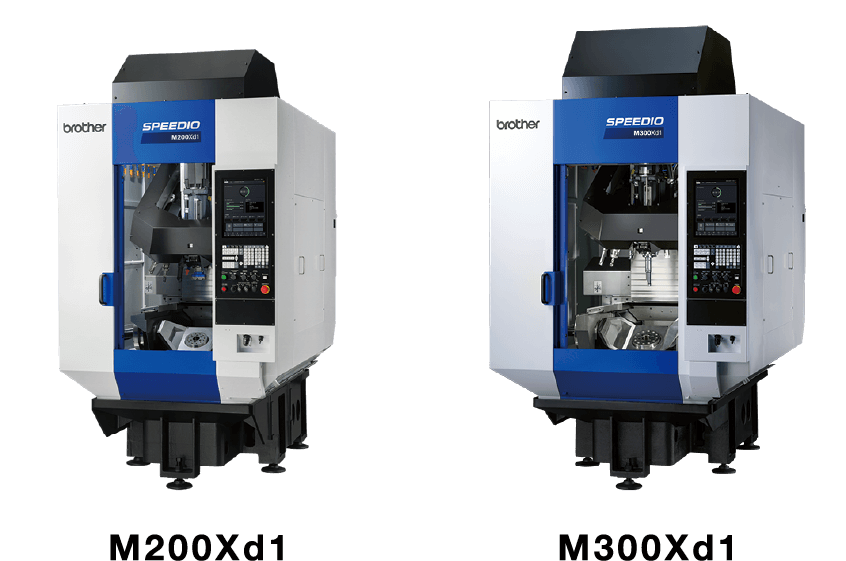

“Recommended Solution:
The M series”Multi-tasking
machine capable of turning
and milling
in a single setup
-
Looking to reduce
setup time without
interrupting production?06
-
Looking for a machine
with a large tool capacity?07
-

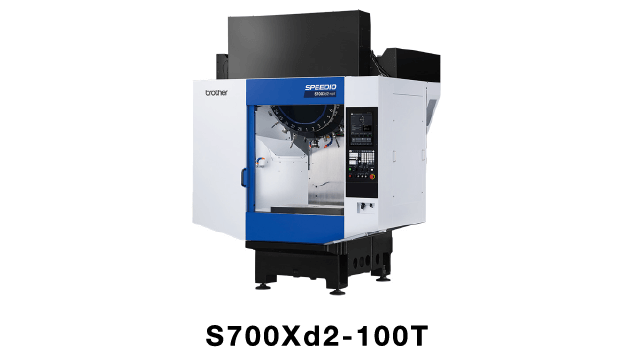

“Recommended Solution:
The S700Xd2-100T”Compact yet highly productive
100-tool magazine model

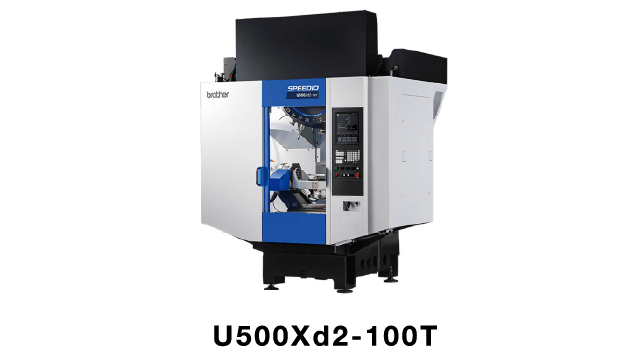

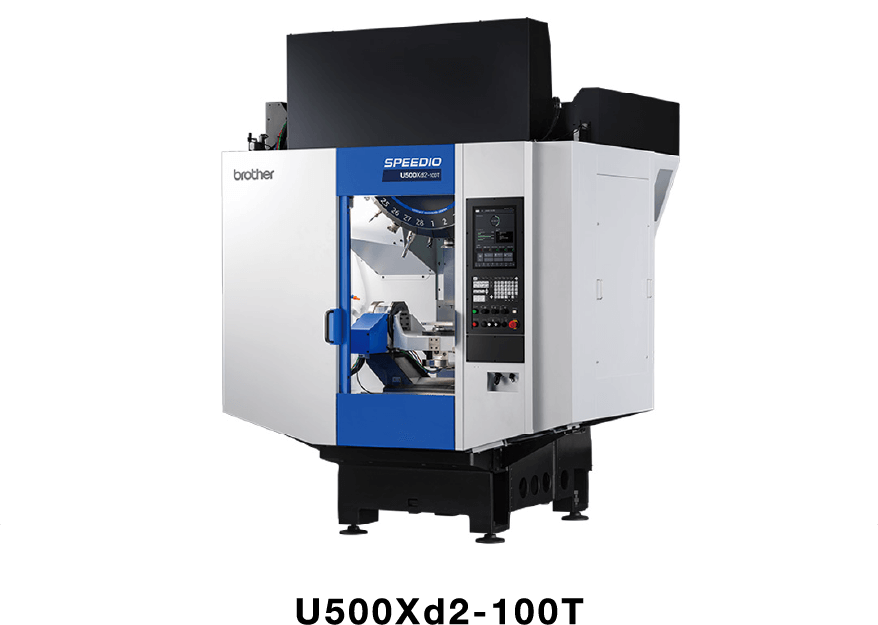

“Recommended Solution:
The U500Xd2-100T”100-tool magazine model with
a tilting rotary table
with a jig area of ø500 mm
