Solves Four
Waste Elements

Wasted Time Reduction

The lightweight and low-inertia features of BT30 machines and our original NC drives machine performance to the fullest.
All possible wasted time is reduced by shortening machining cycle time, improving efficiency of setup work,
and supporting recovery from downtime.

Reduction in cycle time
Reduction in setup time
Reduction in downtime

Reduction in cycle time

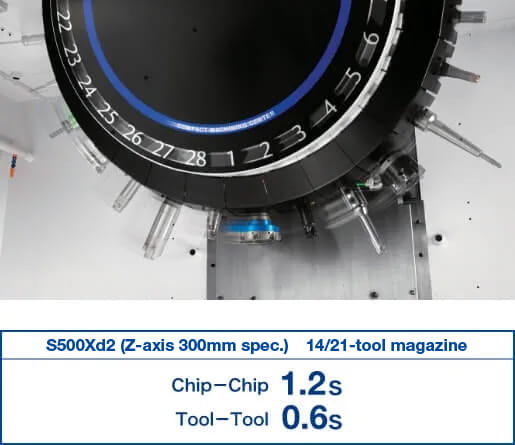

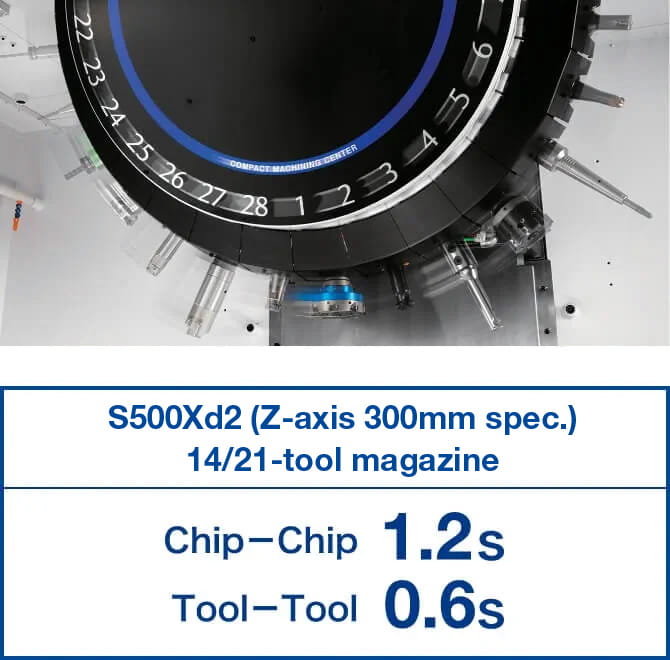

Non-stop ATC

High-speed tool change has been achieved by faster and optimized spindle start/stop, Z-axis up/down, and magazine operation.

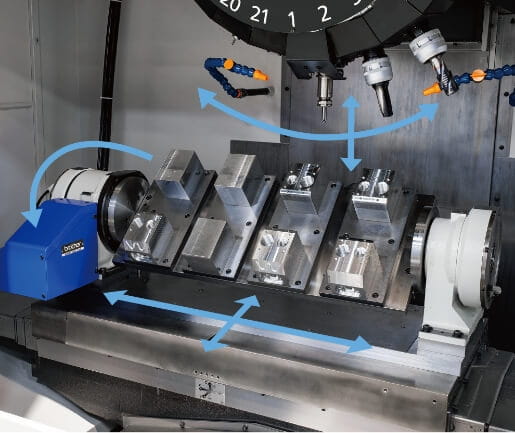

Simultaneous operation control

Reduction in non-cutting time has been achieved by simultaneously performing tool change and positioning X/Y and additional axes.

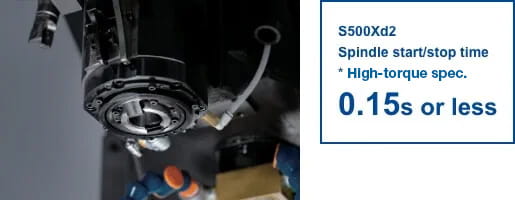

High acceleration/
deceleration spindle

Using a low inertia spindle and high acceleration/deceleration spindle motor has achieved faster spindle start/stop.

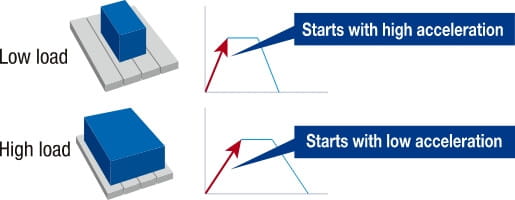

Optimal X/Y axes
acceleration setting

This function sets the optimal acceleration for X/Y axes according to the table loading capacity.
High acceleration Z-axis

As the Z-axis moves frequently, the highest acceleration in its class has been achieved, contributing to reduction in cycle time.

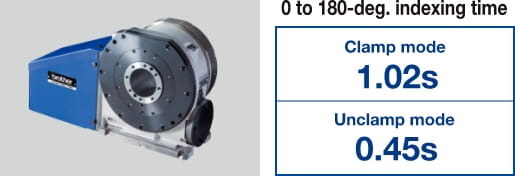

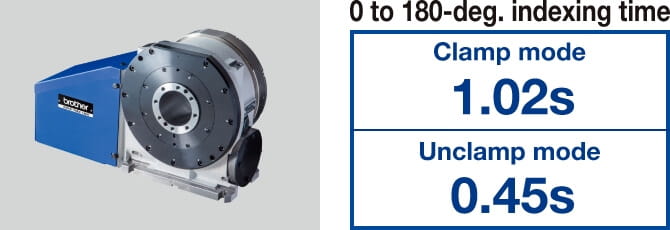

Rotary table T-200Ad
(optional)

Contributes to further improve productivity in multi-face machining. Use of the roller gear cam mechanism achieves high productivity, high accuracy, and extended service life.

Reduction in setup time

CNC-D00 control^*1 in our quest for usability

Intuitive operation with new apps and 15-inch vertical LCD touch panel screen.

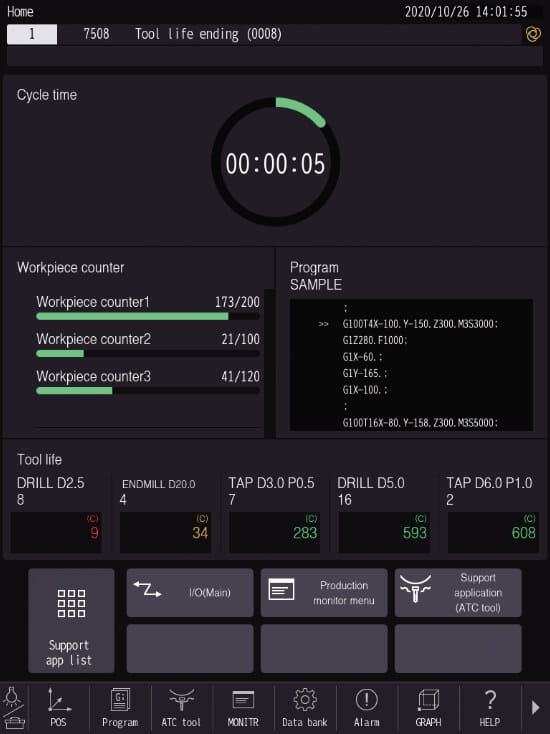

Home screen^*2

Created a new home screen that serves as the start point of all operations. Data necessary for mass production is unified. Screens can be customized.

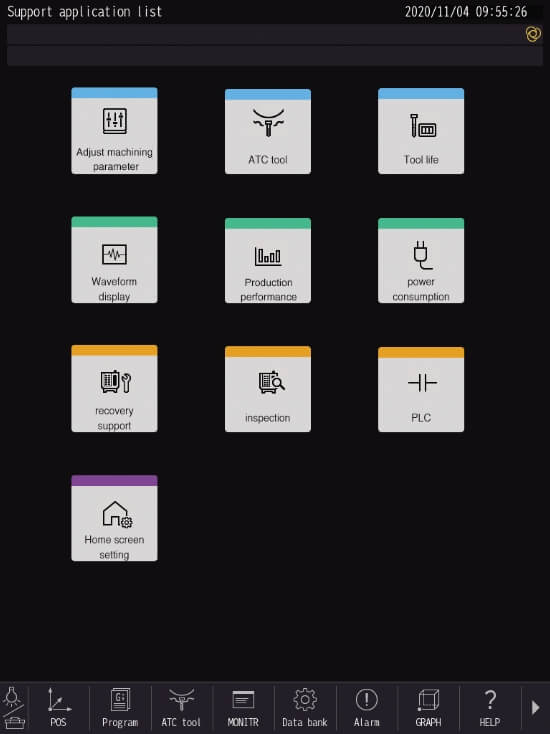

New user interface^*2

Usability has been greatly improved by grouping relevant functions, creating new support apps that are intuitive with improved operability and visibility, providing useful accessories (calculator, notebook, file viewer etc.), and making operation on conventional screens possible on the touch panel.

Efficient setup possible before machining Reduction in cumbersome setup procedure

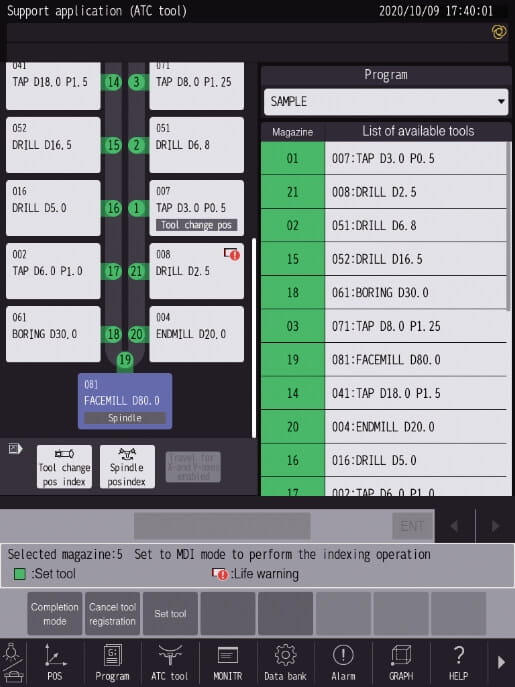

ATC tool app^*2

You can easily perform magazine tool registration, tool data editing, and magazine tool removal/attachment operation on one screen.

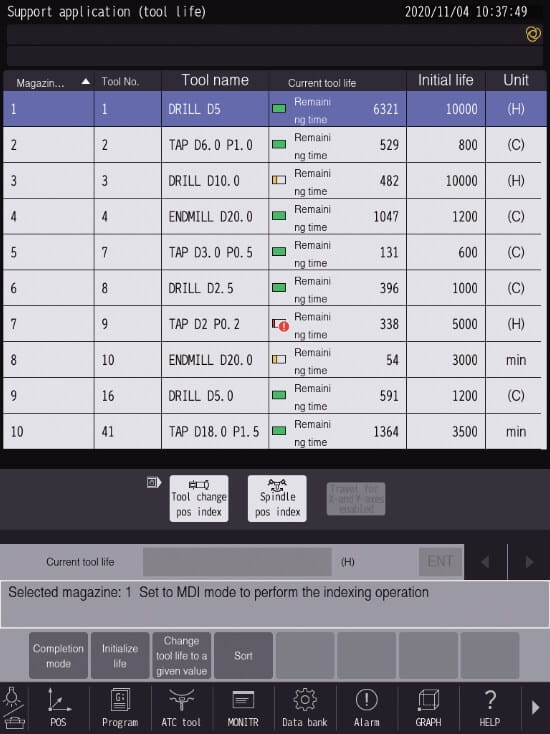

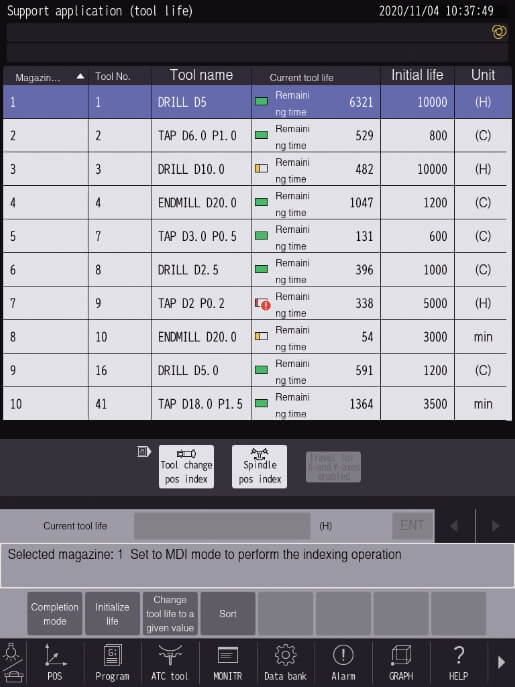

Tool life app^*2

You can set and edit the magazine tool life. Tools are displayed on the home screen in the order from the shortest life, making replacement preparation easier.

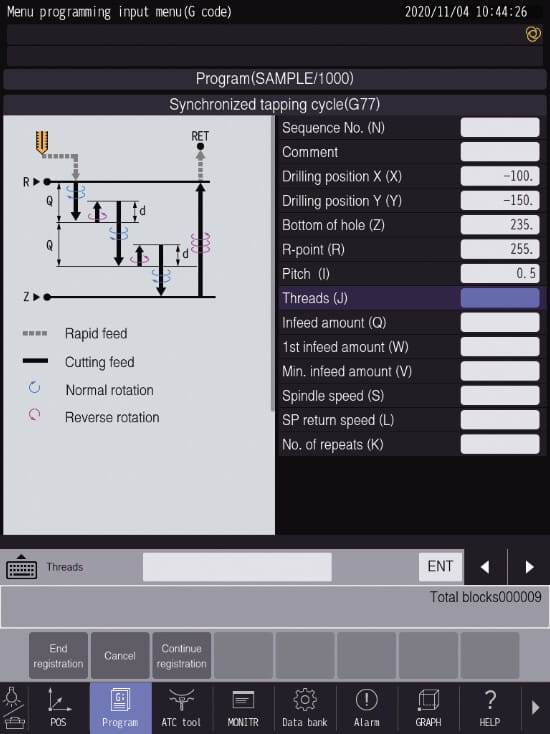

Menu programming

You can simply enter G/M codes for each item while viewing instructions on the display.

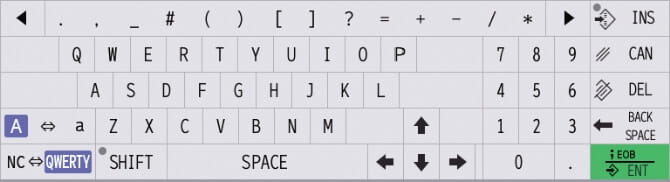

- Keyboard^*2

  Using the same QWERTY keyboard as that for personal computers makes data entry easier.
- Help key

  Displays how to operate the current screen or parameter contents with one touch.
- Memo pad / Calculator /
  File viewer^*2

  A variety of accessories that assist setup are provided. The file viewer allows you to display the manual or desired pdf files.

Reduction in downtime

Reduction in downtime through reliable control

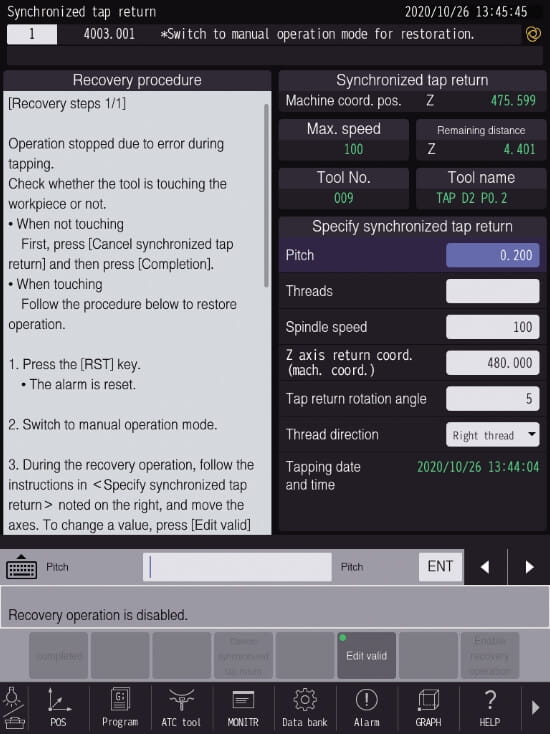

Recovery support app

Recovery work instructions are displayed to reduce machine downtime.
- Tap return
- Automatic door adjustment
- ATC recovery
- Storing program alarm
  position^*2

  The position when an alarm was issued is automatically stored. The program can restart from that position.
- Automatic backup^*2

  NC programs, databank, and PLC are backed up in USB memory. This makes recovery smooth in the event of an accident.
- Alarm log

  Alarm log details are displayed and used to identify the cause.
  No. of alarm logs: 2,000
