Wasted Installation Space Reduction

Compact design allows machines to be installed efficiently even in limited space.

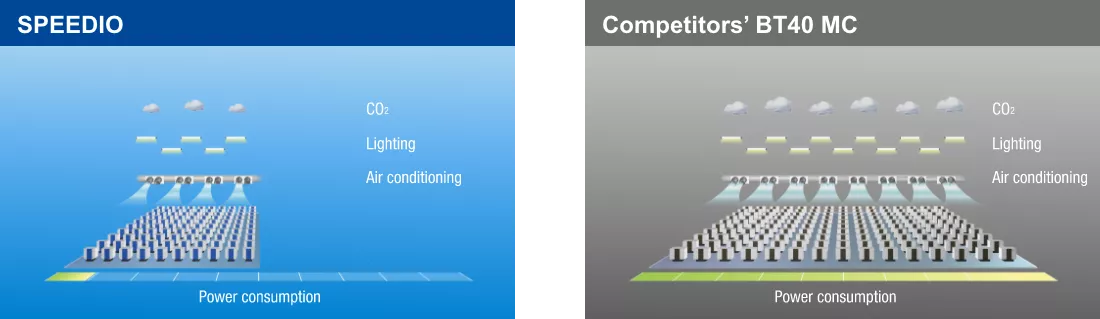

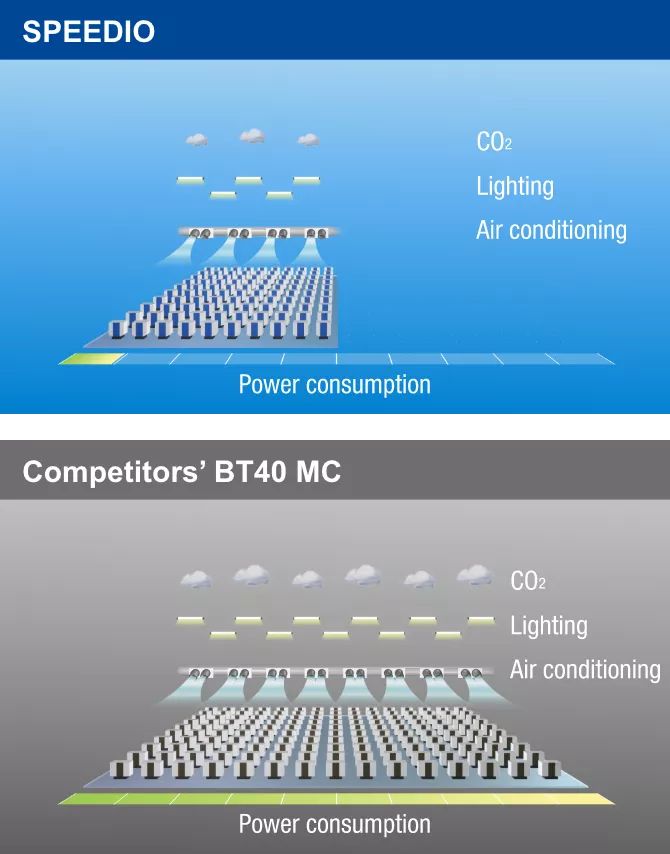

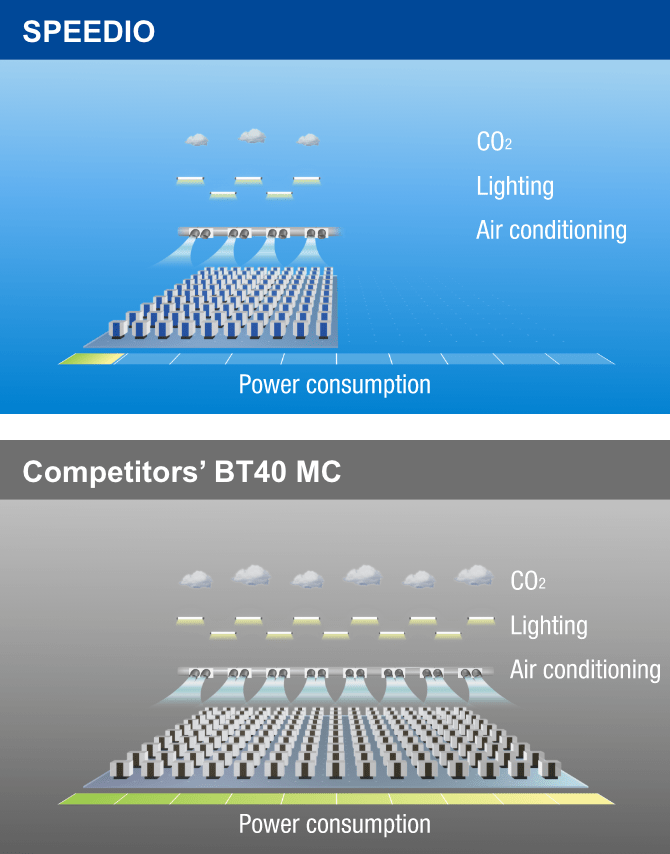

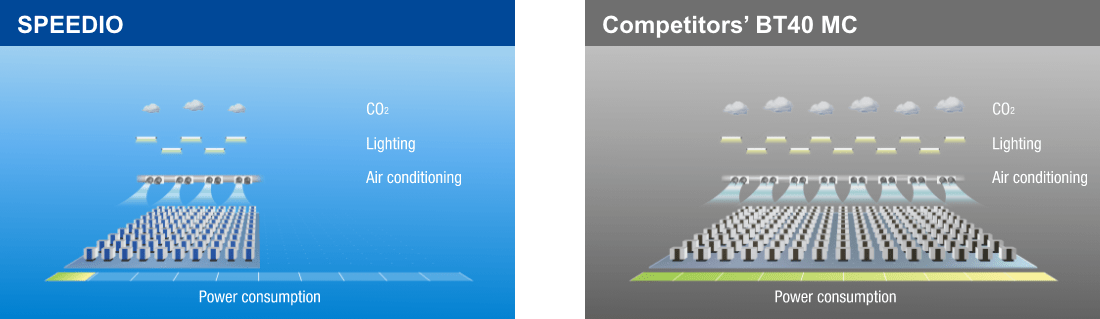

When building a new factory, the floor space can be reduced, which requires less lighting and air conditioning, leading to factory-wide energy saving.

•

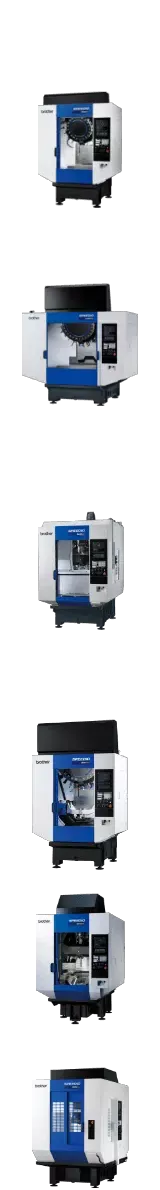

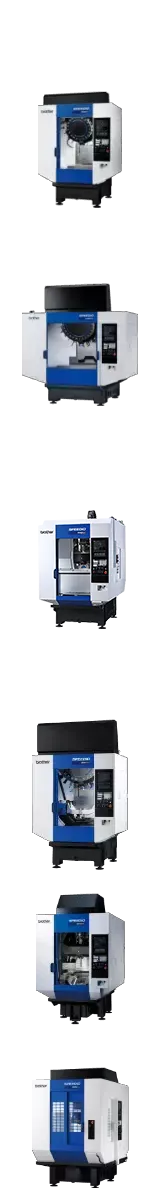

  A wide range of SPEEDIO series is available to meet customers' purposes.
  With an extensive lineup that further expands the possibilities of BT30 machines, we provide customers with optimum waste-free solutions.

• Model			Travels (mm)			Required floor space (mm)
  			X	Y	Z	Width	Depth
  	Best selling	S300Xd2	300	450	300	1,080	2,161
  		S500Xd2	500	450	300/380*	1,560	2,081
  		S700Xd2	700	450	300/380*	2,050	2,081
  	Wide travel	W1000Xd2	1000	500	380	2,410	2,233
  	Pallet changing	R450Xd1	450	320	305	1,400	2,609
  		R650Xd1	650	400	305	1,830	3,029
  		R650Xd1 40-tool spec.	650	400	435	2,145	3,029
  	Universal	U500Xd2	500	450	380	1,560	2,081
  	High rigidity	F600X1	600	400	350	1,800	2,418
  	Multi-tasking	M200Xd1	200	440	305	1,280	2,667
  		M300Xd1	300	440	380	1,520	2,667
  	Horizontal	H550Xd1	550	400	400	1,557	2,743

  *When Z-axis 380 mm spec. (optional) is selected
