Pneumatic Equipment Parts Machining Industry and Features of SPEEDIO
Pneumatic equipment is a device that compresses air with an air compressor and uses it as a power source. It has been used in many factories around the world for many years. Multiple Japanese manufacturers are competing for the market share in this field, accounting for the world's top-class share.
Demand for conveyance equipment, general machinery, part-holding or part-grasping devices, industrial equipment, and production site equipment is expected to rise even more in the future.
SPEEDIO is a BT30 machining center suitable for machining aluminum parts for pneumatic equipment parts, multi-tasking, and process integration.
28-Tool Magazine (S500Xd1)
In addition to 14- and 21-tool magazines, a compact drum type 28-tool magazine with maintained high-speed tool change performance has been newly developed. The maximum tool weight has been improved to 4 kg (8.8 lbs) .
Improved Cycle Time
・Faster ATC movement
・Shortened processing cycle
・Faster canned cycle
・High speed tap return

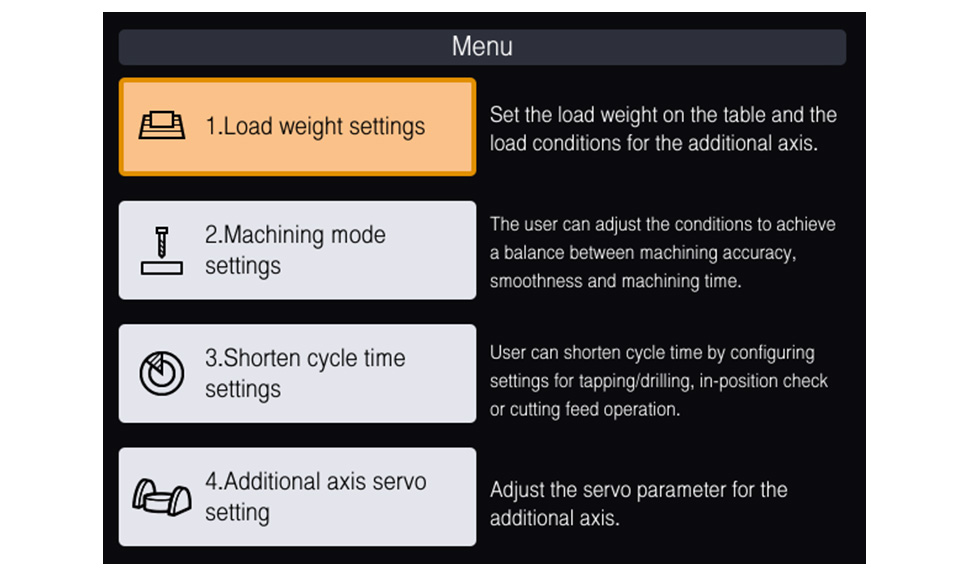

Machining Parameter Adjustment App
Optimized acceleration settings based on table load weight, adjustment for machining accuracy and surface quality, and optimized settings for tapping and hole machining can be easily made.

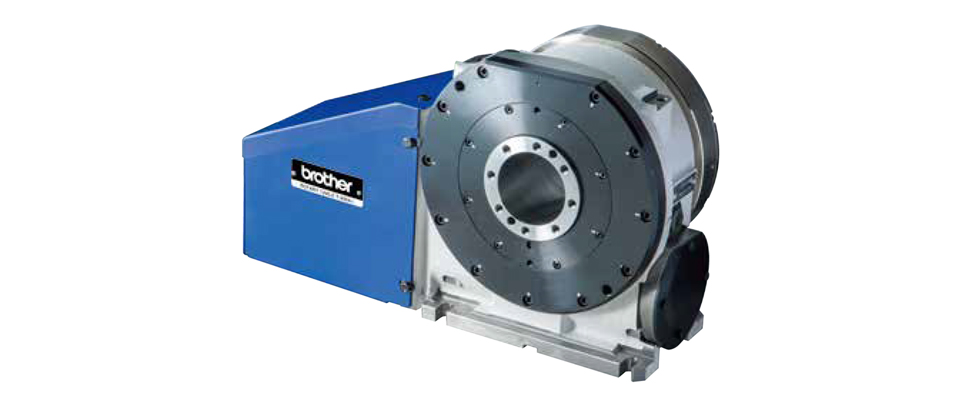

Rotary Table T-200Ad
A roller gear cam mechanism is used. Compared to a worm gear type, faster index machining is possible with higher accuracy. Optimal for process integration on the SPEEDIO.

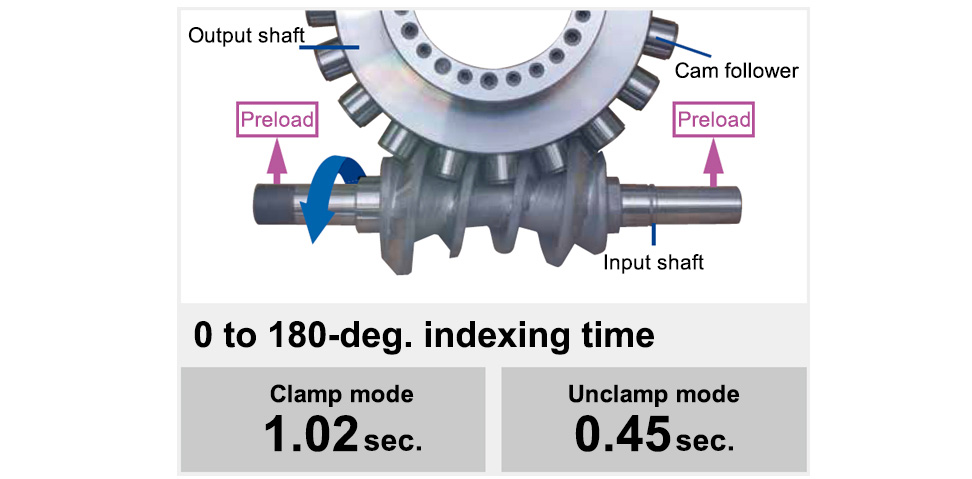

Roller Gear Cam Mechanism
By preloading the input and output shafts beforehand, the four cam followers are always kept in contact with the cam surface, eliminating backlash and providing high rigidity. In addition, the cam followers that rotate can transmit the motor torque efficiently, and therefore, they can rotate at low torque and be used for a long term, without wear and adjustment.
Pneumatic Equipment Workpieces Applicable to SPEEDIO
Parts |
SCompact Machining Center
|
WWide Travel Compact Machining Center
|
UUniversal Compact Machining Center
|
RPallet Changing Compact Machining Center
|
HHorizontal Machining Center
|
MMulti-Tasking Machining
|
||||
|---|---|---|---|---|---|---|---|---|---|---|

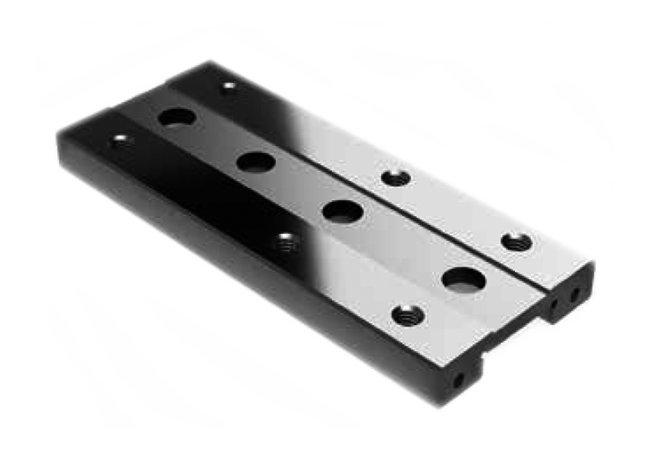

Pneumatic cylinder (table)300 × 75 × 20 mm |
〇 | 〇 | 〇 | |||||||

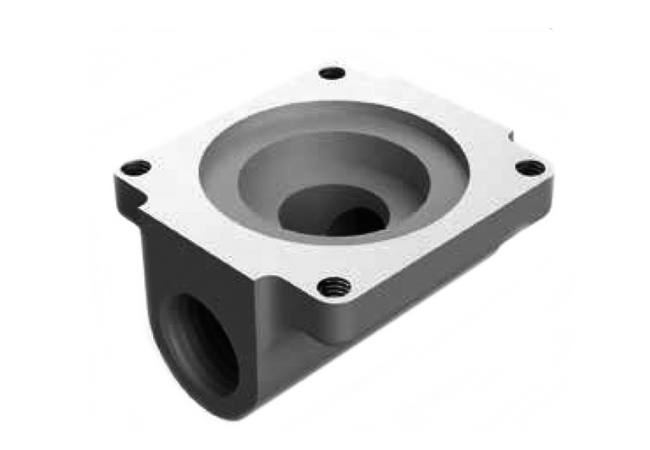

Solenoid valve (body)50 × 35 × 35 mm |
〇 | |||||||||

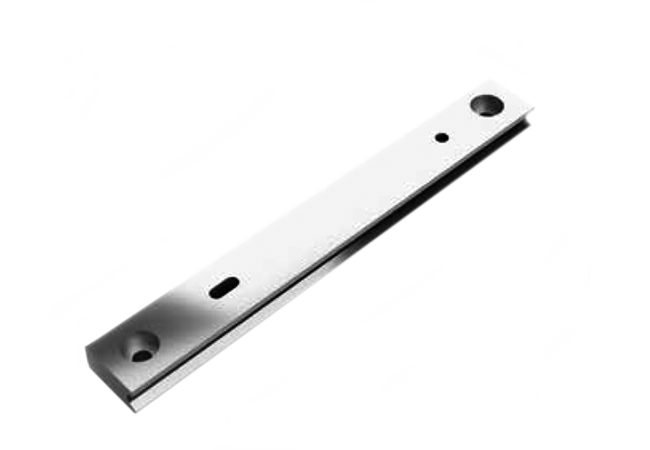

Gripper (with guidance rail)100 × 9 × 6 mm |
〇 | 〇 | 〇 | |||||||
Product Model
Machining Center
Pneumatic cylinder (table)
300 × 75 × 20 mm
Solenoid valve (body)
50 × 35 × 35 mm

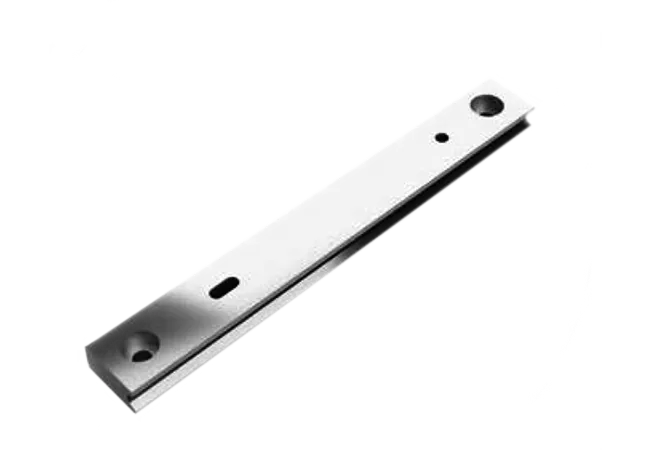

Gripper (with guidance rail)
100 × 9 × 6 mm
