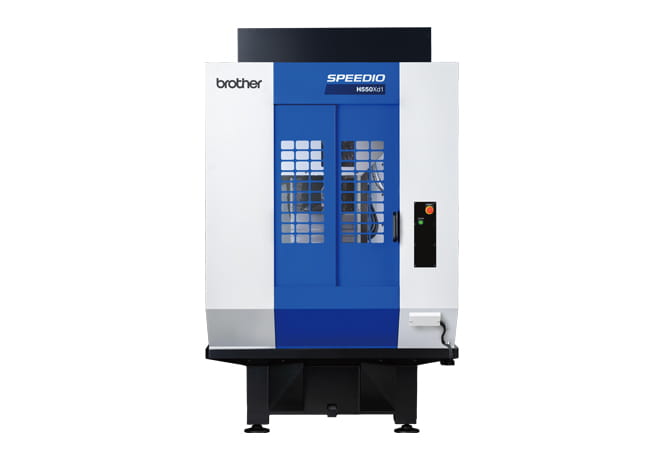

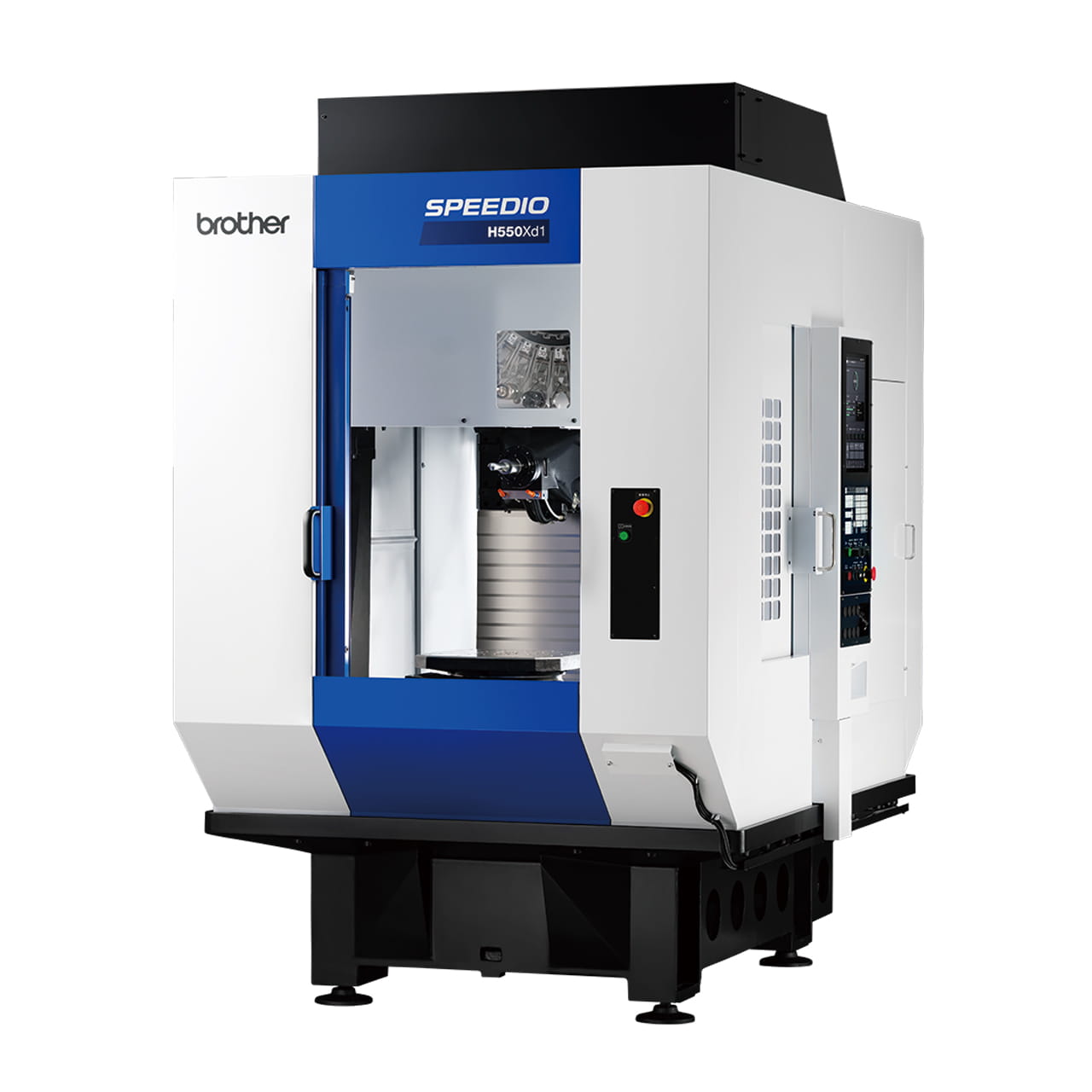

SPEEDIO H550Xd1
Horizontal Compact Machining Center
- Travels [mm (inch)]: X: 550(21.7) Y: 400(15.7)
- Travels (deg.): B: 360
- Max. spindle speed (min-1): 12,000/ (Optional) 20,000/ (Optional) 10,000 high-torque
- Tool storage capacity(pcs.): 30
[ BT30 Horizontal compact machining center ]
Compact horizontal 4-axis model with ample jig area
Delivers high productivity
in machining large or long workpieces
Information
Overview
This enables machining of large or long workpieces that was not possible on conventional BT30 machines.
Can be expanded to ø800 mm by moving the tool to a safe position, etc. *2
This enables a large or long workpiece to be mounted.
*1. Interference area is created depending on the tool length or tool diameter.
*2. The tool must be moved to a safe position when the B-axis rotates or the tool length is restricted.
*3. Dimension including coolant tank
*4. Compared to BT40 horizontal MC with equivalent travels
Installation space
4.7 m2 *3
The table size is 400 x 400 mm, and the maximum loading capacity is 400 kg. This enables handling of a heavy workpiece or jig while maintaining high-speed performance.
B-axis rotary speed
100min-1
Loading capacity
Max. 400kg

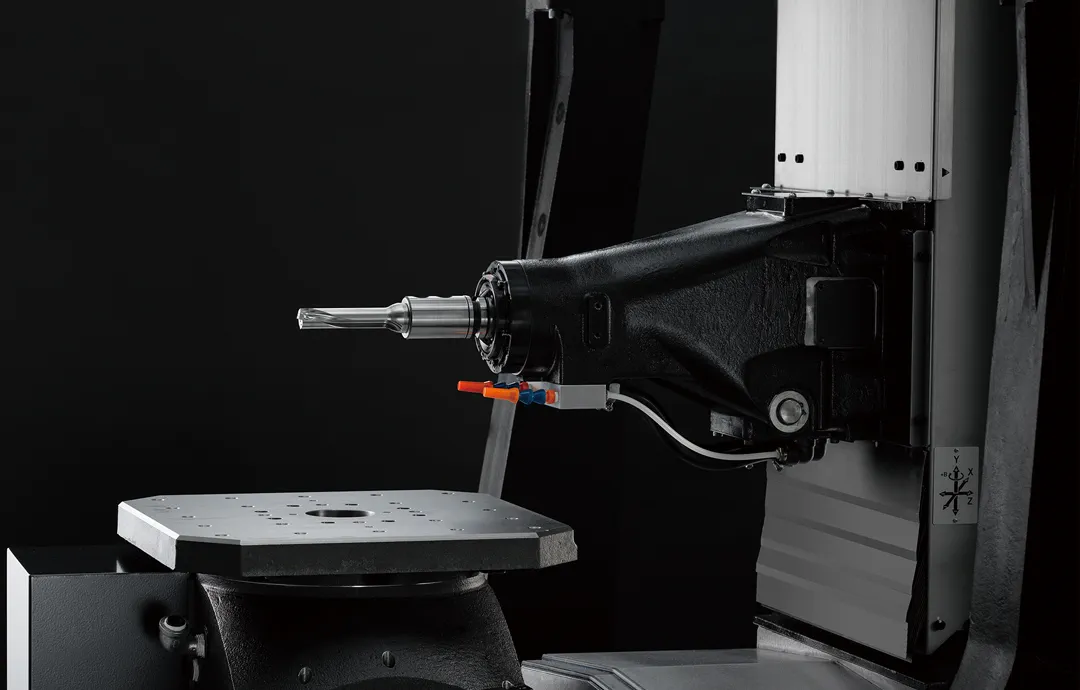

Supports maximum tool length of 250 mm, maximum tool diameter of 125 mm, and maximum tool weight of 4 kg, enabling a variety of machining, including long workpieces.
B-axis rotary speed
100min-1
Max. tool length 250mm
Max. tool diameter 125mm*5
Max. tool weight 4kg
*5. When attaching an adjacent tool, the total diameter of a tool and its adjacent tool must be less than 130 mm.

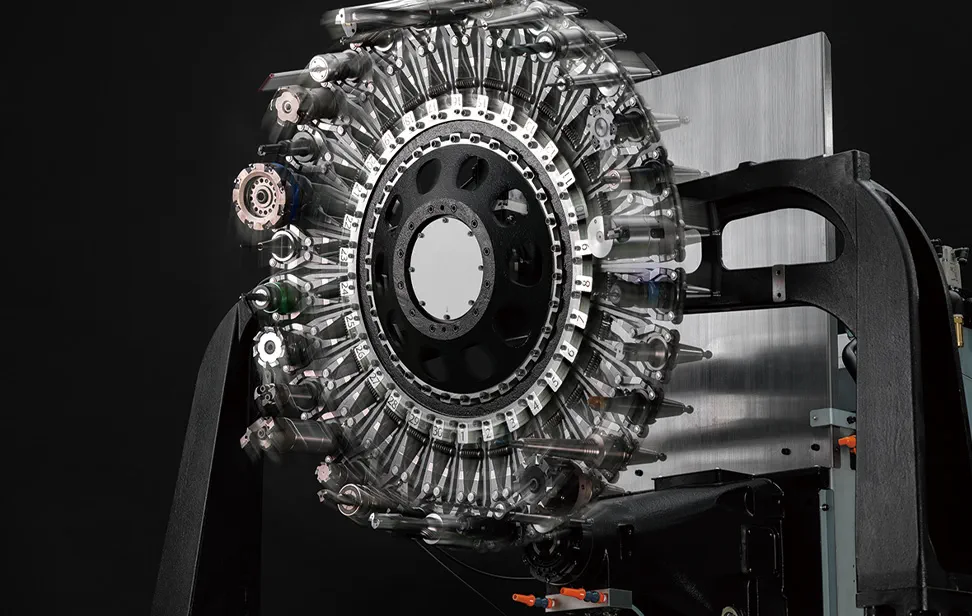

such as fast acceleration/deceleration spindle, faster and optimized tool change operation, and inertia estimation function.
Spindle start/stop time
0.15s or less *1
*1. Value of high-torque spec.

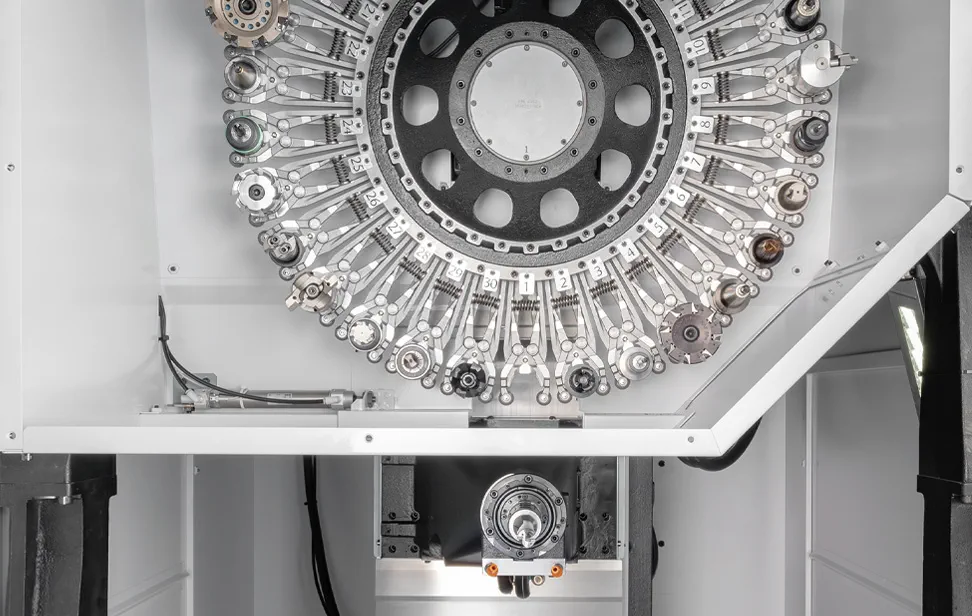

Tool change time
Tool - Tool : 1.3s
Chip - Chip : 2.7s
Wasted time is further reduced by simultaneously performing tool change and B-axis indexing.
In addition, machining can be performed only by the holding torque with motor without using the clamp mechanism depending on the machining load.
B-axis table indexing time *2
0→90° 1.0s
0→180° 1.1s
*2 Value in standard inertia mode
*3. Parameter setting needs to be changed.
Equipped with an original measurement processing function that reduces the number of actual measurements by a touch probe according to the size of displacement.
This eliminates the need for warmup operation, minimizing effects on productivity to achieve highly accurate machining.

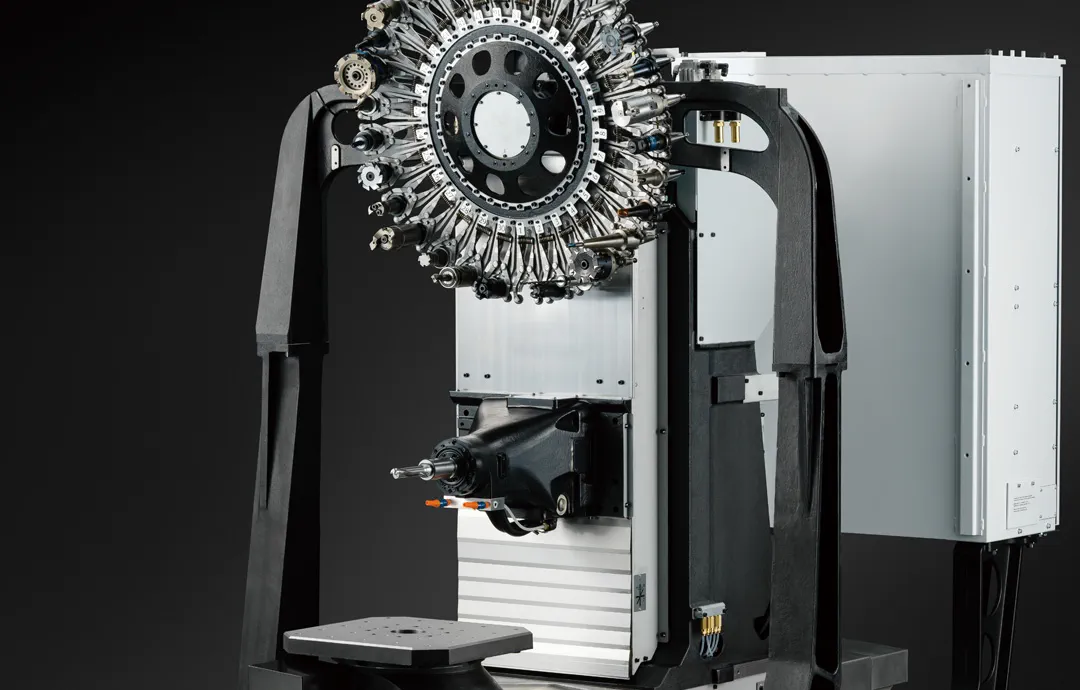

CAE analysis technologies accumulated through the development of the SPEEDIO series have achieved both high speed and high rigidity of the machine.
The machine demonstrates high machining capabilities as it supports a 7MPa high-pressure coolant system and is equipped with a B-axis table with high clamp torque.

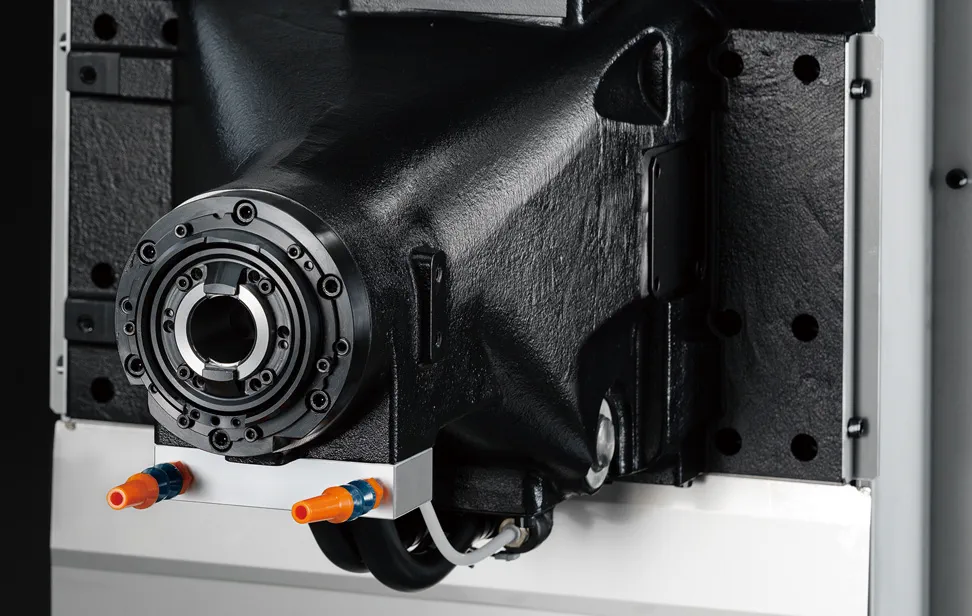

The machine is equipped with a highly efficient high-power spindle motor, including a newly developed 20,000 min-1 spindle motor, and newly developed highly rigid spindle.
CAE analysis technologies accumulated through the development of the SPEEDIO series have achieved both high speed and high rigidity of the machine.
The machine demonstrates high machining capabilities as it supports a 7MPa high-pressure coolant system and is equipped with a B-axis table with high clamp torque.
High-torque spec. (optional)
Max. torque : 92N・m
Max. output : 26.2kW
20,000min-1 spec. (optional)
Max. torque : 27N・m
Max. output : 15.4kW
12,000min-1 spec. (standard)
Max. torque : 40N・m
Max. output : 18.9kW
A roller gear cam mechanism is used for the B-axis table. The mechanical clamp plus servo clamp mechanism provides high clamp torque. This enables the machine to demonstrate high machining capabilities in high-load machining.
B-axis clamp torque
670N・m *1
Vibration adjustment analyzes waveform data using a PC app to suggest the recommended spindle speed. Optimal machining conditions drive machining performance to the fullest.
Intuitive operation is possible with apps and 15-inch vertical LCD touch panel display.
Waste-free operation is possible in setup, machining adjustment, production, and recovery process, leading to improved work efficiency and operating rate.
Operability has been enhanced by locating the operation panel on the side of the machine.
Intuitive operation is possible with apps and the vertical touch panel screen. Relevant functions are grouped according to purpose, such as setup and machining, leading to efficient operation. Production and operation states are visualized, allowing faster understanding. Streamlined operation is possible in setup, machining adjustment, production, and recovery processes, leading to improved work efficiency and operating rate.
Setup support
Equipped with functions to easily perform setup, such as an ATC tool app that enables all magazine tool settings to be performed on one screen, menu programming that enables you to create NC programs by following instructions on the screen, and an on-screen help function.
Machining adjustment support
Equipped with functions to easily perform optimal machining adjustment to improve productivity, such as a machining parameter adjustment app that enables you to easily adjust parameters according to machining details and a machining load waveform display/saving function.
Production support
Equipped with functions to improve the operating rate, such as real time tool monitoring to eliminate defects, displaying production performance, power consumption etc. as a graph, and PLC/network functions to meet peripheral equipment and automation requirements.
Recovery support
Equipped with functions to prevent failure or ensure quick recovery, such as maintenance time notice, displaying details when an alarm occurs, and guidance for recovery/check work.
Specifications
Product Specification
H550Xd1
Max. spindle speed [min⁻¹]
12,000/ (Optional) 20,000/ (Optional) 10,000 high-torque
Travels [mm (inch)]
X: 550(21.7) Y: 400(15.7) Z: 400(15.7) B(deg.): 360
Tool storage capacity [pcs.]
30
Rapid traverse rate (XYZ axes) [m/min (inch/min)]
50 x 50 x 56 (1,969 x 1,969 x 2,205)
Indexing feed rate [min⁻¹]
100
Required floor space [mm (inch)]
1,557 x 2,743 [3,581] (61.3 x 108.0 [141.0])
BT dual contact spindle(BIG-PLUS)
Optional
Coolant Through Spindle(CTS)
Optional
| Item | H550Xd1 / H550Xd1 RD *8 | ||
|---|---|---|---|
| CNC Unit | CNC-D00 | ||
| Travels | X axis [mm (inch)] | 550 (21.7) | |
| Y axis [mm (inch)] | 400 (15.7) | ||
| Z axis [mm (inch)] | 400 (15.7) | ||
| B axis [deg.] | 360 | ||
| Distance between table top and spindle center [mm (inch)] | 100 - 500 (3.9 - 19.7) | ||
| Distance between table center and spindle nose end [mm (inch)] | 150 - 550 (5.9 - 21.7) | ||
| Table | Work area size [mm (inch)] | 400 (15.7) x 400 (15.7) | |
| Max.loading capacity [kg (lbs)] | 400 (882)*12 | ||
| Max. table load inertia [kg・m2(lb・inch2)] |
3.4 (11,618) [5.4 (18,453)*10] | ||
| Spindle | Spindle speed [min-1] *13 |
12,000min-1 specifications : 1 - 12,000 10,000min-1 high-torque specifications (optional): 1-10,000 20,000min-1 specifications (Optional) : 1 - 20,000 |
|
| Speed during tapping [min-1] | MAX. 6,000 | ||
| Tapered hole | 7/24 tapered No.30 | ||
| BT dual contact spindle (BIG-PLUS) | Optional | ||
| Coolant Through Spindle (CTS) | Optional | ||
| Feed rate | Rapid traverse rate (XYZ-area) [m/min (inch/min)] |
50 x 56 x 56 (1,969 x 2,205 x 2,205) | |
| Cutting feed rate [mm/min (inch/min)] |
X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *7 | ||
| Indexing feed rate (B) [min-1] | 100（85 *10) | ||
| ATC unit | Tool shank type | MAS-BT30 | |
| Pull stud type*4 | MAS-P30T-2 | ||
| Tool storage capacity [pcs.] | 30 | ||
| Max.tool length [mm (inch)] | 250 (9.8) | ||
| Max.tool diameter [mm (inch)] | 125 (4.9)*11 | ||
| Max.tool weight [kg (lbs)]*1 | 4.0 (8.8) / tool, (TOTAL TOOL WEIGHT: 50 (110.2)) | ||
| Tool selection method | Random shortcut method | ||
| Tool change time *5 | Tool To Tool [sec.] | 1.3 *14 | |
| Chip To Chip [sec.] | 2.7 *14 | ||
| Electric motor | Main spindle motor (10 min/continuous)[kW] *2 |
12,000min-1 specifications : 10.1/7.0
10,000min-1 high-torque specifications (optional):12.8/9.2 20,000min-1 specifications (Optional) : 7.4/5.1 |
|
| Axis feed motor [kW] | XZ axis: 1.0, Y axis: 1.8, B axis: 1.8 | ||
| Power source | Power supply | AC 200 to 230 V±10%, 3-phase, 50/60Hz±2% | |
| Power capacity (continuous) [kVA] | 10.4 | ||
| Air supply | Regular air pressure [MPa] | 0.4 - 0.6(recommended value : 0.5)*6 | |
| Required flow [L/min] | 45 | ||
| Machine dimensions | Height [mm (inch)] | 2,497 (98.3) | |
| Required floor space*9 [with control unit door open] [mm (inch)] |
1,557 x 2,743 [3,581] (61.3 x 108.0 [141.0]) | ||
| Weight [kg (lbs)] | 2,850 (6,284) | ||
| Accuracy*3 | Accuracy of bidirectional axis positioning |
(ISO230-2:1988) | X, Y, Z axis: 0.006-0.020 mm (0.00024-0.00079 inch) |
| （ISO230-2:2014） | B axis: 28 sec or less | ||
| Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] |
X、Y、Z axis : Less than 0.004 mm (0.00016 inch), B axis: 16 sec or less | ||
| Standard accessories | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.), leveling plate (4 pcs.) | ||
- *1 The maximum tool length, maximum diameter, and maximum weight are limited depending on the spindle speed in use, configuration, center of gravity, etc. The figures shown here are for reference only. Please contact your local distributor for details.
- *2 Spindle motor output differs depending on the spindle speed.
- *3 Measured in compliance with ISO standards and Brother standards. Please contact your local distributor for details.
- *4 Brother specifications apply to the pull studs for CTS.
- *5 Measured in compliance with JIS B6336-9 and MAS011-1987.
- *6 Regular air pressure varies depending on the machine specifications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommended value.
- *7 Value when using high accuracy mode B.
- *8 The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with “RD” at the end of the model name.
- *9 Dimensions not including the coolant tank and chip conveyor.
- *10 Value in high inertia mode. Parameter setting needs to be changed.
- *11 When attaching an adjacent tool, the total diameter of a tool and its adjacent tool must be less than 130 mm.
- *12 When designing a jig, please pay attention to the maximum table load inertia.
- *13 The 16,000min-1 specification is discontinued as of June 2026.
- *14 Adjusting the parameters enables higher speed operation.
| CNC model | CNC-D00 | |
|---|---|---|
| Control axes | 5 axes (X, Y, Z, 2 additional axes) | |
| Simultaneously controlled axes | Positioning | 5 axes (X, Y, Z, 2 additional axes) |
| Interpolation |
Linear: 4 axes (X, Y, Z, 1 additional axis)
Circular : 2 axes Helical/Conical : 3 axes (X, Y, Z) |
|
| Least input increment | 0.001 mm, 0.0001 inch, 0.001 deg. 0.0001 mm, 0.00001 inch, 0.0001 deg. (optional) |
|
| Max.programmable dimension | ±999999.999 mm, ±99999.9999 inch ±999999.9999 mm, ±99999.99999 inch (optional) |
|
| Display | 15-inch color LCD touch display | |
| Memory capacity | 500 Mbytes, 3 Gbytes (optional) (Total capacity of program and data bank) | |
| External communication | USB memory interface, Ethernet, RS232C (optional) | |
| No.of registrable programs | 4,000 (Total capacity of program and data bank) | |
| Program format | NC language*Conversational language not available | |
- * “Control axes” and “Simultaneously controlled axes” indicate the maximum number of axes, which will differ depending on the destination country and the machine specifications.
- * Ethernet is a registered trademark of Xerox Corporation in the United States.
| Operation | Dry run Machine lock Program restart Rapid traverse override Cutting feed override Background editing Screen shot Operation level External input signal key Shortcut keys < optional > |
|
|---|---|---|
| Programming | Absolute / Incremental Inch / Metric Coordinate system setting Corner C / Corner R Rotational transformation Synchronized tap Subprogram Graphic display |
|
| Measurement | Automatic workpiece measurement *1 Tool length measurement |
|
| High speed and high accuracy | Machining parameter adjustment High-accuracy mode AIII High-accuracy mode BI (look-ahead 160 blocks) Backlash compensation < optional > |
|
| Monitoring | Machining load monitoring ATC monitoring Overload prediction Waveform display / Waveform output to memory card Automatic thermal distortion compensation (X, Y, and Z axes) Production performance display Tool life / Spare tool Stuck chips detection function |
|
| Maintenance | Tap return function Status log Alarm log Operation log Maintenance notice Motor insulation resistance measurement Tool washing filter with filter clogging detection Battery-free encoder Breake load test |
|
| Automatic / Network | Computer remote OPC UA Auto notification Built-in PLC (LD/ST/FBD) < optional > |
|
| Energy saving | Automatic power off Standby mode Automatic coolant off Automatic work light off Chip shower off delay Chip shower energy savings operation Energy savings mode |
|
| Support apps | Adjust machine parameters ATC tool Tool life Waveform display Production performance Energy saving/ Power consumption Recovery support Inspection PLC Machining support without warmup Software control panel |
|
| Accessories | File viewer Notebook Calculator Register shortcut Display off |
|
| Functions limited to NC language | Menu programming Local coordinate system Expanded workpiece coordinate system One-way positioning Inverse time feed Programmable data input Tool length compensation Cutter compensation Scaling Mirror image External sub program call Macro Tape operation / FTP load operation Multiple skip function < optional > |
|
- *1 For the measuring instrument, please select an optional touch probe or provide one yourself.
- *2 There are restrictions on the axis configuration.

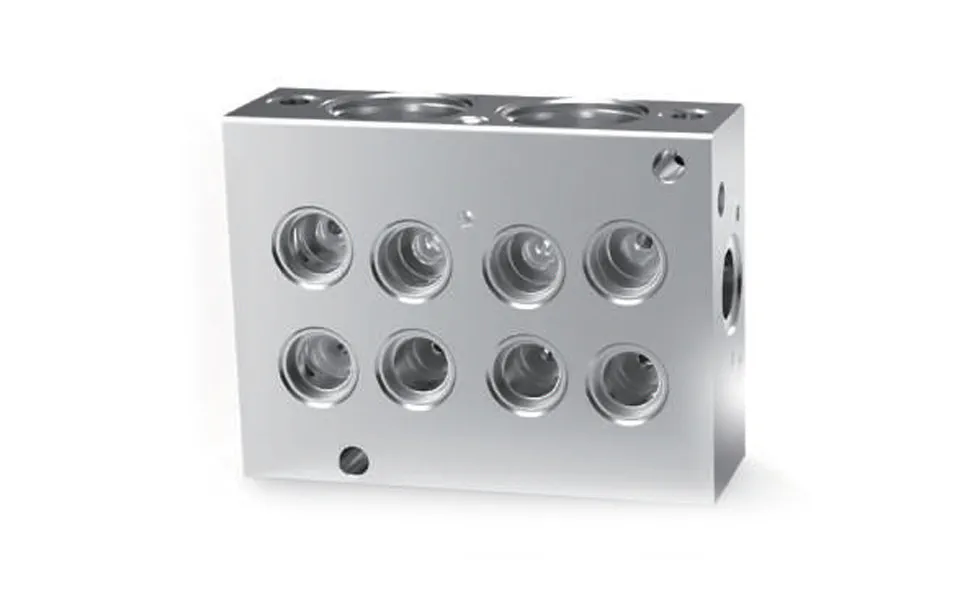

Example
