Medical Equipment Parts Machining Industry and Features of SPEEDIO
The global market for medical equipment reached the scale of 336.2 billion US dollars in 2016, with the United States accounting for its largest share. Japan has the world's second biggest market size after the US, and rapid growth is expected in areas including China and other Asian countries.
Additionally, the demand for medical equipment parts is expected to grow in proportion to the increased need for procedures, such as PCR tests, due to COVID-19.
Diverse materials such as aluminum, iron, resin, and titanium are used for medical equipment production. The machining techniques used for these materials are also varied, ranging from simple machining to multi-face machining and material removal machining, among others. SPEEDIO offers a wide range of machining equipment, such as pallet changers and machine tools with tilting rotary tables, capable of processing a diverse variety of products.
High Responsiveness Compatible With CAM
High-efficiency motors are adopted for each feed axis. This further enhances the high-speed performance of the BT30 machining center equipped with lightweight movable parts.
It demonstrates excellence in programs that repeat accelerations and decelerations, such as toolpaths with constant load control used in material removal machining.

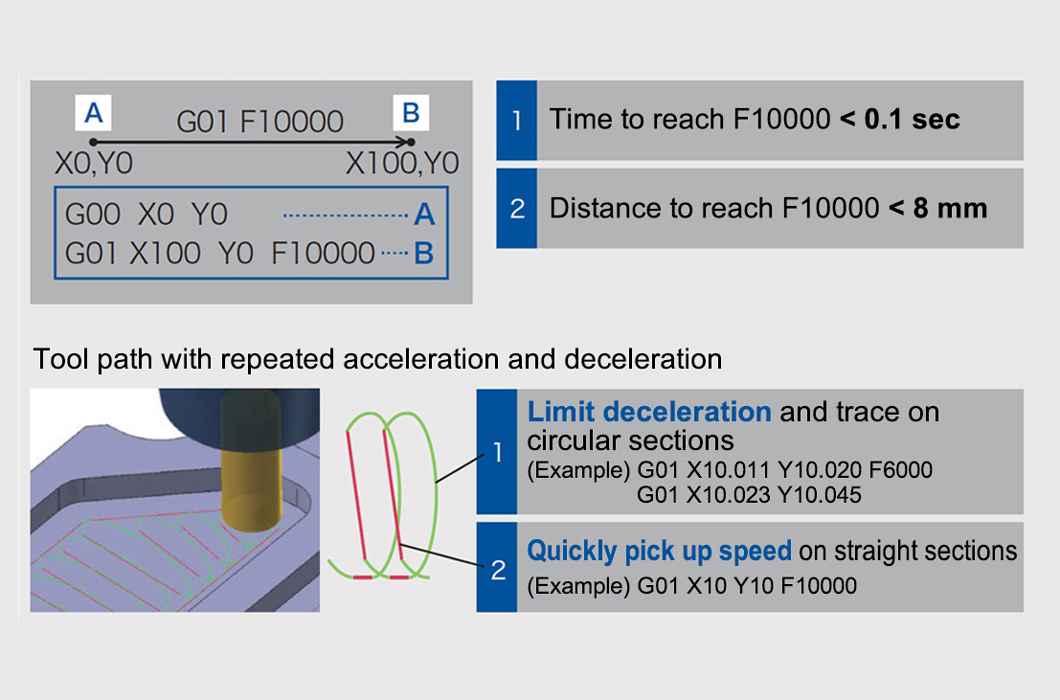

Response performance to the G01F10000 command
User-Friendly Interface
SPEEDIO's high accuracy mode requires no complicated settings. You can choose from properly tuned preset machining modes, or adjust the accuracy to the level you desire by directly specifying the dimensions. The accuracy and speed can be adjusted by entering M codes in the areas where you want to apply the settings.

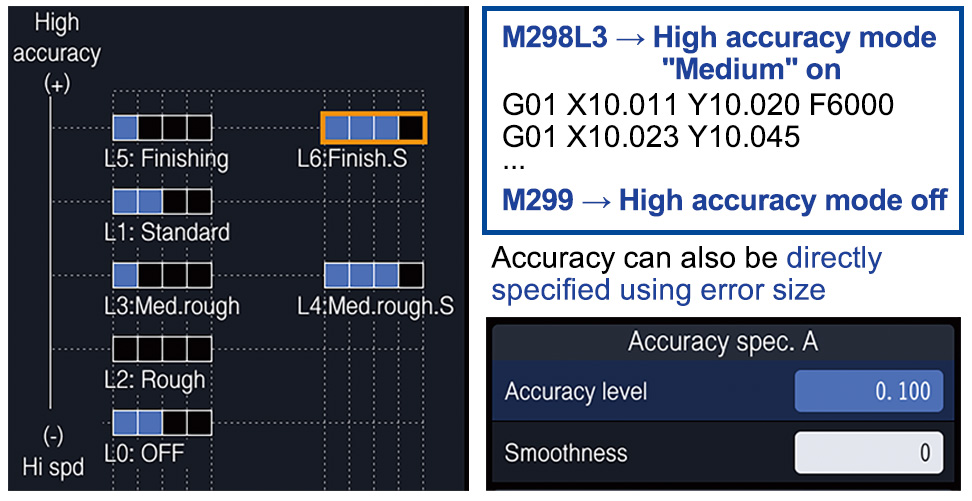

Quick settings screen for high accuracy mode
Effective NC Functions for Multi-Face Machining

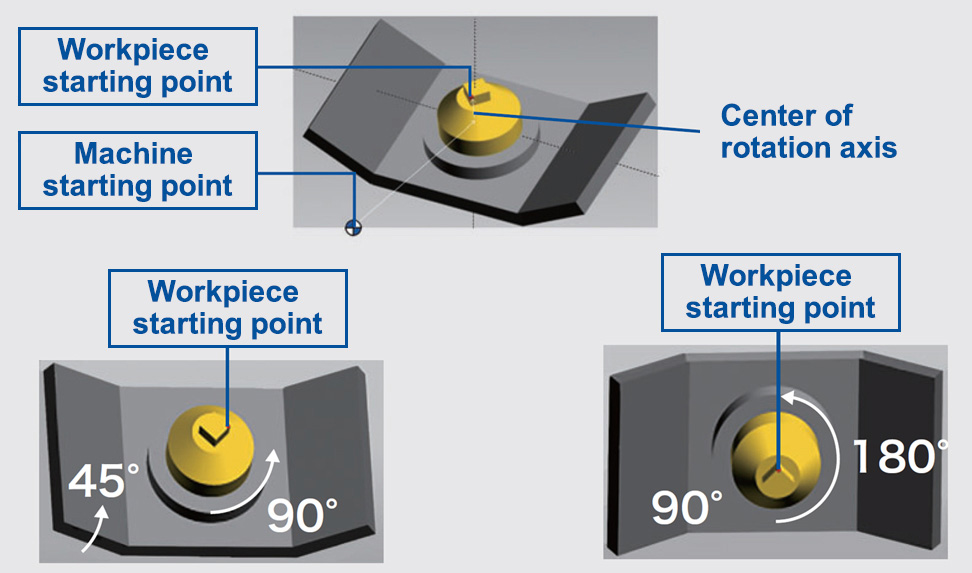

SPEEDIO is equipped with a variety of effective NC functions for multi-face machining, including rotary fixture offset and feature coordinates setting, to support programming.
Medical Equipment Workpieces Applicable to SPEEDIO
| Parts |
SCompact Machining Center
|
WWide Travel Compact Machining Center
|
UUniversal Compact Machining Center
|
RPallet Changing Compact Machining Center
|
HHorizontal Compact Machining Center
|
MCompact Multi-tasking Machining
|
||||
|---|---|---|---|---|---|---|---|---|---|---|
| S300Xd1 | S500Xd1 | S700Xd1 | W1000Xd2 | U500Xd1 | R450Xd1 | R650Xd1 | H550Xd1 | M200Xd1 | M300Xd1 | |

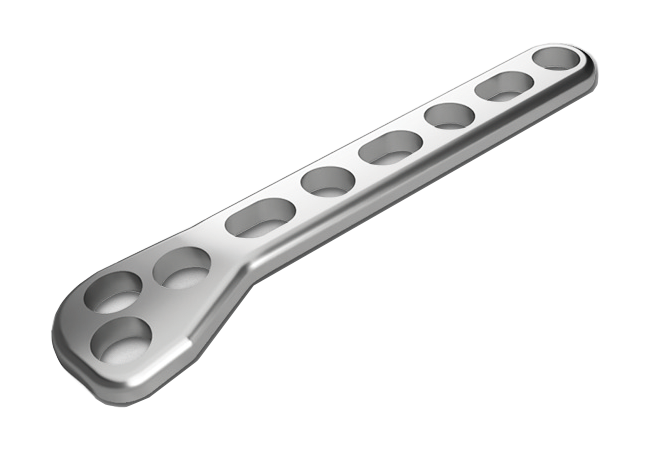

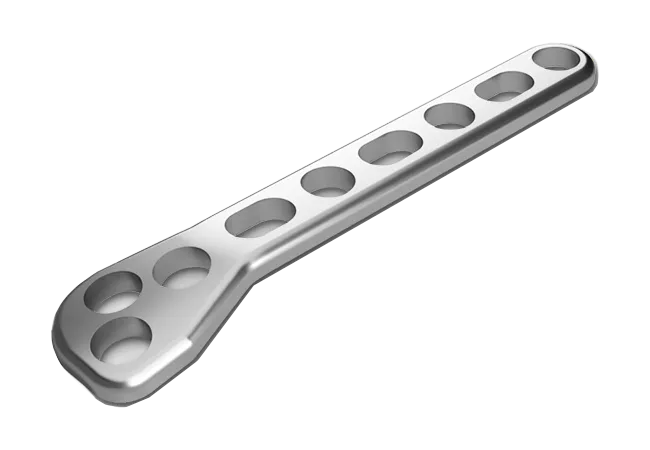

Bone plateTi-6Al-4V |
 |
|
|
|
|
|||||

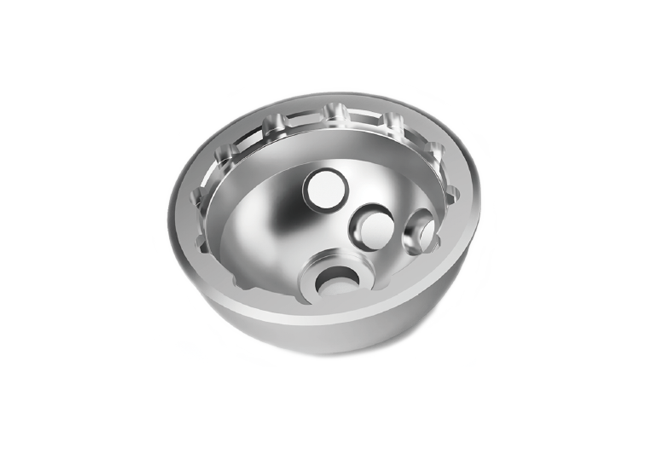

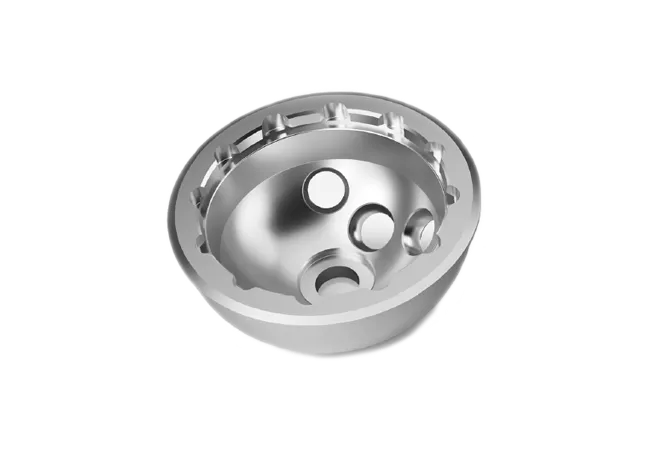

Joint partsTi-6Al-4V |
|
|
|
|
|
|||||

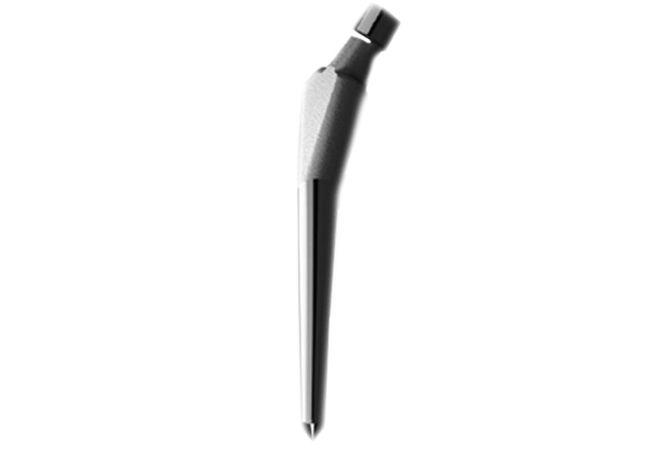

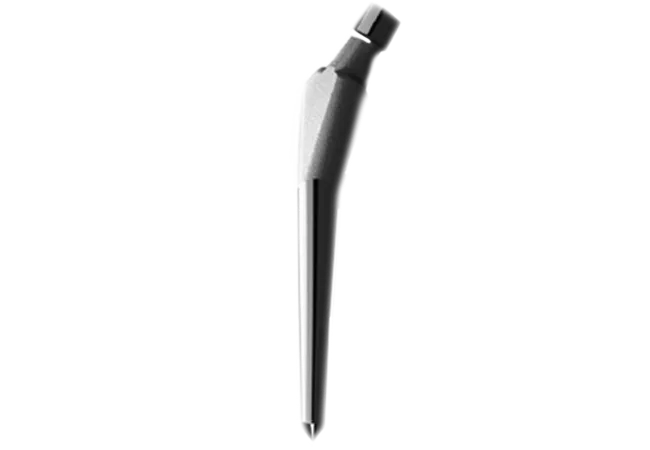

Stem60 × 15 × 150 mm |
|
|
|
|
|
|
||||

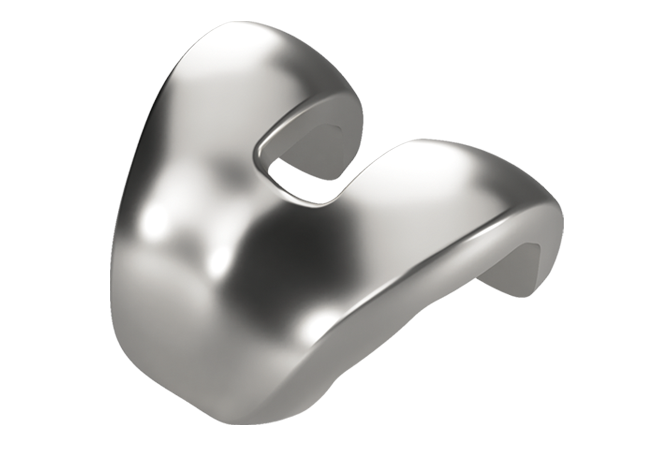

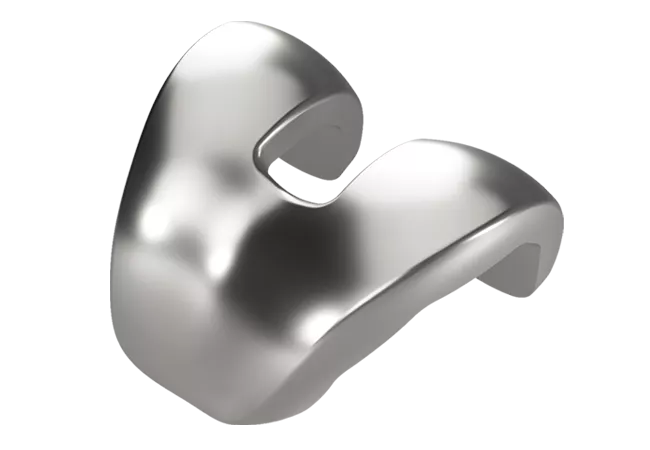

Artificial knee jointTi-6Al-4V |
|
|
||||||||

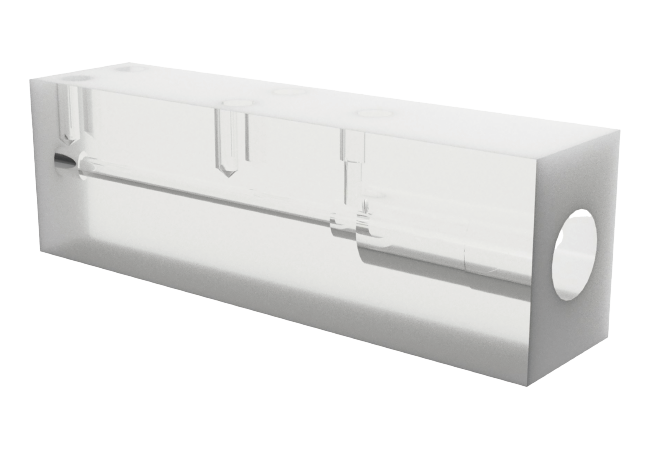

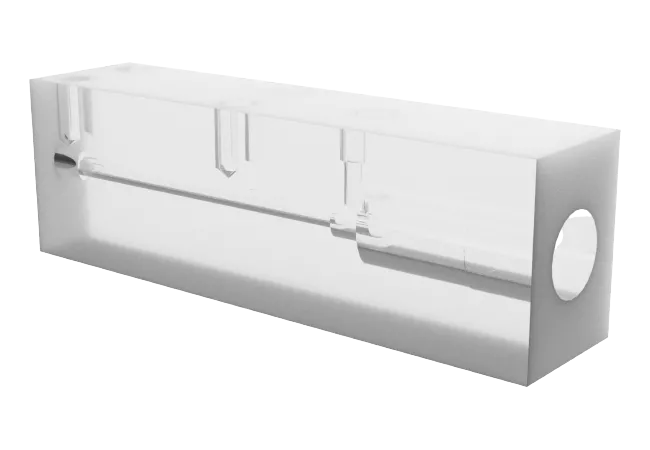

Syringe partsAcrylic resin / PMMA |
|
|
|
|
|
|||||
