EV Parts Machining Solutions
EV Parts Machining Solutions and Features of SPEEDIO
Global trend for decarbonation has accelerated, the electrification of automobiles is progressing, and demand for aluminum parts is expanding.
SPEEDIO is a #30 machining center suitable for machining EV parts.
・Overwhelming productivity, compared to #40 machining centers
・Energy saving performance achieved by optimal design
・Energy saving technologies used in a variety of situations

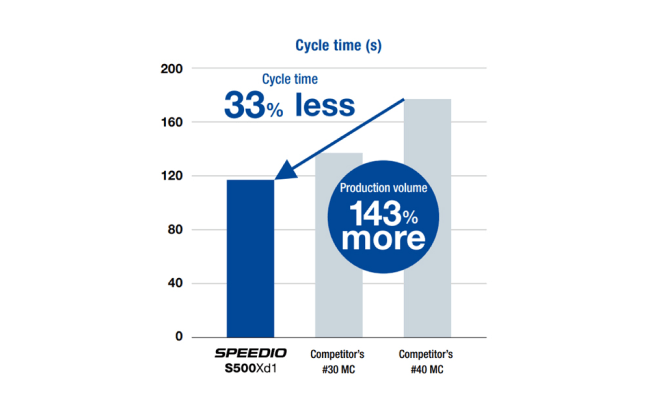

Productivity
Designs focusing on high speed and high efficiency have achieved overwhelming machining speed, compared to #40 machining centers.
Demonstrates top-class productivity even among #30 machining centers.

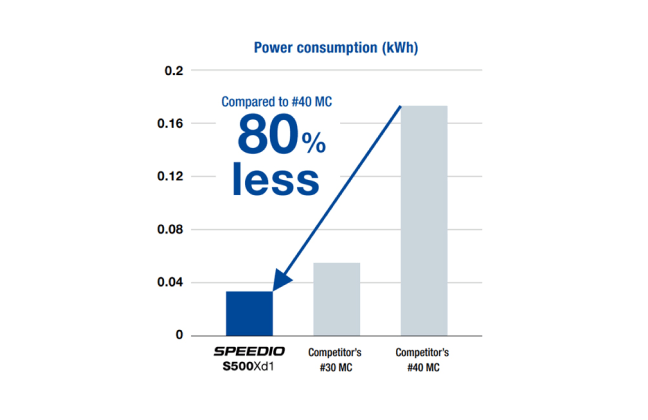

Environmental performance / Energy saving
All possible waste in power consumption, air flowrate etc. has been eliminated by optimal design, achieving the industry’s top-class energy saving performance.
EV workpieces applicable to SPEEDIO
parts | Compact Machining Center |
Wide Travel Compact Machining Center |
vUniversal Compact Machining Center | Pallet Changing Compact Machining Center |
Horizontal Compact Machining Center |
Compact Multi-tasking Machining |
||||
---|---|---|---|---|---|---|---|---|---|---|
S300Xd1 | S500Xd1 | S700Xd1 | W1000Xd2 | U500Xd1 | R450Xd1 | R650Xd1 | H550Xd1 | M200Xd1 | M300Xd1 | |
Inverter case
Aluminum die cast386 x 245 x 117 |
〇 | 〇 | 〇 | 〇 | ||||||
Battery case
Aluminum die cast440 x 280 x 82 |
〇 | 〇 | 〇 | |||||||
Gear case cover
Aluminum die castv
363 x 287 x 55
|
〇 | 〇 | 〇 | |||||||
motor case
Aluminum die cast⌀410 x 245 |
〇 | 〇 | 〇 | 〇 | ||||||
Bearing shield
Aluminum die cast⌀350 x 73 |
〇 | 〇 | 〇 | 〇 | ||||||
Electric compressor
Aluminum die cast |
〇 | 〇 | 〇 | 〇 | ||||||
Pump housing
Aluminum die cast⌀164 x 97 |
〇 | 〇 | 〇 | |||||||
Input shaft
Cast iron250 x 63 |
〇 | 〇 | ||||||||
ECU case
Aluminum die cast169 x 119 x 34 |
〇 | 〇 | 〇 | 〇 | ||||||
Valve
Extruded aluminum72 x 29 x 30 |
〇 | 〇 | 〇 | 〇 | ||||||
Large valve for thermal managementAluminum die cast 230 x 170 x 40 |
〇 | 〇 | 〇 | 〇 |
Product model | Machining Center |
---|---|
Inverter case
Aluminum die cast386 x 245 x 117 |
|
Battery case
Aluminum die cast440 x 280 x 82 |
|
Gear case cover
Aluminum die cast363 x 287 x 55 |
|
motor case
Aluminum die cast⌀410 x 245 |
|
Bearing shield
Aluminum die cast⌀350 x 73 |
|
Electric compressor
Aluminum die cast
|
|
Pump housing
Aluminum die cast⌀164 x 97 |
|
Input shaft
Cast iron250 x 63 |
|
ECU case
Aluminum die cast169 x 119 x 34 |
|
Valve
Extruded aluminum72 x 29 x 30 |
|
Valve
Large valve
Aluminum die castfor thermal management 230 x 170 x 40 |
