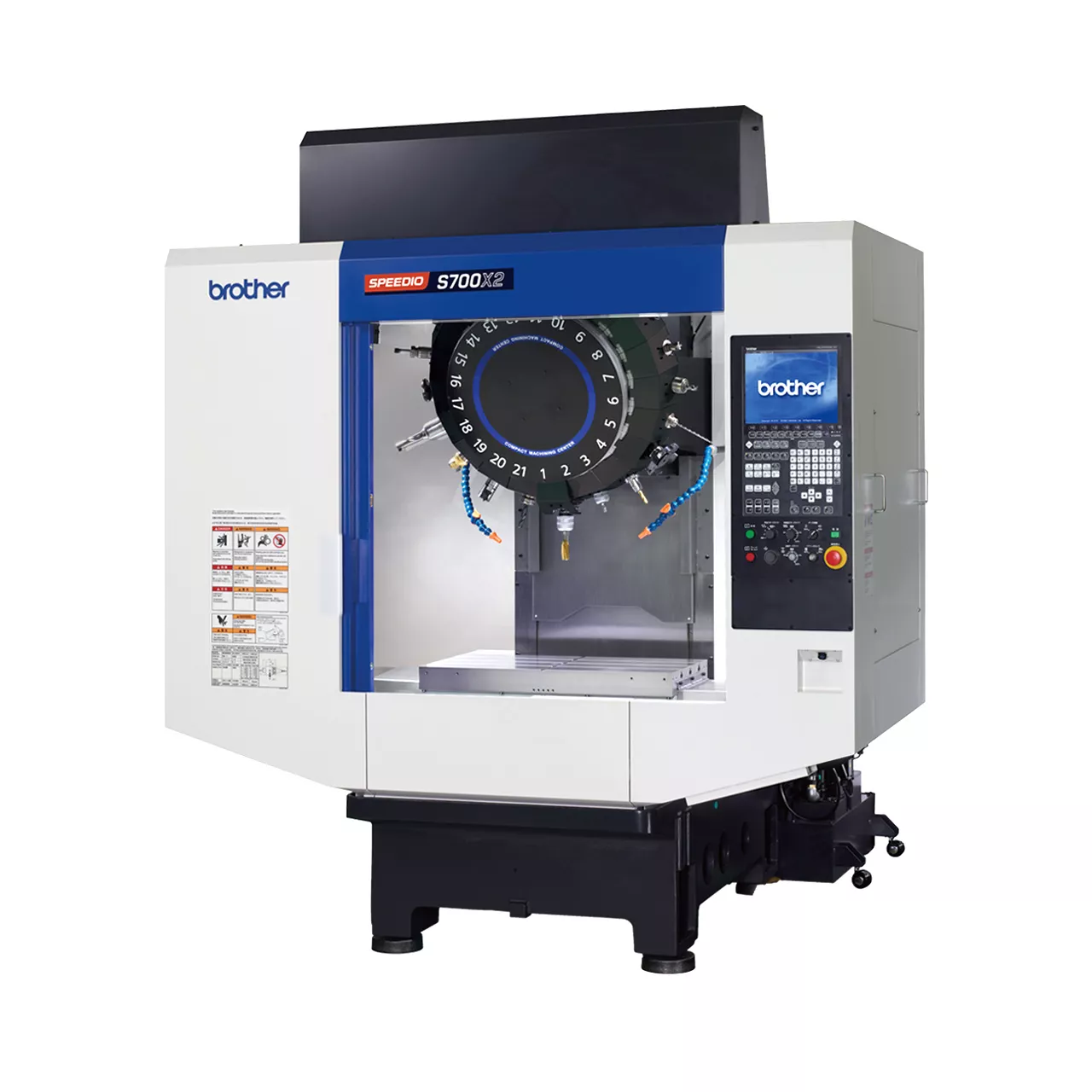

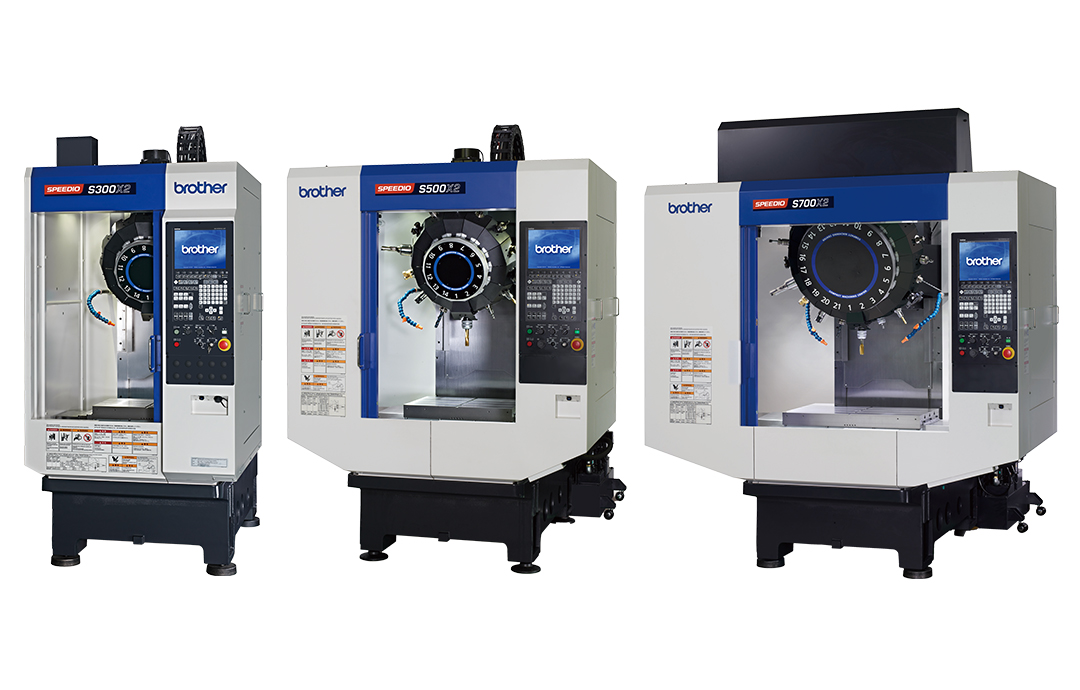

SPEEDIO S700X2
Compact Machining Center
- Travels (mm): X: 700 Y: 400 Z: 300
- Max. spindle speed (min-1): 10,000/ (Optional) 16,000/ (Optional) 27,000/ (Optional) 10,000 high-torque
- Tool storage capacity(pcs.): 14/ 21
Select variant: S700X2
The SPEEDIO maximizes productive efficiency improvement of mass-production parts such as automobile, motorcycle and information technology.
Information
Overview
Achievement of high acceleration and high responsiveness through machine/controller integrated development and complete elimination of wasted operation and wasted time enable the machine to fully demonstrate its abilities, resulting in high productivity.
Shorter cycle time has been achieved by the fastest Z-axis acceleration in its class and the low-inertia spindle servomotor.
(Except 27,000 min-1 specification models)
Z-axis acceleration
2.2G
Improved productivity: 3% or more
(compared to previous model)
* Varies depending on machining programs or machining conditions.
High-speed synchronized tapping at the fastest level in the world has been tuned further. Tapping can be completed in shorter time at high accuracy.
Tool change time has been minimized by the increased Z-axis speed, in addition to the short spindle start/stop time.
Previous model → S500X2
Tool - Tool : 0.8S → 0.7S
Previous model → S500X2
Chip - Chip : 1.4S → 1.3S
Reduction in non-cutting time has been achieved by simultaneously performing tool change and positioning X/Y and additional axes.
Improved machine rigidity, diverse spindle motors, and high performance and a highly functional NC controller ensure a broad range of machining, from high-speed machining to heavy-duty machining.
To improve rigidity, an effective machine structure has been established based on accumulated engineering analysis data.
Spindle motor torque values
Standard specifications
Max. torque (momentary): 40Nm
Max. output: 18.9kW
High-torque specs (Optional)
Max. torque (momentary): 92Nm
Max. output: 26.2kW
In addition to the high-speed spindle specications, high-speed and highly accurate three-dimensional machining has been achieved by Brother’s original three-dimensional machining control equipped with a 200-block look-ahead function and smooth path offset function.
High-speed spindle specs (Optional)
Max. spindle speed: 27,000min-1
Look-ahead
High accuracy mode BⅠ (Standard): 40 blocks
High accuracy mode BⅡ(Optional ): 200 blocks
Functions of Brother's original usability-focused controller "CNC-C00 Series" have been further enhanced to make it more user-friendly.
Operability
Equipped with tool monitoring functions
- ATC monitoring
- Waveform output to memory card
- Simple setting of high accuracy mode
- PLC function
Reliability
Reliability has been improved by implementing various improvements to prevent accumulation of chips and entry of coolant mist that can cause machine stoppage.
Specifications
Product Specification
S700X2
Max. spindle speed
10,000min-1 10,000min-1 high-torque(Optional)
16,000min-1(Optional)
27,000min-1(Optional)
Travels
X:700mm Y:400mm Z:300mm
Tool storage capacity
14/ 21pcs.
Rapid traverse rate (XYZ-area)
50m/min×50m/min×56m/min
Required Floor Space
2,050mm×2,223mm
BT dual contact spindle(BIG-PLUS)
Optional
Coolant Through Spindle(CTS)
Optional
Item *9 | S700X2 | S500X2 | S300X2 | ||
---|---|---|---|---|---|
CNC Unit | CNC-C00 | ||||
Travels | X axis [mm (inch)] | 700 (27.6) | 500 (19.7) | 300 (11.8) | |
Y axis [mm (inch)] | 400 (15.7) | ||||
Z axis [mm (inch)] | 300 (11.8) | ||||
Distance between table top and spindle nose end [mm (inch)] | 180 ~ 480 (7.1 ~ 18.9) | ||||
Table | Work area size [mm (inch)] | 800 x 400(31.5 x 15.7) | 600 x 400(23.6 x 15.7) | 600 x 400(23.6 x 15.7) | |
Max.loading capacity (uniform load) [kg (lbs)] | 250 [300] (551 [661])*6 | ||||
Spindle | Spindle speed [min-1] |
10,000min-1 specifications: 10 ~ 10,000
16,000min-1 specifications(Optional) : 16 ~ 16,000 10,000min-1 high-torque specifications(Optional) : 10 ~ 10,000 27,000min-1 specifications(Optional) : 27 ~ 27,000 |
|||
Speed during tapping [min-1] | Max. 6,000 (27,000min-1 specifications : Max. 8,000) | ||||
Tapered hole | 7/24 tapered No.30 | ||||
BT dual contact system (BIG-PLUS) | Optional | ||||
Coolant Through Spindle (CTS) | Optional(CTS option is not available for 27,000min-1 spec.) | ||||
Feed rate | Rapid traverse rate (XYZ-area) [m/min (inch/min)] | 50 x 50 x 56 (1,969 x 1,969 x 2,205) | |||
Cutting feed rate [mm/min (inch/min)] | X,Y,Z: 1 ~ 30,000 ( 0.04 ~ 1,181)*7 | ||||
ATC unit | Tool shank type | MAS-BT30 | |||
Pull stud type*4 | MAS-P30T-2 | ||||
Tool storage capacity [pcs.] | 14 / 21 | ||||
Max.tool length [mm (inch)] | 250 (9.8) | 160 (6.3) [21tool]
250 (9.8) [14tool] |
|||
Max.tool diameter [mm (inch)]*1 | 110 (4.3) | ||||
Max.tool weight [kg (lbs)]*1(kg) | 3.0(6.6) / Tool (TOTAL TOOL WEIGHT:25(55.1) for 14 tools,35(77.2) for 21 tools) | ||||
Tool selection method | Random shortcut method | ||||
Tool change time*5 | Tool To Tool[sec.]: 0.7 / Chip To Chip[sec.]: 1.3 | ||||
Electric motor | Main spindle motor (10 min/continuous)[kW]*2 | 10,000min-1 specifications : 10.1/7.1
16,000min-1 specifications(Optional) : 7.4/5.1 10,000min-1 high-torque specifications(Optional) : 12.8/9.2 27,000min-1 specifications(Optional) : 8.9/6.3 |
|||
Axis feed motor [kW] | X,Y: 1.0 / Z: 2.0 | ||||
Power source | Power supply | AC200V ±10%, 50/60Hz ±1Hz | |||
Power capacity (continuous) [kVA] | 10,000min-1 specifications : 9.5
16,000min-1 specifications(Optional) : 9.5 10,000min-1 high-torque specifications(Optional) : 10.4A 27,000min-1 specifications(Optional) : 9.5 |
||||
Air supply | Regular air pressure [MPa] | 0.4 ~ 0.6(recommended value : 0.5MPa)*8 | |||
Required flow [L/min] | 45 (27,000min-1 specifications:115) | ||||
Machine dimensions | Height [mm (inch)] | 2,497 (98.3) | |||
Required floor space (with control unit door open) [mm (inch)] |
2,050 x 2,223 [2,794] (80.7 x 87.5 [110]) |
1,560 x 2,223 [2,794] (61.4 x 87.5 [110]) |
1,080 x 2,463 [2,794] (42.5 x 96.9 [110]) |
||
Weight (including control unit, machine cover) [kg (lbs)] | 2,400 (5,291) | 2,250 (4,960) | 2,200 (4,850) | ||
Accuracy*3 | Accuracy of bidirectional axis positioning ( ISO230-2:2006 ) [mm (inch)] |
0.006 ~ 0.020 ( 0.00024 ~ 0.00079 ) | |||
Repeatability of bidirectional axis positioning ( ISO230-2:2006 ) [mm (inch)] |
Less than 0.004 (0.00016 ) | ||||
Front door | 2doors | ||||
Standard accessories | Instruction Manual (1 set), anchor bolts (4 pcs.), leveling bolts (4 pcs.),machine cover (manual door ) |
- *1 Actual tool weight differs depending on the configuration and center of gravity.The figures shown here are for reference only.
- *2 Spindle motor output differs depending on the spindle speed.
- *3 Measured in compliance with ISO standards and Brother standards.
- *4 Brother specifications apply to the pull studs for CTS.
- *5 Measured in compliance with JIS B6336-9 and MAS011-1987.
- *6 Acceleration must be adjusted for X and Y axes.
- *7 When using high accuracy mode B.
- *8 Regular air pressure varies depending on the machine specifications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommended value.
- *9 The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with “RD” at the end of the model name.
CNC model | CNC-C00 | |
---|---|---|
Control axes | 5axes ( X, Y, Z, additional axes) | |
Simultaneously controlled axes | Positioning | 5 axes (X, Y, Z, A, B) |
Interpolation |
|
|
Least input increment | 0.001mm, 0.0001inch, 0.001° | |
Max.programmable dimension | ±9999.999mm, ±999.9999inch | |
Display | 12.1-inch color LCD | |
Memory capacity | Approx.100 Mbytes (Total capacity of program and data bank) | |
External communication | USB memory interface, Ethernet, RS232C (Optional) | |
No.of registrable programs | 4,000 (Total capacity of program and data bank) | |
Program format | NC language, conversation (changed by parameter) conversion from conversation program to NC language program available |
|
Standard NC functions |
|
|
Optional NC functions |
|
- * Number of "control axes" and/or "simultaneously controlled axes" are the maximum number of axes, which will differ depending on the destination country and the machine specifications.
- * Ethernet is a trademark or registered trademark of XEROX in the United States.
- * Functions listed under (NC) and (Conversation) are available only for NC programs and conversation programs respectively.
- *1 Measuring instrument needs to be prepared by users.
- *2 Minute block processing time can be changed.
- *3 When the submicron command is used, changing to the conversation program is disabled.
For options, please contact us.
