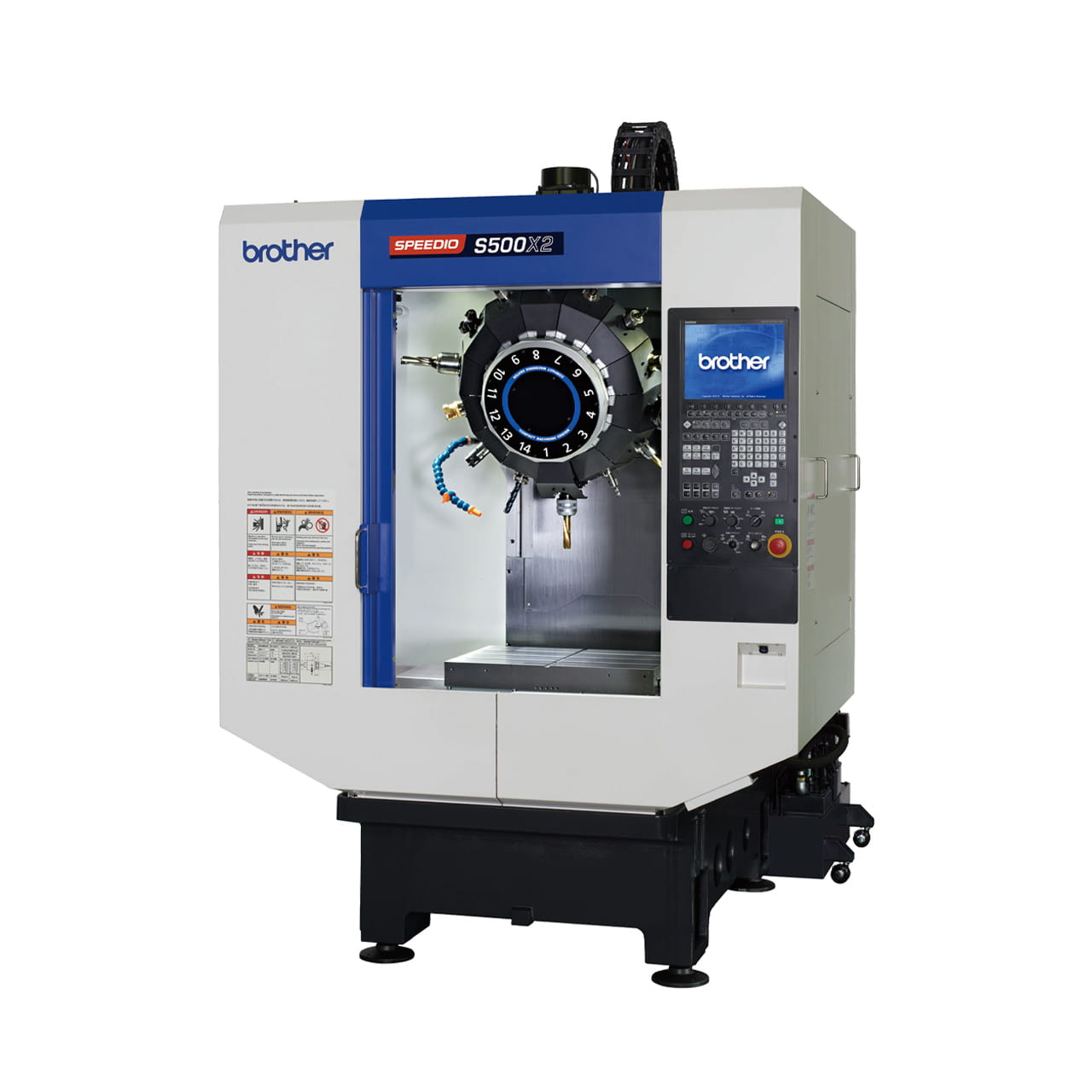

SPEEDIO S500X2

Compact Machining Center

14 Tool Magazine
21 Tool Magazine

Travels (mm): X: 500 Y: 400 Z: 300
Max. spindle speed (min^-1): 10,000/ (Optional) 16,000/ (Optional) 27,000/ (Optional) 10,000 high-torque
Tool storage capacity(pcs.): 14/ 21

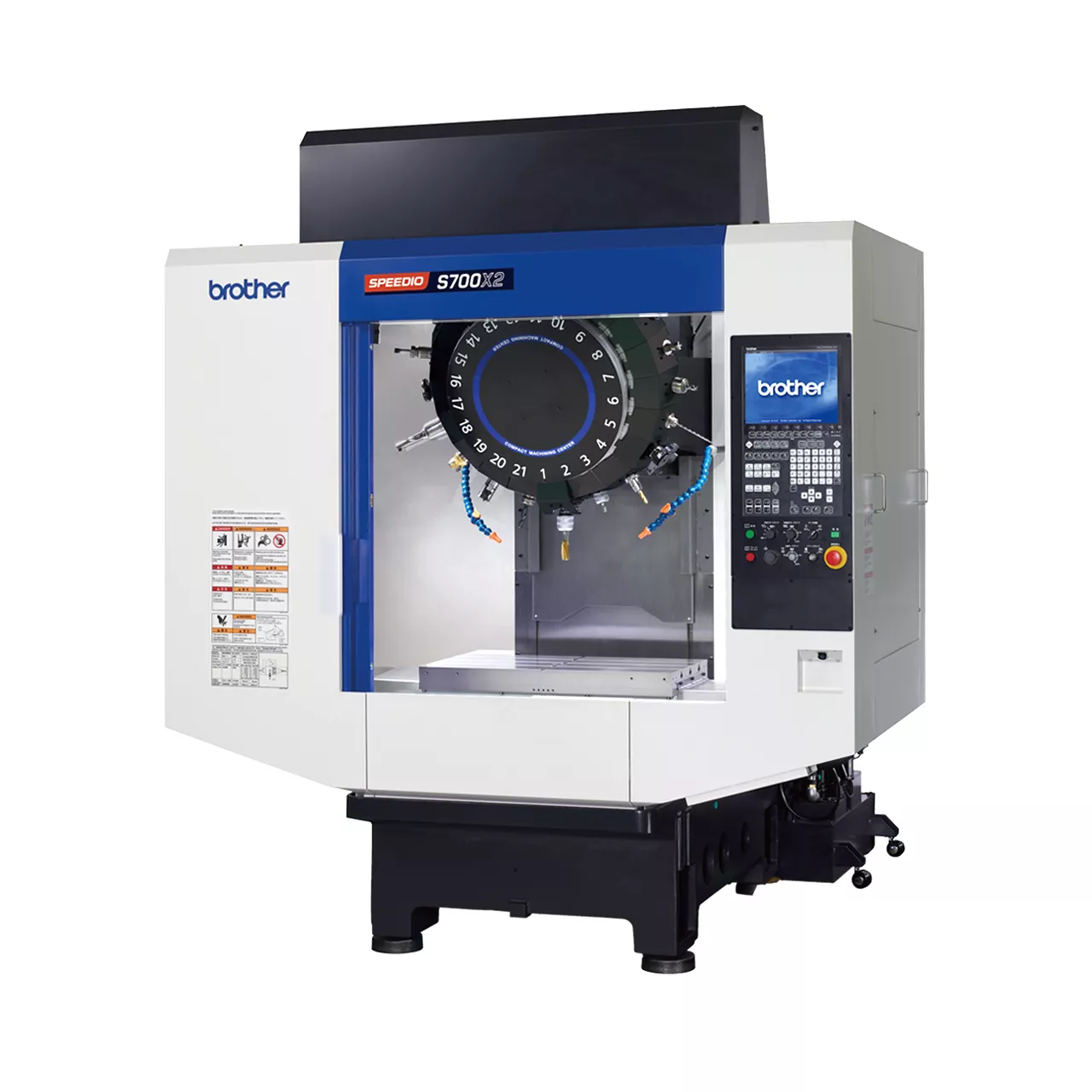

Select variant: S700X2

The SPEEDIO maximizes productive efficiency improvement of mass-production parts such as automobile, motorcycle and information technology.

Information

Achievement of high acceleration and high responsiveness through machine/controller integrated development and complete elimination of wasted operation and wasted time enable the machine to fully demonstrate its abilities, resulting in high productivity.

Pursuit of high productivity

Shorter cycle time has been achieved by the fastest Z-axis acceleration in its class and the low-inertia spindle servomotor.
(Except 27,000 min-1 specification models)

Z-axis acceleration

2.2G

Improved productivity: 3% or more
(compared to previous model)

* Varies depending on machining programs or machining conditions.

Highly-responsive servomotor

High-speed synchronized tapping at the fastest level in the world has been tuned further. Tapping can be completed in shorter time at high accuracy.

Non-stop ATC

Tool change time has been minimized by the increased Z-axis speed, in addition to the short spindle start/stop time.

Previous model → S500X2
Tool - Tool : 0.8S → 0.7S

Previous model → S500X2
Chip - Chip : 1.4S → 1.3S

Simultaneous operation control

Reduction in non-cutting time has been achieved by simultaneously performing tool change and positioning X/Y and additional axes.

Improved machine rigidity, diverse spindle motors, and high performance and a highly functional NC controller ensure a broad range of machining, from high-speed machining to heavy-duty machining.

Highly rigid structure

To improve rigidity, an effective machine structure has been established based on accumulated engineering analysis data.

High-power spindle motor

Spindle motor torque values

Standard specifications

Max. torque (momentary): 40Nm
Max. output: 18.9kW

High-torque specs (Optional)

Max. torque (momentary): 92Nm
Max. output: 26.2kW

High-speed three-dimensional machining

In addition to the high-speed spindle specications, high-speed and highly accurate three-dimensional machining has been achieved by Brother’s original three-dimensional machining control equipped with a 200-block look-ahead function and smooth path offset function.

High-speed spindle specs (Optional)

Max. spindle speed: 27,000min^-1

Look-ahead

High accuracy mode BⅠ (Standard): 40 blocks
High accuracy mode BⅡ(Optional ): 200 blocks

Functions of Brother's original usability-focused controller "CNC-C00 Series" have been further enhanced to make it more user-friendly.

Operability

Equipped with tool monitoring functions

ATC monitoring
Waveform output to memory card
Simple setting of high accuracy mode
PLC function

Reliability

Reliability has been improved by implementing various improvements to prevent accumulation of chips and entry of coolant mist that can cause machine stoppage.

Product Specification

S500X2

Max. spindle speed

10,000/ (Optional) 16,000/ (Optional) 27,000/ (Optional) 10,000 high-torque

Travels

X: 500 Y: 400 Z: 300

Tool storage capacity

14/ 21

Rapid traverse rate (XYZ-area)

50 x 50 x 56

Required Floor Space

1,560 x 2,223

BT dual contact spindle(BIG-PLUS)

Optional

Coolant Through Spindle(CTS)

Optional

Machine Specification

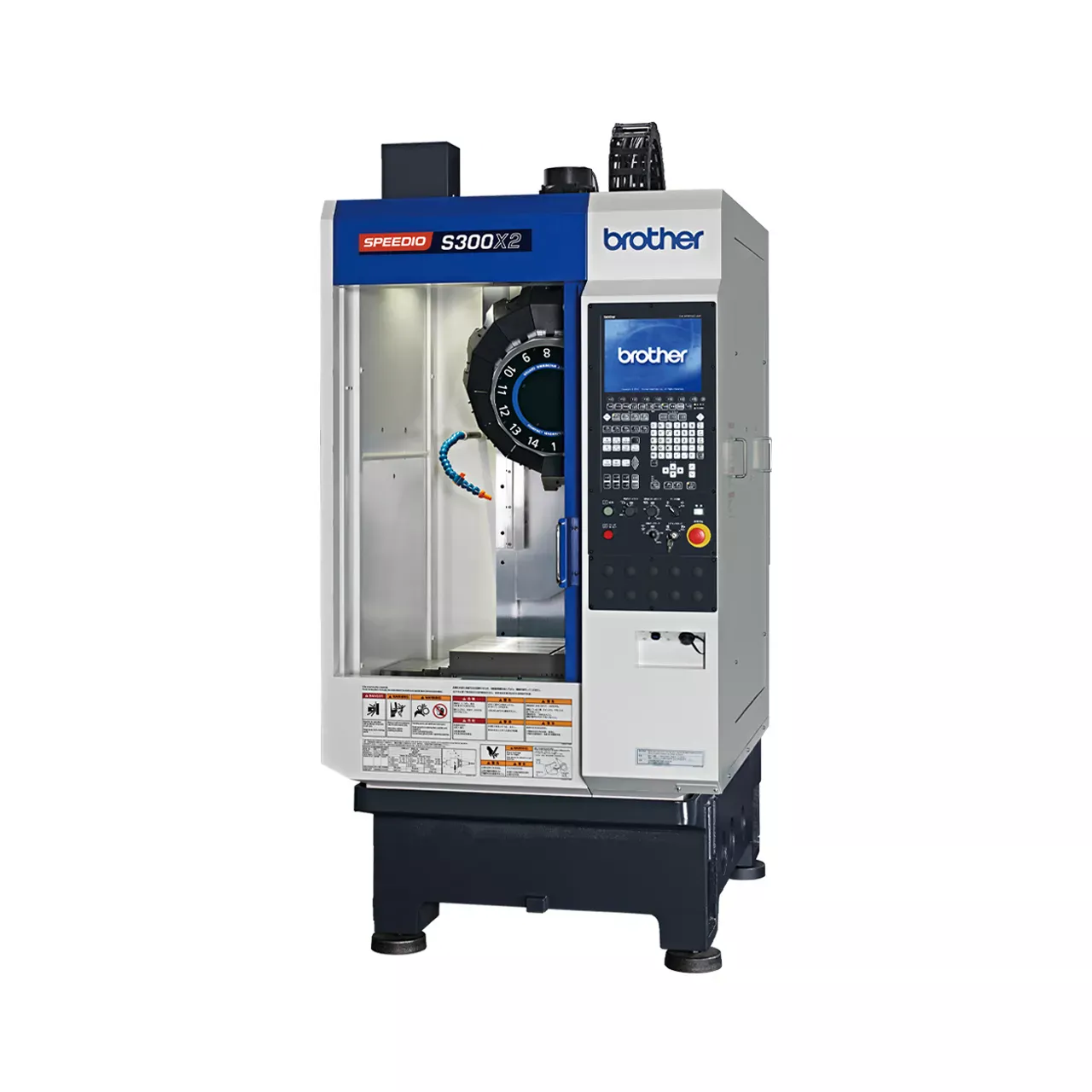

Item ^*9			S700X2	S500X2	S300X2
CNC Unit			CNC-C00
Travels	X axis [mm (inch)]		700 (27.6)	500 (19.7)	300 (11.8)
	Y axis [mm (inch)]		400 (15.7)
	Z axis [mm (inch)]		300 (11.8)
	Distance between table top and spindle nose end [mm (inch)]		180 ~ 480 (7.1 ~ 18.9)
Table	Work area size [mm (inch)]		800 x 400(31.5 x 15.7)	600 x 400(23.6 x 15.7)	600 x 400(23.6 x 15.7)
Table	Max.loading capacity (uniform load) [kg (lbs)]		250 [300] (551 [661])^*6
Spindle	Spindle speed [min^-1]		10,000min^-1 specifications: 10 ~ 10,000 16,000min^-1 specifications(Optional) : 16 ~ 16,000 10,000min^-1 high-torque specifications(Optional) : 10 ~ 10,000 27,000min^-1 specifications(Optional) : 27 ~ 27,000
	Speed during tapping [min^-1]		Max. 6,000 (27,000min^-1 specifications : Max. 8,000)
	Tapered hole		7/24 tapered No.30
	BT dual contact system (BIG-PLUS)		Optional
	Coolant Through Spindle (CTS)		Optional(CTS option is not available for 27,000min^-1 spec.)
Feed rate	Rapid traverse rate (XYZ-area) [m/min (inch/min)]		50 x 50 x 56 (1,969 x 1,969 x 2,205)
Feed rate	Cutting feed rate [mm/min (inch/min)]		X,Y,Z: 1 ~ 30,000 ( 0.04 ~ 1,181)^*7
ATC unit	Tool shank type		MAS-BT30
	Pull stud type^*4		MAS-P30T-2
	Tool storage capacity [pcs.]		14 / 21
	Max.tool length [mm (inch)]		250 (9.8)		160 (6.3) [21tool] 250 (9.8) [14tool]
	Max.tool diameter [mm (inch)]^*1		110 (4.3)
	Max.tool weight [kg (lbs)]^*1(kg)		3.0(6.6) / Tool (TOTAL TOOL WEIGHT:25(55.1) for 14 tools,35(77.2) for 21 tools)
	Tool selection method		Random shortcut method
	Tool change time^*5		Tool To Tool[sec.]: 0.7 / Chip To Chip[sec.]: 1.3
Electric motor	Main spindle motor (10 min/continuous)[kW]^*2		10,000min^-1 specifications : 10.1/7.1 16,000min^-1 specifications(Optional) : 7.4/5.1 10,000min^-1 high-torque specifications(Optional) : 12.8/9.2 27,000min^-1 specifications(Optional) : 8.9/6.3
Electric motor	Axis feed motor [kW]		X,Y: 1.0 / Z: 2.0
Power source	Power supply		AC200V ±10%, 50/60Hz ±1Hz
	Power capacity (continuous) [kVA]		10,000min^-1 specifications : 9.5 16,000min^-1 specifications(Optional) : 9.5 10,000min^-1 high-torque specifications(Optional) : 10.4A 27,000min^-1 specifications(Optional) : 9.5
	Air supply	Regular air pressure [MPa]	0.4 ~ 0.6(recommended value : 0.5MPa)^*8
	Air supply	Required flow [L/min]	45 (27,000min^-1 specifications:115)
Machine dimensions	Height [mm (inch)]		2,497 (98.3)
	Required floor space (with control unit door open) [mm (inch)]		2,050 x 2,223 [2,794] (80.7 x 87.5 [110])	1,560 x 2,223 [2,794] (61.4 x 87.5 [110])	1,080 x 2,463 [2,794] (42.5 x 96.9 [110])
	Weight (including control unit, machine cover) [kg (lbs)]		2,400 (5,291)	2,250 (4,960)	2,200 (4,850)
Accuracy^*3	Accuracy of bidirectional axis positioning ( ISO230-2:2006 ) [mm (inch)]		0.006 ~ 0.020 ( 0.00024 ~ 0.00079 )
Accuracy^*3	Repeatability of bidirectional axis positioning ( ISO230-2:2006 ) [mm (inch)]		Less than 0.004 (0.00016 )
Front door			2doors
Standard accessories			Instruction Manual (1 set), anchor bolts (4 pcs.), leveling bolts (4 pcs.),machine cover (manual door )

*1 Actual tool weight differs depending on the configuration and center of gravity.The figures shown here are for reference only.
*2 Spindle motor output differs depending on the spindle speed.
*3 Measured in compliance with ISO standards and Brother standards.
*4 Brother specifications apply to the pull studs for CTS.
*5 Measured in compliance with JIS B6336-9 and MAS011-1987.
*6 Acceleration must be adjusted for X and Y axes.
*7 When using high accuracy mode B.
*8 Regular air pressure varies depending on the machine specifications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommended value.
*9 The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with “RD” at the end of the model name.

NC Unit specifications

CNC model		CNC-C00
Control axes		5axes ( X, Y, Z, additional axes)
Simultaneously controlled axes	Positioning	5 axes (X, Y, Z, A, B)
Simultaneously controlled axes	Interpolation	Linear : 4 axes ( X, Y, Z, one additional axis) Circular : 2 axes Helical / conical : 3 axes (X, Y, Z)
Least input increment		0.001mm, 0.0001inch, 0.001°
Max.programmable dimension		±9999.999mm, ±999.9999inch
Display		12.1-inch color LCD
Memory capacity		Approx.100 Mbytes (Total capacity of program and data bank)
External communication		USB memory interface, Ethernet, RS232C (Optional)
No.of registrable programs		4,000 (Total capacity of program and data bank)
Program format		NC language, conversation (changed by parameter) conversion from conversation program to NC language program available
Standard NC functions		Absolute / incremental Inch / metric Corner C / Corner R Rotational transformation Synchronized tap Coordinate system setting Dry run Restart Backlash compensation Rapid traverse override Cutting feed override Alarm history(1,000 pieces ) Startus log Machine lock Computer remote Built-in PLC Motor insulation resistance measurement Operation log Tool monitoring Screen shot Waveform output to memory card Auto notication High-accuracy mode AⅢ Tool length measurement Tool life management / spare tool Background editing Graphic display Subprogram Herical / conical interpolation Tool washing lter with lter clogging detection Automatic power off ( energy saving function ) Servomotor off standby mode (energy saving function) Chip shower off delay Automatic coolant off ( energy saving function) Automatic work light off ( energy saving function) Heat expansion compensation systemII (X,Y,Z axes) Tap return function Automatic workpiece measurement ^*1 Waveform display Operation level External input signal key High accuracy mode BI (look-ahead 40blocks) Inverse time feed Spindle load monitoring function （NC） Expanded workpice coordinate system Scaling Mirror image Menu programming Programmable data input Tool length compensation Cutter compensation Macro function Local coordinate system One-way positioning Opeation in tape mode （Conversation） Operation program Schedule program Automatic tool selection Automatic cutting condition setting Autmatic tool length compensation setting Autmatic cutter compensation setting Autmatic calculation of unknown number input Machining order control
Optional NC functions		Memory expansion (Approx. 500 Mbytes) High accuracy mode BⅡ (look-ahead 200 blocks, smooth path offset) Spindle override High-speed processing ^2 （NC） Submicron command ^3 Interrupt type macro Rotary fixture offset

* Number of "control axes" and/or "simultaneously controlled axes" are the maximum number of axes, which will differ depending on the destination country and the machine specifications.
* Ethernet is a trademark or registered trademark of XEROX in the United States.
* Functions listed under (NC) and (Conversation) are available only for NC programs and conversation programs respectively.
*1 Measuring instrument needs to be prepared by users.
*2 Minute block processing time can be changed.
*3 When the submicron command is used, changing to the conversation program is disabled.
