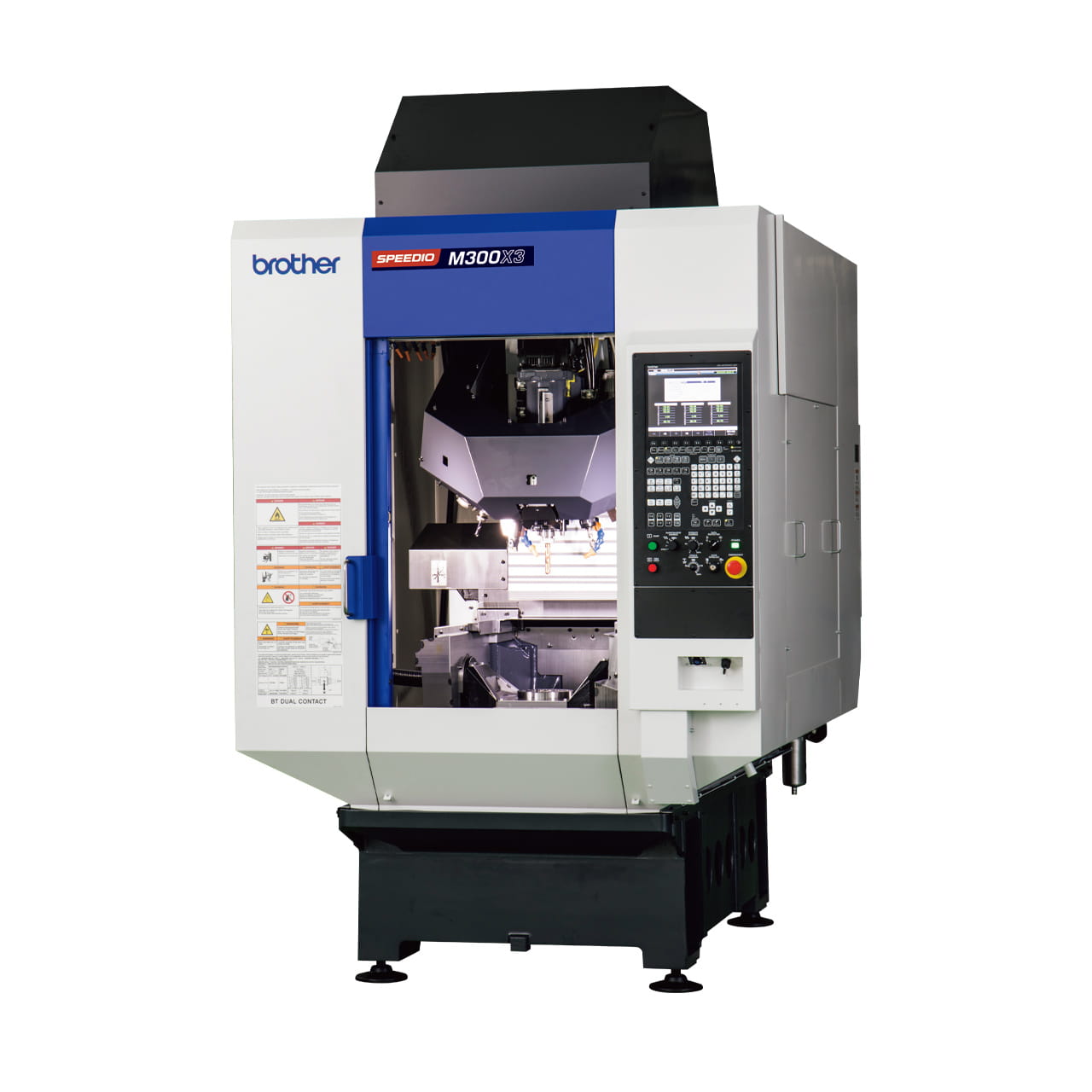

SPEEDIO M300X3

Compact Multi-Tasking Machine

Turning
22 Tool Magazine

Travels (mm): X: 300 Y: 440 Z: 305
Travels (A, C) (deg.): A: -30 to 120, C: 360
Max. spindle speed (min^-1): 10,000/ (Optional) 16,000
Tool storage capacity(pcs.): 22
Max. turning spindle speed (min-1): 1,500

Select variant: M300X3

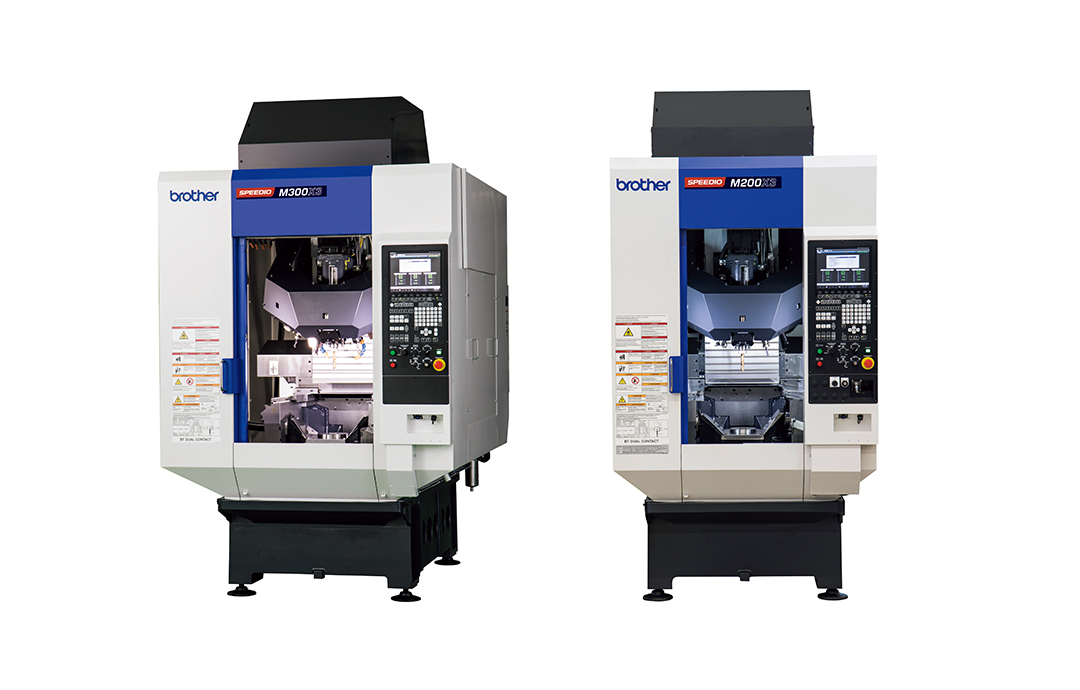

The compact multi-tasking machines, equipped with turning and tilt axes, enable turning and machining processes through one-time chucking. New models have been added that can handle larger workpieces.

Information

Process integration in one machine

Workpieces previously machined using a turning center and a machining center can now be machined on one machine with machining processes integrated. This reduces handling time between machines.

The machine has an original design, including the magazine structure, that keeps the machine compact while maintaining the rigidity of each axis and the balance of rigidity.

Tilt axis (A-axis)

A roller gear cam is used for the tilt axis (A-axis). High retention force and a backlashless structure achieve highspeed and high-accuracy indexing.

Turning spindle (C-axis)

A high-speed and high-output built-in DD motor is used for the turning spindle (C-axis). This achieves efficient turning and high-speed indexing.

Double plunger lock

An original double plunger lock is used to secure turning tools, achieving excellent tool change repeatability.

Fast acceleration / deceleration spindle

Using a fast acceleration / deceleration spindle motor and highly-responsive servo control achieves quicker starting and stopping of the spindle and turning spindle.

Start / stop time

Spindle : 0.2s
Turning spindle : 0.3s

Fast acceleration / deceleration spindle

High-speed tool change

Using a compact 22-tool magazine with excellent weight balance and optimal control achieves high-speed tool change, with any wasted operation eliminated.

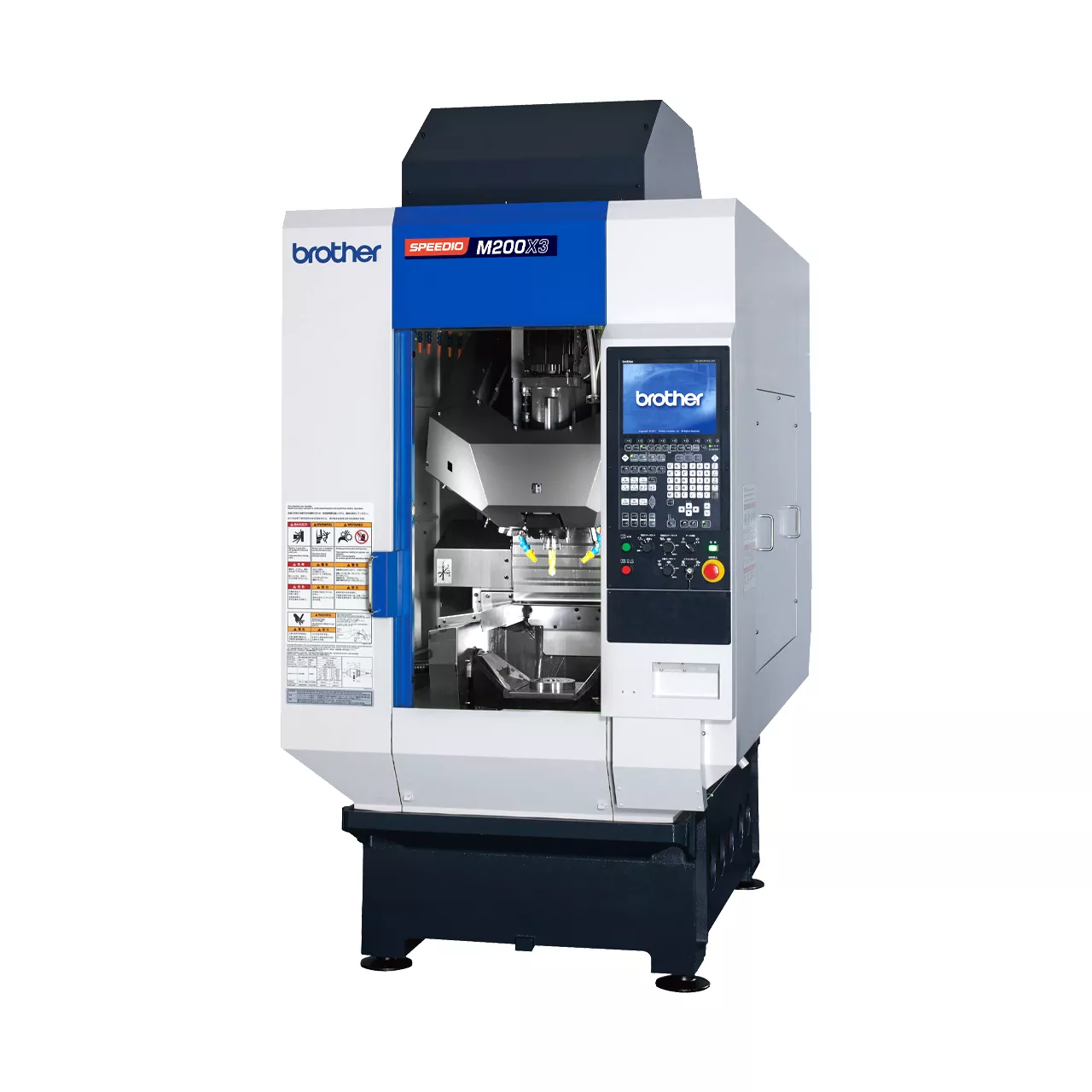

M200X3
Chip-Chip : 1.5s
Tool-Tool : 0.9s

High-speed synchronized tapping

Original synchronized tapping control enables high-accuracy tapping at the fastest level in the world.

Peripheral speed : 377m/min

*: M20, spindle speed 6,000min^-1

Simultaneous operation

Wasted time is further reduced by positioning the X/Y/Z axes and A/C axes simultaneously with tool changes.

Reduction in non-cutting time

Loading system for manpower reduction (M200X3)

Simple, compact, and easy installation/startup

Specialized for loading/unloading workpieces
Compactly installed on the side of machine
Controller incorporated in machine's control box

Loading system for manpower reduction (M200X3)

Milling capabilities

As the spindle can provide high torque even in the medium- and high-speed range, the machine fully demonstrates its capabilities in high-speed, high-efficiency machining of aluminum or steel.

ax. torque : 40Nm
Max. output : 18.9kW

Turning capabilities

High-efficiency machining is achieved by the high-output turning spindle with a maximum speed of 2,000 min-1, and the turning tool secured by the double plunger lock.

Max. torque
M300X3 : 102Nm、M200X3 : 55Nm
Max. output
M300X3 : 9.9kW、M200X3 : 8.7kW

Reliability

Chip discharge performance and handling capability have been improved along with the expansion of the machine area.
In addition, the machine is equipped with functions to improve reliability, such as chip shower and air-assisted tool washing.

Center trough structure
Tank with cyclone filter (special option for CTS)

Operability

The machine is equipped with our original “CNC-C00 Series” controller, created through machine/controller integrated development.

Equipped with tool monitoring functions

ATC monitoring
Machining load monitoring function
Thread cutting function
USB interface
PLC function

Product Specification

M300X3

Max. spindle speed

10,000/ (Optional) 16,000

Travels

X: 300 Y: 440 Z: 305 A(deg.):-30 to 120 C(deg.):360

Tool storage capacity

Rapid traverse rate (XYZ-area)

50 x 50 x 50

Indexing feedrate(A,C)

A:50 C:200

Required Floor Space

1,520 x 3,862

BT dual contact spindle(BIG-PLUS)

Optional

Coolant Through Spindle(CTS)

Optional

Machine Specification

Item			M300X3 ^*8	M200X3 ^*8
CNC Unit			CNC-C00
Travels	X axis [mm (inch)]		300 (11.8)	200 (7.9)
	Y axis [mm (inch)]		440 (17.3)	440 (17.3)
	Z axis [mm (inch)]		305 (12.0)	305 (12.0)
	A axis [deg.]		120 - -30	120 - -30
	C axis [deg.]		360	360
Table	Work area size [mm(inch)]		Φ170 (Φ6.7)	Φ140 (Φ5.5)
	Shape of table top		In compliance with table nose No.5 of ISO702-4 (JISB6109-2)
	Max.loading capacity (uniform load) [kg (lbs)]		Table side 75 (165.3) / Tail side 11 (24.3)	Table side 40 (88.2) / Tail side 11 (24.3)
	Maximum table load inertia [kg･m²(lb･inch²)]		Table side 0.58 (1982) / Tail side 0.04 (137)	Table side 0.29 (991) / Tail side 0.04 (137)
Spindle	Spindle speed [min^-1]		10,000min-1 specifications : 10 - 10,000 16,000min-1 specifications(optional) : 16 - 16,000
	Speed during tapping [min^-1]		MAX. 6,000
	Tapered hole		7/24 tapered No.30
	BT dual contact spindle (BIG-PLUS)		Optional
	Coolant Through Spindle (CTS)		Optional
Turning spindle	Max. spindle speed [min^-1]		1,500	2,000
Feed rate	Rapid traverse rate (XYZ-area) [m/min(inch/min)]		50 X 50 X 50 (1,969 X 1,969 X 1,969)
	Cutting feed rate [mm/min(inch/min)]		X,Y,Z axis : 1 - 30,000 (0.04 - 1,181)^*7
	Indexing feedrate (A and C) [min^-1]		A axis: 50, C axis: 200	A axis: 60, C axis: 200
ATC unit	Tool shank type		MAS-BT30
	Pull stad type^*4		MAS.P30T-2
	Tool storage capacity [pcs.]		22
	Max. tool length [mm(inch)]		200 (7.9)
	Max. tool diameter [mm(inch)]		80 (3.1)
	Max. tool weight [kg (lbs)]^*1		3 (6.6)
	Tool selection method		Random shortcut method
Tool change time^*5	Tool To Tool [sec.]		0.8	0.8
Tool change time^*5	Chip To Chip [sec.]		1.6	1.5
Electric motor	Main spindle motor (10 min/continuous) [kW]^*2		10,000min^-1 specifications : 10.1/7.0 16,000min^-1 specifications(optional) : 7.4/5.1
	Axis feed motor [kW]		X,Y axis 1.0, Z axis 1.8, A axis 1.35	X,Y axis 1.0, Z axis 1.8, A axis 0.8
	Turning spindle motor [kW]		4.6	3.6
Power source	Power supply		AC200V±10%、50/60Hz±1Hz
	Power capacity(continuous) [kVA]		10,000min^-1 specifications : 9.5 16,000min^-1 specifications (Optional): 9.5
	Air supply	Regular air pressure [MPa]	0.4 - 0.6 (recommended value : 0.5MPa)^*6
	Air supply	Required flow [L/min]	165
Machine dimensions	Height [mm (inch)]		2,653 (104.4)	2,603 (102.5)
	Required floor space [mm (inch)]		1,520 X 3,862 (59.8 X 152.0)	1,280 X 3,862 (50.4 X 152.0)
	Weight [kg (lbs)]		2,880 (6,349)	2,750 (6,063) [3,050 (6,724) with BV7-870]
Accuracy^*3	Accuracy of bidirectional axis positioning (ISO230-2:2006)[mm (inch)]		0.006 - 0.020 (0.00024 - 0.00079) [X,Y,Z] 28 sec or less [A,C]
Accuracy^*3	Repeatability of bidirectional axis positioning (ISO230-2:2006)[mm (inch)]		Less than 0.004 (0.00016) [X,Y,Z] 16 sec or less [A,C]
Standard accessories			Instruction Manual (1 set), anchor bolts (4 pcs.), leveling bolts (4 pcs.)

*1 The maximum tool weight differs depending on the configuration and center of gravity. The figures shown here are for reference only.
*2 Spindle motor output differs depending on the spindle speed.
*3 Measured in compliance with ISO standards and Brother standards. Please contact your local distributor for details.
*4 Brother specications apply to the pull studs for CTS.
*5 Measured in compliance with JIS B6336-9 and MAS011-1987.
*6 Regular air pressure varies depending on the machine specications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommended value.
*7 When high accuracy mode B is used (When not used, 1 ~ 10,000 mm/min for X/Y axes and 1 ~ 20,000 mm/min for Z axis)
*8 The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with “RD” at the end of the model name.

NC Unit specifications

CNC model		CNC-C00
Control axes		5axes (X,Y,Z,A,C)
Simultaneously controlled axes	Positioning	5axes (X,Y,Z,A,C)
Simultaneously controlled axes	Interpolation	Linear : 4 axes (X, Y, Z, one additional axis) Circular : 2 axes Helical/conical : 3 axes(X,Y,Z)
Least input increment		0.001mm, 0.0001inch, 0.001 deg.
Max.programmable dimension		±9999.999mm, ±999.9999inch
Display		12.1-inch color LCD
Memory capacity		Approx.100 Mbytes (Total capacity of program and data bank)
External communication		USB memory interface, Ethernet, RS232C 1ch
No.of registrable programs		4,000 (Total capacity of program and data bank)
Program format		NC language^*1
Standard NC functions		Absolute / incremental Inch / metric Corner C / Corner R Rotational transformation Synchronized tap Coordinate system setting Dry run Restart Backlash compensation Rapid traverse override Cutting feed override Alarm history (1,000 pieces) Status log Machine lock Computer remote Built-in PLC Motor insulation resistance measurement Operation log High accuracy mode AⅢ Tool length measurement Tool life management / spare tool Background editing Graphic display Subprogram Helical / conical interpolation Tool washing lter with lter clogging detection Automatic power off (energy saving function) Servomotor off standby mode (energy saving function) Chip shower off delay Automatic coolant off (energy saving function) Automatic work light off (energy saving function) Heat expansion compensation systemⅡ (X,Ｙ,Z axes) Tap return function Automatic workpiece measurement ^※1 Waveform display Operation level External input signal key High accuracy mode BⅠ(look-ahead 40 blocks) Waveform output to memory card Screen shot Auto notication Inverse time feed Spindle load monitoring function ATC monitoring function Expanded workpiece coordinate system Scaling Mirror image Menu programming Programmable data input Tool length compensation Cutter compensation Macro function Local coordinate system One-way positioning Operation in tape mode (Turning function) Constant peripheral speed control Feed per revolution control Tool position compensation XYZ Nose R compensation Thread cutting function
Optional NC functions		Memory expansion (Approx. 500 Mbytes) High-speed processing ^※2 Rotary xture offset Involute interpolation High accuracy mode BⅡ (look-ahead 200 blocks, smooth path offset) Submicron command ^※3 Feature coordinate setting function Spindle override Interrupt type macro

* Ethernet is a trademark or registered trademark of XEROX in the United States.
* Conversation language not available.
*1 Measuring instrument needs to be prepared by users.
*2 Minute block processing time can be changed. As there are some restrictions, please contact your local distributor for details.
*3 When the submicron command is used, changing to the conversation program is disabled.
