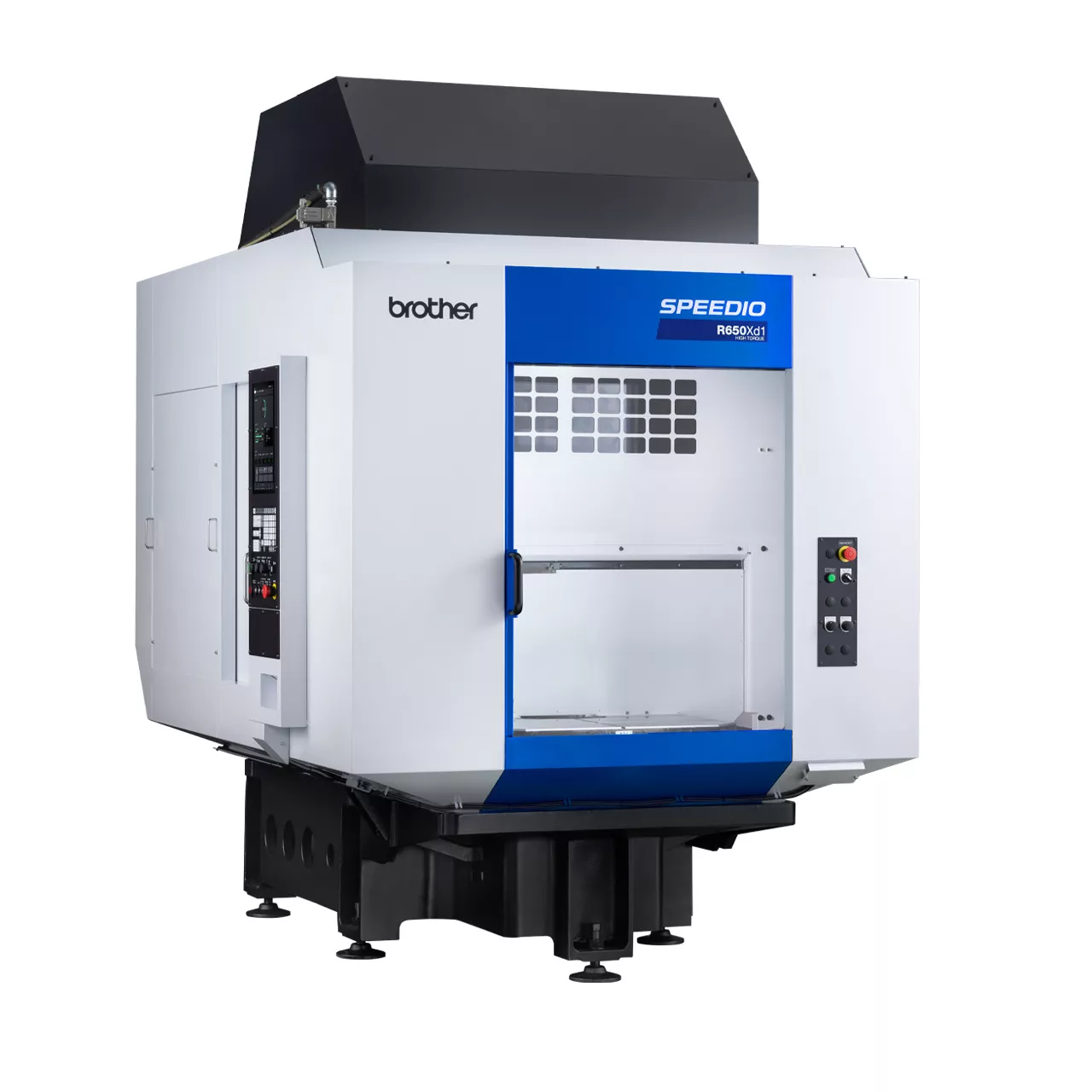

SPEEDIO R650Xd1
Pallet Changing Compact Machining Center
- Travels (mm): X: 650 Y: 400 Z: 305
- Max. spindle speed (min-1): 10,000/ (Optional) 16,000/ (Optional) 10,000 high-torque
- Tool storage capacity(pcs.): 14/ 22/ 28
Select variants: R650Xd1 40tools
Equipped with a "QT table", Brother's original pallet changer that avoids lift-up motion, new CNC capacity to improve productivity at every production site.
![[New indow]](-/media/2BBAEB19B7CF43A5A42B2C3A137A3E81.ashx)
Information
Overview
The QT table is Brother’s original high-speed 2-face pallet changer.
With a wide jig area and a high degree of reliability, the QT table enables non-stop machining to achieve high productivity.
With a wide jig area and a high degree of reliability, the QT table enables non-stop machining to achieve high productivity.
High-speed pallet change
The QT (Quick Turn) table is a turntable type high-speed 2-face pallet changer.
Optimized acceleration/deceleration control achieves much faster pallet change.
Optimized acceleration/deceleration control achieves much faster pallet change.
Pallet change time
R450Xd1: 2.9 s → 2.7 s
R650Xd1: 3.4 s → 3.1 s
Non-stop machining
Workpieces on one pallet can be changed while machining workpieces on the other pallet. Waste in workpiece change time is eliminated, enabling non-stop machining.
Large jig area
Even if the jig protrudes from the table, it can be mounted as long as it is within the pallet turning diameter. The jig area can be further expanded by selecting a low table option that increases the jig height or a turning diameter enlargement option that increases the jig space.
Max. jig height
R450Xd1: 350 → 380
R650Xd1: 420 → 450
Including a newly developed 28-tool magazine, a 40-tool magazine with a maximum storage capacity is available in response to a variety of machining needs.
Overwhelming high productivity is achieved by utilizing advantages of machine/controller integrated development, including optimized and faster simultaneous operation and tool change operation.
Overwhelming high productivity is achieved by utilizing advantages of machine/controller integrated development, including optimized and faster simultaneous operation and tool change operation.
28-tool magazine
A new compact turret type 28-tool magazine has been developed with high-speed tool change performance maintained. This expands the range of target machining parts and promotes process integration.
40-tool magazine (R650Xd1)
In addiiton to 14/22/28-tool magazines, a 40-tool magazine is available. This promotes process integration, taking advantage of a 2-face pallet changer, and encourages producitivty improvement.
For the 40-tool magazine, the machining room is separated from the tool stocker by a shutter type door. This prevents chips entering the magazine.
High rigidity based on a special design and use of a high-torque spindle motor achieves stable machining while demonstrating high machining capability.
From heavy-duty machining to high-speed and highly efficient machining
A spindle motor with high torque in the medium- and high-speed range is used to achieve high-speed and highly efficient machining. In addition, the high-torque spec. (optional) machine greatly improves torque in the low-speed range. The machine provides excellent performance in heavy-duty machining of iron.
High-torque spec. (optional)
Max. torque : 92Nm
Max. output : 26.2kW
Standard spec.
Max. torque : 40Nm
Max. output : 18.9kW
High-speed and highly accurate three-dimensional machining
In addition to the highly responsive servomotor, the servo processing speed and resolution have been greatly improved. Enhanced performance of original three-dimensional machining control, including a great increase in look-ahead blocks and improved surface quality by the smooth path offset function, achieves high-speed and highly accurate three-dimensional machining.
Simple setting for high accuracy mode
Machining accuracy/surface quality parameters can be adjusted by simple operation. This helps achieve high-quality machining easily.
High accuracy mode BI : Look-ahead 160 blocks
High accuracy mode BII (optional) : Look-ahead 1000 blocks
Intuitive operation is possible with new apps and vertical touch panel screen. Relevant functions are grouped according to purpose, such as setup and machining, leading to efficient operation. Production and operation states are visualized, allowing faster understanding. Waste-free operation is possible in setup, machining adjustment, production, and recovery process, leading to improved work efficiency and operating rate.
Home screen
Information required for production, such as workpiece counter and tool life, is collected on the home screen. Shortcut keys are provided for screens frequently used so you can open them by one touch.
New user interface
Usability has been greatly improved by grouping relevant functions, creating new support apps that are intuitive with improved operability and visibility, providing useful accessories (calculator, notebook, file viewer etc.), and making operation on conventional screens possible on the touch panel.
Specifications
Product Specification
R650Xd1
Max. spindle speed
10,000/ (Optional) 16,000/ (Optional) 10,000 high-torque
Travels
X: 650 Y: 400 Z: 305
Tool storage capacity
14/ 21/ 28
Rapid traverse rate (XYZ-area)
50 x 50 x 50
Required Floor Space
1,830 x 3,029
BT dual contact spindle(BIG-PLUS)
Optional
Coolant Through Spindle(CTS)
Optional
Low floor table
Optional
| item | R450Xd1 / R450Xd1 RD *12 | R650Xd1 / R650Xd1 RD *12 14/22/28 tool magazine |
R650Xd1 / R650Xd1 RD *12 40-tool magazine |
||
|---|---|---|---|---|---|
| CNC unit | CNC-D00 | ||||
| Travels | X axis [mm (inch)] | 450 (17.7) | 650 (25.6) | ||
| Y axis [mm (inch)] | 320 (12.6) *7 | 400 (15.7) | |||
| Z axis [mm (inch)] | 305 (12.0) | 305 (12.0) | 435 (17.1) | ||
| Distance between table top and spindle nose end [mm (inch)] | 200-505 (7.9-19.9) [280-585 (11.0-23.0) *8 |
250-555 (9.8-21.8) [350-655 (13.8-25.8) *8] |
250-685 (9.8-27.0) [350-785 (13.8-30.9) *8] |
||
| Table | Work area size [mm (inch)] | One face 600 x 300 (23.6 x 11.8) |
One face 800 x 400 (31.5 x 15.7) | ||
| Max.loading capacity (uniform load) [kg (lbs)] |
One face 120 (265) [200 (441) *6] |
One face 200 (441) [300 (661) *6] |
|||
| Position time [sec.] | 2.7 *11 | 3.1 *11 | |||
| Spindle | Spindle speed [min-1] |
10,000min-1 specifications : 1 - 10,000 16,000min-1 specifications(Optional) : 1 - 16,000 10,000min-1 high-torque specifications(Optional) : 1 - 10,000 |
|||
| Speed during tapping [min-1] | MAX. 6,000 | ||||
| Tapered hole | 7/24 tapered No.30 | ||||
| BT dual contact system (BIG-PLUS) |
Optional | ||||
| Coolant Through Spindle (CTS) | Optional | ||||
| Feed rate | Rapid traverse rate (XYZ-area) [m/min (inch/min)] |
50 x 50 x 50 (1,969 x 1,969 x 1,969) | |||
| Cutting feed rate [mm/min (inch/min)] |
X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9 | ||||
| ATC unit | Tool shank type | MAS-BT30 | |||
| Pull stud type *4 | MAS-P30T-2 | ||||
| Tool storage capacity [pcs.] | 14/22/28 | 14/22/28 | 40 | ||
| Max.tool length [mm (inch)] | 200 (7.9) | 200 (7.9) | 250 (9.8) | ||
| Max.tool diameter [mm (inch)] | 80 (3.1) | 80 (3.1) | 55 (2.1) / 125 (4.9) No adjacent tool |
||
| Max.tool weight [kg (lbs)] *1 | 3.0 (6.6) |
3.0 (6.6) |
4.0 (8.8) |
||
| Tool selection method | Random short cut method | Random short cut method | Double arm method (random closet path) |
||
| Tool change time *5 | Tool To Tool [sec.] | 0.6 / 0.7 (14-tool / 22 or 28 tool) |
0.6 / 0.8 (14-tool / 22 or 28 tool) |
0.9 | |
| Chip To Chip [sec.] | 1.3 / 1.5 (14-tool / 22 or 28 tool) |
1.4 / 1.5 (14-tool / 22 or 28 tool) |
2.5 | ||
| Electric motor | Main spindle motor (10 min/continuous)[kW] *2 |
10,000min-1 specifications : 10.1/7.0 16,000min-1 specifications(Optional) : 7.4/5.1 10,000min-1 high-torque specifications(Optional) : 12.8/9.2 |
|||
| Axis feed motor [kW] | X, Y axis : 1.0 , Z axis : 1.8 | ||||
| Power source | Power supply | AC 200 to 230 V±10％, 3-phase, 50/60Hz±2% | |||
| Power capacity (continuous) [kVA] | 10,000min-1 specifications : 9.5 16,000min-1 specifications(Optional) : 9.5 10,000min-1 high-torque specifications(Optional) : 10.4 | ||||
| Air supply | Regular air pressure [MPa] | 0.4 - 0.6 (recommended value: 0.5MPa *10) | |||
| Required flow [L/min] | 45 | 45 | 100 | ||
| Machine dimensions | Height [mm (inch)] | 2,584 (101.7) | 2,704 (106.5) | ||
| Required floor space *13 [with control unit door open] [mm (inch)] |
1,400 x 2,609 [3,448] (55.1 x 102.7 [135.7] ) |
1,830 x 3,029 [3,868] (72.0 x 119.3 [152.3] ) |
2,145 x 3,029 [3,868] (84.4 x 119.3 [152.3] ) |
||
| Weight (including control unit, machine cover) [kg (lbs)] | 2,750 (6,063) | 3,550 (7,826) | 4,150 (9,149) | ||
| Accuracy*3 | Accuracy of bidirectional axis positioning (ISO230-2:1988) [mm (inch)] | 0.006 - 0.020 (0.00024 - 0.00079) | |||
| Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] | Less than 0.004 (0.00016) | ||||
| Front door | 2doors | ||||
| Standard accessories | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd1: 5 pcs.], leveling plate (4 pcs.) [R650Xd1: 5 pcs.] |
||||
- *1 Actual tool weight differs depending on the configuration and center of gravity. The figures shown here are for reference only.
- *2 Spindle motor output differs depending on the spindle speed.
- *3 Measured in compliance with ISO standards and Brother standards. Please contact your local distributor for details.
- *4 Brother specifications apply to the pull studs for CTS.
- *5 Measured in compliance with JIS B6336-9 and MAS011-1987.
- *6 Can be increased up to R450Xd1: 200kg, R650Xd1: 300kg (one face) by changing the parameter. Please consult us separately.
- *7 When using the hydraulic rotary joint, the Y-axis travel becomes 290 mm.
- *8 Values when the low-floor table is selected.
- *9 When using high accuracy mode B.
- *10 Regular air pressure varies depending on the machine specifications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommend value.
- *11 When table loading on one face is R450Xd1: 120kg, R650Xd1: 200kg.
- *12 The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with "RD" at the end of the model name.
- *13 The value does not include the coolant tank or chip conveyor.
- *14 When the turning diameter enlargement option is selected.
| Item | R450Xd1 | R650Xd1 |
|---|---|---|
| Type | 0 deg./180 deg. turntable system | 0 deg./180 deg. turntable system |
| Table dimension [mm (inch)] | One face 600 x 420 (23.6 x 16.5) | One face 800 x 535 (31.5 x 21.1) |
| Max. turning diameter [mm (inch)] | D1,020 (40.2) [D1,100 (43.3)] *14 | D1,250 (49.2) [D1,300 (51.2)] *14 |
| Max. jig height [mm (inch)] | 300 (11.8) [380 (15.0)] *8 | 350 (13.8) [450 (17.7)] *8 |
| Table work area size [mm (inch)] | One face 600 x 300 (23.6 x 11.8) | One face 800 x 400 (31.5 x 15.7) |
| Max. loading capacity [kg (lds)] | One face 120 (265) [200 (441)] *6 | One face 200 (441) [300 (661)] *6 |
| Rated table load inertia for turning axis [kg·m2] | One face 14.2 [23.5] *6 | One face 35.8 [53.7] *6 |
| Table turning system | AC servo motor(1kW) Worm gear (total speed reduction ratio:1/50) |
AC servo motor(0.82kW) Worm gear (total speed reduction ratio:1/60) |
| Table position time | 2.7 *11 | 3.1 *11 |
| Table change repeatability [mm (inch)] |
0.005 (0.0002) (in the X,Y, and Z axes directions 270(10.6) from the center of rotation) |
0.005 (0.0002) (in the X,Y, and Z axes directions 335(13.2) from the center of rotation) |
- * Quick Turn table is a turntable type 2-face pallet changer.
| CNC model | CNC-D00 | |
|---|---|---|
| Control axes | 7 axes (X, Y, Z, four additional axes) | |
| Simultaneously controlled axes | Positioning | 5 axes (X, Y, Z, A, B) |
| Interpolation | Linear : 4 axes (X, Y, Z, one additional axis) Circular : 2 axes Helical/Conical : 3 axes (X, Y, Z) |
|
| Least input increment | 0.001mm、0.0001inch、0.001 deg. | |
| Max.programmable dimension | ±999999.999mm、±99999.9999inch | |
| Display | 15-inch color LCD touch display | |
| Memory capacity | 500 Mbytes, 3 Gbytes (optional) (Total capacity of program and data bank) | |
| External communication | USB memory interface, Ethernet, RS232C (optional) | |
| No.of registrable programs | 4,000 (Total capacity of program and data bank) | |
| Program format | NC language, conversation (changed by parameter) Conversation from conversation program to NC language program available |
|
- * Number of "control axes" and/or "simultaneously controlled axes" are the maximum number of axes, which will differ depending on the destination country and the machine specifications.
- * Ethernet is a trademark or registered trademark of XEROX in the United States.
| Operation | Dry run Machine lock Program restart Rapid traverse override Cutting feed override Background editing Screen shot Operation level External input signal key
|
|---|---|
| Programming | Absolute / Incremental Inch / Metric Coordinate system setting Corner C / Corner R Rotational transformation Synchronized tap Subprogram Graphic display |
| Measurement | Automatic workpiece measurement *1 Tool length measurement |
| High speed and high accuracy | Machining parameter adjustment High-accuracy mode AIII High-accuracy mode BI (look-ahead 160 blocks) Backlash compensation
|
| Monitoring | Machining load monitoring ATC monitoring Overload prediction Waveform display / Waveform output to memory card Heat expansion compensation system ll (X, Y, and Z axes) Production performance display Tool life / Spare tool |
| Maintenance | Tap return function Status log Alarm log Operation log Motor insulation resistance measurement Tool washing filter with filter clogging detection Breake load test |
| Automatic / Network | Computer remote OPC UA Auto notification Built-in PLC (LD/ST/FBD)
|
| Energy saving | Automatic power off Standby mode Automatic coolant off Automatic work light off Chip shower off delay |
| Support apps | Adjust machine parameters ATC tool Tool life Waveform display Production performance Power consumption Recovery support Inspection PLC |
| Accessories | File viewer Notebook Calculator Register shortcut Display off |
| Functions limited to NC language | Menu programming Local coordinate system Expanded workpiece coordinate system One-way positioning Inverse time feed Programmable data input Tool length compensation Cutter compensation Scaling Mirror image External sub program call Macro Operation in tape mode Multiple skip function
|
| Functions limited to conversation | Operation program Schedule program Automatic tool selection Automatic cutting condition setting Automatic tool length compensation setting Automatic cutter compensation setting Automatic calculation of unknown number input Machining order control |
- *1 Measuring instrument needs to be prepared by users.
- *2 When the submicron command is used, changing to the conversation program is disabled.
- *3 There are restrictions on the axis configuration.
Example
Precision equipment
Workpiece nameWatch/clock plate
MaterialBrass
Workpiece nameL-shaped bracket
MaterialStainless steel
Valve
Workpiece nameGas control valve
MaterialStainless steel
Workpiece nameHot-water supply valve
MaterialBrass
Automobile
Workpiece nameAluminum wheel
MaterialAluminum alloy
Workpiece nameABS valve housing
MaterialAluminum alloy
Workpiece nameBrake caliper
MaterialCast iron
