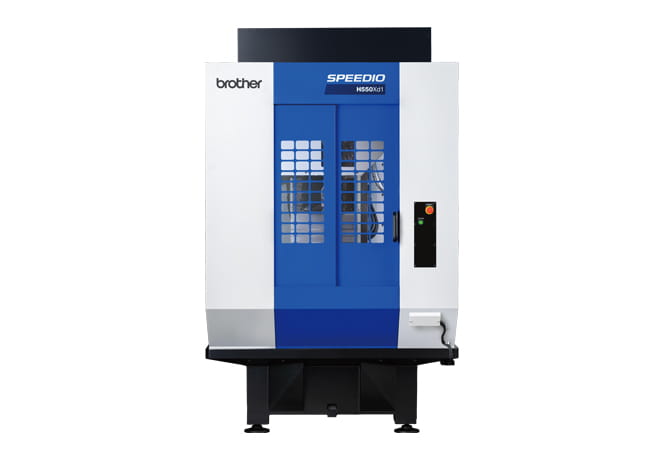

SPEEDIO H550Xd1
Horizontal Compact Machining Center
- Travels (mm): X: 550 Y: 400 Z: 400
- Travels (deg.): B: 360
- Max. spindle speed (min-1): 12,000/ (Optional) 16,000/ (Optional) 10,000 high-torque
- Tool storage capacity(pcs.): 30
The H550Xd1 horizontal machining center with a BT30 spindle provides high productivity and excellent environmental performance.
Information
Overview
Highly productive horizontal machining center using a BT30 spindle and is equipped with ample jig area,
30-tool magazine, and high-speed B-axis table
This enables machining of large or long workpieces that was not possible on conventional BT30 machines.
This enables machining of large or long workpieces that was not possible on conventional BT30 machines.
Jig area
Ample jig area of ø600 x 580 mm has been achieved. *1
Can be expanded to ø800 mm by moving the tool to a safe position, etc. *2
This enables a large or long workpiece to be mounted.
*1. Interference area is created depending on the tool length or tool diameter.
*2. The tool must be moved to a safe position when the B-axis rotates or the tool length is restricted.
Can be expanded to ø800 mm by moving the tool to a safe position, etc. *2
This enables a large or long workpiece to be mounted.
*1. Interference area is created depending on the tool length or tool diameter.
*2. The tool must be moved to a safe position when the B-axis rotates or the tool length is restricted.
Space saving
Machine dimensions are 1,557 mm in width and 2,990 mm in depth, achieving reduction in space while maintaining ample jig and machining areas.
*3. Dimension including coolant tank
*4. Compared to BT40 horizontal MC with equivalent travels
*3. Dimension including coolant tank
*4. Compared to BT40 horizontal MC with equivalent travels
Installation space
4.7 m2 *3
B-axis table
The B-axis table with a roller gear cam mechanism is standard-provided, achieving a fast rotary speed of 100 min-1.
The table size is 400 x 400 mm, and the maximum loading capacity is 400 kg. This enables handling of a heavy workpiece or jig while maintaining high-speed performance.
The table size is 400 x 400 mm, and the maximum loading capacity is 400 kg. This enables handling of a heavy workpiece or jig while maintaining high-speed performance.
B-axis rotary speed
100min-1
Loading capacity
Max. 400kg

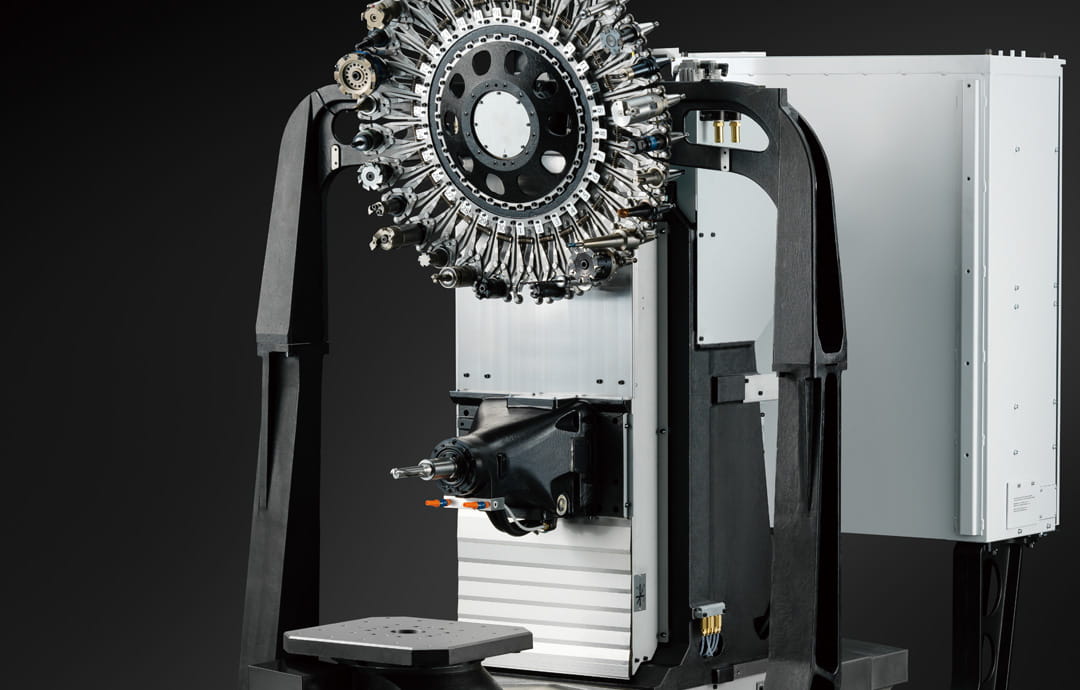

30-tool magazine
Equipped with the newly developed direct ATC type 30-tool magazine.
Supports maximum tool length of 250 mm, maximum tool diameter of 125 mm, and maximum tool weight of 4 kg, enabling a variety of machining, including long workpieces.
Supports maximum tool length of 250 mm, maximum tool diameter of 125 mm, and maximum tool weight of 4 kg, enabling a variety of machining, including long workpieces.
B-axis rotary speed
100min-1
Max. tool length 250mm
Max. tool diameter 125mm*5
Max. tool weight 4kg
*5. When attaching an adjacent tool, the total diameter of a tool and its adjacent tool must be less than 130 mm.
Overwhelming high productivity has been achieved by utilizing advantages of machine/controller integrated development,
such as fast acceleration/deceleration spindle, faster and optimized tool change operation, and inertia estimation function.
such as fast acceleration/deceleration spindle, faster and optimized tool change operation, and inertia estimation function.

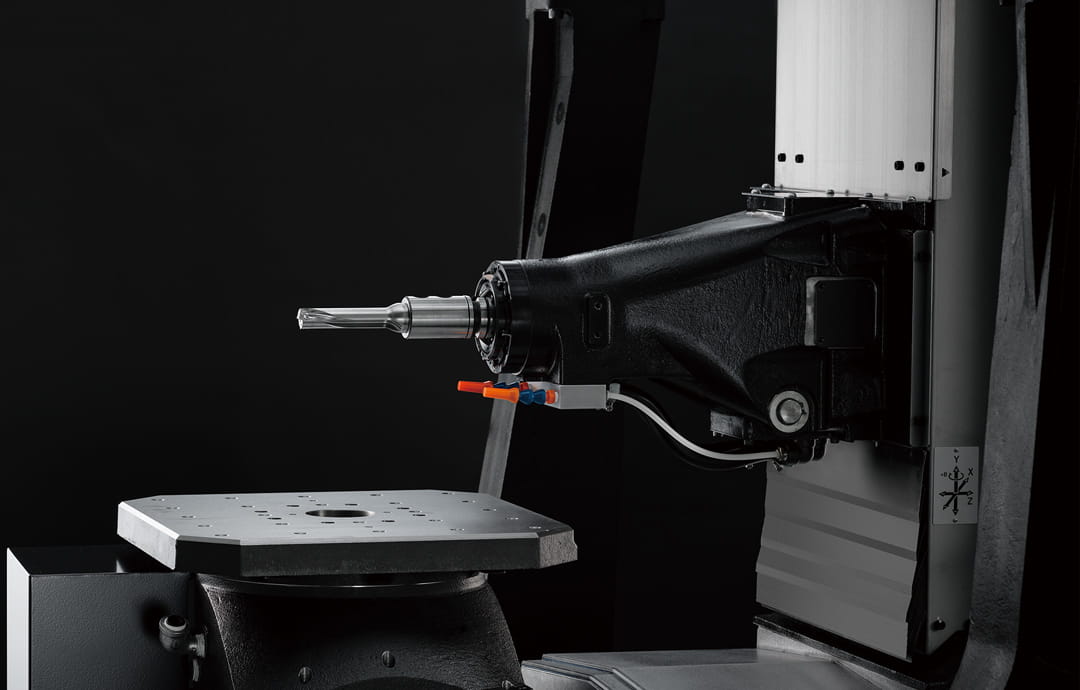

Fast acceleration/deceleration spindle
Using a low inertia spindle and high acceleration/deceleration spindle motor has achieved faster spindle start/stop.
Spindle start/stop time
0.15s or less *1
*1. Value of high-torque spec.
High-speed tool change
By utilizing the advantages of machine/controller integrated development, high-speed tool change has been achieved by fast acceleration/deceleration and optimized operation.
Tool change time
Tool - Tool: 1.1s
Chip - Chip: 2.4s
High-speed tool change
A roller gear cam mechanism is used for the B-axis table to achieve both durability and high-speed performance. A maximum rotary speed of 100 min-1 enables high-speed indexing.
Wasted time is further reduced by simultaneously performing tool change and B-axis indexing.
In addition, machining can be performed only by the holding torque with motor without using the clamp mechanism depending on the machining load.
Wasted time is further reduced by simultaneously performing tool change and B-axis indexing.
In addition, machining can be performed only by the holding torque with motor without using the clamp mechanism depending on the machining load.
B-axis table indexing time *2
0→90° 1.0s
0→180° 1.1s
*2 Value in standard inertia mode
B-axis table inertia estimation function
Provided with an inertia estimation function that estimates the inertia of a jig mounted on the B-axis table. This optimally controls acceleration according to the level of inertia, leading to the improvement of productivity. *3
*3. Parameter setting needs to be changed.
*3. Parameter setting needs to be changed.
The machine is equipped with a highly efficient high-power spindle motor, including a newly developed 12,000 min-1 standard spindle motor, and newly developed highly rigid spindle.
CAE analysis technologies accumulated through the development of the SPEEDIO series have achieved both high speed and high rigidity of the machine.
The machine demonstrates high machining capabilities as it supports a 7MPa high-pressure coolant system and is equipped with a B-axis table with high clamp torque.
CAE analysis technologies accumulated through the development of the SPEEDIO series have achieved both high speed and high rigidity of the machine.
The machine demonstrates high machining capabilities as it supports a 7MPa high-pressure coolant system and is equipped with a B-axis table with high clamp torque.
Highly efficient spindle motor
The machine is equipped with a highly efficient spindle motor with a newly developed 12,000 min-1 spec. (standard) or 10,000 min-1 high-torque (max. 92 N·m) spec. (optional). As the spindle can provide high torque in the medium- and high-speed range, the machine demonstrates its full capabilities at high-speed with highly efficient machining of aluminum or steel.
12,000min-1（standard）
Max. torque 40N・m
Max. output 18.9kW
10,000min-1 high-torque (optional)
Max. torque 92N・m
Max. output 26.2kW
Optimal machine design and highly rigid spindle
Both high speed and high rigidity of the machine has been achieved by optimizing the cast shape utilizing CAE analyses. A newly developed spindle provides higher clamp force than that for previous SPEEDIO models. In addition, the high-torque spindle features the SPEEDIO’s largest bearing diameter. With these improvements, the machine demonstrates high machining capabilities from highly efficient machining to heavy-duty machining.
Intuitive operation is possible with new apps and 15-inch vertical LCD touch panel display.
Waste-free operation is possible in setup, machining adjustment, production, and recovery process, leading to improved work efficiency and operating rate.
Operability has been enhanced by locating the operation panel on the side of the machine.
Waste-free operation is possible in setup, machining adjustment, production, and recovery process, leading to improved work efficiency and operating rate.
Operability has been enhanced by locating the operation panel on the side of the machine.
Home screen
Information required for production, such as workpiece counter and tool life, is collected on the home screen. Shortcut keys are provided for screens frequently used so you can open them by one touch.
New user interface
Usability has been greatly improved by grouping relevant functions, creating new support apps that are intuitive with improved operability and visibility, providing useful accessories (calculator, notebook, file viewer etc.), and making operation on conventional screens possible on the touch panel.
Specifications
Product Specification
H550Xd1
Max. spindle speed
12,000/ (Optional) 16,000/ (Optional) 10,000 high-torque
Travels
X: 550 Y: 400 Z: 400 B(deg.): 360
Tool storage capacity
30
Rapid traverse rate (XYZ-area)
50 x 56 x 56
Indexing feedrate(A,C)
100
Required Floor Space
1,557 x 2,743
BT dual contact spindle(BIG-PLUS)
Optional
Coolant Through Spindle(CTS)
Optional
| Item | H550Xd1 / H550Xd1 RD *8 | ||
|---|---|---|---|
| CNC Unit | CNC-D00 | ||
| Travels | X axis [mm (inch)] | 550 (21.7) | |
| Y axis [mm (inch)] | 400 (15.7) | ||
| Z axis [mm (inch)] | 400 (15.7) | ||
| B axis [deg.] | 360 | ||
| Distance between table top and spindle center [mm (inch)] | 100 - 500 (3.9 - 19.7) | ||
| Distance between table center and spindle nose end [mm (inch)] | 150 - 550 (5.9 - 21.7) | ||
| Table | Work area size [mm (inch)] | 400 (15.7) x 400 (15.7) | |
| Max.loading capacity [kg (lbs)] | 400 (882)*12 | ||
| Max. table load inertia [kg・m2(lb・inch2)] |
3.4 (11,618) [5.4 (18,453)*10] | ||
| Spindle | Spindle speed [min-1] |
12,000min-1 specifications : 1 - 12,000 16,000min-1 specifications (Optional) : 1 - 16,000 10,000min-1 high-torque specifications (optional): 1-10,000 |
|
| Speed during tapping [min-1] | MAX. 6,000 | ||
| Tapered hole | 7/24 tapered No.30 | ||
| BT dual contact spindle (BIG-PLUS) | Optional | ||
| Coolant Through Spindle (CTS) | Optional | ||
| Feed rate | Rapid traverse rate (XYZ-area) [m/min (inch/min)] |
50 x 56 x 56 (1,969 x 2,205 x 2,205) | |
| Cutting feed rate [mm/min (inch/min)] |
X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *7 | ||
| Indexing feed rate (B) [min-1] | 100（85 *10) | ||
| ATC unit | Tool shank type | MAS-BT30 | |
| Pull stud type*4 | MAS-P30T-2 | ||
| Tool storage capacity [pcs.] | 30 | ||
| Max.tool length [mm (inch)] | 250 (9.8) | ||
| Max.tool diameter [mm (inch)] | 125 (4.9)*11 | ||
| Max.tool weight [kg (lbs)]*1 | 4.0 (8.8) / tool, |
||
| Tool selection method | Random shortcut method | ||
| Tool change time *5 | Tool To Tool [sec.] | 1.1 | |
| Chip To Chip [sec.] | 2.4 | ||
| Electric motor | Main spindle motor (10 min/continuous)[kW] *2 |
12,000min-1 specifications : 10.1/7.0
16,000min-1 specifications (Optional) : 7.4/5.1 10,000min-1 high-torque specifications (optional):12.8/9.2 |
|
| Axis feed motor [kW] | XZ axis: 1.0, Y axis: 1.8, B axis: 1.8 | ||
| Power source | Power supply | AC 200 to 230 V±10%, 3-phase, 50/60Hz±2% | |
| Power capacity (continuous) [kVA] | 12,000min-1 specifications : 9.5
16,000min-1 specifications (Optional) : 9.5 10,000min-1 high-torque specifications (optional):10.4 |
||
| Air supply | Regular air pressure [MPa] | 0.4 - 0.6(recommended value : 0.5)*6 | |
| Required flow [L/min] | 45 | ||
| Machine dimensions | Height [mm (inch)] | 2,497 (98.3) | |
| Required floor space*9 [with control unit door open] [mm (inch)] |
1,557 x 2,743 [3,581] (61.3 x 108.0 [141.0]) | ||
| Weight [kg (lbs)] | 2,850 (6,284) | ||
| Accuracy*3 | Accuracy of bidirectional axis positioning |
(ISO230-2:1988) | X, Y, Z axis: 0.006-0.020 mm (0.00024-0.00079 inch) |
| （ISO230-2:2014） | B axis: 28 sec or less | ||
| Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] |
X、Y、Z axis : Less than 0.004 mm (0.00016 inch), B axis: 16 sec or less | ||
| Standard accessories | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.), leveling plate (4 pcs.) | ||
- *1 Actual tool weight differs depending on the configuration and center of gravity. The figures shown here are for reference only.
- *2 Spindle motor output differs depending on the spindle speed.
- *3 Measured in compliance with ISO standards and Brother standards. Please contact your local distributor for details.
- *4 Brother specifications apply to the pull studs for CTS.
- *5 Measured in compliance with JIS B6336-9 and MAS011-1987.
- *6 Regular air pressure varies depending on the machine specifications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommended value.
- *7 Value when using high accuracy mode B.
- *8 The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with “RD” at the end of the model name.
- *9 Dimensions not including the coolant tank and chip conveyor.
- *10 Value in high inertia mode. Parameter setting needs to be changed.
- *11 When attaching an adjacent tool, the total diameter of a tool and its adjacent tool must be less than 130 mm.
- *12 When designing a jig, please pay attention to the maximum table load inertia.
| CNC model | CNC-D00 | |
|---|---|---|
| Control axes | 5 axes (X, Y, Z, 2 additional axes) | |
| Simultaneously controlled axes | Positioning | 5 axes (X, Y, Z, 2 additional axes) |
| Interpolation |
Linear: 4 axes (X, Y, Z, 1 additional axis)
Circular : 2 axes Helical/Conical : 3 axes (X, Y, Z) |
|
| Least input increment | 0.001 mm, 0.0001 inch, 0.001 deg. | |
| Max.programmable dimension | ±999999.999mm、±99999.9999inch | |
| Display | 15-inch color LCD touch display | |
| Memory capacity | 500 Mbytes, 3 Gbytes (optional) (Total capacity of program and data bank) | |
| External communication | USB memory interface, Ethernet, RS232C (optional) | |
| No.of registrable programs | 4,000 (Total capacity of program and data bank) | |
| Program format | NC language*Conversational language not available | |
- * “Control axes” and “Simultaneously controlled axes” indicate the maximum number of axes, which will differ depending on the destination country and the machine specifications.
- * Ethernet is a registered trademark of Xerox Corporation in the United States.
| Operation | Dry run Machine lock Program restart Rapid traverse override Cutting feed override Background editing Screen shot Operation level External input signal key Shortcut keys
|
|
|---|---|---|
| Programming | Absolute / Incremental Inch / Metric Coordinate system setting Corner C / Corner R Rotational transformation Synchronized tap Subprogram Graphic display |
|
| Measurement | Automatic workpiece measurement *1 Tool length measurement |
|
| High speed and high accuracy | Machining parameter adjustment High-accuracy mode AIII High-accuracy mode BI (look-ahead 160 blocks) Backlash compensation
|
|
| Monitoring | Machining load monitoring ATC monitoring Overload prediction Waveform display / Waveform output to memory card Heat expansion compensation system ll (X, Y, and Z axes) Production performance display Tool life / Spare tool |
|
| Maintenance | Tap return function Status log Alarm log Operation log Maintenance notice Motor insulation resistance measurement Tool washing filter with filter clogging detection Battery-free encoder Breake load test |
|
| Automatic / Network | Computer remote OPC UA Auto notification Built-in PLC (LD/ST/FBD)
|
|
| Energy saving | Automatic power off Standby mode Automatic coolant off Automatic work light off Chip shower off delay |
|
| Support apps | Adjust machine parameters ATC tool Tool life Waveform display Production performance Power consumption Recovery support Inspection PLC |
|
| Accessories | File viewer Notebook Calculator Register shortcut Display off |
|
| Functions limited to NC language | Menu programming Local coordinate system Expanded workpiece coordinate system One-way positioning Inverse time feed Programmable data input Tool length compensation Cutter compensation Scaling Mirror image External sub program call Macro Operation in tape mode Multiple skip function
|
|
- *1 Measuring instrument needs to be prepared by users.
Example
Automobile

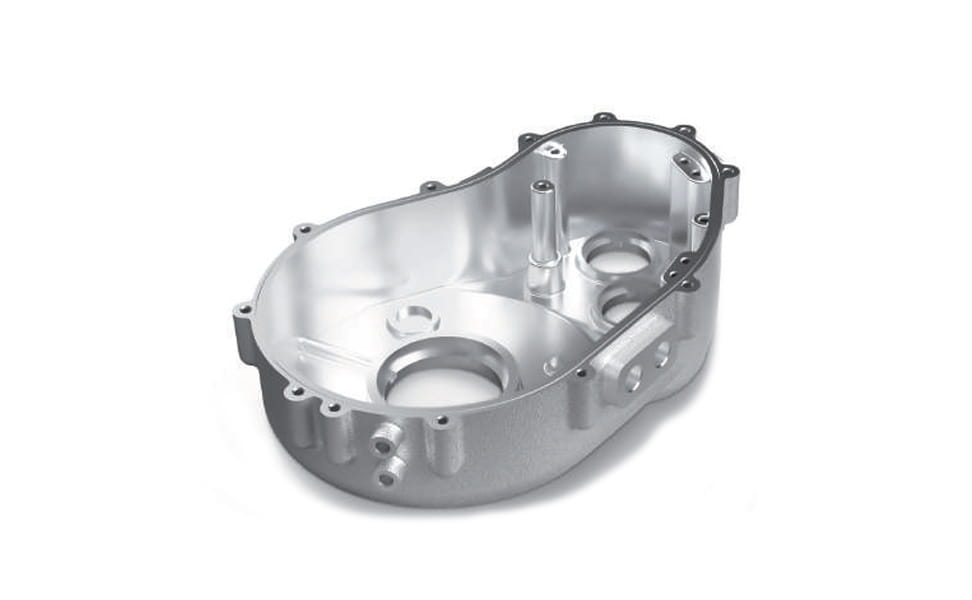

Workpiece nameEV gearbox housing
MaterialAluminum Alloy

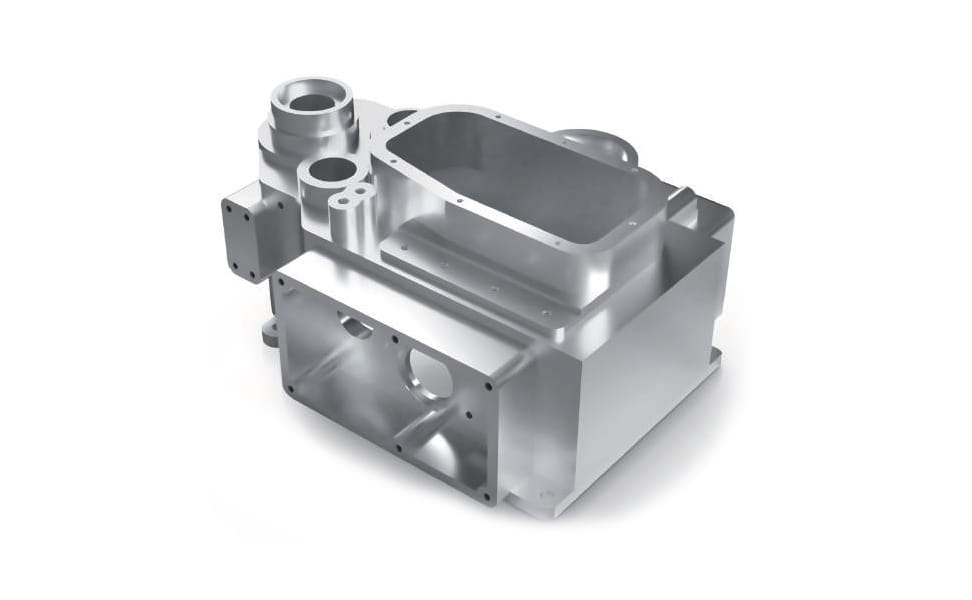

Workpiece nameEV gearcase
MaterialAluminum Alloy

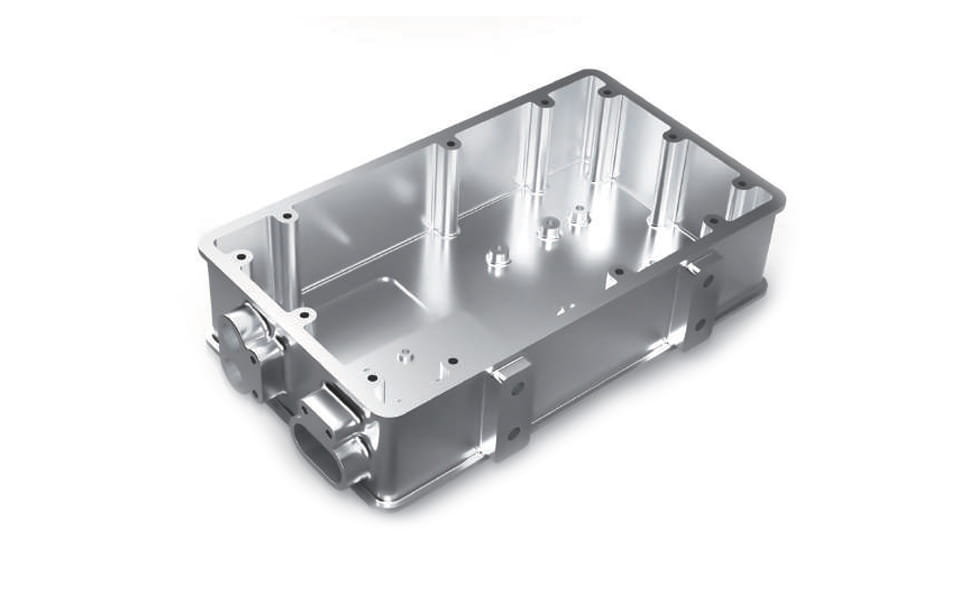

Workpiece nameInverter case
MaterialAluminum alloy

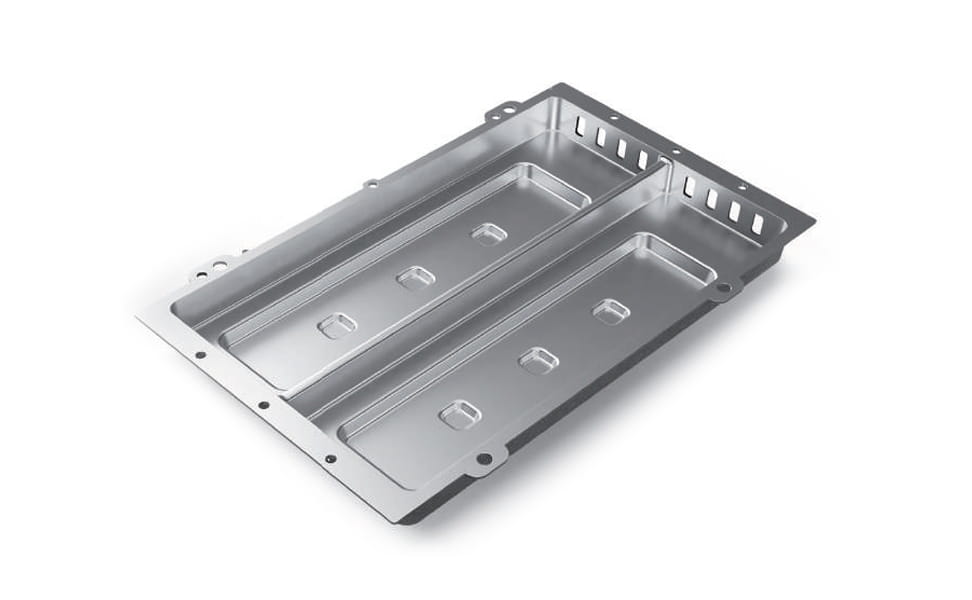

Workpiece nameBattery case
MaterialAluminum alloy

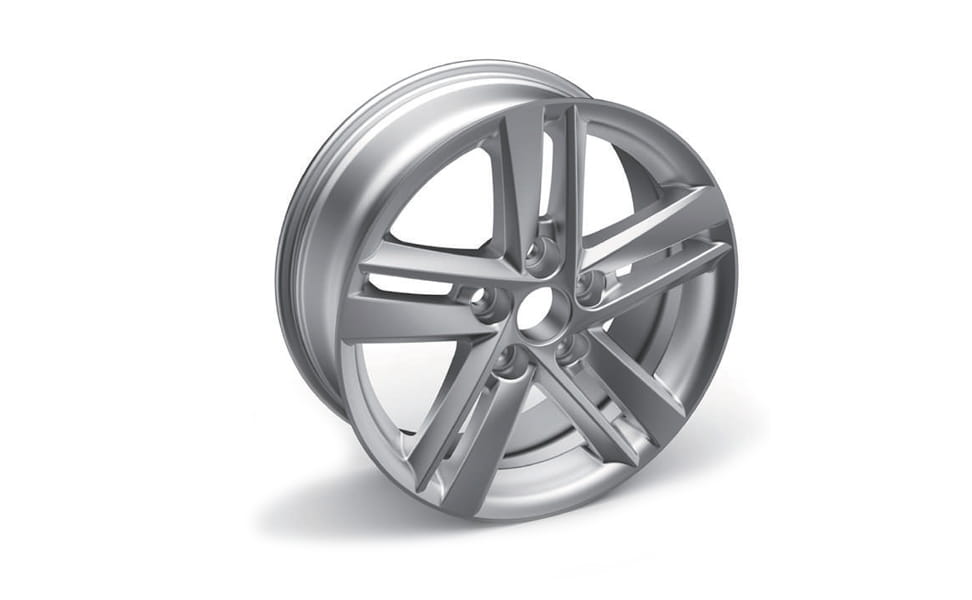

Workpiece nameAluminum wheel
MaterialAluminum alloy

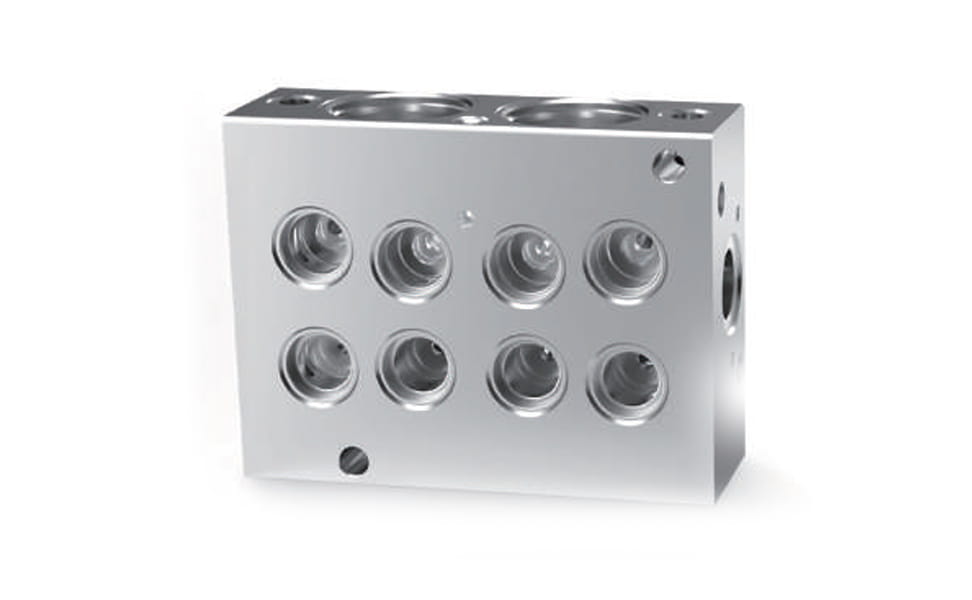

Workpiece nameABS valve housing
MaterialAluminum alloy

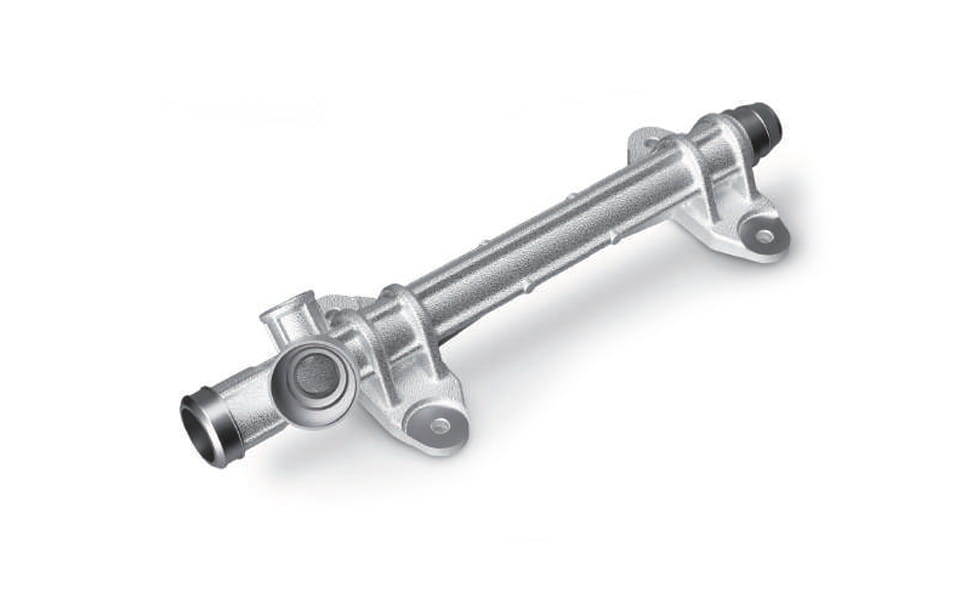

Workpiece nameSteering rack housing
MaterialAluminum alloy
