EMO2023 HANNOVER
New SPEEDIO
"Challenging New areas of Compact Machining Centers"
Come and join us to explore extensive SPEEDIO product lineup offering the best solution for each production scene.
Live demo of overwhelming high productivity and stable machining.
Brother team is looking forward to meet you!!
Event Overview
Event name
IMTEX2019
Official site
Period
24-30 January 2019

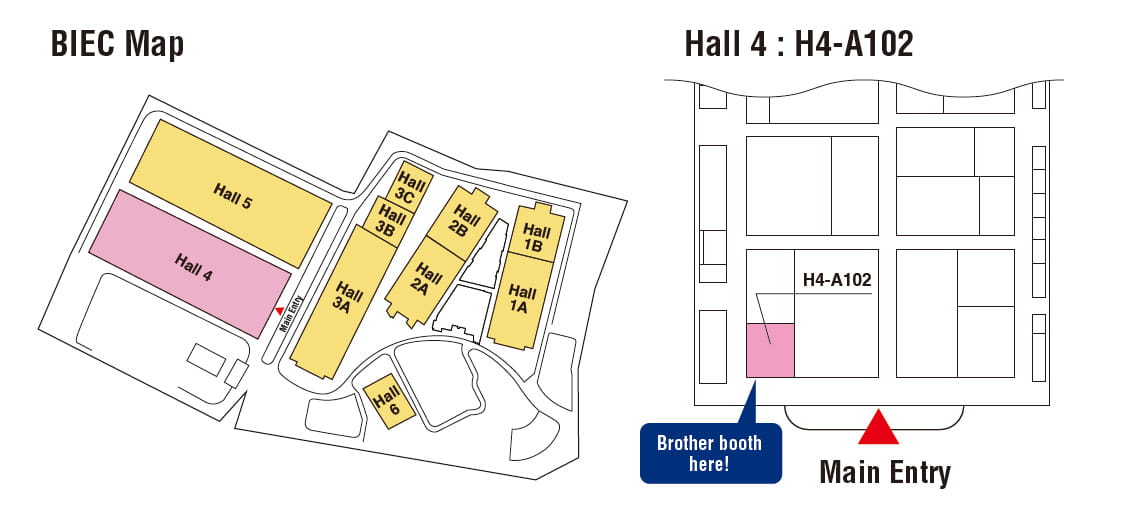

Brother booth location
Hall4-A102
Display Mode
SPEEDIO F600X1
New SPEEDIO Series
"High machining capabilities" have been achieved in addition to "High Productivity" features of SPEEDIO series.
Performing with Highly Rigid machine structure and Stable machining.
Basic Specifications
| Max spindle speed (min-1) | 10,000 High Torque |
|---|---|
| Travels (mm) | X600, Y400, Z350 |
| Tool storage capacity (pcs) | 14/22 |
| Rapid Traverse rate (m/min) | X/Y/Z 50/50/50 |
| Max loading capaciry (kg) | 400 (500)* |
| Required floor space (mm) | 1,860 x 2,654 |
| BT dual contact spindle (BIG-PLUS) | Optional |
| Coolant Through Spindle (CTS) | Optional |
-
* Can be increased up to 500Kg by changing parameters.
SPEEDIO R650X2 40Tools with Pallet Changer
Equipped with SPEEDIO's largest Tools Magazine
40Tools with separated magazine from machining room
Large jig mountable pallet changer machine.
Basic Specifications
| Max spindle speed (min-1) | 10,000 / 16,000 / 10,000 High Torque |
|---|---|
| Travels (mm) | X650, Y400, Z435 |
| Tool storage capacity (pcs) | 40 |
| Rapid Traverse rate (m/min) | X/Y/Z 50/50/50 |
| Max loading capaciry (kg) | One face 200 (300)* |
| Required floor space (mm) | 2,145 x 3,248 |
| BT dual contact spindle (BIG-PLUS) | Optional |
| Coolant Through Spindle (CTS) | Optional |
-
* Can be increased up to 300Kg (one face) by changing parameters.
SPEEDIO S1000X1
Expanding coverage of BT30 machine
Sufficient travels and table size for bigger workpiece.
Basic Specifications
| Max spindle speed (min-1) | 10,000 / 16,000 / 10,000 High Torque |
|---|---|
| Travels (mm) | X1000, Y500, Z300 |
| Tool storage capacity (pcs) | 14/21 |
| Rapid Traverse rate (m/min) | X/Y/Z 50/50/56 |
| Max loading capaciry (kg) | 300 (400)* |
| Required floor space (mm) | 2,410 x 2,442 |
| BT dual contact spindle (BIG-PLUS) | Optional |
| Coolant Through Spindle (CTS) | Optional |
-
* Can be increased up to 400Kg by changing parameters.
SPEEDIO Rotary Table option T-200
Further enhancement of SPEEDIO productivity Roller gear cam mechanism performs High productivity, High accuracy, High stability.
Basic Specifications
| Type | Right-handed, Left-handed *1 |
|---|---|
| Center height (mm) | 170 |
| Gear ratio | 1/20 |
| Maximum speed (min-1) | 100 |
| Maximum loading capacity (kg) | 100 (200) *2 |
| Product weight (kg) | 67 |
-
*1 Only Right-handed type available for R450X1/R650X1.
*2 When support table is used.
