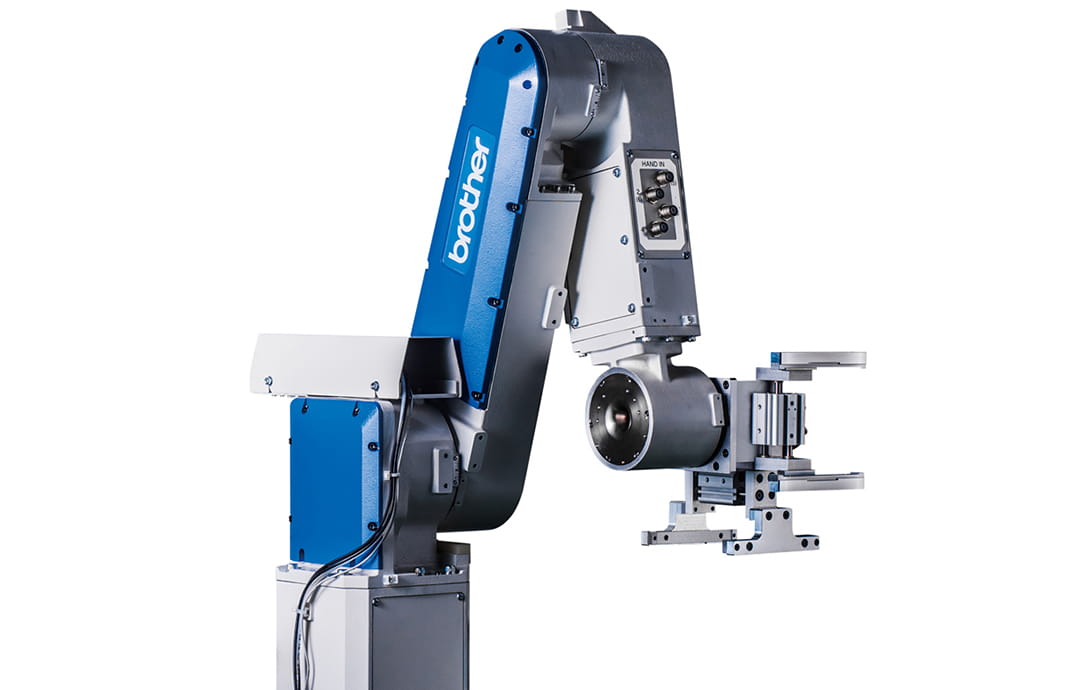

SPEEDIO Loading System BV7-870
Contact DistributorSPEEDIO Loading System BV7-870
Special SPEEDIO Option
- Specialized for loading/unloading workpieces

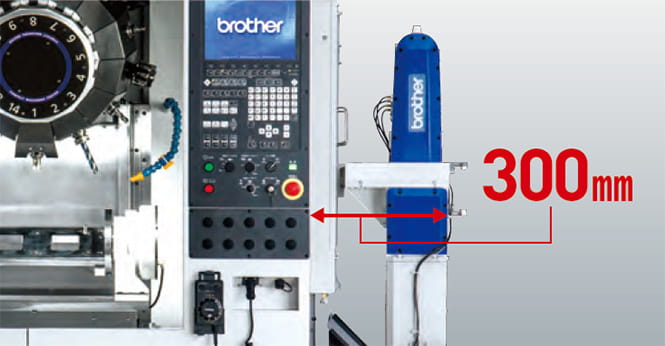

- Compactly installed on the side of machine
- Controller incorporated in machine's control box
Information
Overview
Specifications
Product Specification
Specifications of loading system main unit
Model | BV7-870 | |
---|---|---|
Type | Vertical articulated | |
No. of axes | 4 | |
Loading position | Right side / Left side | |
Arm length | Total | 870mm (34inch) |
J1 | 475mm (18.7inch) | |
J2 | 395mm (15.5inch) | |
Operation range | J1 | ±90° |
J2 | ±160° | |
J3 | ±180° | |

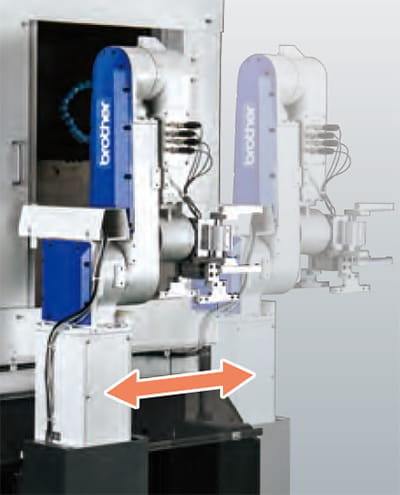

TR (side door) | 600mm(480mm) [23.6 (18.8) inch] | |
Rated transferable weight | 7kg | |
Maximum speed | J1 | 75°/ sec |
J2 | 170°/ sec | |
J3 | 300°/ sec | |
TR (side door) | 730mm/sec (*Opened/closed by BV7) | |
Repetitive positioning accuracy | ±0.08mm | |
Supported models | S300X2・S500X2 |
- *: The measurement method conforms to ISO9283 (1998) and Brother's standard.
Please contact your local distributor for details.
Specifications of control unit

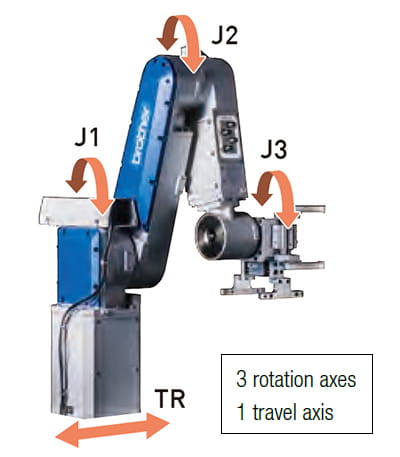

Control axes | 4 axes (3 rotation axes + 1 travel axis) | |
---|---|---|
Control method | PTP / Linear interpolation | |
Program language | Brother BASIC | |
No. of program that can be registered | 8 | |
User interface | Teaching pendant / PC software | |
Input/output | Special input | Hand open/close sensor, start/stop, reset |
Special output | Hand open/close, start/stop/alarm LEDs | |
General-purpose input/output | 16 points / 16 points (Optionally 32 points / 32 points) | |
Linkage with SPEEDIO | Input | Program end, M function signal output, etc. |
Output | External zero point return, M function completion, etc. | |
Built-in PLC | Global OM exclusively for loading system | |
Power supply | Supplied from machine |
