Reliable Productivity for
Smarter Profitability.
Born in Japan. Built in India.
Struggling with high
running costs and thin profit
margins from your machinery?

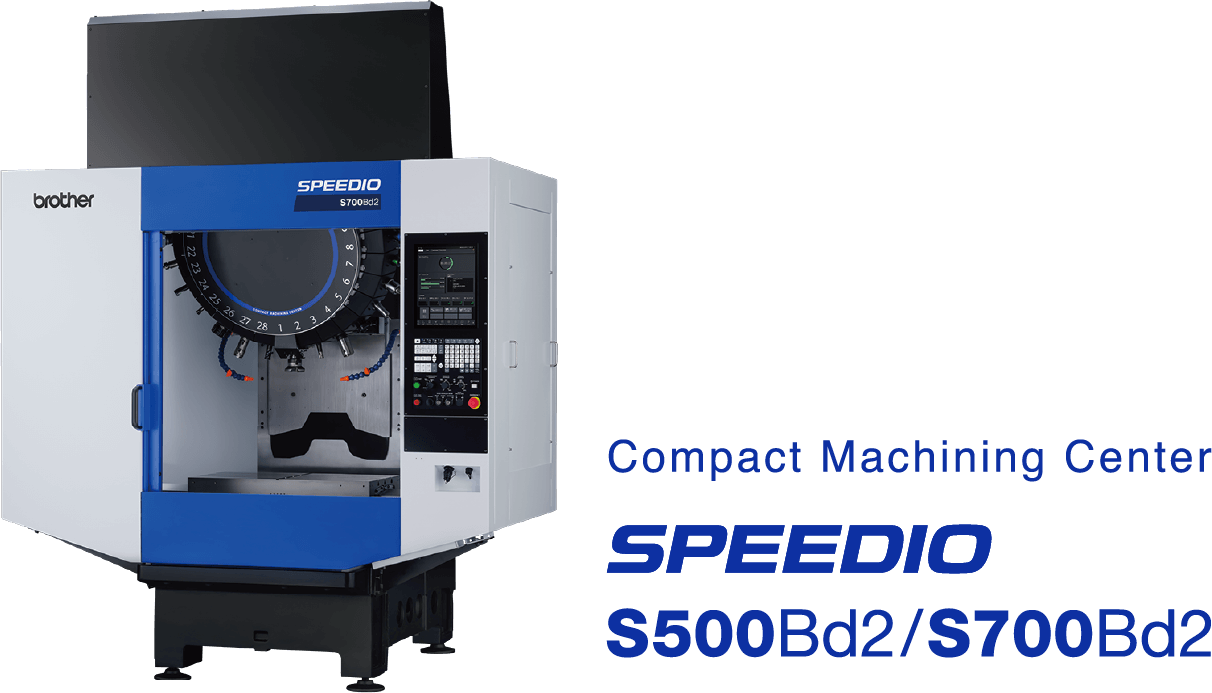

SPEEDIO Machining Center reduces
waste and
improves profitability for sustainable
manufacturing.
the standard of BT30
SPEEDIO’s 5 key
contributions to profits
SPEEDIO redefines
the standard of BT30

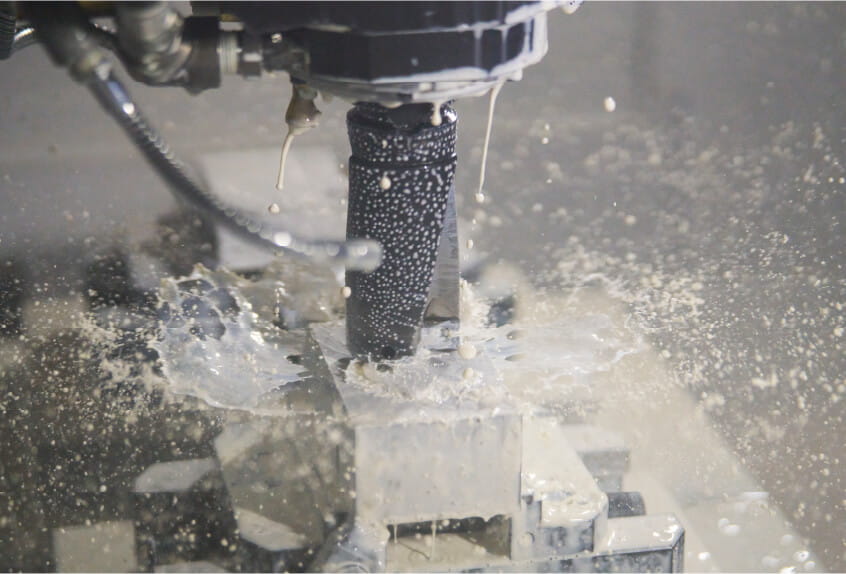

Unmatched cutting power that redefines BT30 expectations
A highly rigid structure combined with a high-power spindle motor enables exceptional
versatility, delivering performance from
high-efficiency
machining to heavy-duty cuts.

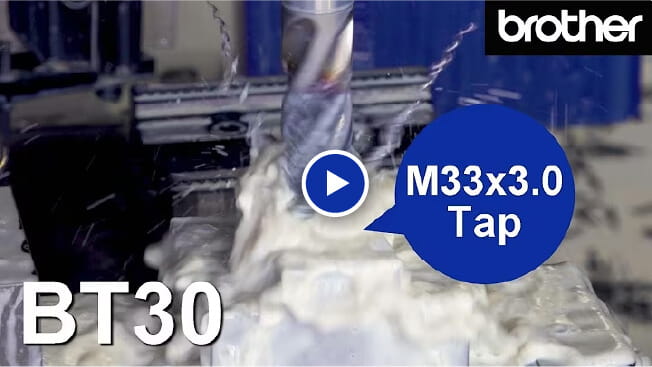

Demonstration of the M33P3.0
tapping on S50C steel.
Experience SPEEDIO’s
exceptional cutting performance!
A larger machining area
that breaks BT30 boundaries
Compact in footprint, generous in capability.
SPEEDIO offers a large machining area.
SPEEDIO’s 5 key
contributions to profits
POINT1
Cut running costs
by reducing wasted
energy
Boost your
profitability
Reducing avoidable expenses is one
of the fastest
way to increase
profits.
SPEEDIO cuts running costs
with energy‑saving
technologies
such as a high‑efficiency
spindle
motor and
an advanced
energy‑recovery system.
Low power consumption
SPEEDIO reduces total power usage
by up to 89% compared with BT40
machines,
delivering major savings in
daily
operation.
●SPEEDIO S500Bd2 vs BT40
Power and air consumption
*1 Value when air converted to power

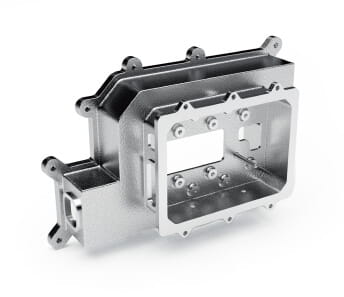

*This is an example of an inverter case machined with SPEEDIO.
Award‑Winning
2024 Energy Conservation Grand Prize
SPEEDIO has been recognized for its innovative design for reducing energy consumption, winning the 2024 Energy Conservation Grand Prize in Japan.
●SPEEDIO S500Bd2 vs BT40
Power and air consumption
*1 Value when air converted to power
*This is an example of an inverter case machined with SPEEDIO.
POINT2
The compact size makes
for the effective use
of limited on-site space.
SPEEDIO’s compact footprint lowers lighting and
air conditioning costs, contributing to higher profitability.

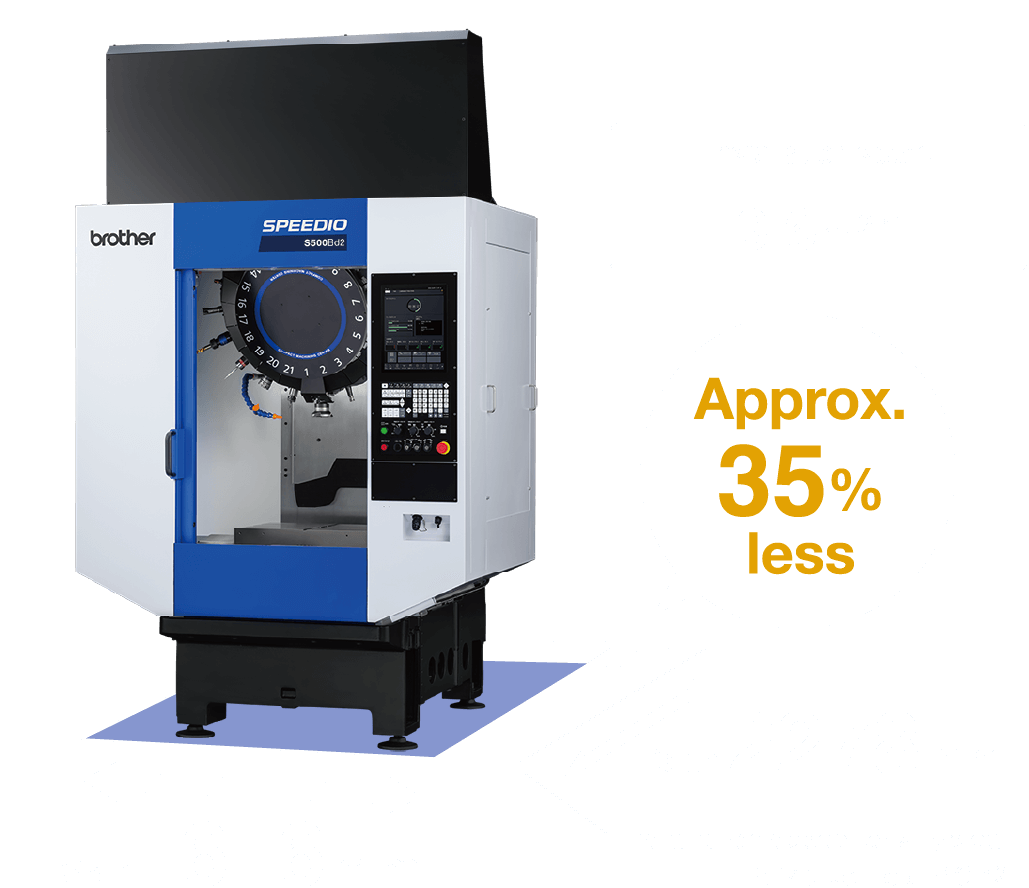

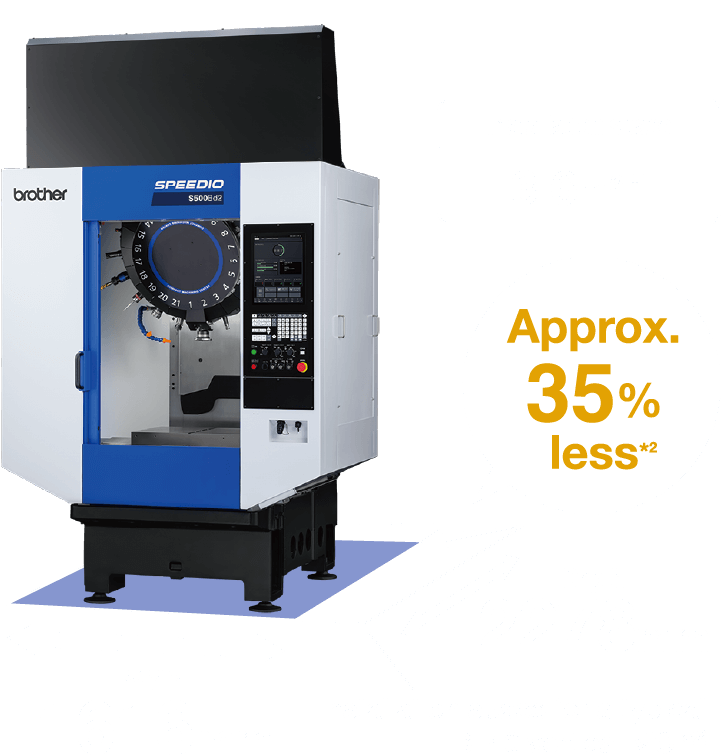

Compact footprint with flexible installation
*1 Dimension including coolant tank *2 Compared to BT40 vertical MC with equivalent travels
SPEEDIO S500Bd2 vs BT40
Fit more machines.
Boost more output.

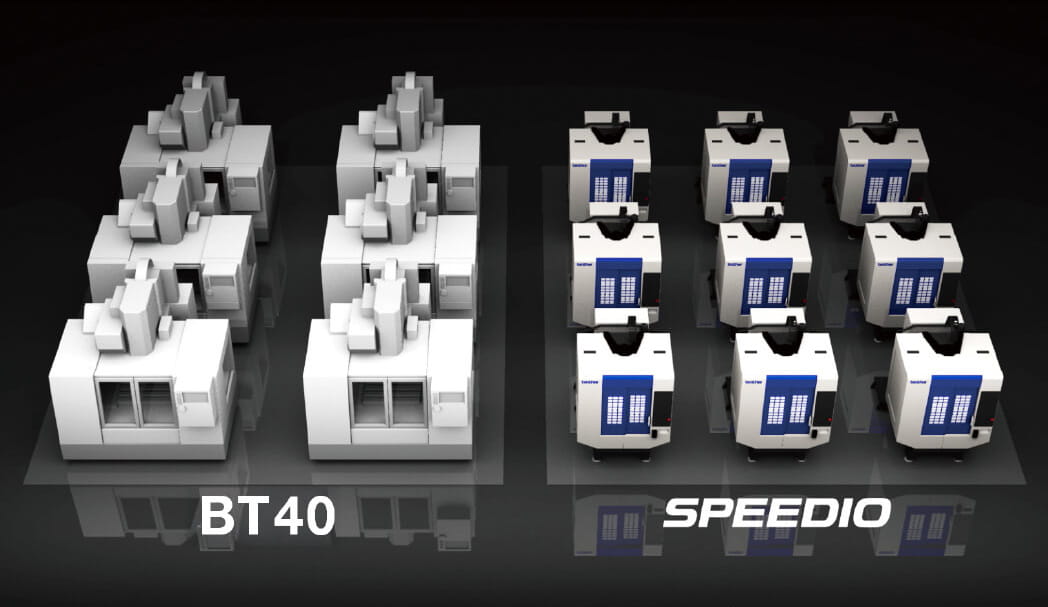

Fit three SPEEDIO machines in the space
of two BT40s,
maximizing output and
boosting profits.
POINT3
Shorten cycle times
to boost productivity
Drive higher sales
By reducing tool‑change time and eliminating inefficiencies,
SPEEDIO unlocks the full potential of the machine,
helping you manufacture more parts and increase overall profitability.

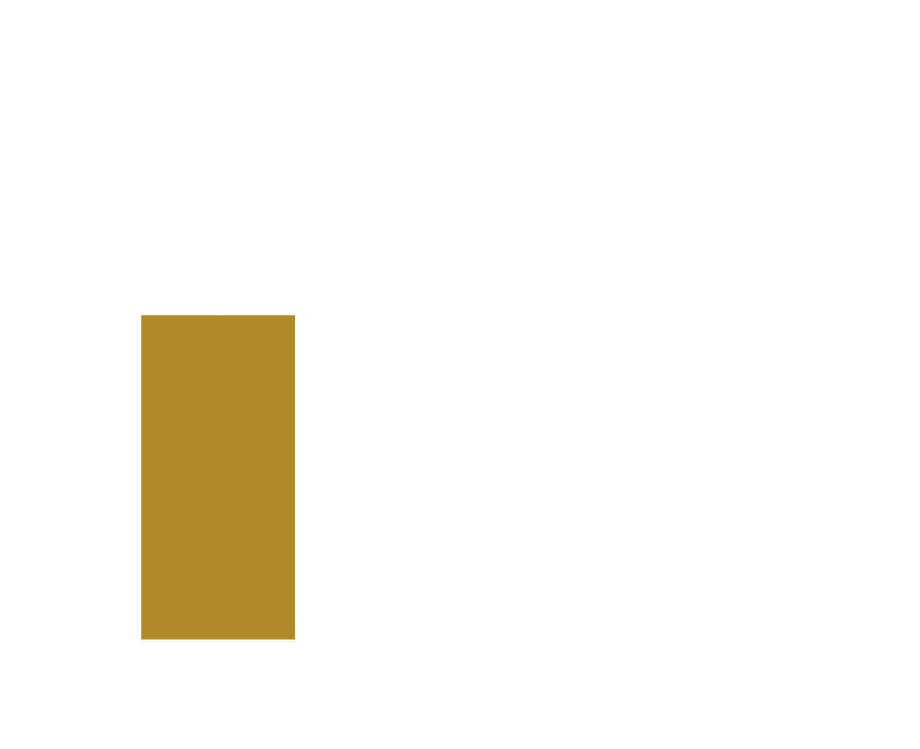

●SPEEDIO S500Bd2 vs BT40
Cycle time
●Machining conditions
- Machining
program - Inverter case
- Operation
time - 25 days per month and 21.5 hours per day
- Cycle time
- Equipment cycle time
(measured value)
+ workpiece removal/insertion
(20s.)
●Main machining details
- Facing
- D50 face mill and others
- Drilling
- D4.0 drill and others
- Milling
- D20 end mill and others
- Tapping
- M5 x 0.8 tap and others
●Machined image

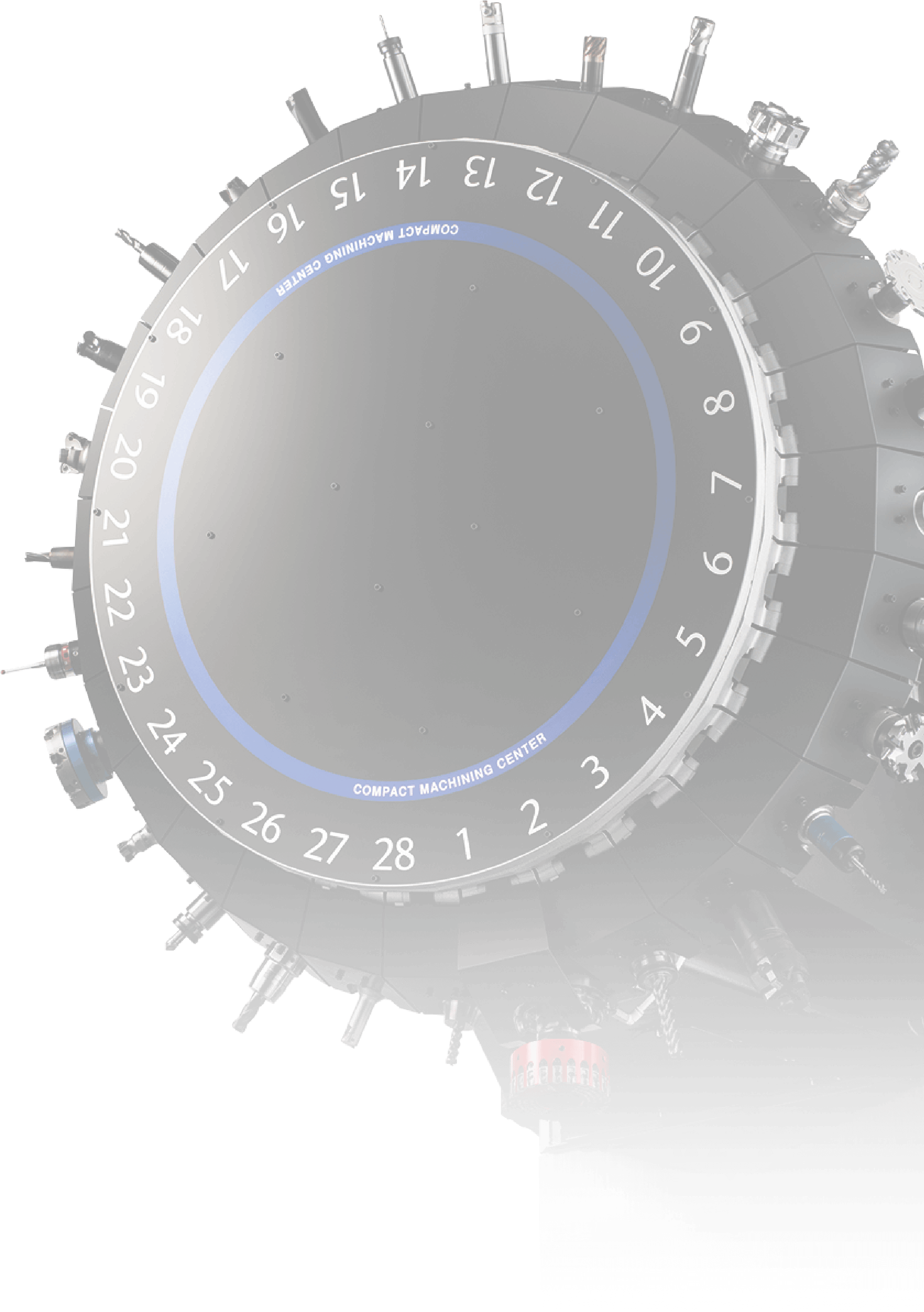

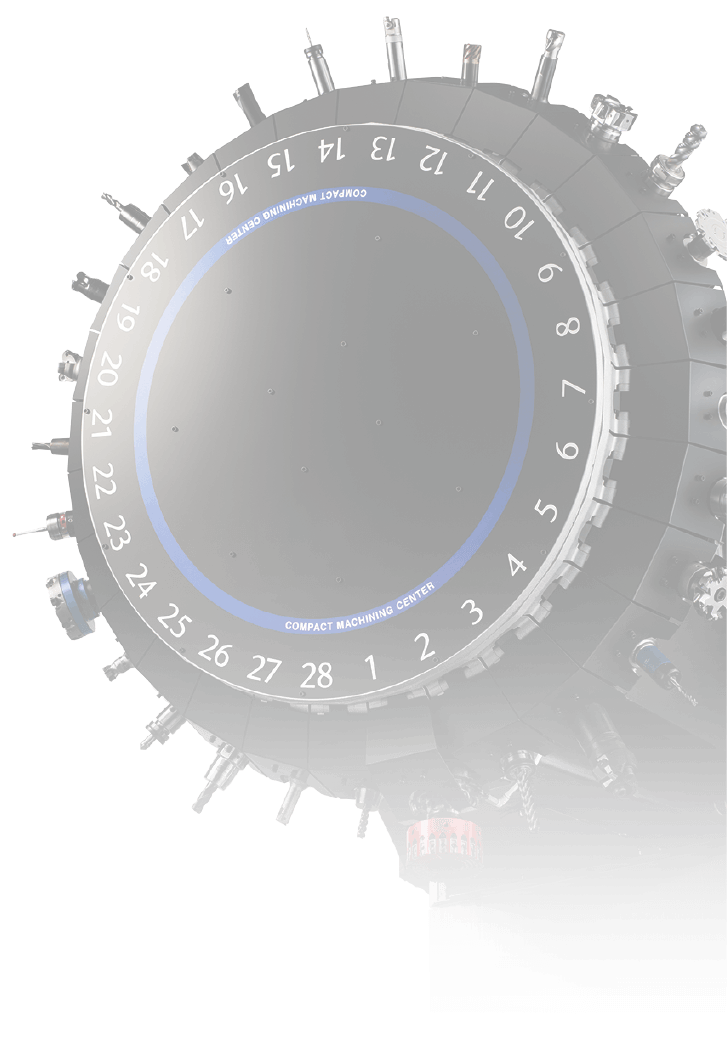

Non-stop ATC
High-speed tool change and fast Z‑axis movement minimize non-cutting time.
| 21 tools (Standard tools) |
28 tools (Standard tools) |
28 tools (Heavy tools) |
|
|---|---|---|---|
| Tool-Tool | 0.6S | 0.7S | 0.8S |
| Chip-Chip | 1.3S | 1.4S | 1.4S |

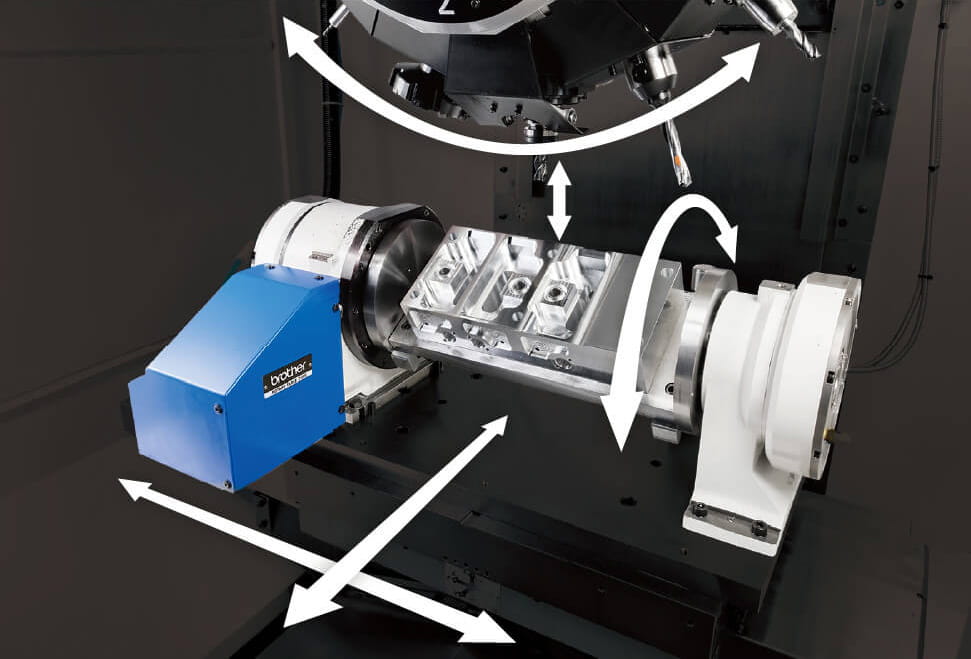

Simultaneous operation
Tool changes run in parallel with X/Y and
additional axes movements-reducing
non-cutting time.
High acceleration/deceleration
spindle
Spindle start/stop time 0.15S or less
*High-torque spec.
High acceleration Z-axis
Z-axis acceleration Max.2.2G
Simultaneous operation
Tool changes run in parallel with X/Y and additional axes movements-reducing non-cutting time.
POINT4
Enhanced functions
reduce downtime
and
defects
Achieve
stable production
Features such as a battery-free encoder,
no fuse,
fan speed detection, and ATC tool monitoring come as standard
to support long continuous operation.
A stable production line will generate
stable profits.

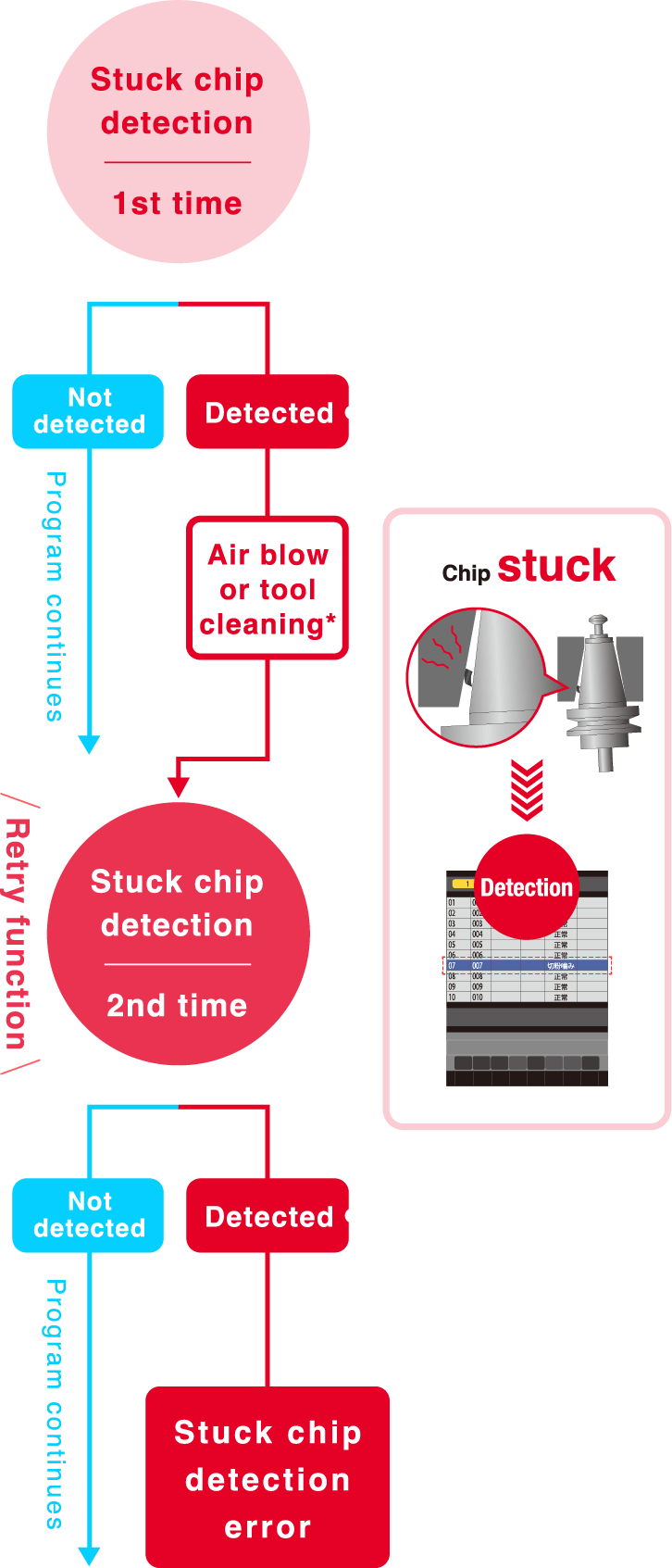

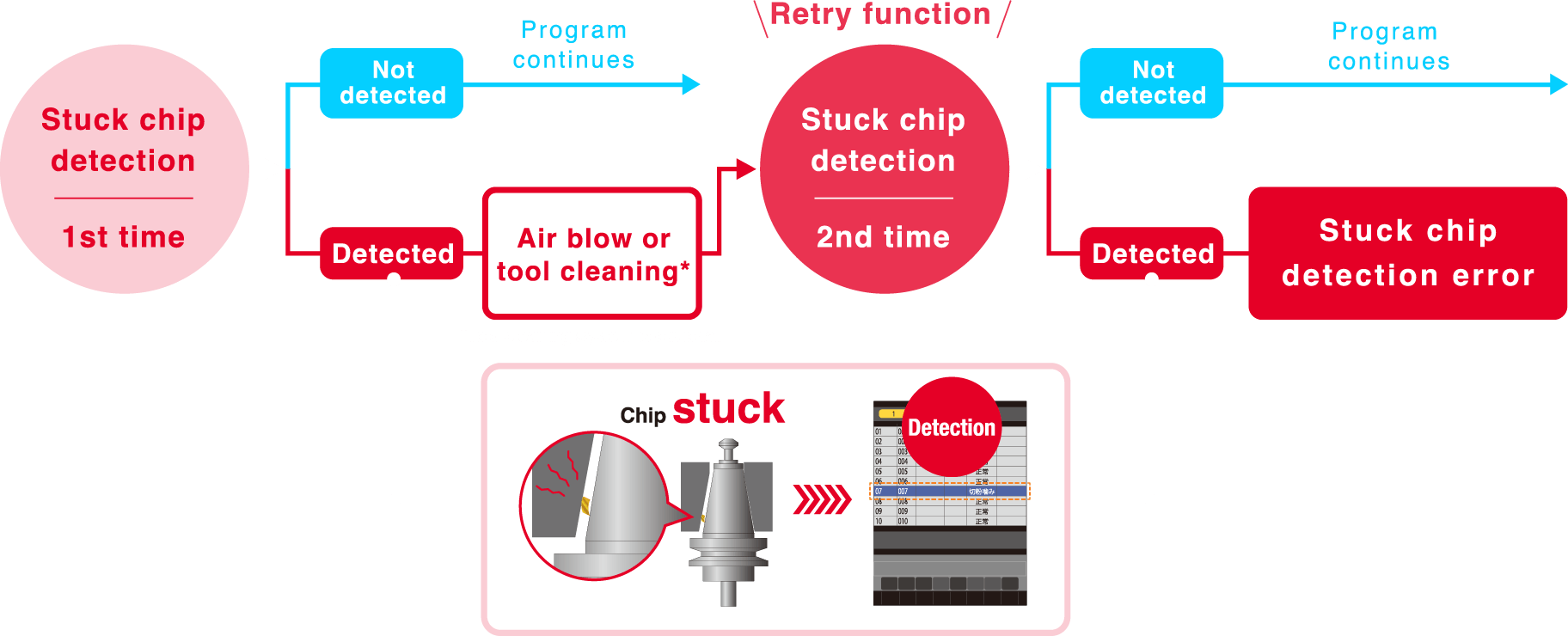

Stuck chip detection function
Automatically detects and clears chips caught between the spindle and holder
during ATC—without sensors.
Prevents defects and reduces short stoppages with auto‑clean and retry.
ATC tool monitoring
Checks the presence of a spindle tool before
and after tool change, tool over key etc.
without using a
sensor.

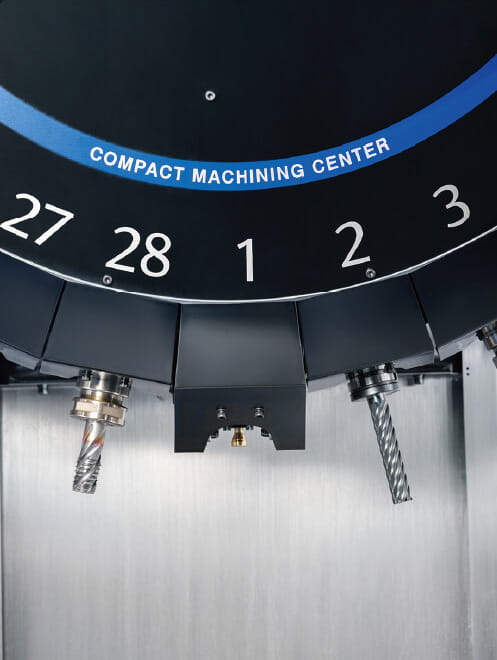

Spindle tool check

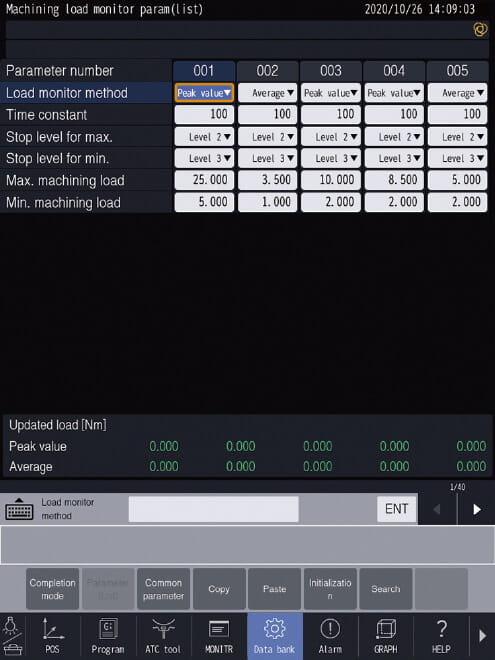

Machining load monitoring
The machining load on the spindle is continuously monitored, with an alarm
triggered when it exceeds or falls below the
set limits.
Setting screen
POINT5
Intuitive NC boosts
operator efficiency
Reduces errors and
increases profits
Easy-to-use apps and touch panels promote
the correct usage of the machines and reduces the risk of trouble.

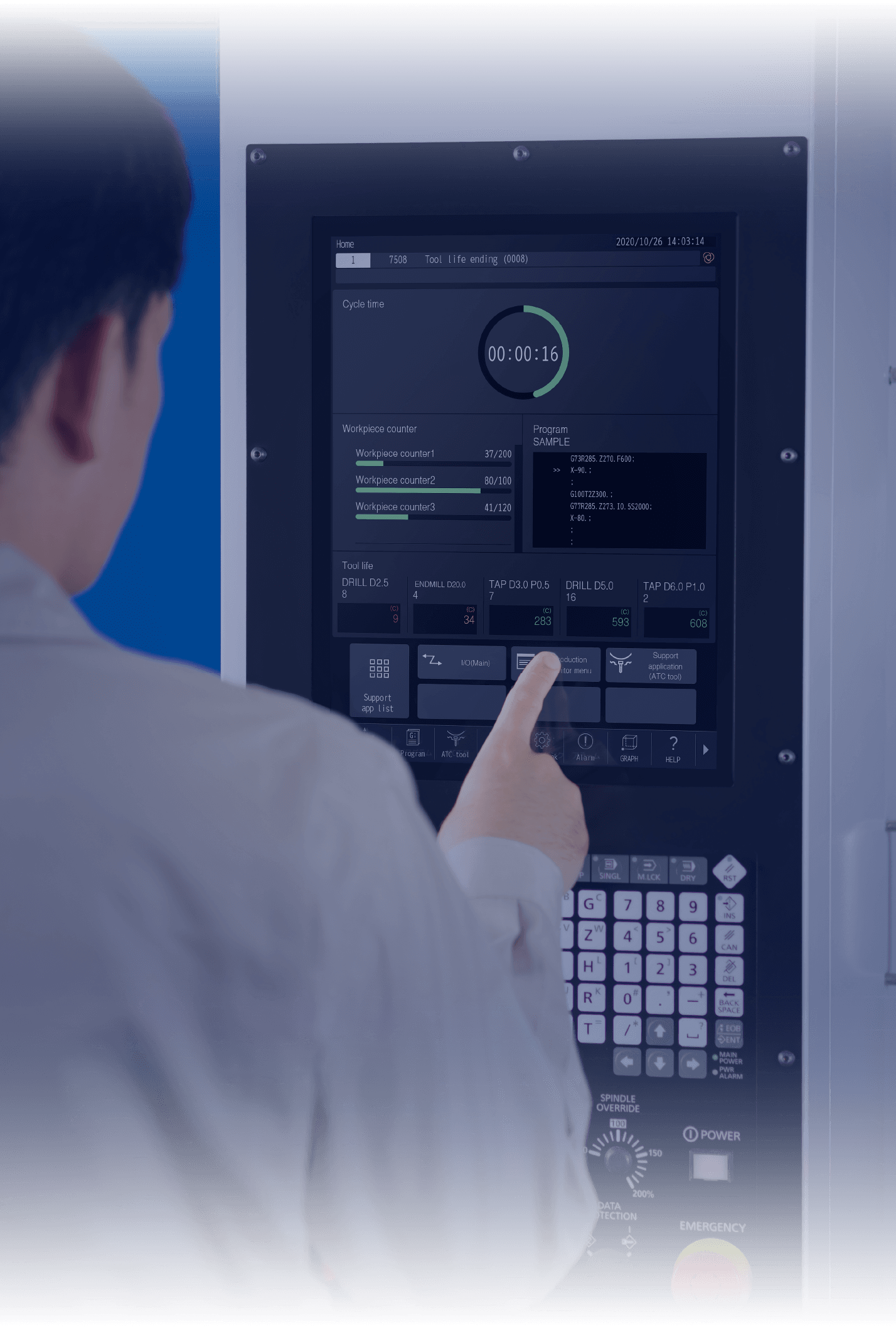

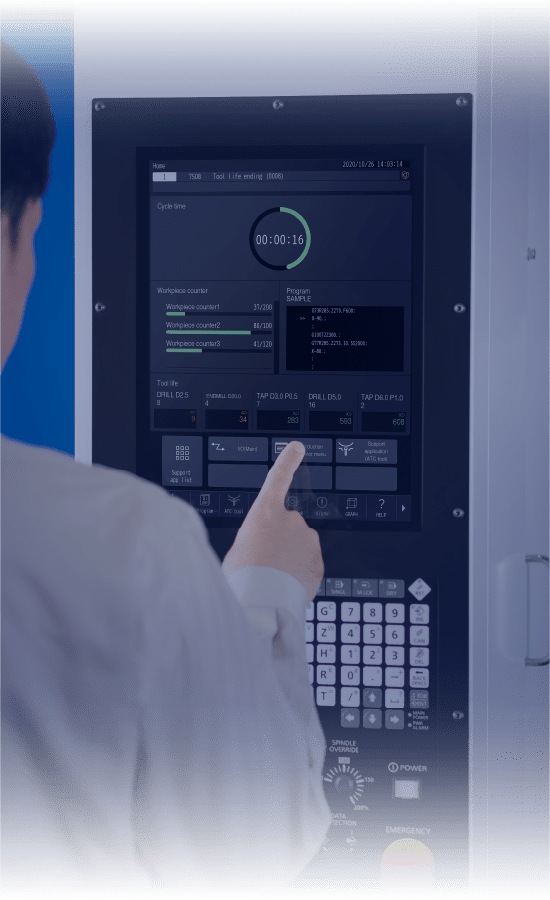

Easy, Touch‑Driven Operation
Modern touch panels and intuitive apps simplify everyday tasks, making machine operation faster, clearer, and more accessible.

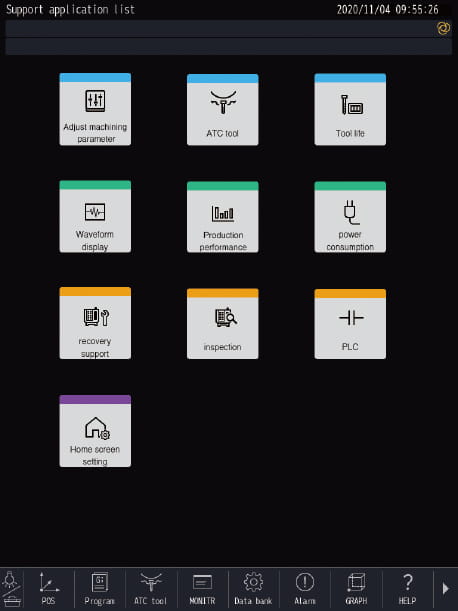

List of support apps

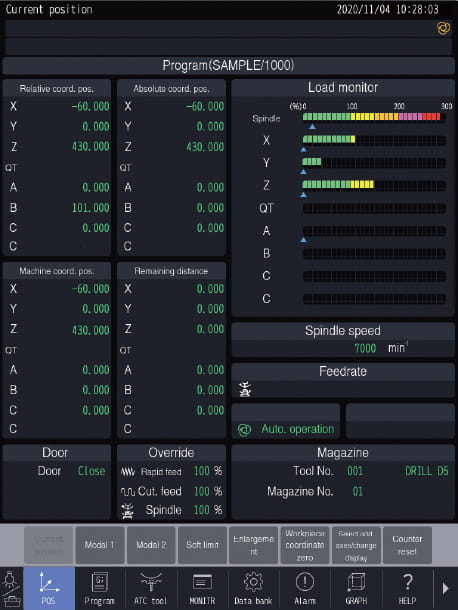

Conventional screen
(position screen)
Built‑In Production Support
Real‑time monitoring tools improve operating rates by detecting issues early, showing performance data and real time power consumption.

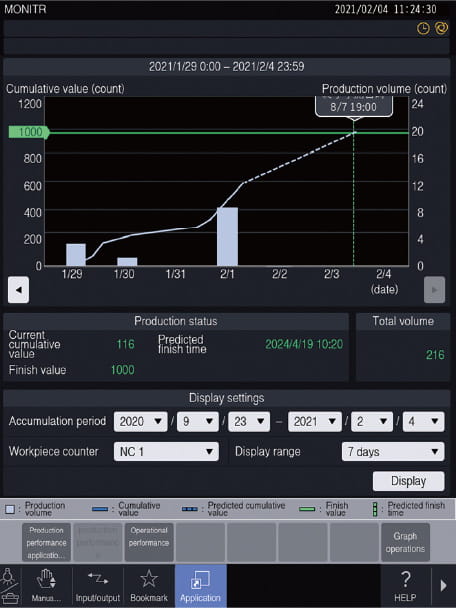

Production performance app
Network-compatible
- ●FTP/HTTP file transfer
and monitoring - ●View machine screens
from a PC browser - ●Supports OPC UA and
Industrial Ethernet
(Ethernet/IP, PROFINET)
Generate Your Profits
with SPEEDIO

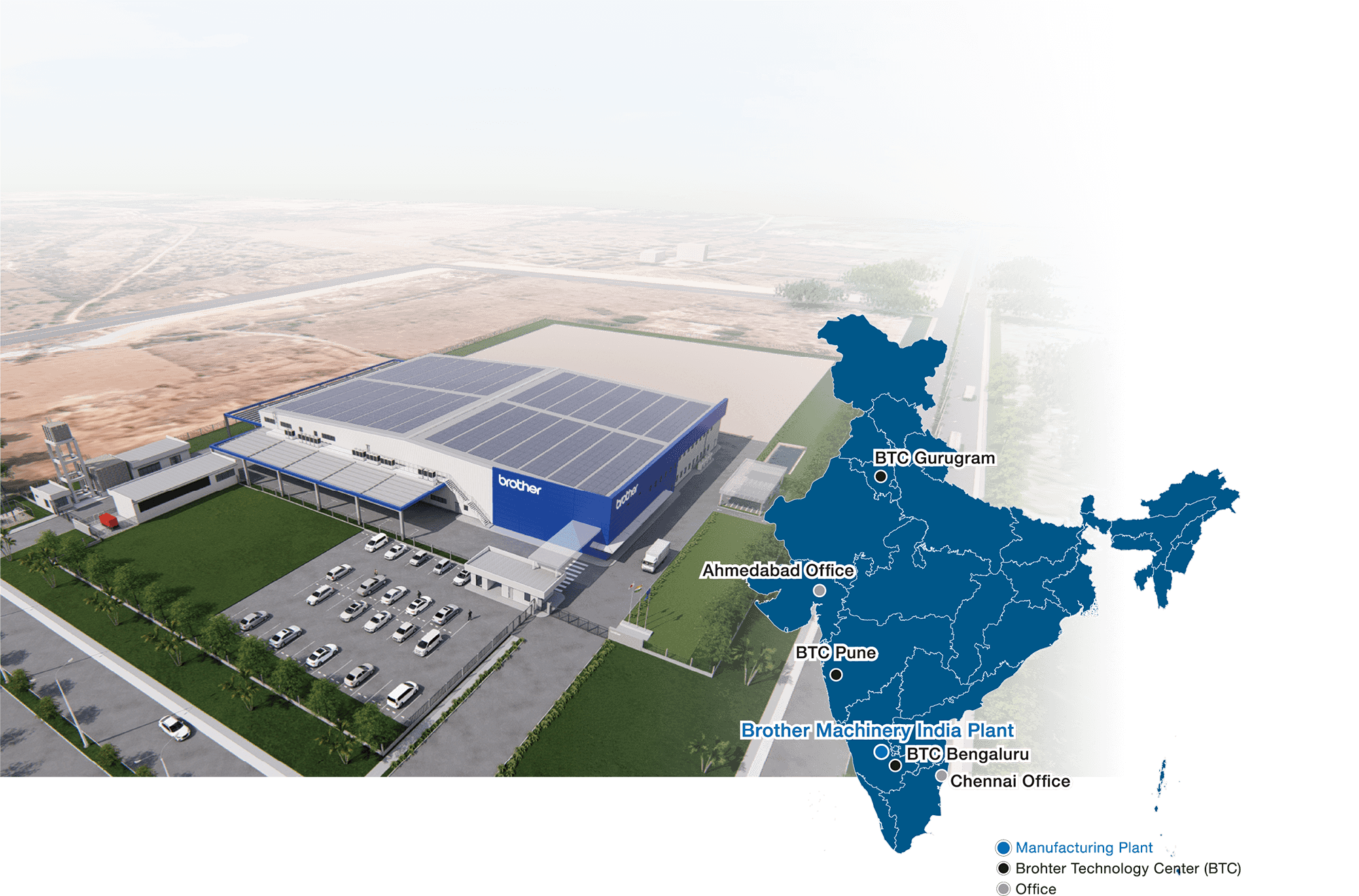

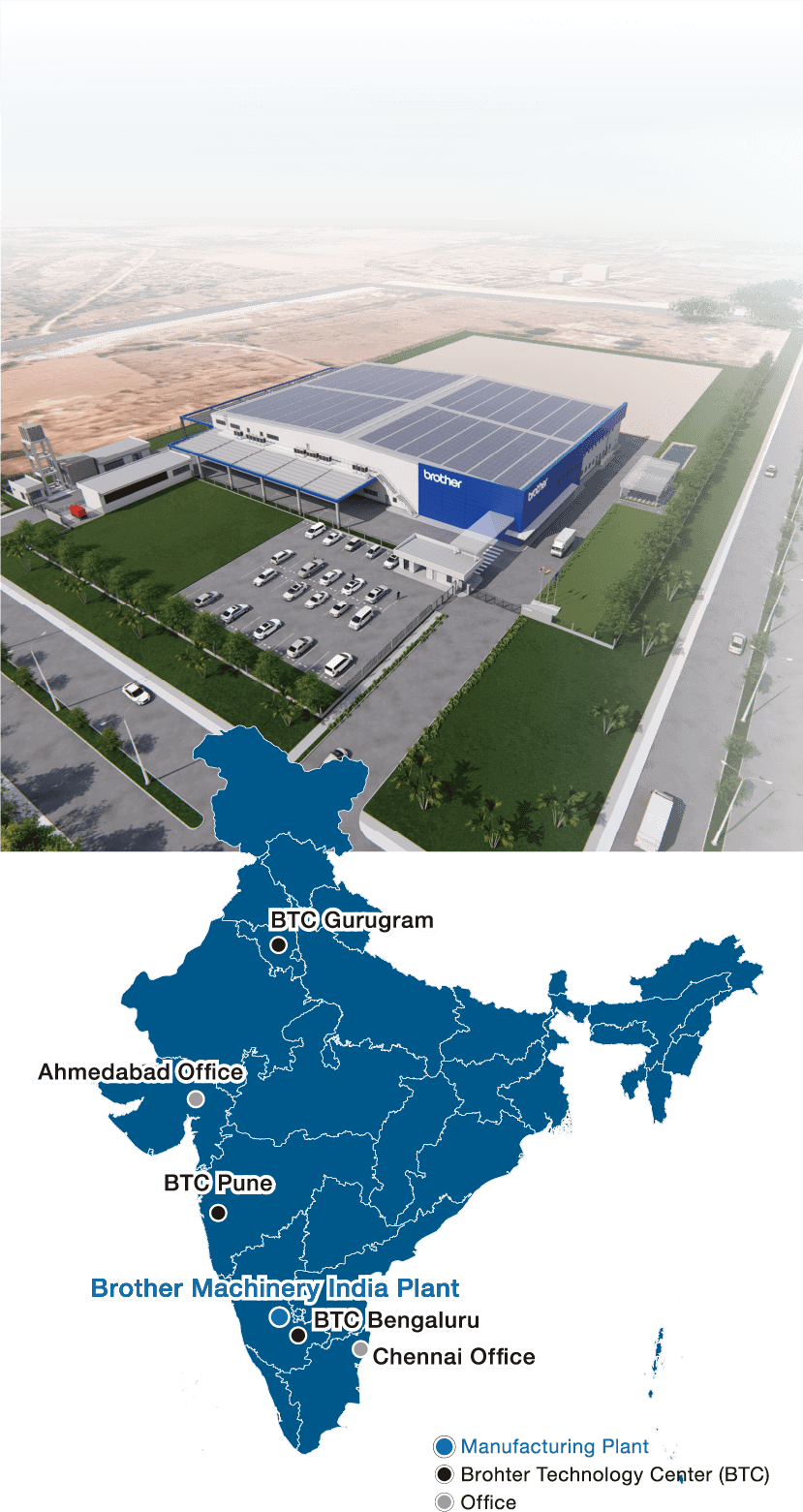

Made in India for
faster and easier
adoption
Benefit 1
Made in India.
Delivered Quickly.
Accelerate your business with
our
local production.
Benefit 2
Pay in Rupees.
Zero Customs Hassles.
Enjoy smooth, worry‑free purchasing
with pricing in INR.
No foreign
currency
risks, no complex import procedures-just
straightforward, domestic-style buying convenience.
Benefit 3
Expert Local Support You Can Rely On
With support available right here in
India,
you get timely assistance for both
pre‑purchase and
after‑sales needs.
Our
local team ensures you operate with
confidence,
efficiency, and minimal
downtime.
Product Information
| Model |
S500Bd2 |
S700Bd2 |
| Spindle speed (min-1) |
12,000 10,000 high-torque spindle (option) 20,000 (options) |
12,000 10,000 high-torque spindle (option) 20,000 (options) |
| Travels (mm) | X:500 Y:450 Z:380 | X:700 Y:450 Z:380 |
| Rapid traverse rate (m/min) | X/Y/Z : 50/50/56 | X/Y/Z : 50/50/56 |
| Required floor space (mm) | 1,560 x 2,081 | 2,050 x 2,081 |
| Tool storage capacity (tools) | 21/28 | 21/28 |
| Table load weight | Up to 400 kg | Up to 400 kg |
Case study
Material:S45C
Demonstration machining
using high-torque
●Main machining conditions
| OP10 | Vc | n | fn | Vf | ap | ae | Tool |
|---|---|---|---|---|---|---|---|
| D50 Drilling | 180 | 1146 | 0.10 | 114 | Depth 25 | Integrated type U drill | |
| M16 x 1.5 | 30 | 597 | 1.5 | 895 | Depth 35 | M16 Formed Tap | |
| D12 Milling | 200 | 5305 | 0.32 | 1698 | 45 | 1 | D12 Endmill |
| OP20 | Vc | n | fn | Vf | ap | ae | Tool |
|---|---|---|---|---|---|---|---|
| D20 Milling | 300 | 4775 | 0.25 | 1154 | 16 | 5 | D20 Head Exchange Mill |
| D30 Drilling | 200 | 2122 | 0.16 | 340 | Depth 32 | D30 Head Exchange Drill | |
| M33 x 3.0 | 18 | 173 | 3.0 | 519 | Depth 20 | M33 Spiral Tap | |

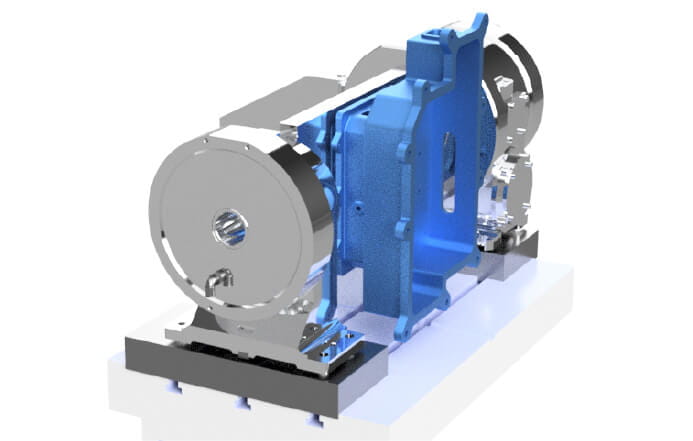

Multi-face machining
of large workpieces
The wide machining area enables multi-face machining of large workpieces, helping to consolidate processes.

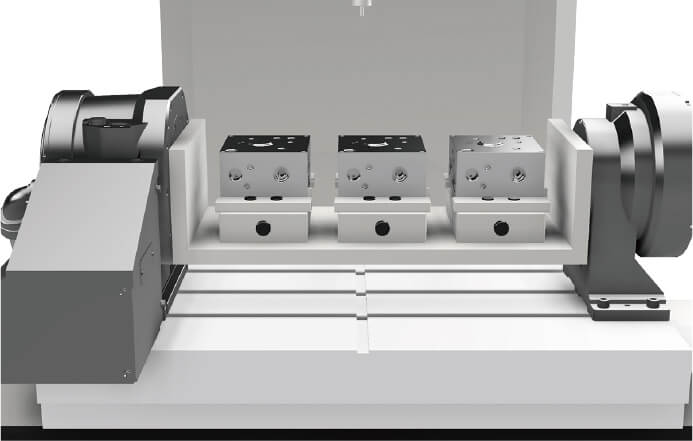

High-volume production
of multiple small workpieces
Supports long-hour operation with multi-part machining of small workpieces and mixed loading of diverse workpieces.
