Precision Meets Performance Revolutionize Your
5-Axis Profile Machining
Discover how we solve machining challenges,
reduce costs, and deliver unmatched accuracy.
Are high profile machining costs and
limited floor space holding you back?
Productivity is low.
Total costs of
BT40 machining centers
are high.
BT40 machining center
is too large to be installed
in the factory.
Why Choose SPEEDIO 5-Axis?
SPEEDIO installation reduces three types of waste
Cycle Time
Reduction in waste by optimizing control through machine/
controller integrated development
Our CNC-D00 controller and the machines are developed in-house for seamless integration and precision control. Combined with our standard tilting rotary table and proprietary algorithm (patent-pending), we ensure optimal acceleration and deceleration for every axis—giving you faster cycle times and superior productivity.
*1 This is an example of knee joint machining using SPEEDIO.Comparison with cycle time by competitor's BT40 MC *1
Total Cost
Not only installation costs can be reduced but running and maintenance costs can also be minimized.
Total cost refers to the overall expense throughout the entire product lifecycle. This includes purchase costs, running costs, maintenance costs, and hidden costs. SPEEDIO helps lower total costs through its faster cycle times and energy-efficient design.
Production quantity per day: 200 pcs.

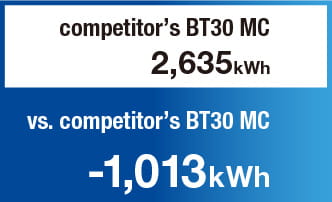

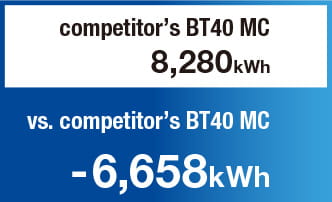

Annual power consumption
1,622kWh

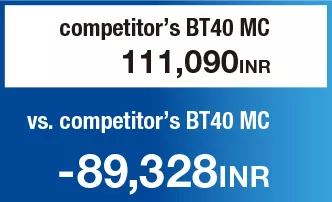

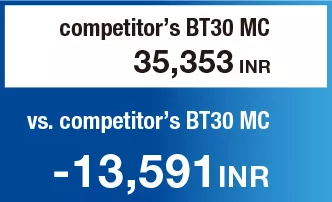

Annual electricity charge
-27,763INR

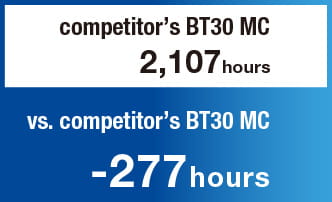

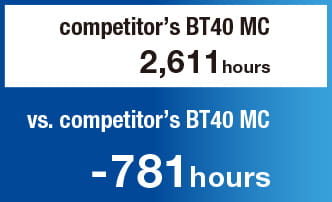

Annual operating hours
1,829hours
* This example shows when inverter cases are
machined with the SPEEDIO.
* Simulation calculations based on Japanese
electricity rates.
* 1INR = 1.68JPY
Machining conditions
Machining program: Inverter case
Main machining details
- Facing
- D50 face mill and others
- Drilling
- D4.0 drill and others
- Milling
- D20 end mill and others
- Tapping
- M5 x 0.8 tap and others
Calculation conditions
Operating days per month 20 days
- Cycle time
- Equipment cycle time (measured value)
Workpiece removal/attachment (20 s) - Annual electricity charge
- Tokyo Electric Power Company High-voltage rate plan A used (August 2023)
* 22.54 yen per kWh

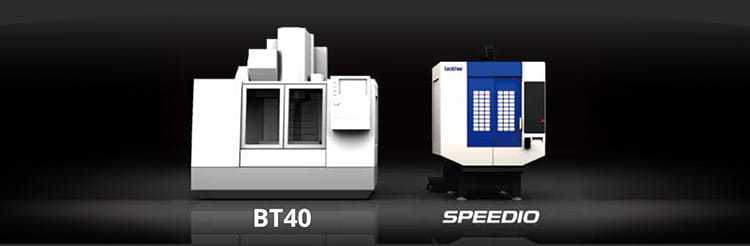

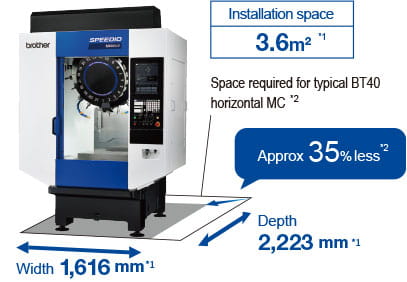

Installation Space
Space Saving
The compact design minimizes wasted space and offers greater flexibility for installation.
*1: Dimension including coolant tank*2: Compared to BT40 vertical MC with equivalent travels
Install More. Achieve More.

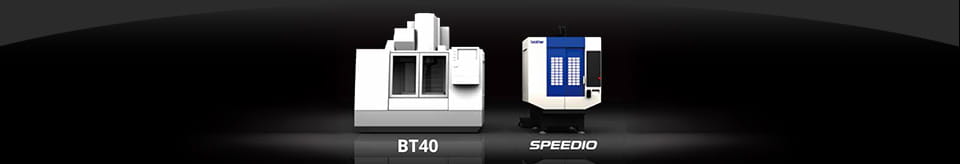

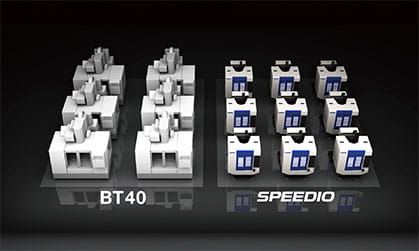

Fit three SPEEDIO machines in the same space as two BT40 machining centers—and unlock a new level of efficiency.
SPEEDIO doesn’t just boost individual machine productivity; it transforms your floor space into a high-output zone. By increasing the number of spindles per unit area, you maximize output without expanding your layout.

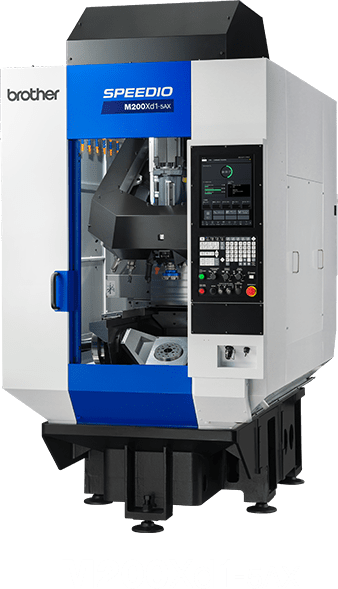

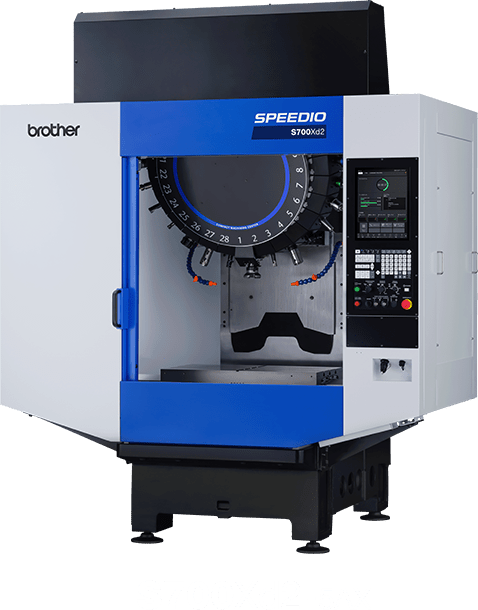

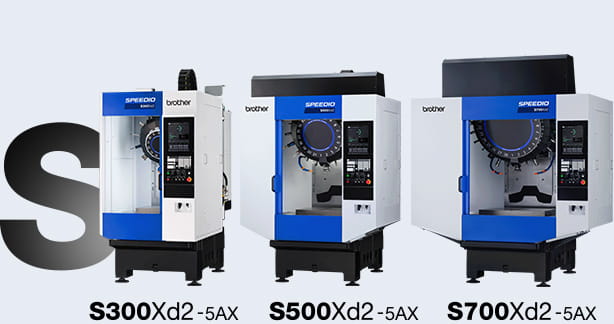

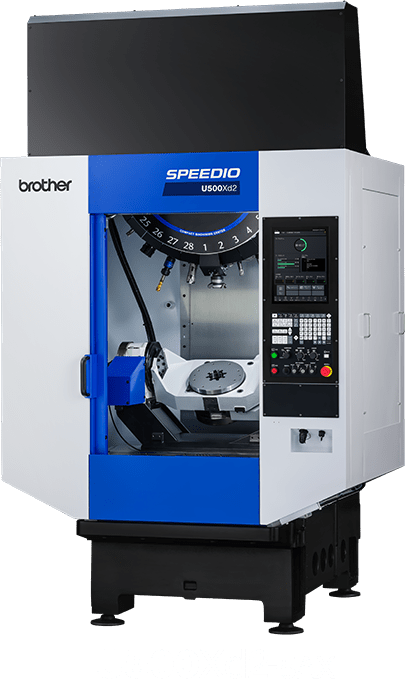

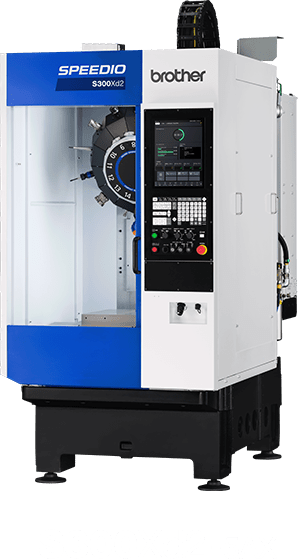

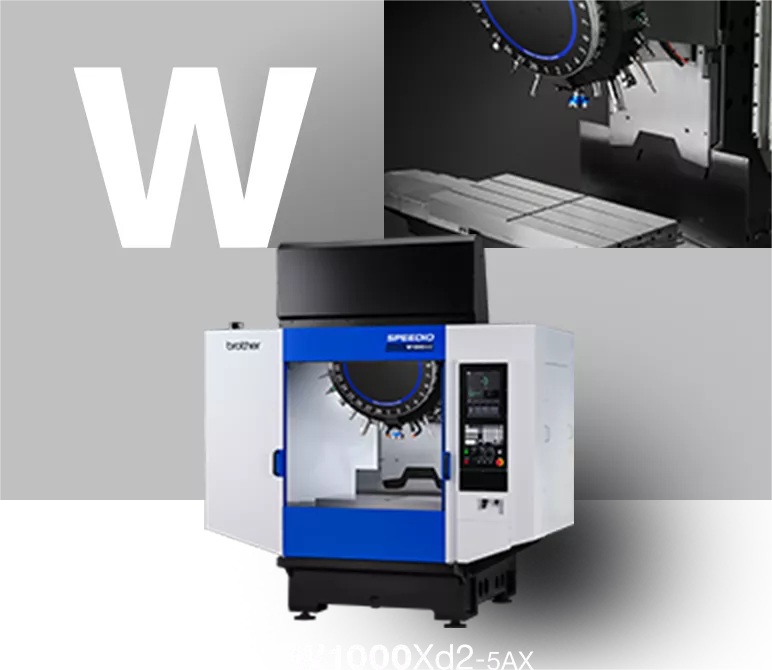

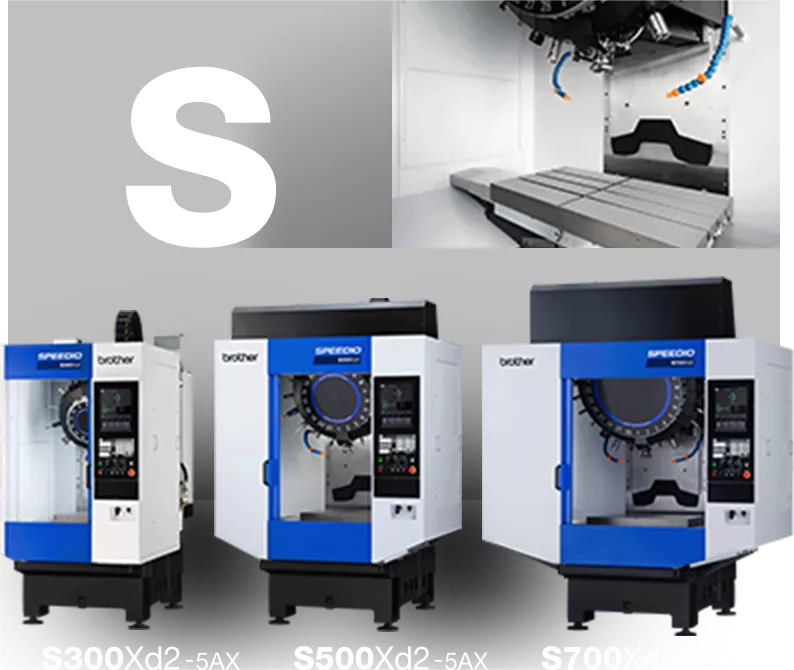

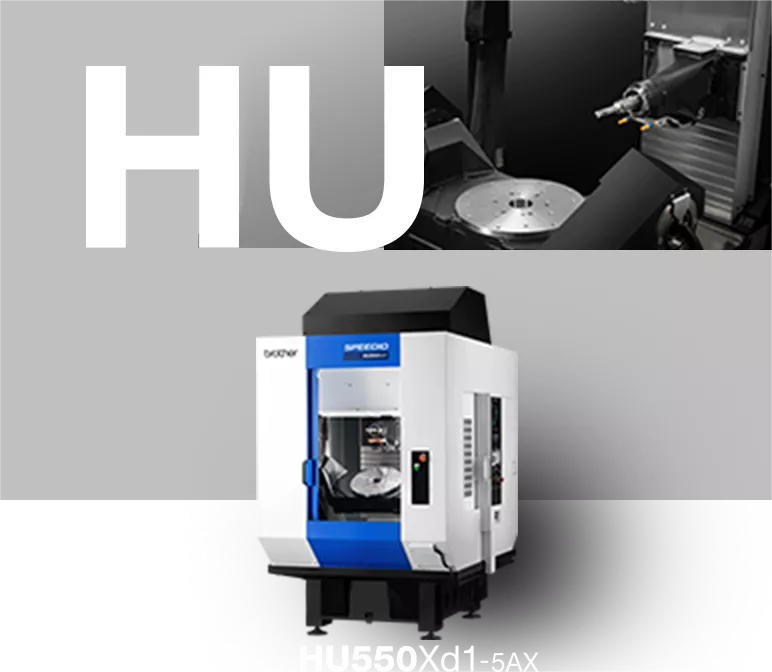

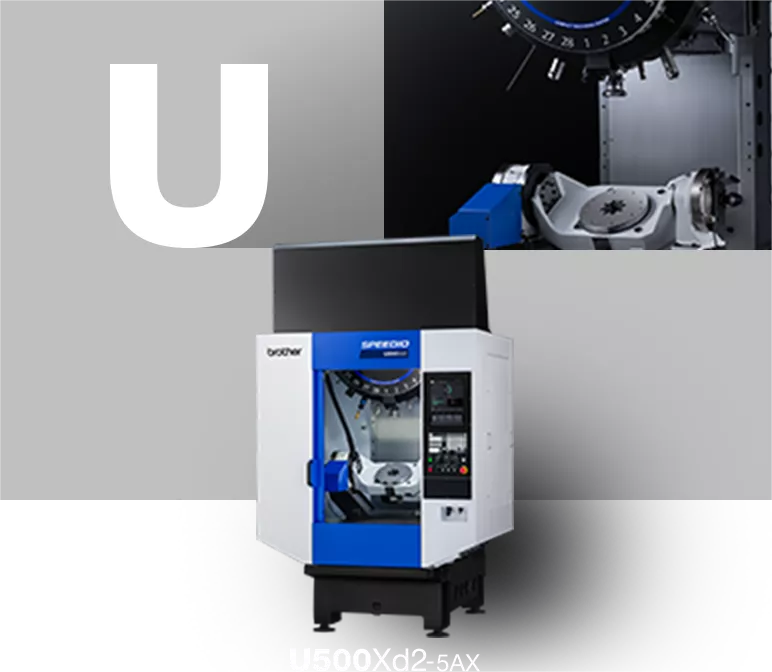

SPEEDIO Lineup

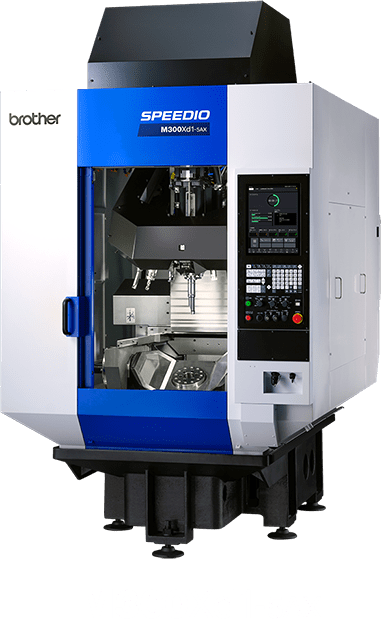

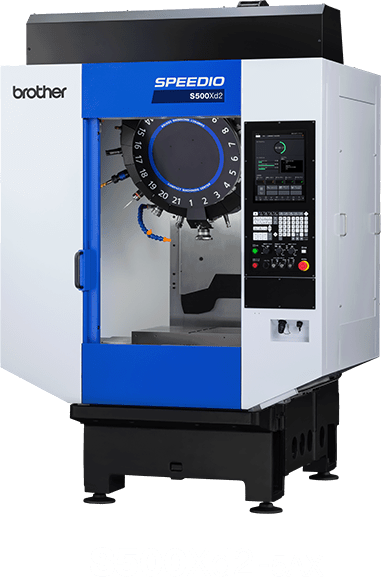

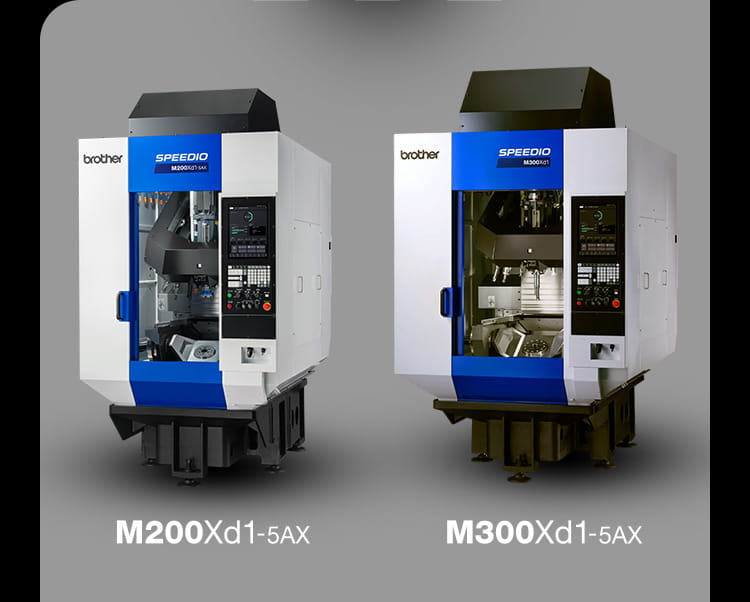

SPEEDIO offers six types of 5-axis machining centers for profile machining
SPEEDIO Capability
Pursuit of High Productivity Through Integrated
Machine and Controller Development
In addition to the compact BT30 design, SPEEDIO’s advanced look-ahead, acceleration/deceleration processing maximizes performance—delivering higher speed simultaneous 5-axis machining.
*1 This is an example of knee joint machining using SPEEDIO.Comparison with cycle time by competitor's BT40 MC *1
Software
Optimal Motion Control with “CNC-D00”
Smart Acceleration: Advanced look-ahead technology (patent pending) ensures seamless acceleration and deceleration for maximum speed and efficiency.
Superior Accuracy: Calculates motion with exceptional precision, outperforming conventional controllers.
Peak Performance: The axis with the highest acceleration always operates at the machine’s maximum capability—delivering faster cycle times and higher output.
Hardware

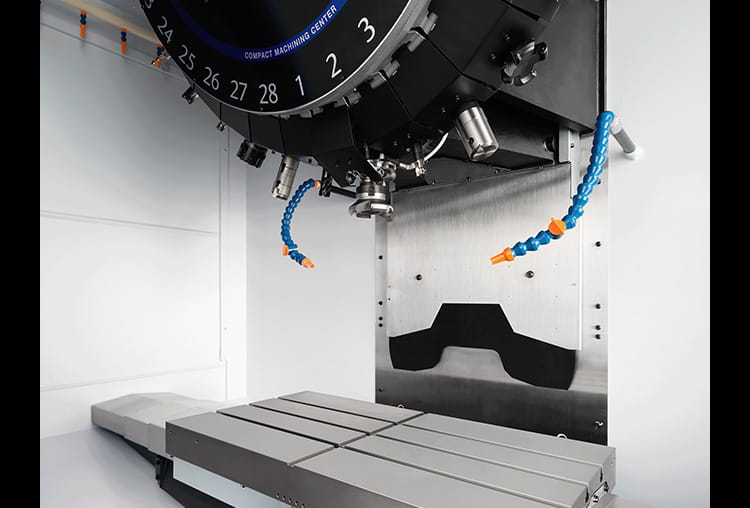

Compact Machine Design
The BT30’s compact size, combined with its reliable and robust structure, ensures high productivity.
Lightweight Advantage: BT30 is lighter than BT40 in both table weight and spindle (tool) weight, allowing for faster, more agile movement.
High Precision Simultaneous 5-Axis Machining
The simultaneous 5-axis specification includes advanced features as standard, such as tool center point control (TCP), submicron command capability, feature coordinate setting, and a generous 3GB memory capacity.
Precision Redefined with Tool Center Point Control
Experience machining excellence with SPEEDIO’s advanced Tool Center Point (TCP) Control—a feature designed for uncompromising accuracy and performance.By dynamically adjusting tool direction relative to the workpiece, SPEEDIO ensures flawless execution of complex geometries.
Advanced look-ahead processing (up to 1,000 blocks) and two control methods (G43.4 and G43.5) ensure optimal acceleration/deceleration for precise simultaneous 5-axis machining.
Enhanced Surface Finish Quality
Adjustable acceleration and deceleration parameters for simultaneous 5-axis machining ensure superior precision.By simply selecting the M code, you can achieve improved surface finish and exceptional dimensional accuracy.

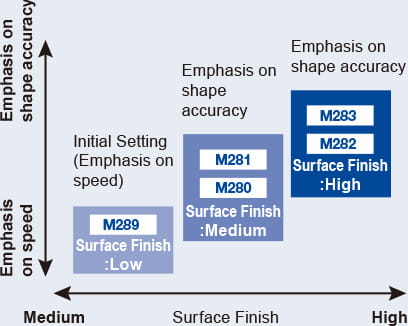

Acceleration and deceleration adjustment
Setting the M code enables improvement in surface quality and shape accuracy.

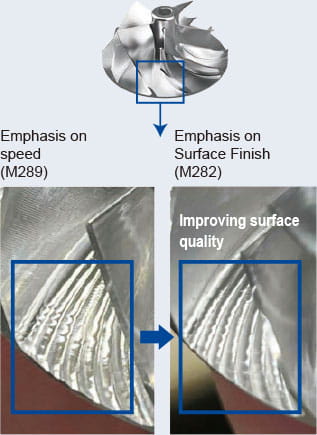

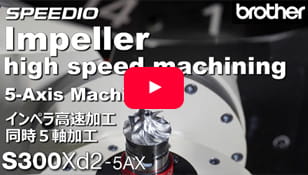

Example of improving surface quality in impeller machining
Functions that Assist in High-Speed and High-Precision Machining

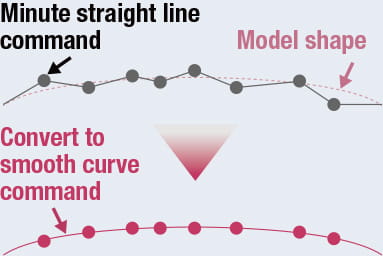

High-Accuracy Mode BⅡ
(look ahead 1,000 blocks, with smooth path offset)

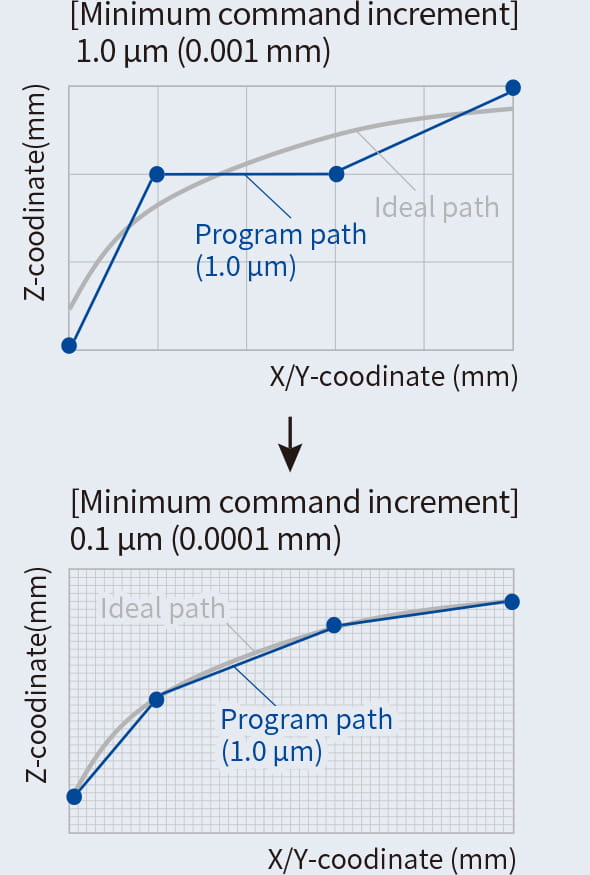

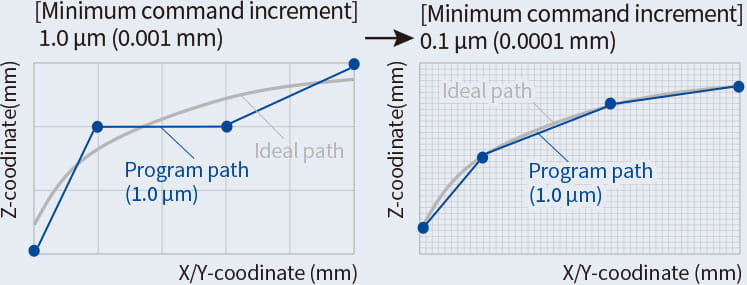

Submicron Command
Commands can be issued in 0.1 μm (0.0001 mm) increments.

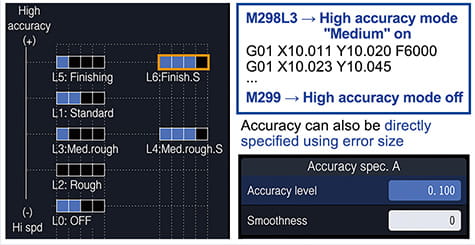

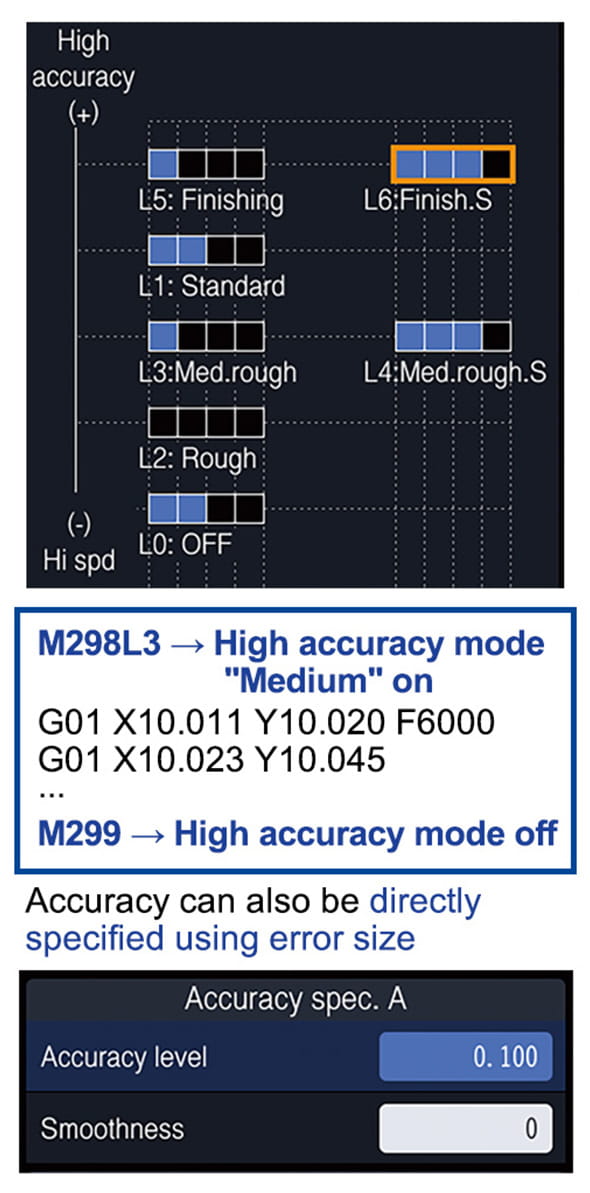

High-Accuracy Mode for 3-Axis Machining
For 3-axis machining, you can choose from properly tuned preset machining modes, or adjust the accuracy to the level you desire by directly specifying the dimensions.
Faster Processing of Minute Line Segments
The CPU capacity has been significantly increased, enabling processing speeds up to four times faster than the previous controller.
This advancement ensures high-speed handling of CAM data with tight tolerances for superior precision.

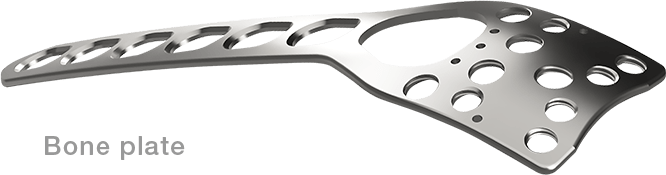

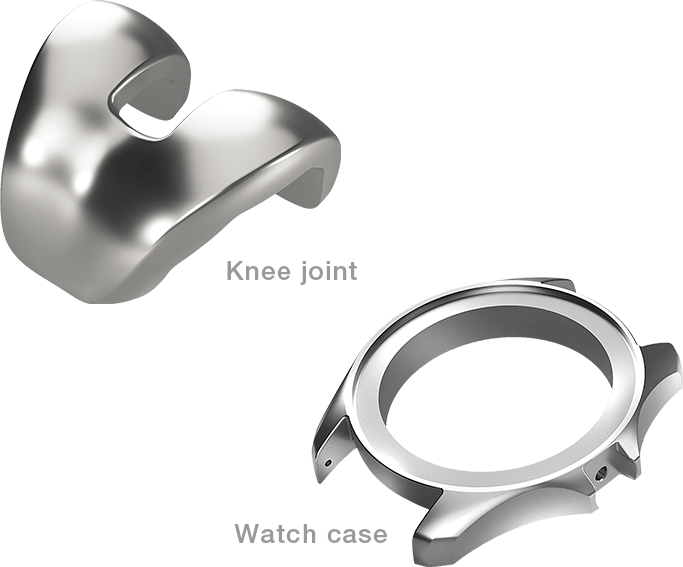

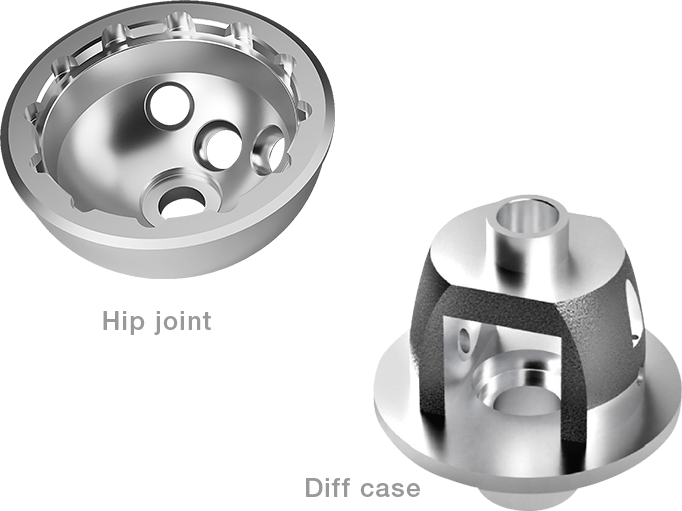

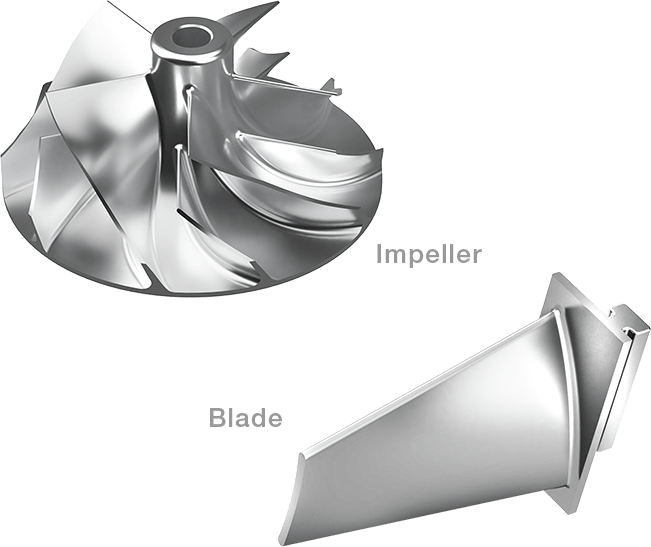

Industry-Specific Applications
Industry-Specific Applications
Localized Support
Brother Machinery India provides various support services to customers who are considering the purchase of SPEEDIO as well as to those who have already purchased it.
See It. Test It. Trust It.
Before installation, we give you complete confidence in your investment. Visit our showroom to view the actual machine and experience live demonstrations on real-world applications.
At the Brother Technology Center, we go the extra mile—offering free test cuts so you can verify precision, performance, and quality firsthand.
Your trust matters. We prove it before you buy.
Confidence from Day One
Your investment deserves more than delivery—it deserves assurance. At installation, our experts provide full guidance and calibration support, ensuring your SPEEDIO machine is ready for peak performance.
What We Offer:
- Clear, Hands-On Training: Learn to operate the SPEEDIO 5-axis machine with confidence.
- Precision Calibration: Pivot point setup performed by specialists for flawless accuracy.

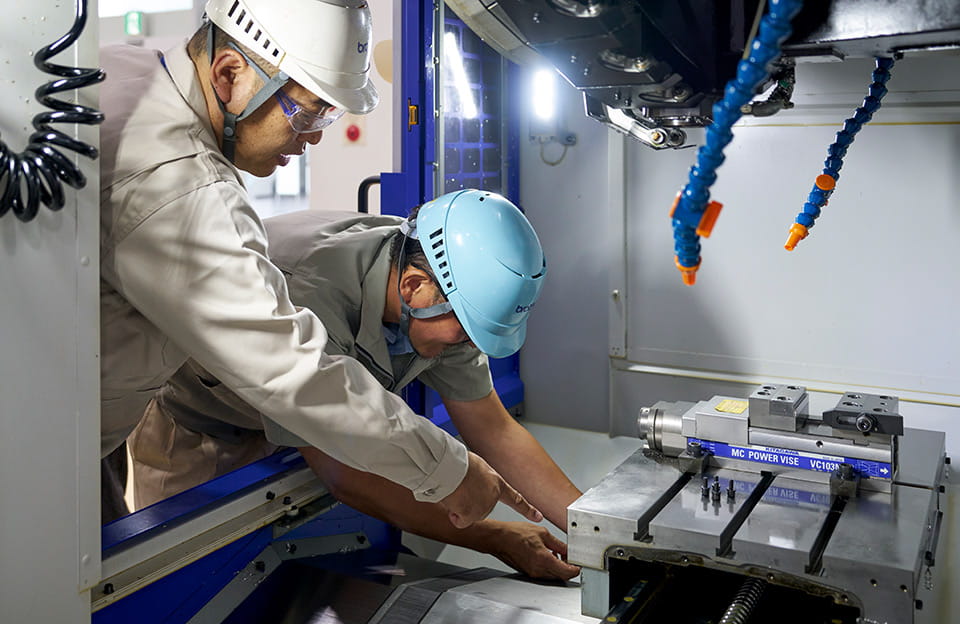

Support That Continues After Installation
Your success matters to us. After installation, we provide detailed guidance to help you maximize SPEEDIO’s performance and keep your operations running at peak efficiency.
What We Deliver:
- Expert recommendations for improving cycle times based on your specific needs
- Practical tips to ensure consistent, reliable performance
Customer Testmonial
SPEEDIO : A Game-Changer in
Medical Component Manufacturing |
Customer Testimonial

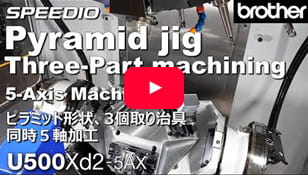

Machining Videos
We recommend the right solution for your specific workpiece.

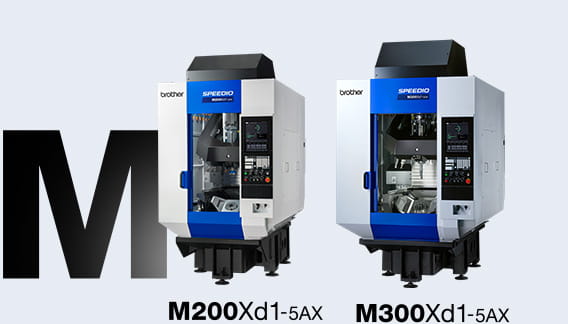

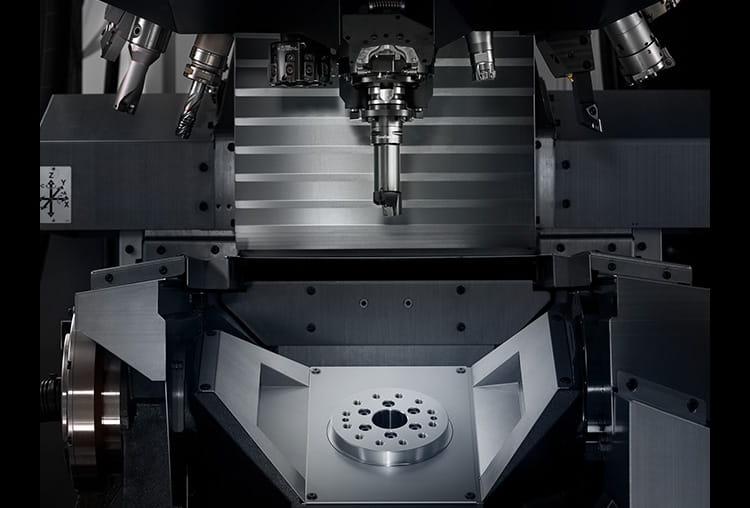

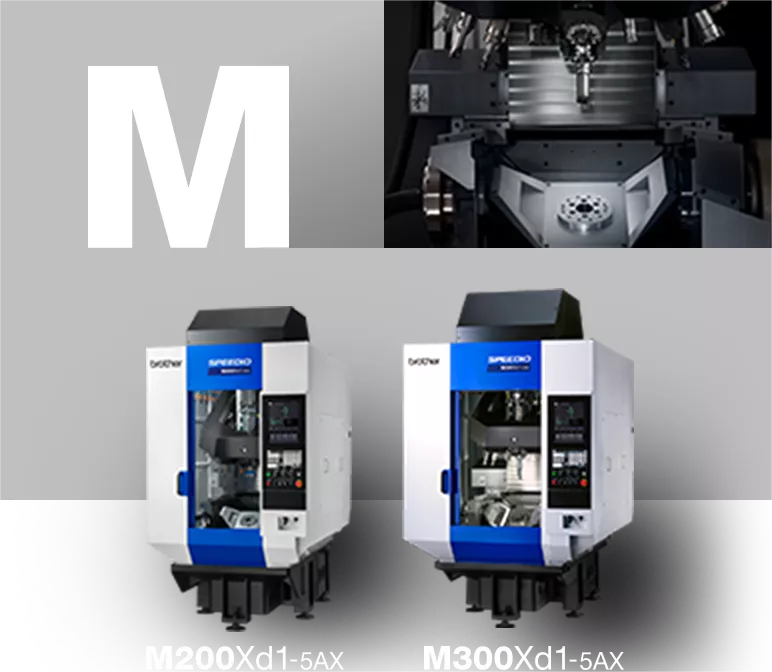

Various processes such as turning, machining, and gear machining can be performed with a single chucking. This contributes to process integration.
- Features
- - Turning + Machining
- Hobbing, Skiving

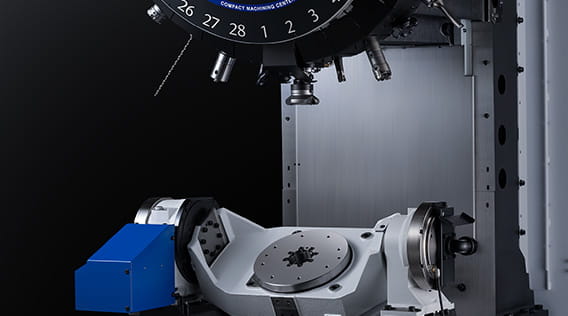

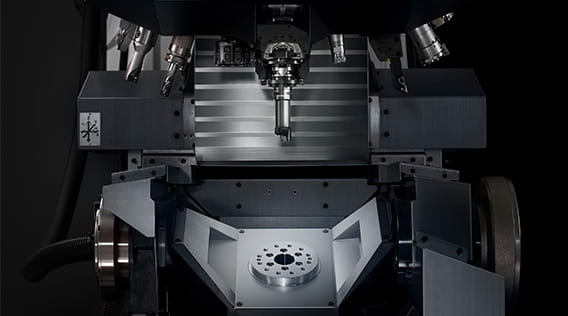

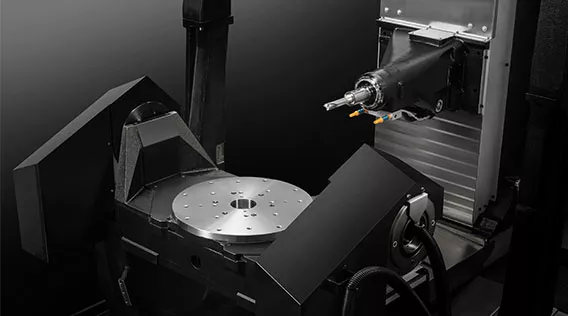

- Built-in tilting rotary table

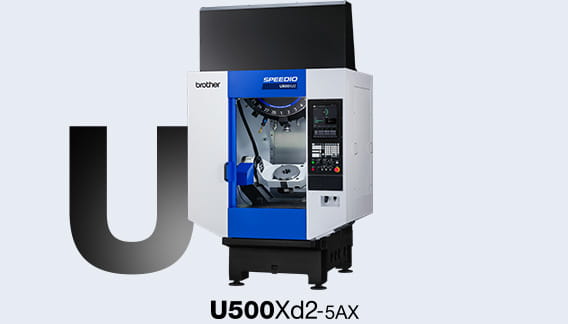

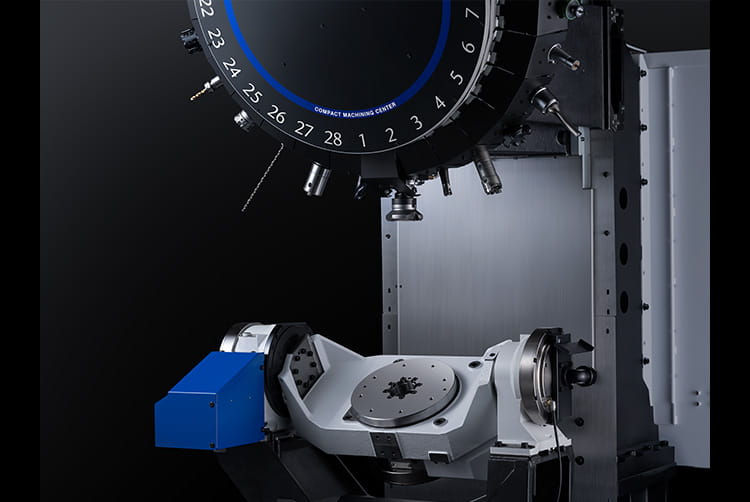

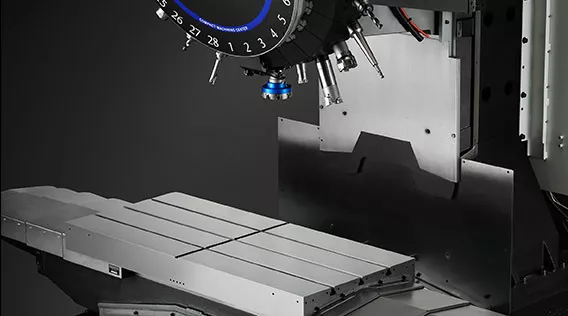

Equipped with a large tilting rotary table as standard. Enables multi-sided machining of large workpieces. The large jig area also allows for multiple parts to be machined in a single cycle.
- Features
- - Jig area: max.
φ500 mm x H320 mm

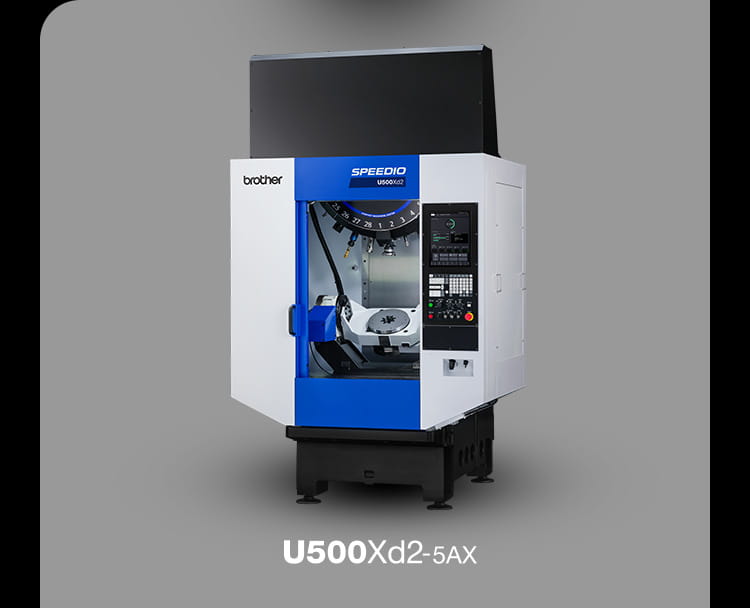

- Built-in tilting rotary table

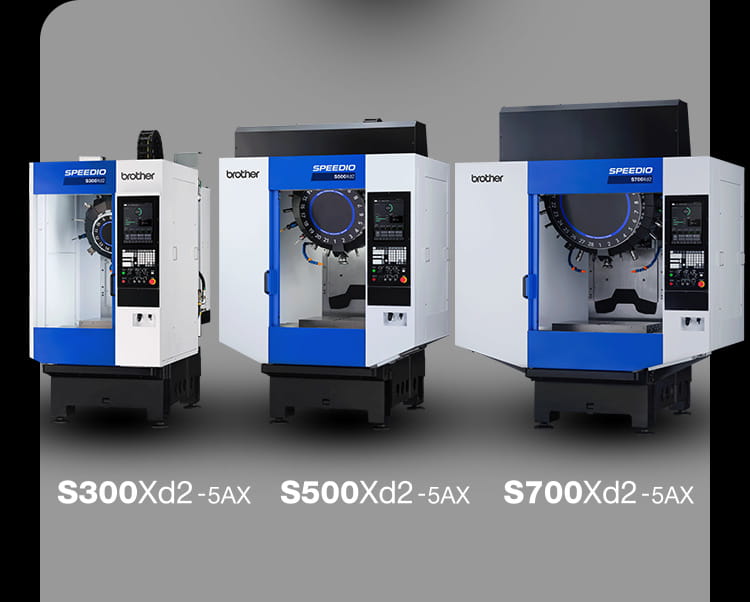

High-speed, high-precision machining is achieved with a high-speed spindle rotating at 27,000 rpm. Three body sizes are available to suit the space in your factory.
- Features
- - Spindle option: 27,000 rpm
- A wide range of specification
available
