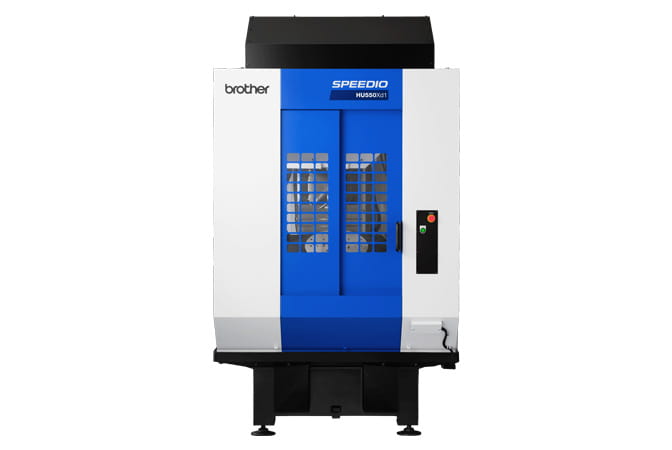

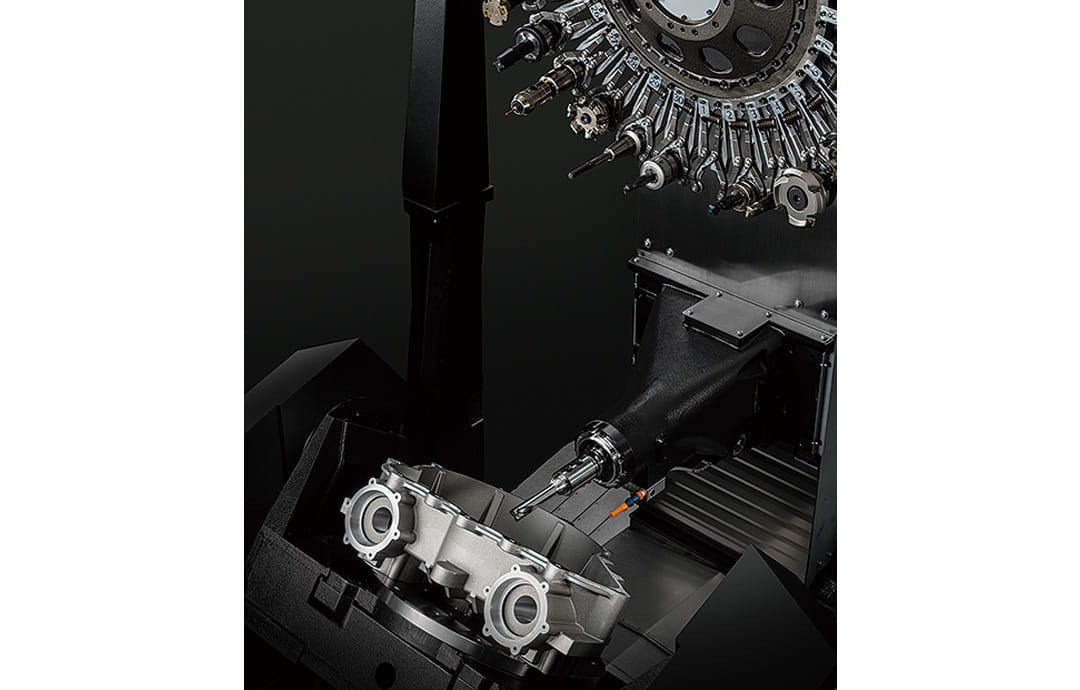

SPEEDIO HU550Xd1
Horizontal Universal Compact Machining Center
- Travels (mm): X: 550 Y: 500 Z: 400
- Travels (deg.): A: 30 to -120 B: 360
- Max. spindle speed (min-1): 12,000/ (Optional) 10,000 high-torque/ (Optional) 20,000
- Tool storage capacity(pcs.): 30
Select variant: HU550Xd1-5AX
[BT30 Horizontal compact machining center]
Horizontal model
with a tilting rotary table with a jig area of ø680 mm
Supports multi-face machining of large or long workpieces
Information
Overview
Advantages of utilizing the HU550Xd1
[1] Enables machining of large/long workpieces within less space.
[2] Achieves highly accurate machining with one-time chucking through process integration
[3] Easily adapts to production fluctuations or variations in workpiece geometry.

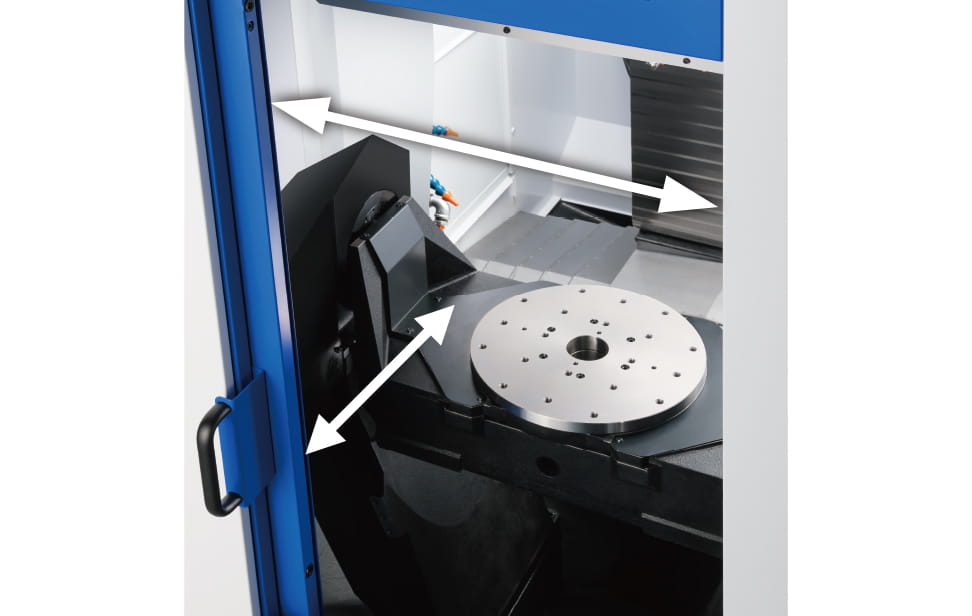

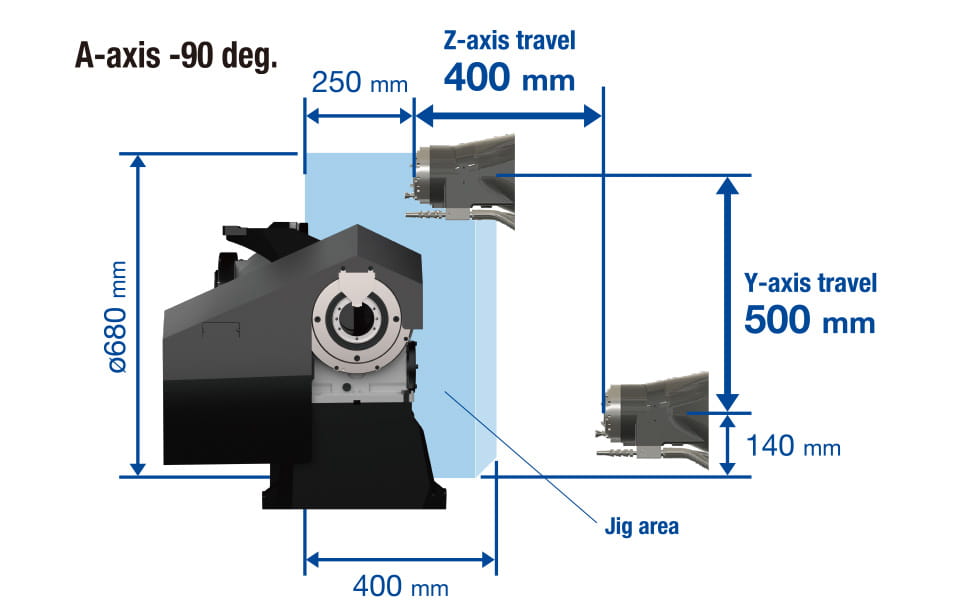

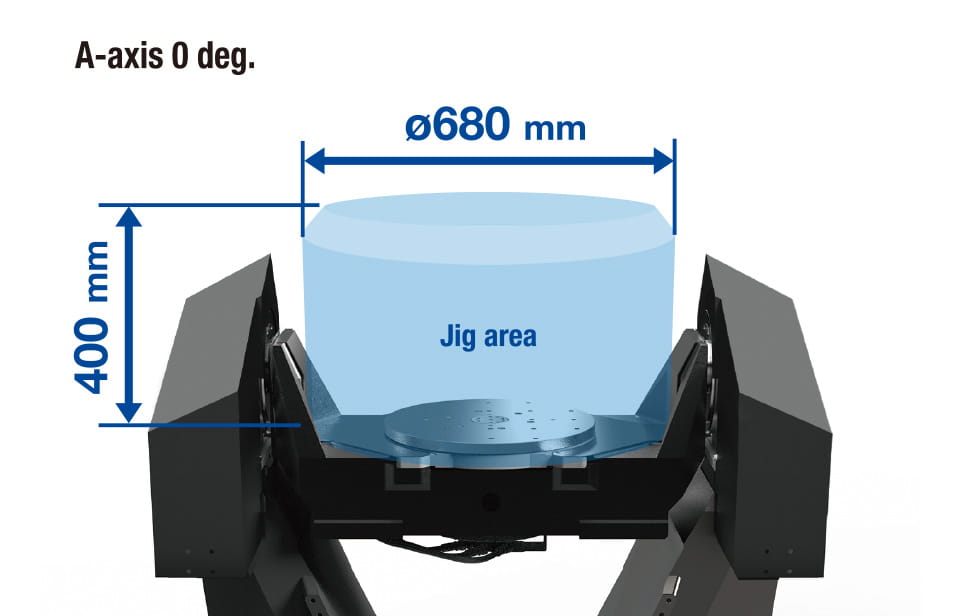

Jig area
A large tilting rotary table is mounted, providing an ample jig area of ø680 mm x 400 mm. Even when the A-axis is tilted 90 degrees, sufficient machining range and tool accessibility are ensured. The combination of the tilting rotary table and ample jig area can easily adapt to future variations in workpiece geometry.
* Interference area is created depending on the tool length or tool diameter.
Max. loading capacity 200 kg
Space saving
While enabling mounting of large workpieces, the space-saving design makes factory machinery layout easier and maximizes the effective use of installation space.
Installation space
5.0 m2 *1
*1. Dimension including coolant tank
*2. Compared to BT40 horizontal MC with equivalent travels

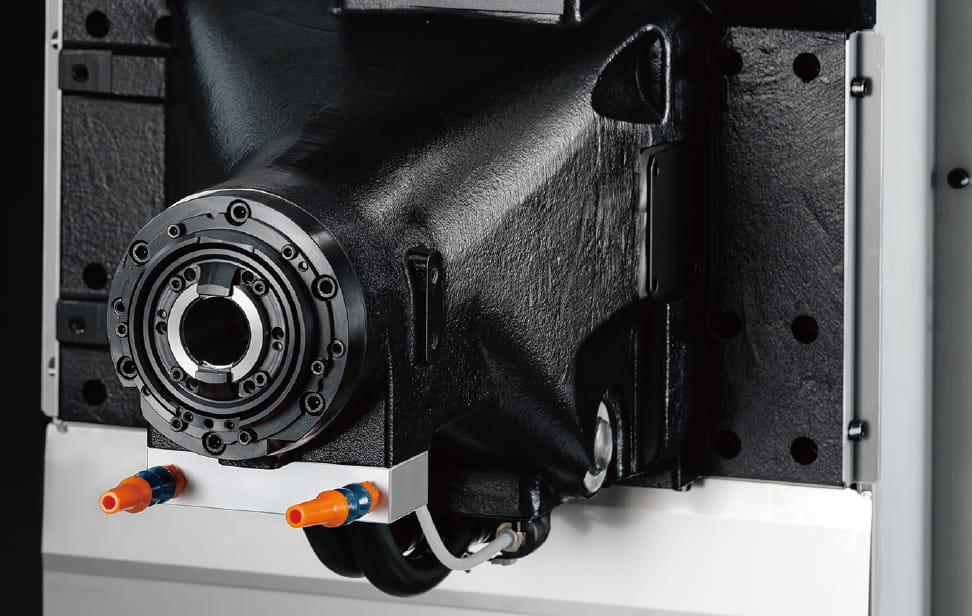

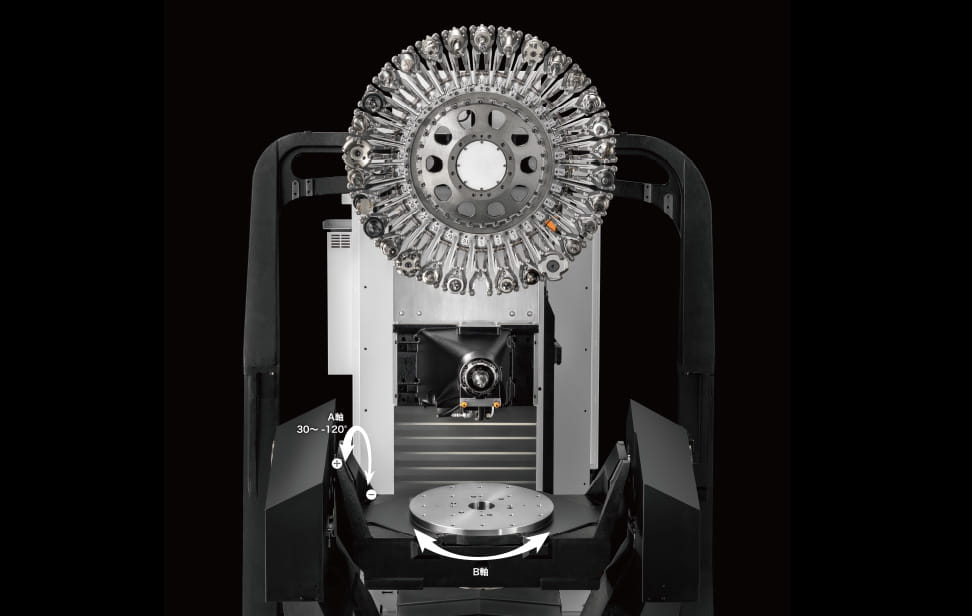

Tilting rotary table
Brother’s original large tilting rotary table with a roller gear cam mechanism and tandem control, achieving both high speed and high accuracy.
Max. indexing feed rate
A-axis 50 min-1
B-axis 75 min-1
Indexing time (90 deg.)
A-axis 1.2 s
B-axis 1.2 s

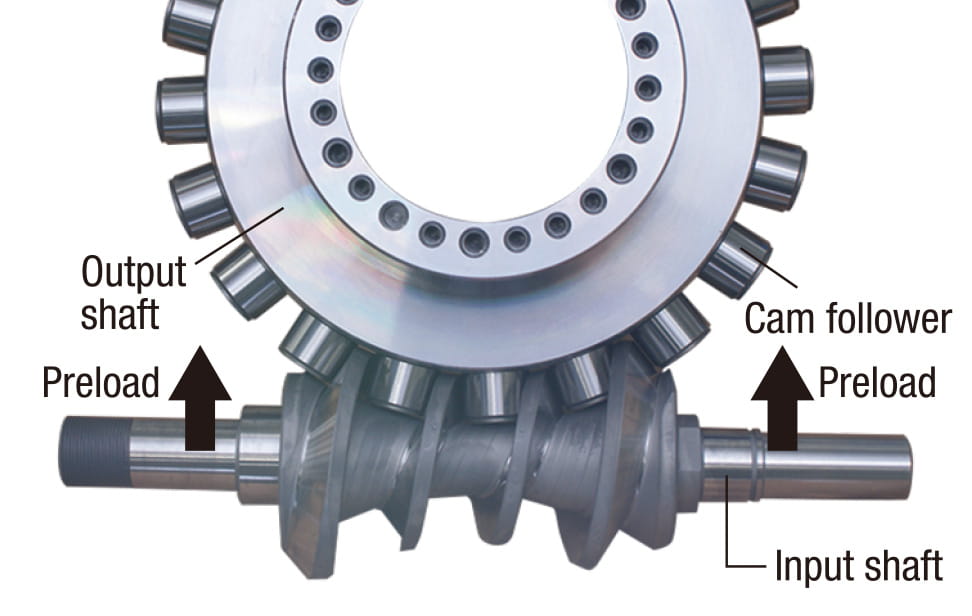

Rotary gear cam mechanism
A roller gear cam mechanism is used for A and B axes, achieving both high speed and high accuracy. In addition, the maximum loading capacity of the ø400 mm table is 200 kg.

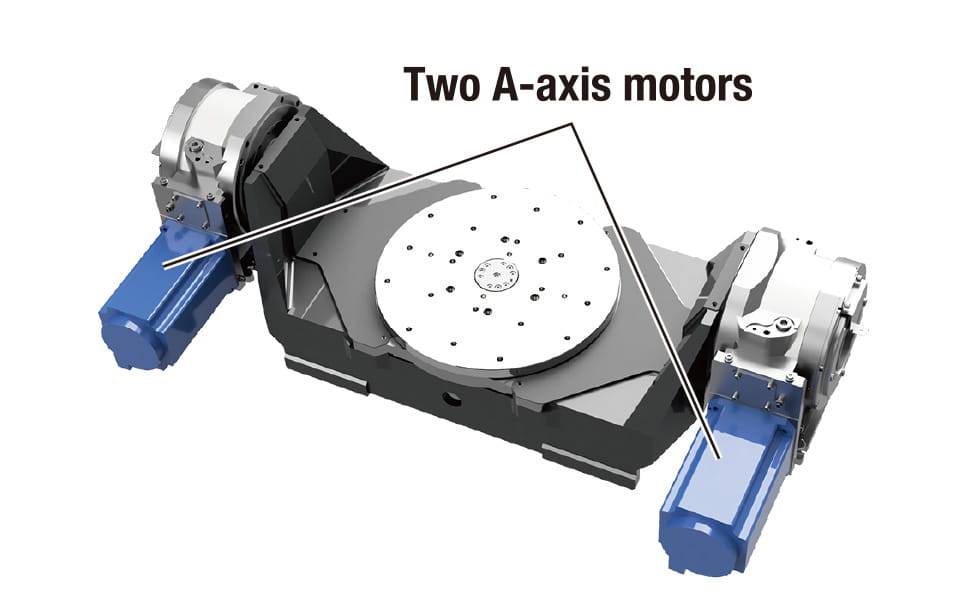

Tandem control
Tandem control using two motors is used for the A-axis. This suppresses distortion in the large tilting rotary table, enabling high-speed indexing.

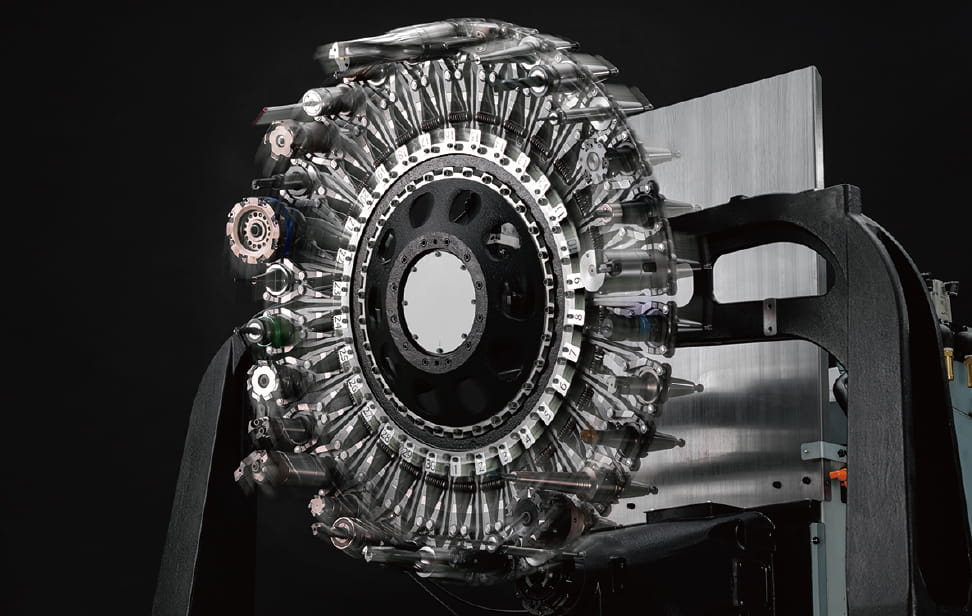

30-tool magazine
Equipped with the direct ATC type 30-tool magazine. Supports maximum tool length of 350 mm, maximum tool diameter of 125 mm, and maximum tool weight of 4 kg, enabling a variety of machining, including long workpieces.

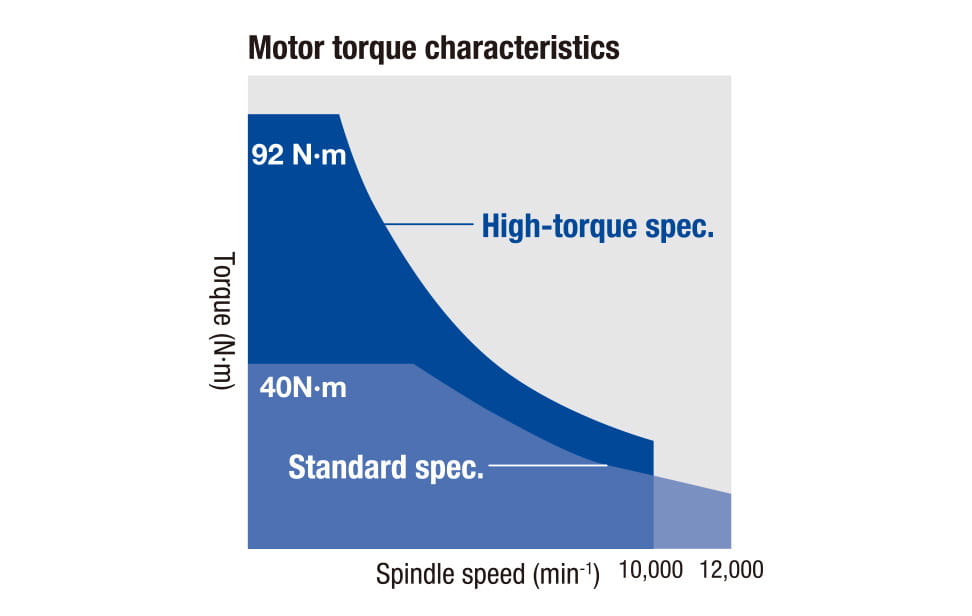

Spindle motors to meet specific applications
A 20,000 min-1 spindle motor has been newly developed. Compatible with Coolant Trough Spindle (CTS), it further enhances productivity in small-diameter drilling.
Various spindle motor specifications are available for different applications, including the standard 12,000 min-1 spec. and high-torque spec.
High-torque spec. (optional)
Max. torque 92 N·m
Max. output 26.2 kW
20,000 min-1 spec. (optional)
Max. torque 27 N·m
Max. output 15.4 kW
12,000 min-1 spec. (standard)
Max. torque 40 N·m
Max. output 18.9 kW

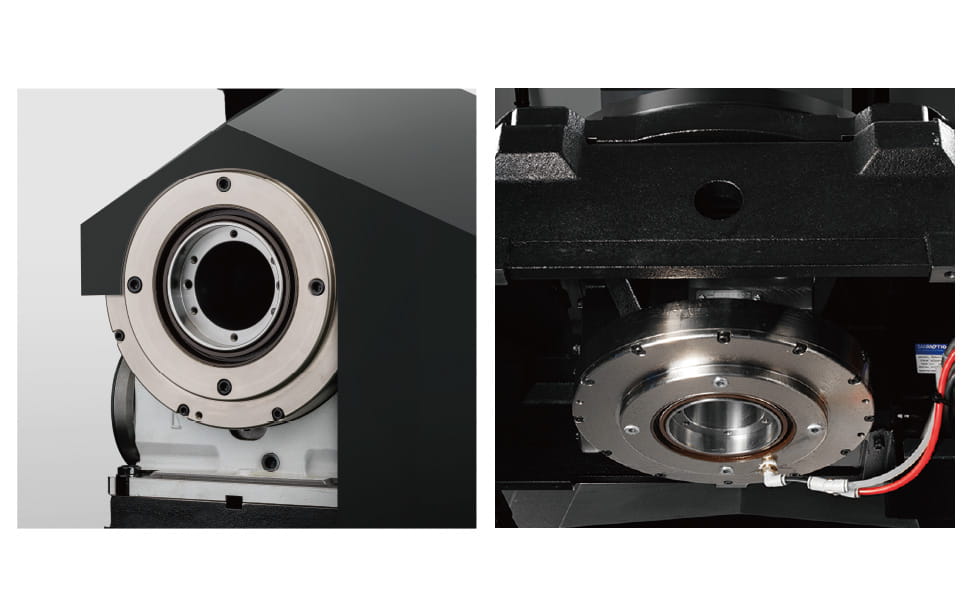

Clamping torque compatible with high-load machining
Both A and B axes are provided with high clamping torque, demonstrating high retention strength even in high-load machining. Machining with more stringent cutting conditions is possible, improving production efficiency.
A-axis clamping torque *3 1,200 N·m
B-axis clamping torque *3 700 N·m
*3. Value of mechanical clamp (at pneumatic 0.5 MPa) plus servo clamp

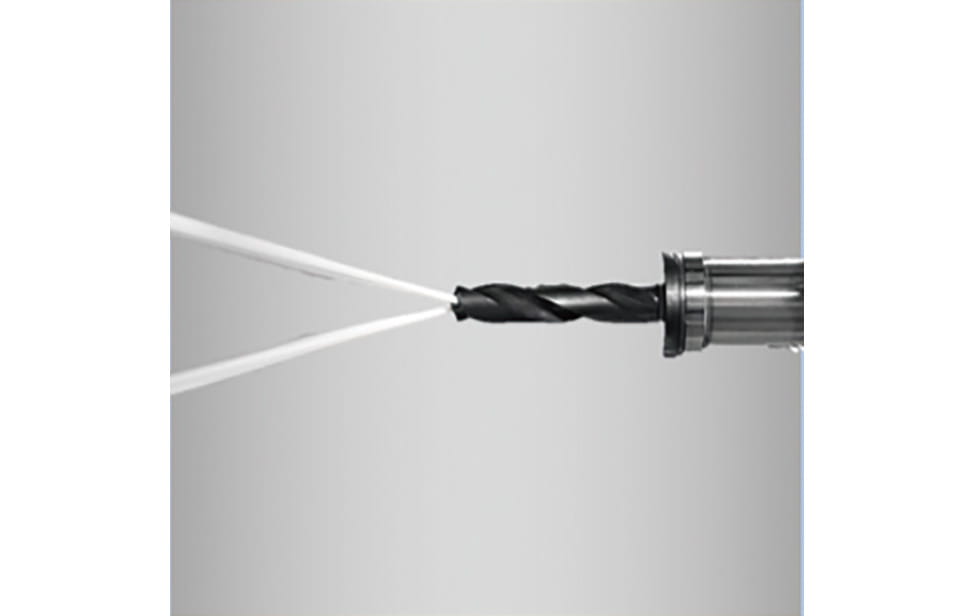

7 MPa Coolant Through Spindle (CTS) (optional) *4
The CTS option can be selected from 3 MPa or 7 MPa. With this option, the machine can operate to its fullest potential in high-speed drilling or deep-hole drilling.
*4. 3 MPa/7 MPa CTS are compatible with all spindle motor specifications.

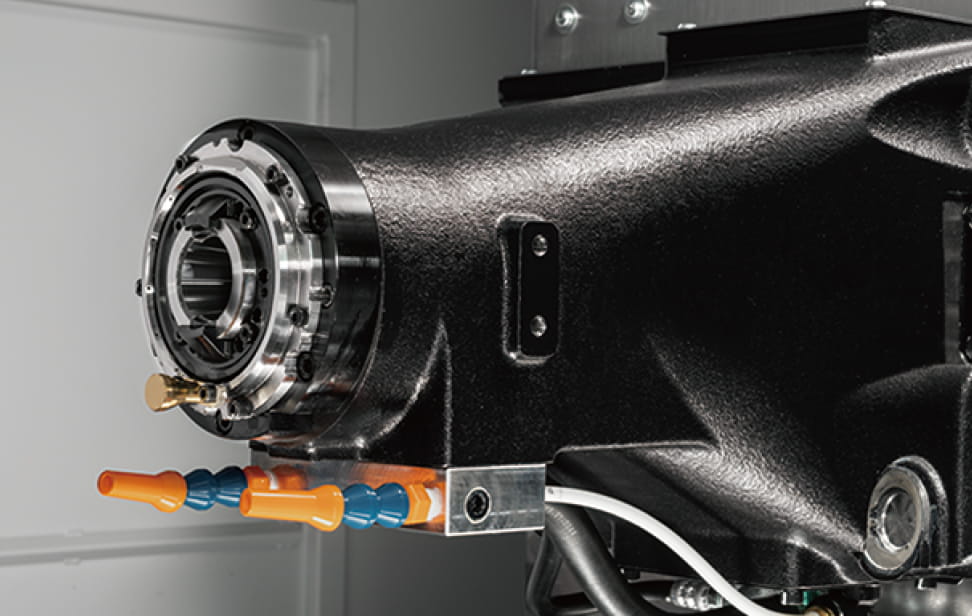

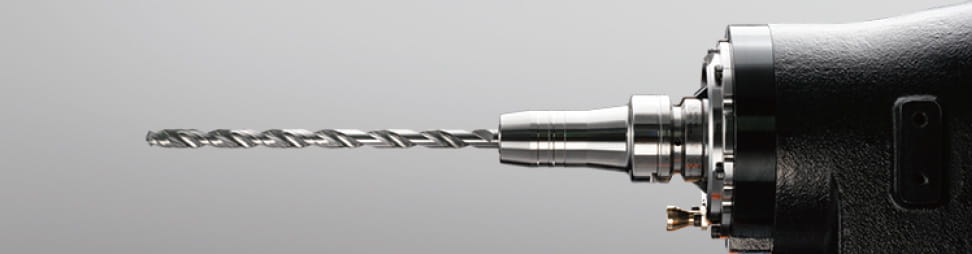

Optimal machine design and highly rigid spindle
Both high speed and high rigidity of the machine have been achieved by optimizing the cast geometry utilizing CAE analyses. The high-torque spindle features the SPEEDIO’s largest bearing diameter. With these improvements, the machine demonstrates high machining capabilities from highly efficient machining to heavy-duty machining.

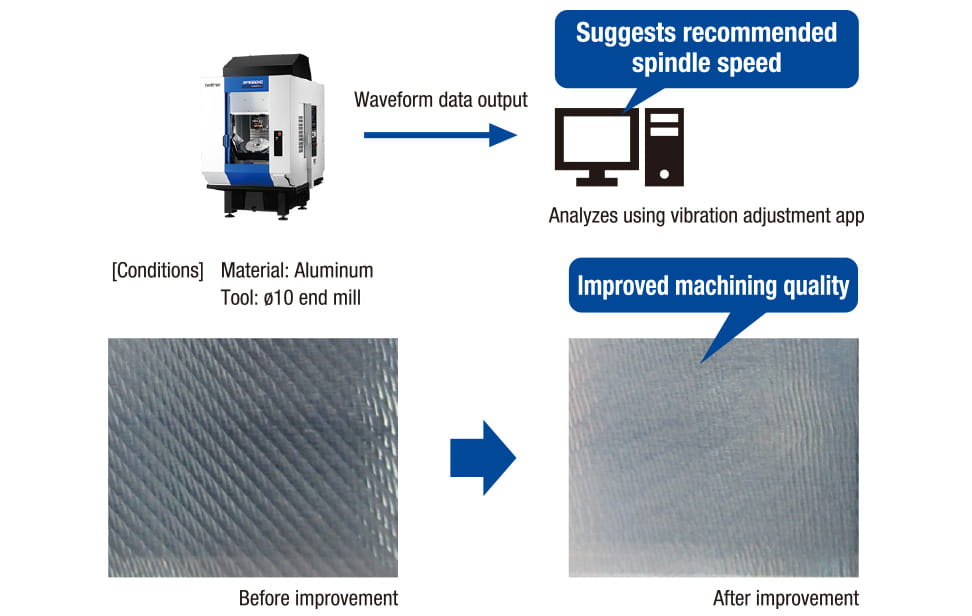

Vibration adjustment (optional) that suggests optimal machining conditions
Vibration adjustment analyzes waveform data using a PC app to suggest the recommended spindle speed. Optimal machining conditions drive machining performance to the fullest.
Easy-to-implement simultaneous 5-axis machining function (5AX) *5
Leveraging the standard-equipped tilting rotary table, the simultaneous 5-axis machining function can be easily implemented. Equipped with various functions, including tool center point control, the machine can achieve high-speed and highly accurate simultaneous 5-axis machining, combined with the 20,000 min-1 specification.
*5. Available only on the HU550Xd1-5AX

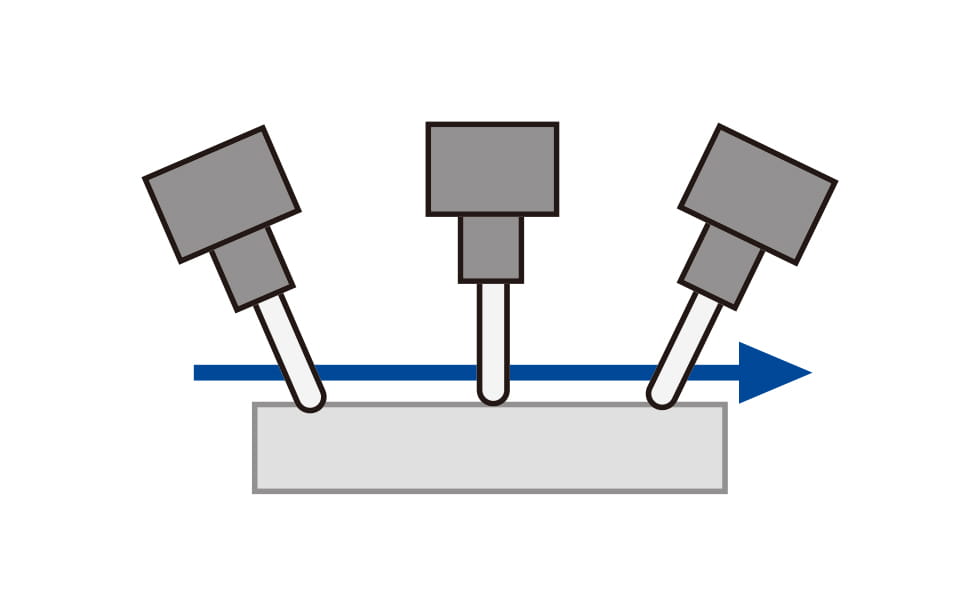

Tool center point control
Equipped with tool center point control where machining is performed by changing the tool direction relative to the workpiece. Optimal acceleration/deceleration is ensured by look-ahead for up to 1,000 blocks

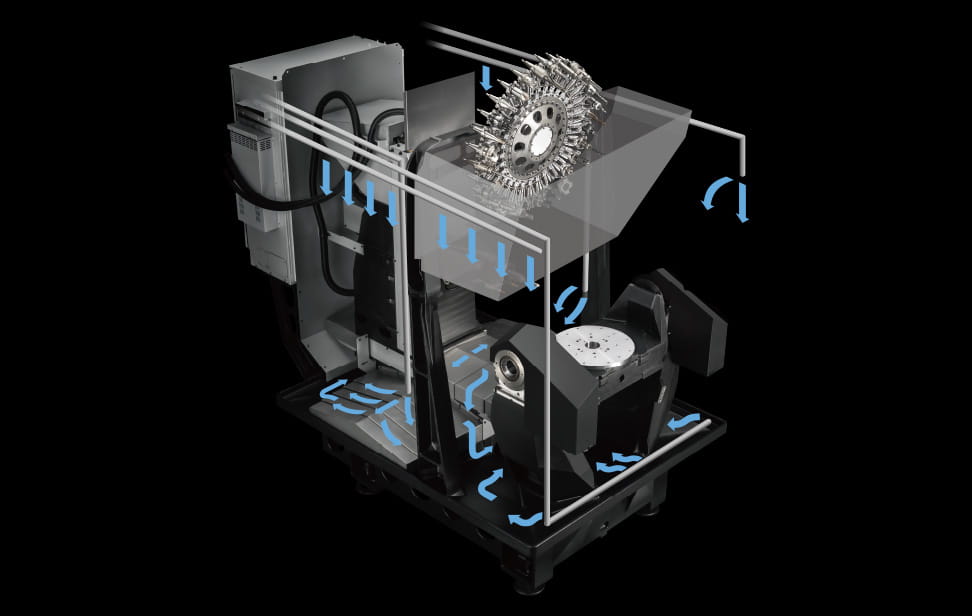

High chip evacuation with horizontal machining center features
Utilizing horizontal machine features and various other functions, the machine demonstrates high chip evacuation.

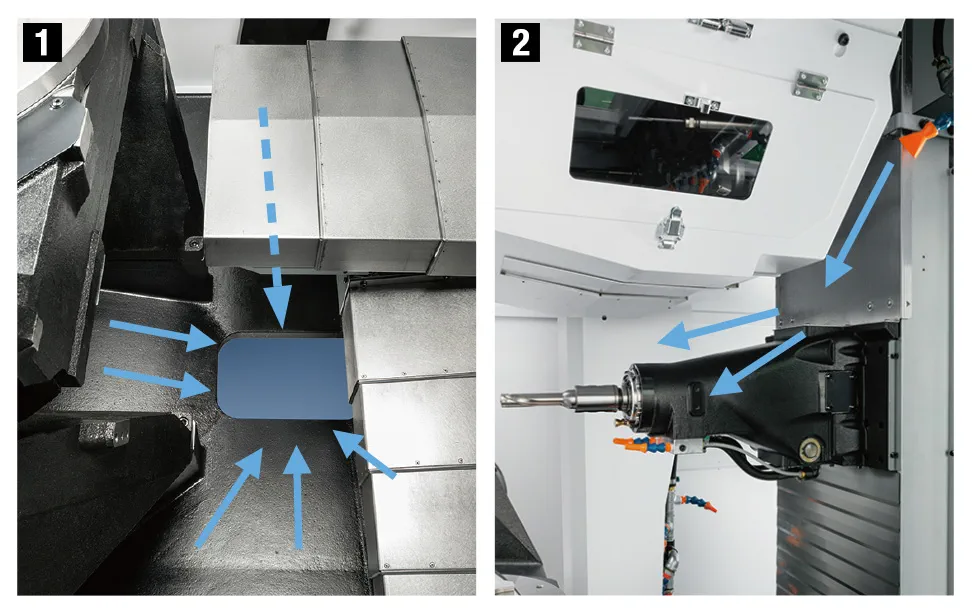

Center trough structure
The inclined base and the center trough structure effectively evacuate chips that fall on the base to the outside of the machine.
Head shower (optional) *6
A head shower is available to remove chips from the spindle head.
*6. Included with the coolant nozzle (optional).

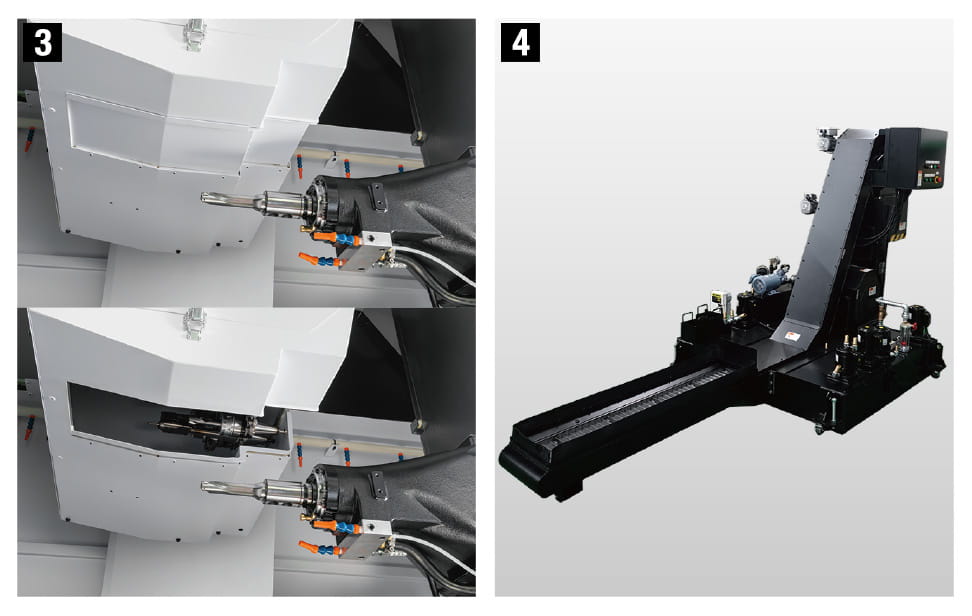

Magazine cover ATC shutter
The magazine is separated from the machining chamber by a shutter to minimize the effect of chips on tools.
Chip conveyor (optional)
The hinge and scraper type chip conveyor with drum filter evacuates chips in a variety of sizes and shapes.

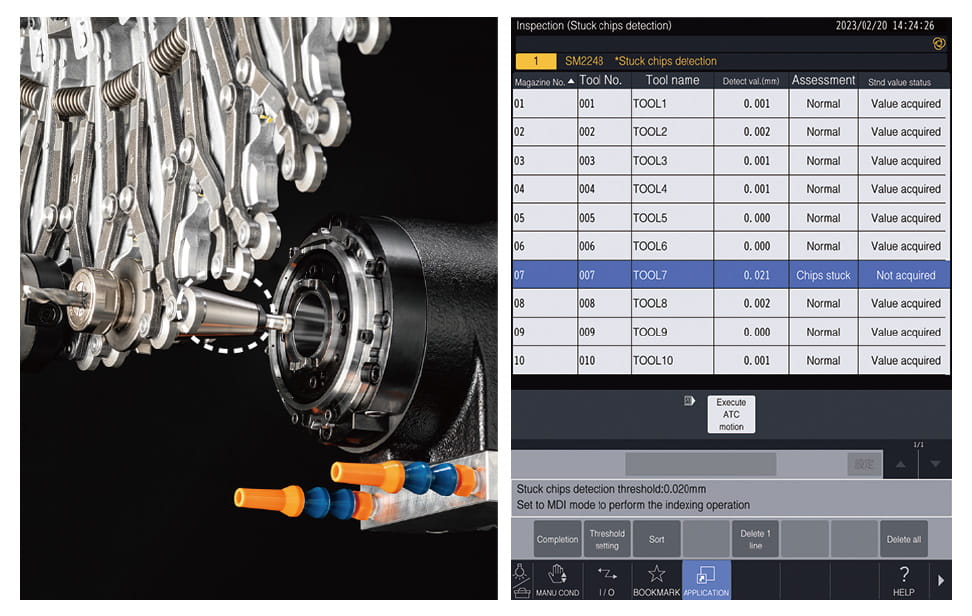

Stuck chips detection function
Chips caught between the spindle and the holder during ATC are detected without using a sensor. Detecting any stuck chips during ATC prevents the outflow of defects. A retry function is also provided.
Chip shower (optional)
Two 400W pumps and optimal piping layout ensure high chip evacuation.
Chip evacuation rate *7
Approx. 98%
*7. Value based on our in-house tests

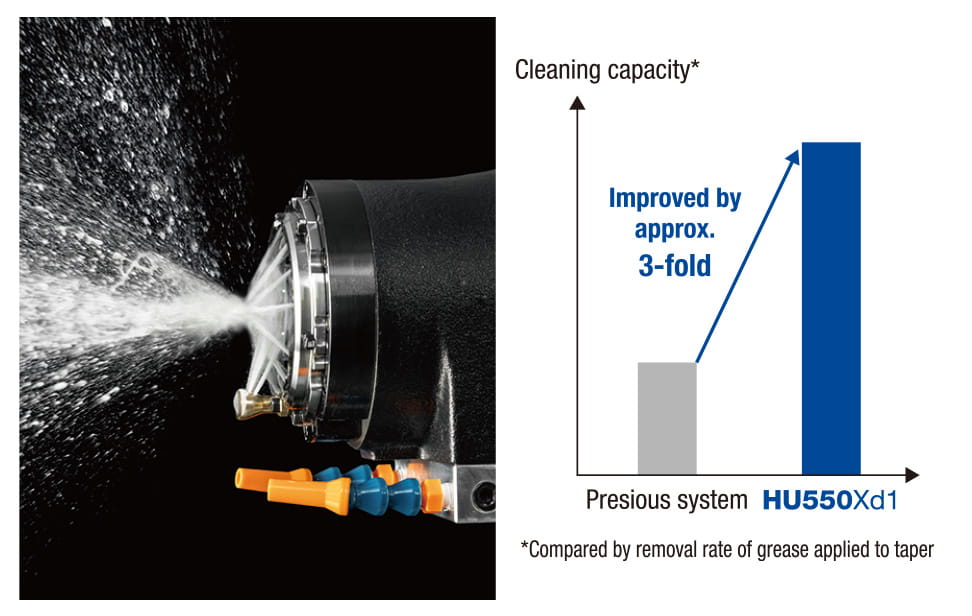

Tool cleaning system (optional)
The number of discharge holes and the angle of these holes have been optimized to significantly increase the discharge flowrate. This has resulted in a threefold increase in cleaning capacity, compared to the previous system. When CTS is selected, coolant for tool cleaning is discharged from the CTS pump, consuming less air than air-assisted tool cleaning.
High-speed tool change
By utilizing the advantages of machine/controller integrated development, high-speed tool change has been achieved by fast acceleration/deceleration and optimized operation.
Tool change time
Tool - Tool: 1.3s
Chip - Chip: 2.5s

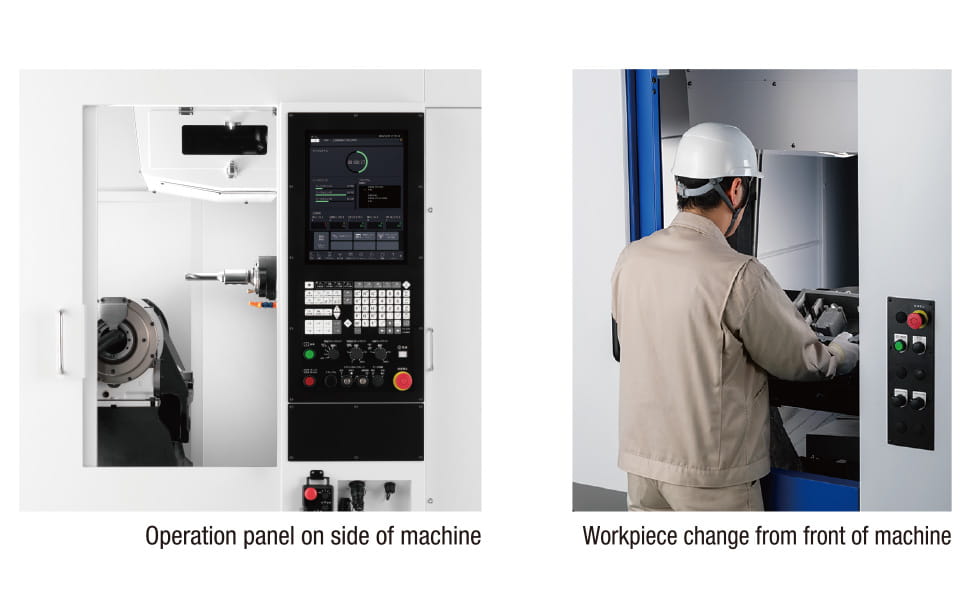

High visibility and easy workpiece change
The operation panel is located on the side of the machine to improve visibility into the machining chamber, making setup easier. With a wider front door opening, the table can be tilted toward the operator to enhance accessibility, allowing them to change workpieces in a comfortable posture.

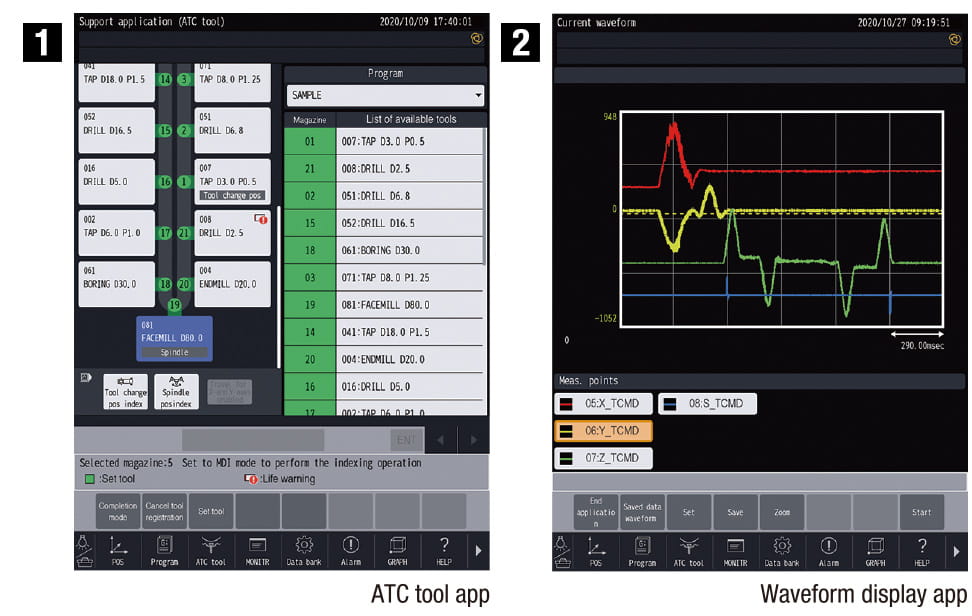

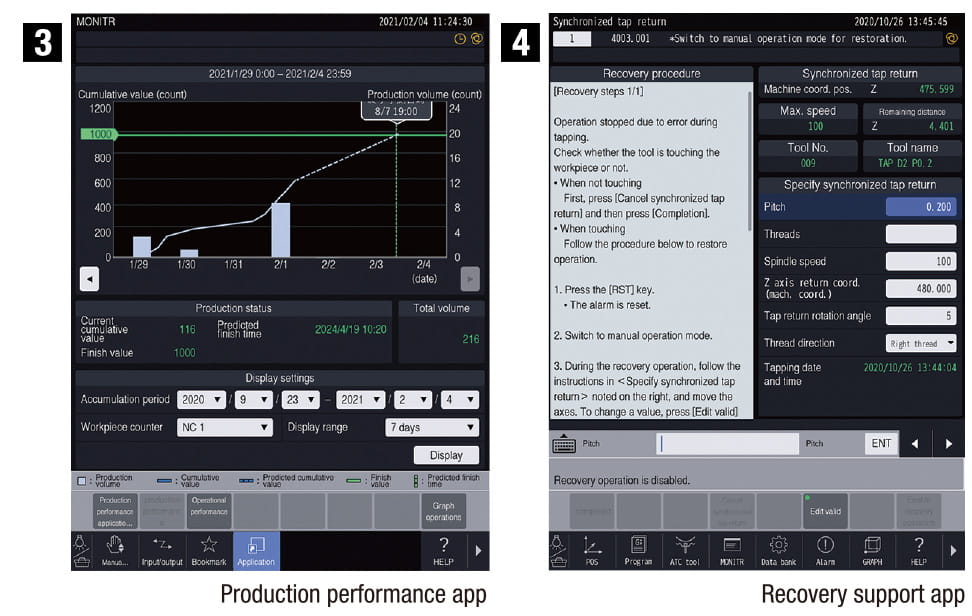

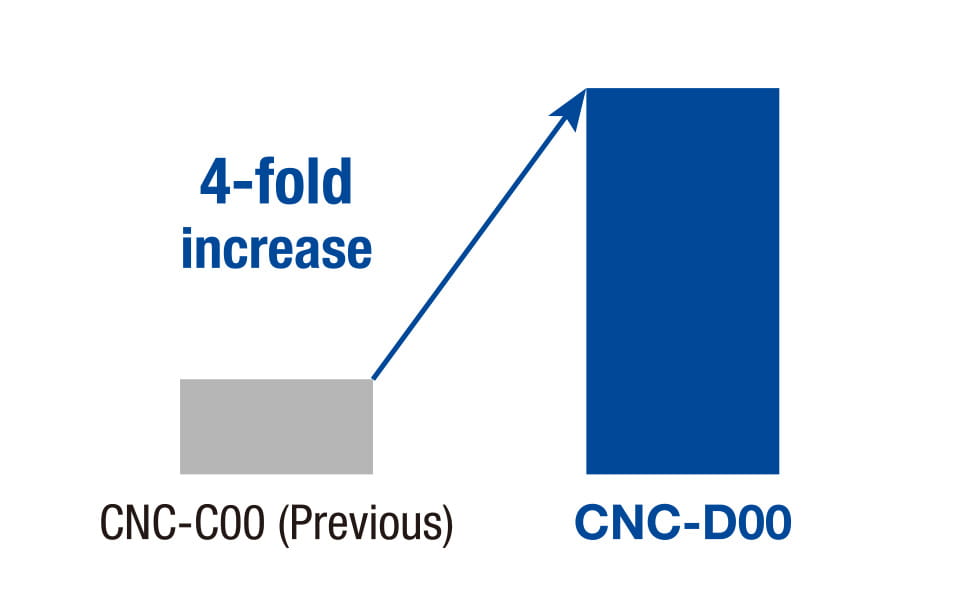

A variety of convenient support functions
Intuitive operation is possible with apps and the vertical touch panel screen. Relevant functions are grouped according to purpose, such as setup and machining, leading to efficient operation. Production and operation states are visualized, allowing faster understanding. Streamlined operation is possible in setup, machining adjustment, production, and recovery processes, leading to improved work efficiency and operating rate.
Setup support
Equipped with functions to easily perform setup, such as an ATC tool app that enables all magazine tool settings to be performed on one screen, menu programming that enables you to create NC programs by following instructions on the screen, and an on-screen help function.
Machining adjustment support
Equipped with functions to easily perform optimal machining adjustment to improve productivity, such as a machining parameter adjustment app that enables you to easily adjust parameters according to machining details and a machining load waveform display/saving function.
Production support
Equipped with functions to improve the operating rate, such as real time tool monitoring to eliminate defects, displaying production performance, power consumption etc. as a graph, and PLC/network functions to meet peripheral equipment and automation requirements.
Recovery support
Equipped with functions to prevent failure or ensure quick recovery, such as maintenance time notice, displaying details when an alarm occurs, and guidance for recovery/check work.
Specifications
Product Specification
HU550Xd1
Max. spindle speed [min⁻¹]
12,000/ (Optional) 10,000 high-torque/ (Optional) 20,000
Travels [mm (inch)]
X: 550 (21.7) Y: 500 (19.7) Z: 400 (15.7) A(deg.): 30 to -120 B(deg.):360
Tool storage capacity [pcs.]
30
Rapid traverse rate (XYZ axes) [m/min (inch/min)]
50 x 56 x 56 (1,969 x 2,205 x 2,205)
Indexing feed rate [min⁻¹]
A axis: 50, B axis: 75（60 *10）
Required floor space [mm (inch)]
1,557 x 2,744 (61.3 x 108.0)
BT dual contact spindle(BIG-PLUS)
Optional
Coolant Through Spindle(CTS)
Optional
| Item | HU550Xd1 / HU550Xd1 RD *8 | HU550Xd1-5AX / HU550Xd1-5AX RD *8 | ||
|---|---|---|---|---|
| CNC Unit | CNC-D00 | CNC-D00v (DB) | ||
| Travels | X axis [mm (inch)] | 550 (21.7) | ||
| Y axis [mm (inch)] | 500 (19.7) | |||
| Z axis [mm (inch)] | 400 (15.7) | |||
| A axis [deg.] | 30 to -120 | |||
| B axis [deg.] | 360 | |||
| Distance between table top and spindle center [mm (inch)] | -100 - 400 (-3.9 - 15.7) (A axis 0 deg) | |||
| Distance between table center and spindle nose end [mm (inch)] | 150 - 550 (5.9 - 21.7) (A axis 0 deg) | |||
| Table | Work area size [mm (inch)] | ø400 (15.7) | ||
| Max.loading capacity [kg (lbs)] | 200 (441) *12 | |||
| Max. table load inertia [kg･m2(lb･inch2)] |
4.1 (14,010) [8.8 (30,071) *10] | |||
| Spindle | Spindle speed [min-1] | 12,000min-1 specifications : 1 - 12,000/ 10,000min-1 high-torque specifications(Optional) : 1 - 10,000 20,000min-1 specifications(Optional) : 1 - 20,000 |
||
| Speed during tapping [min-1] | MAX. 6,000 | |||
| Tapered hole | 7/24 tapered No.30 | |||
| BT dual contact spindle (BIG-PLUS) | Optional | |||
| Coolant Through Spindle (CTS) | Optional | |||
| Feed rate | Rapid traverse rate (XYZ-area) [m/min (inch/min)] |
50 x 56 x 56 (1,969 x 2,205 x 2,205) | ||
| Cutting feed rate [mm/min (inch/min)] |
X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *7 | |||
| Indexing feedrate (A and B) [min-1] | A axis: 50, B axis: 75 (60 *10) | |||
| ATC unit | Tool shank type | MAS-BT30 | ||
| Pull stud type *4 | MAS-P30T-2 | |||
| Tool storage capacity [pcs.] | 30 | |||
| Max.tool length *1 [mm (inch)] | 350 (13.7) | |||
| Max.tool diameter *1 [mm (inch)] | 125 (4.9) *11 | |||
| Max.tool weight *1 [kg (lbs)] | 4.0 (8.8) / tool, [TOTAL TOOL WEIGHT: 50 (110.2)] | |||
| Tool selection method | Random shortcut method | |||
| Tool change time *5 | Tool To Tool [sec.] | 1.3 | ||
| Chip To Chip [sec.] | 2.5 | |||
| Electric motor | Main spindle motor (10 min/continuous)[kW] *2 |
12,000min-1 specifications : 10.1/7.0, 10,000min-1 high-torque specifications(Optional) : 12.8/9.2, 20,000min-1 specifications(Optional) : 7.4/5.1 |
||
| Axis feed motor [kW] | XZ axis: 1.0, Y axis: 1.8, A axis: 1.35+1.35, B axis: 0.9 | |||
| Power source | Power supply | 200 to 230 VAC ±10%, 3-phase, 50/60Hz±2% | ||
| Power capacity (continuous) [kVA] | 12,000min-1 specifications : 9.5, 10,000min-1 high-torque specifications(Optional) : 10.4, 20,000min-1 specifications(Optional) : 9.5 |
|||
| Air supply | Regular air pressure [MPa] | 0.4 - 0.6(recommended value : 0.5MPa *6) | ||
| Required flow [L/min] | 45L/min | |||
| Machine dimensions | Height [mm (inch)] | 2,682 (105.6) | ||
| Required floor space*9 [with control unit door open] [mm (inch)] |
1,557 x 2,744 [3,582] (61.3 x 108.0 [141.0]) | |||
| Weight [kg (lbs)] | 3,150 (6,945) | |||
| Accuracy*3 | Accuracy of bidirectional axis positioning (ISO230-2:1988) [mm (inch)] |
X, Y, Z axis: 0.006~0.020 mm (0.00024~0.00079 inch) | ||
| (ISO230-2:2014) | A, B axis: 28 sec or less | |||
| Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] |
X, Y, Z axis: Less than 0.004 mm (0.00016 inch) A, B axis: 16 sec or less | |||
| Standard accessories | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.), leveling plates (4 pcs.) | |||
- *1 Maximum tool length, diameter, and weight are subject to limitations depending on the spindle speed, geometry, or center of gravity. The figures provided are for reference only. For details, please contact our local distributor.
- *2 Spindle motor output differs depending on the spindle speed.
- *3 Measured in compliance with ISO standards and Brother standards. For details, please contact our local distributor.
- *4 Brother specifications apply to the pull studs for CTS.
- *5 Measured in compliance with JIS B6336-9 and MAS011-1987.
- *6 Regular air pressure varies depending on the machine specifications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommended value.
- *7 Value when using high accuracy mode B.
- *8 The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with "RD" at the end of the model name.
- *9 Dimensions not including the coolant tank and chip conveyor.
- *10 Value in high inertia mode. Parameter setting needs to be changed.
- *11 When attaching an adjacent tool, the total diameter of a tool and its adjacent tool must be less than 130 mm.
| Item | HU550Xd1 | HU550Xd1-5AX | |
|---|---|---|---|
| CNC model | CNC-D00 | CNC-D00v (DB) | |
| Control axes | 5 axes (X, Y, Z, A, B) | ||
| Simultaneously controlled axes | Positioning | 5 axes (X, Y, Z, A, B) | |
| Interpolation |
Linear : 4 axes (X, Y, Z, 1 additional axis) Circular : 2 axes Helical/Conical : 3 axes (X, Y, Z) |
Linear: 5 axes (X, Y, Z, 2 additional axes) Circular: 2 axes Helical/Conical: 4 axes (3 linear axes + 1 additional axis, 2 linear axes + 2 additional axes) |
|
| Least input increment | 0.001 mm, 0.0001 inch, 0.001 deg. 0.0001 mm, 0.00001 inch, 0.0001 deg. (optional) |
0.0001 mm, 0.00001 inch, 0.0001 deg. | |
| Max.programmable dimension | ±999999.999 mm, ±99999.9999 inch ±999999.9999 mm, ±99999.99999 inch (optional) |
±999999.9999 mm, ±99999.99999 inch | |
| Display | 15-inch color LCD touch display | ||
| Memory capacity | 500 Mbytes, 3 Gbytes (optional) (Total capacity of programs and data bank) |
3 Gbytes (Total capacity of program and data bank) |
|
| External communication | USB memory interface, Ethernet, RS232C (optional) | ||
| No.of registrable programs | 4,000 (Total capacity of program and data bank) | ||
| Program format | NC language * Conversation language not available |
||
| Operation | Dry run Machine lock Program restart Rapid traverse override Cutting feed override Background editing Screen shot Operation level External input signal key Shortcut keys < optional > |
|
|---|---|---|
| Programming | Absolute / Incremental Inch / Metric Coordinate system setting Corner C / Corner R Rotational transformation Synchronized tap Subprogram Graphic display |
|
| Measurement | Automatic workpiece measurement *1 Tool length measurement |
|
| High speed and high accuracy | Machining parameter adjustment High-accuracy mode AIII High-accuracy mode BI (look-ahead 160 blocks) Backlash compensation Tool center point control *2 (Look-ahead 1,000 blocks) < optional > |
|
| Monitoring | Machining load monitoring ATC monitoring Overload prediction Waveform display / Waveform output to memory card Automatic thermal distortion compensation (X, Y, and Z axes) Production performance display Tool life / Spare tool Stuck chips detection function |
|
| Maintenance | Tap return function Status log Alarm log Operation log Maintenance notice Motor insulation resistance measurement Tool washing filter with filter clogging detection Battery-free encoder Breake load test |
|
| Automatic / Network | Computer remote OPC UA Auto notification Built-in PLC (LD/ST/FBD) < optional > |
|
| Energy saving | Automatic power off Standby mode Automatic coolant off Automatic work light off Chip shower off delay Chip shower energy savings operation Energy savings mode |
|
| Support apps | Adjust machine parameters ATC tool Tool life Waveform display Production performance Energy saving/Power consumption Recovery support Inspection PLC Machining support without warmup Software control panel |
|
| Accessories | File viewer Notebook Calculator Register shortcut Display off |
|
| Functions limited to NC language | Menu programming Local coordinate system Expanded workpiece coordinate system One-way positioning Inverse time feed Programmable data input Tool length compensation Cutter compensation Scaling Mirror image External sub program call Macro Tape operation / FTP load operation Multiple skip function < optional >
|
|
| Operation | Dry run Machine lock Program restart Rapid traverse override Cutting feed override Background editing Screen shot Operation level External input signal key Shortcut keys < optional > |
|
|---|---|---|
| Programming | Absolute / Incremental Inch / Metric Coordinate system setting Corner C / Corner R Rotational transformation Synchronized tap Subprogram Graphic display |
|
| Measurement | Automatic workpiece measurement *1 Tool length measurement |
|
| High speed and high accuracy | Machining parameter adjustment High-accuracy mode AIII High-accuracy mode BI (look-ahead 160 blocks) Backlash compensation Tool center point control *2 (Look-ahead 1,000 blocks) < optional > |
|
| Monitoring | Machining load monitoring ATC monitoring Overload prediction Waveform display / Waveform output to memory card Automatic thermal distortion compensation (X, Y, and Z axes) Production performance display Tool life / Spare tool Stuck chips detection function |
|
| Maintenance | Tap return function Status log Alarm log Operation log Maintenance notice Motor insulation resistance measurement Tool washing filter with filter clogging detection Battery-free encoder Breake load test |
|
| Automatic / Network | Computer remote OPC UA Auto notification Built-in PLC (LD/ST/FBD) < optional > |
|
| Energy saving | Automatic power off Standby mode Automatic coolant off Automatic work light off Chip shower off delay Chip shower energy savings operation Energy savings mode |
|
| Support apps | Adjust machine parameters ATC tool Tool life Waveform display Production performance Energy saving/Power consumption Recovery support Inspection PLC Machining support without warmup Software control panel |
|
| Accessories | File viewer Notebook Calculator Register shortcut Display off |
|
| Functions limited to NC language | Menu programming Local coordinate system Expanded workpiece coordinate system One-way positioning Inverse time feed Programmable data input Tool length compensation Cutter compensation Scaling Mirror image External sub program call Macro Tape operation / FTP load operation Multiple skip function < optional >
|
|
- *1 Measuring instrument needs to be prepared by users.
- *2 Available only on the HU550Xd1-5AX.
- *3 Standard on the HU550Xd1-5AX.
Example

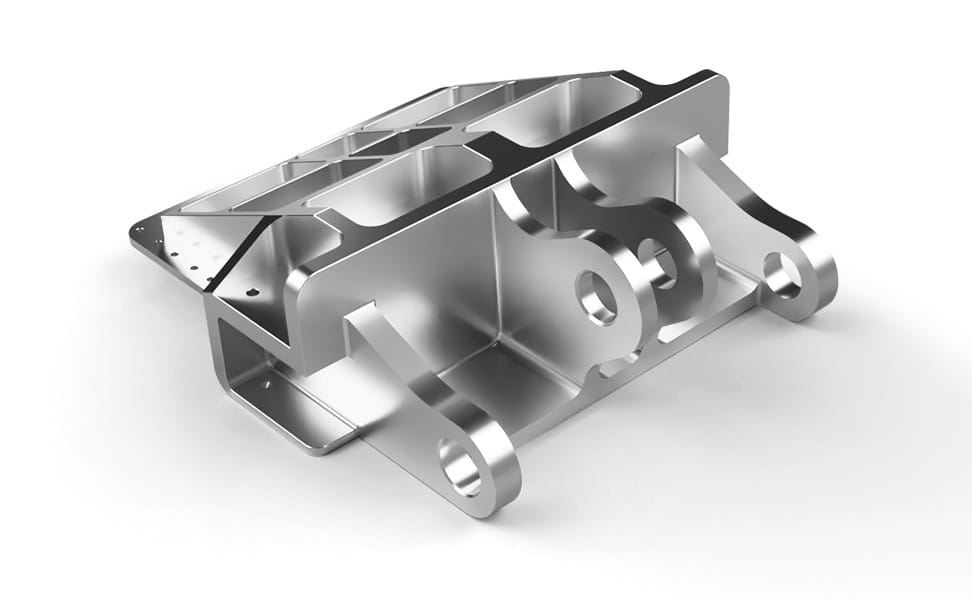

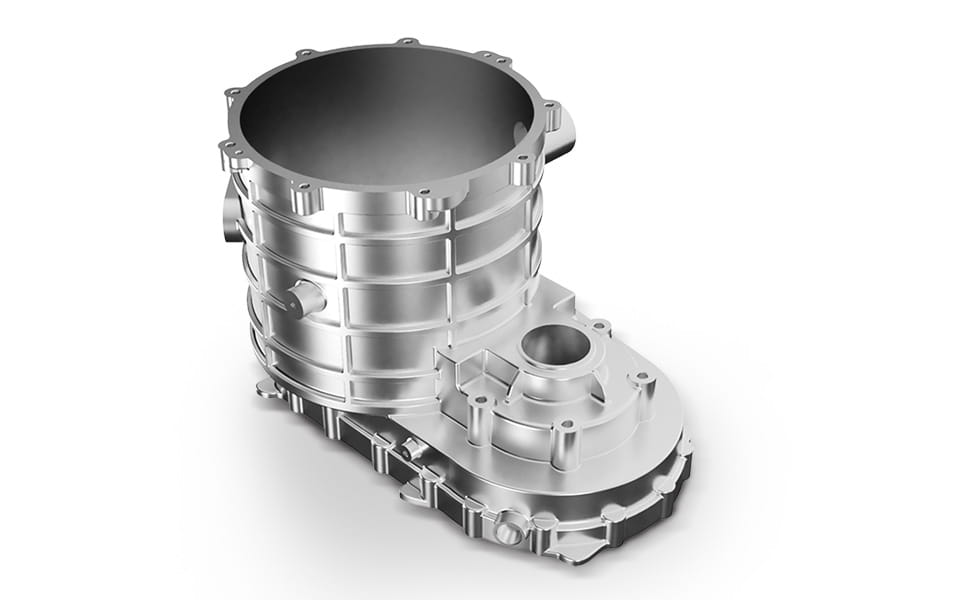

Aluminum alloy

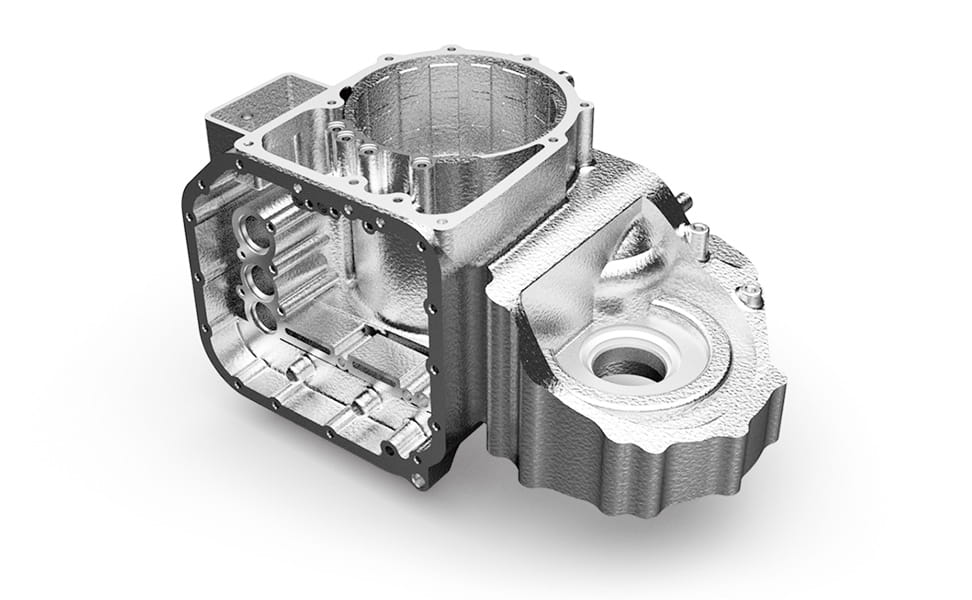

Aluminum alloy

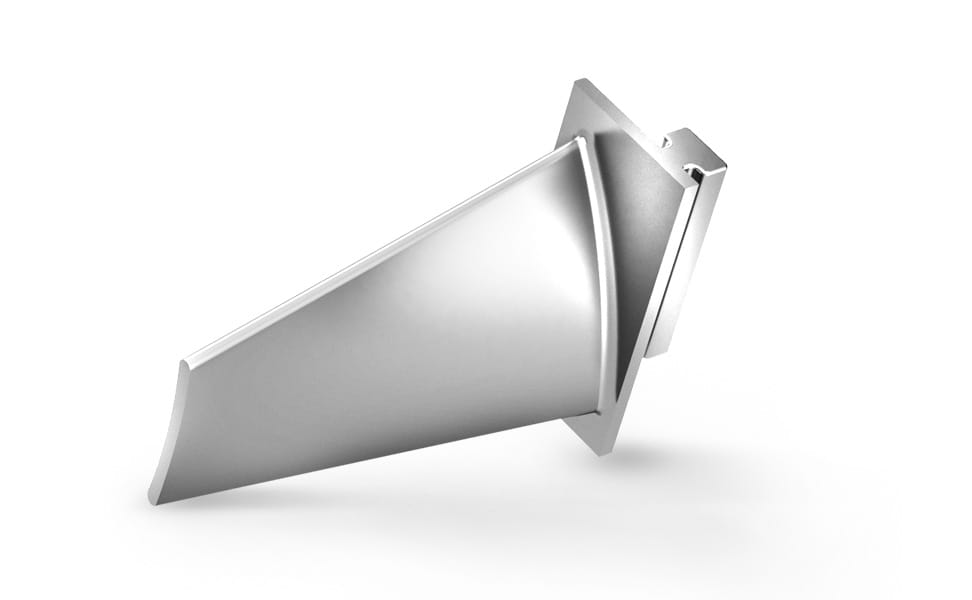

Aluminum alloy

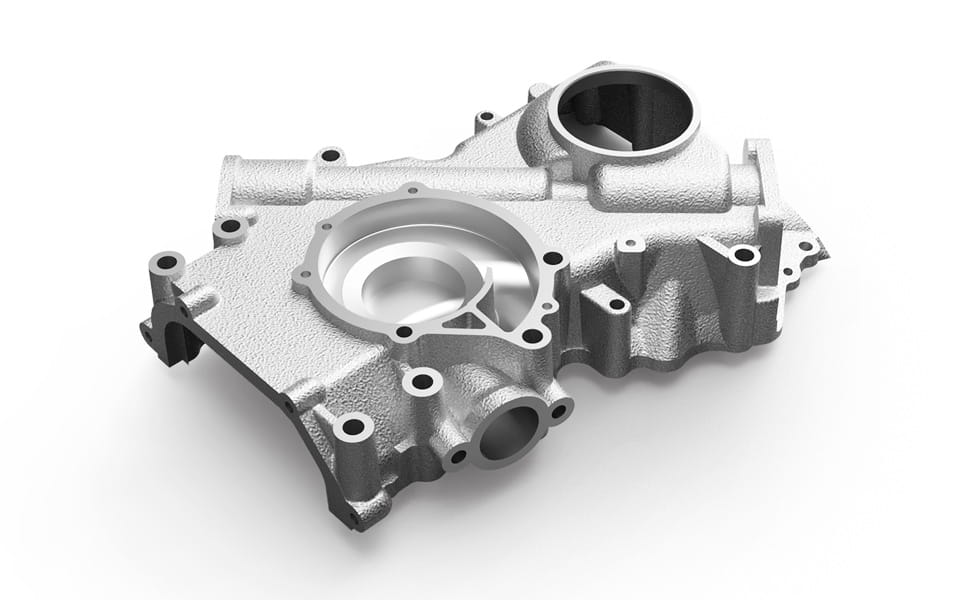

Aluminum alloy

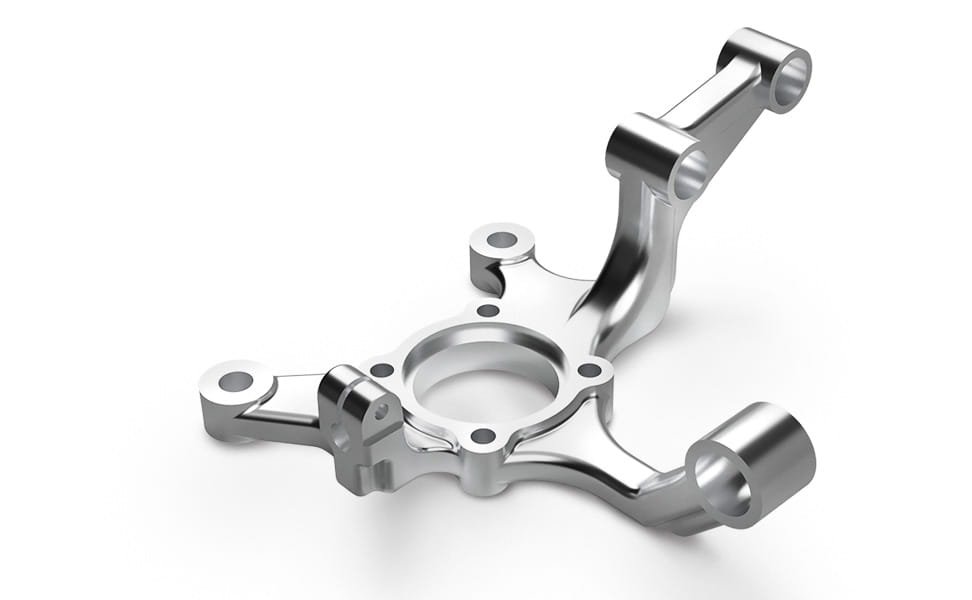

Aluminum alloy

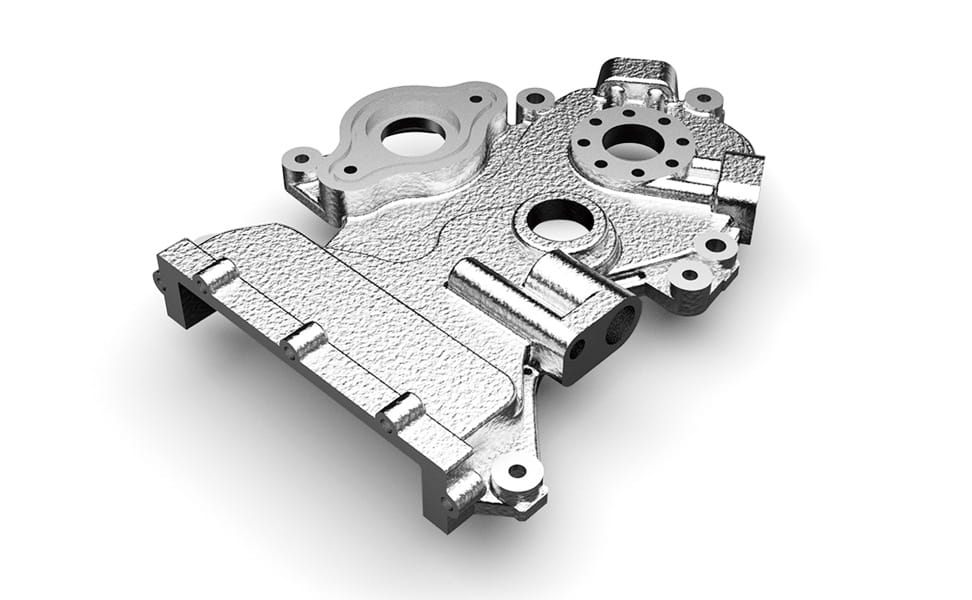

Aluminum alloy
Aluminum alloy
Aluminum alloy
Support
Support Information
