Reliable Benefits of High SpeedStabilityEnergy Saving

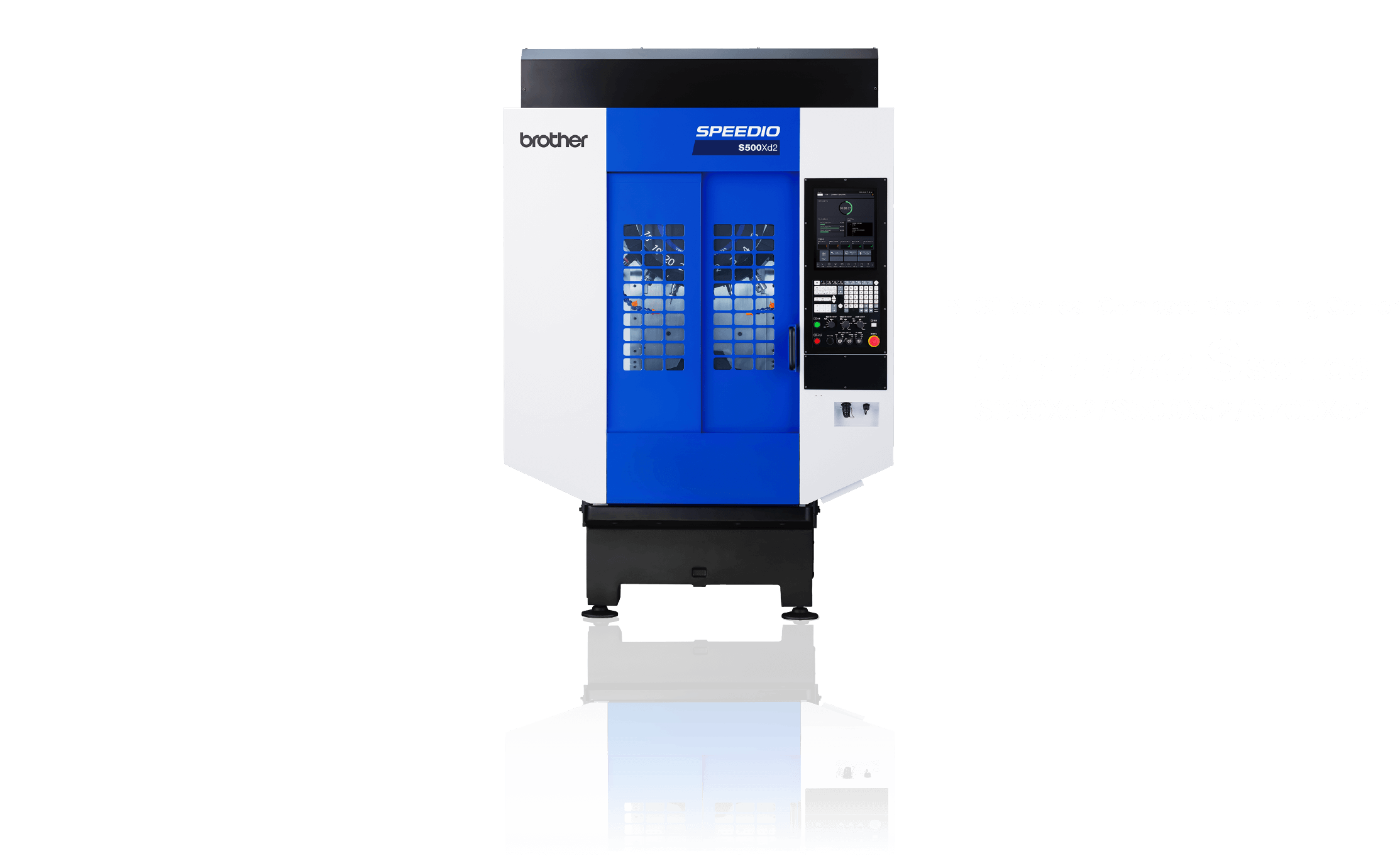

No. 30 Vertical Compact Machining Centers SPEEDIO S Series

SPEEDIO's best-selling S series
provides high speed,
outstanding
energy efficiency,
and functions to
prevent thermal distortion and
detect stuck chips.
We confidently
recommend this model for
customers in any industry.

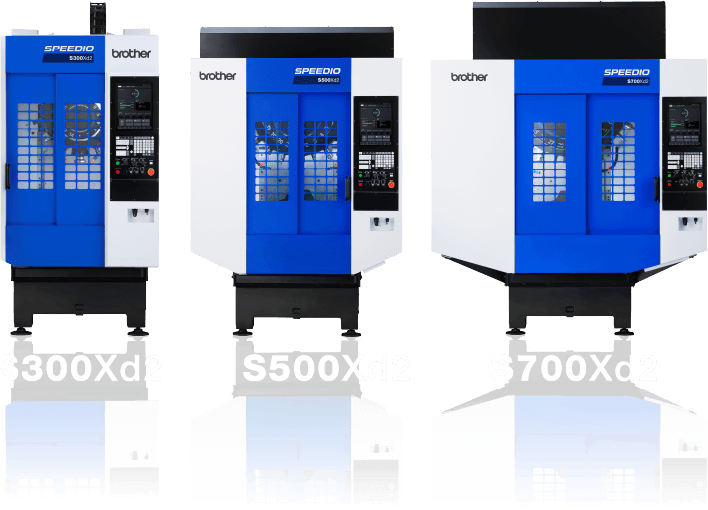

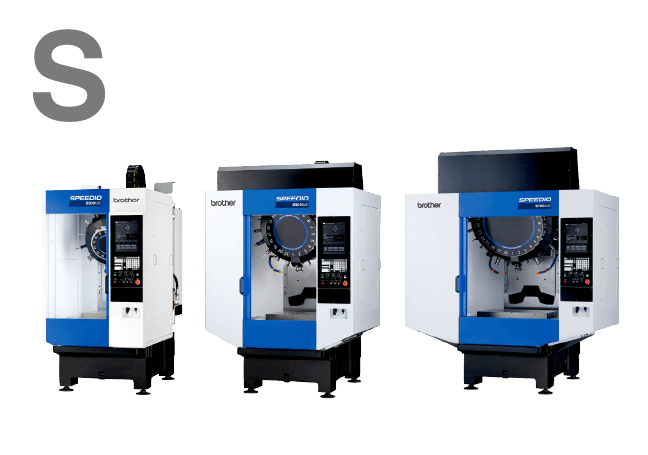

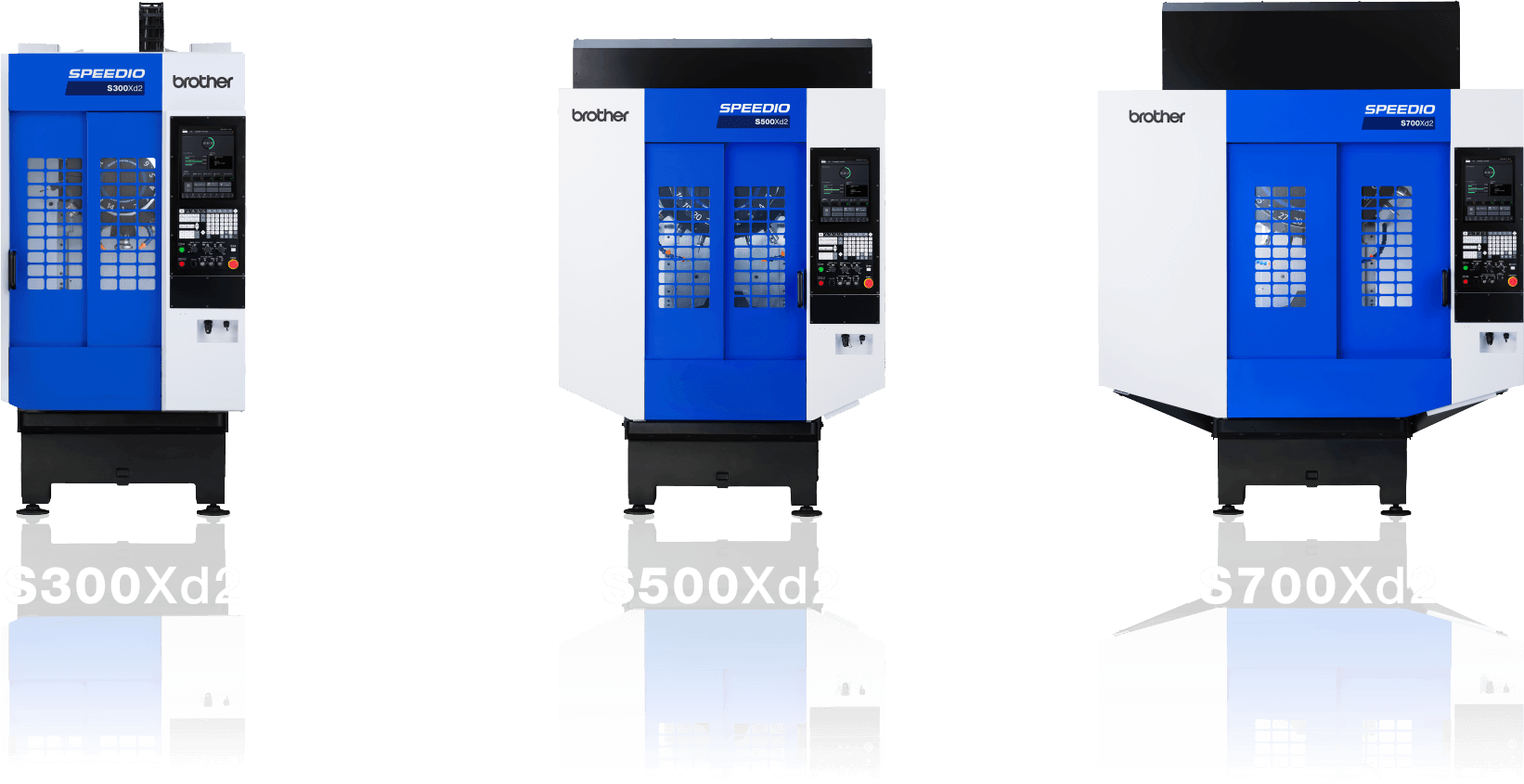

S Series Lineup

The S series offers an extensive range
of sizes, magazine specifications,
and spindle specifications to
meet diverse machining applications.

Simultaneous 5-axis/100-tool
magazine spec. available

3 Key Points
of the S Series

Each and every
operation is
performed
at high speed,
reducing cycle time.
High speed is maintained
even with heavy tools.

Machine performance is maximized, and
every operation is
performed at high
speed using our original NC control
(machine/controller integrated
development).
By optimizing spindle
acceleration/deceleration and
magazine
operation, we achieve high-speed tool
changes.
SPEEDIO maintains tool
change speed even with heavy tools.

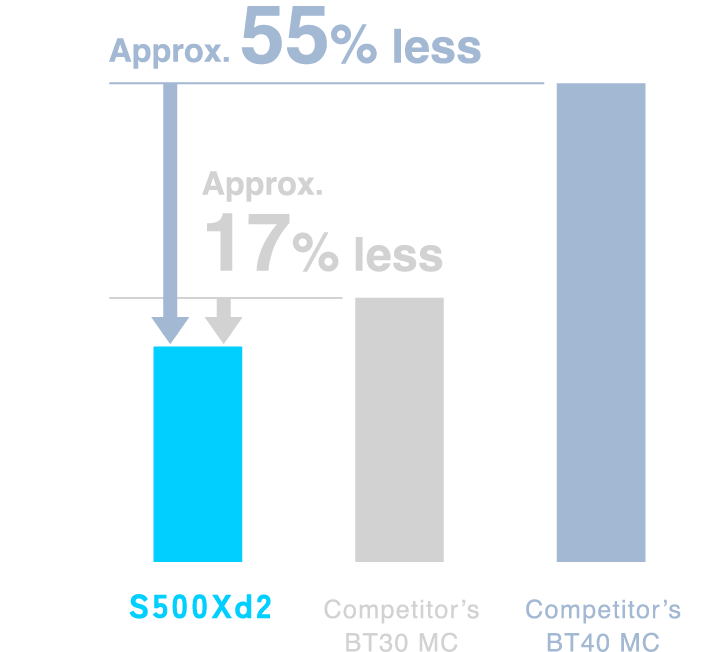

■Cycle time (sec)

*This is an example of an inverter case machined with SPEEDIO.
■Calculation conditions

Machining program

Inverter case

■Main machining details

Facing

D50 face mill and others

Drilling

D4.0 drill and others

Milling

D20 end mill and others

Tapping

M5 x 0.8 tap and others

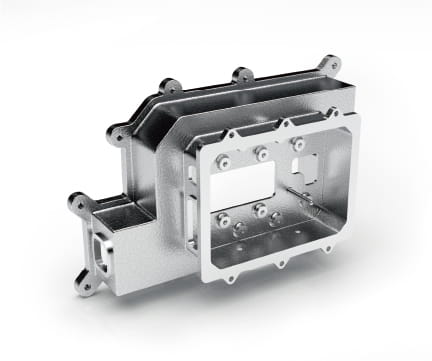

■Machined image

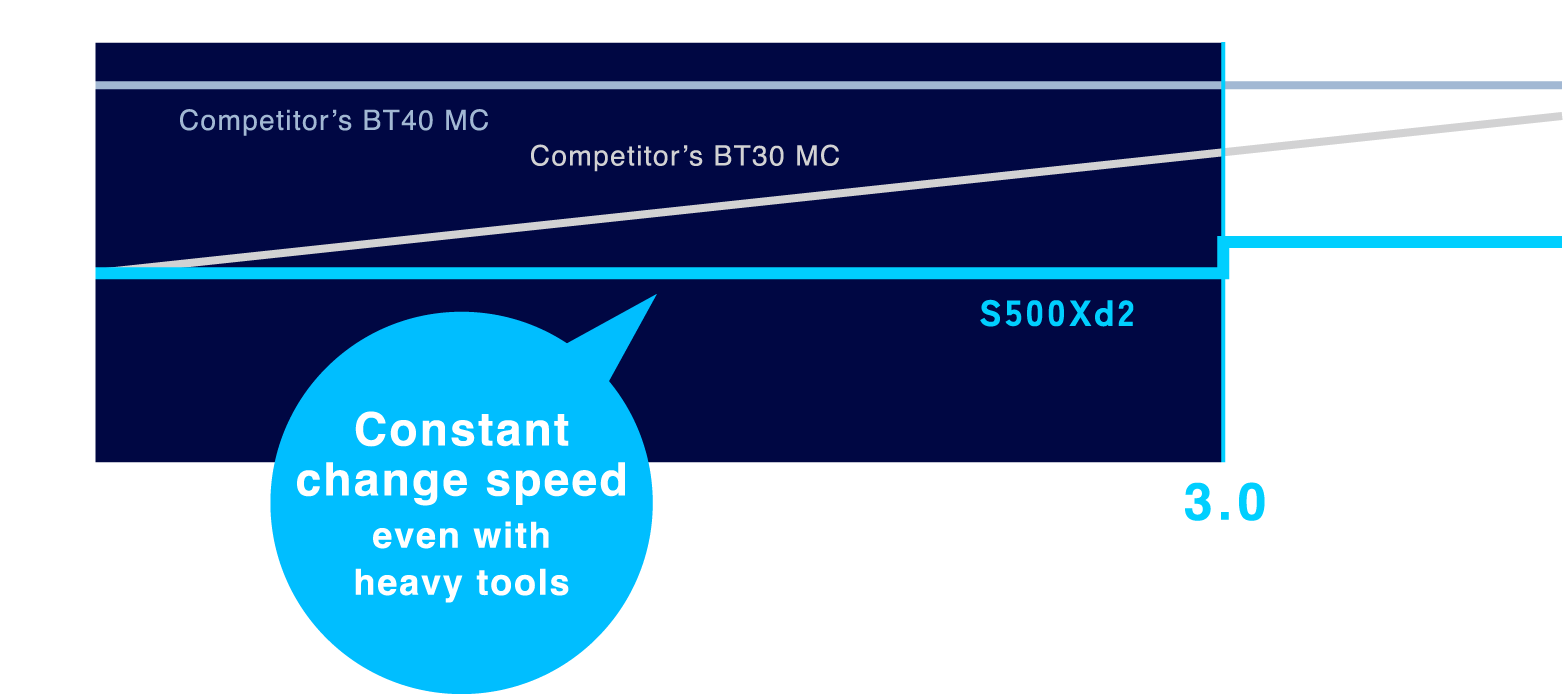

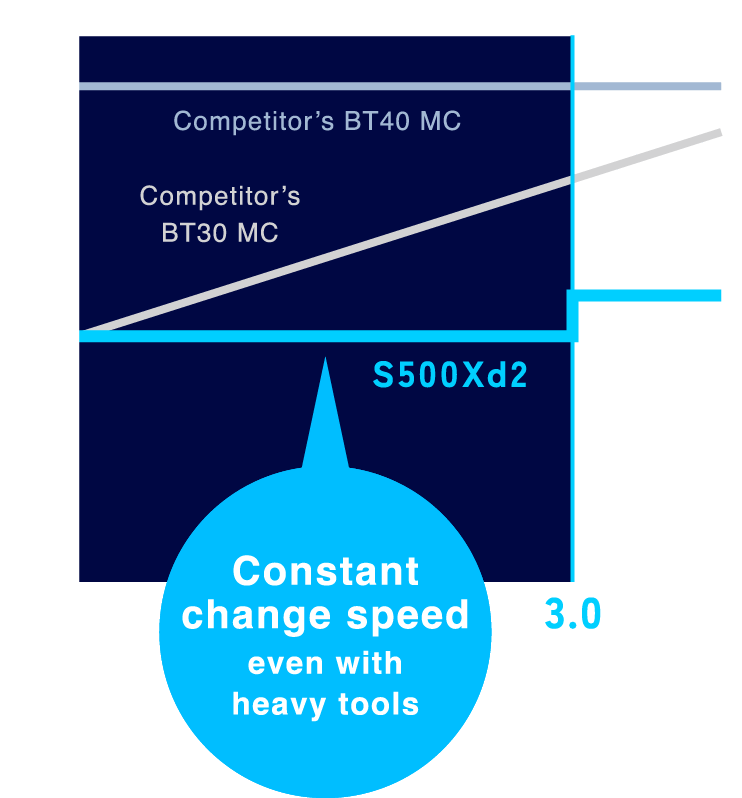

Tool change time (Tool-Tool) maintained even
with heavy tools

*This graph is an image.

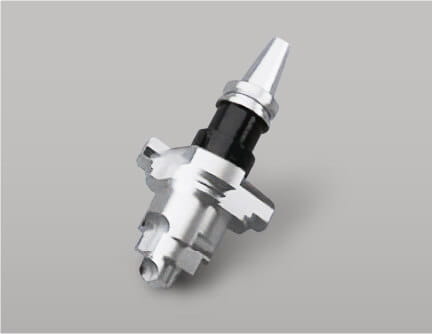

High-speed
changes,
even with 3 kg
stepped tools

Equipped with a function
that automatically detects
stuck chips,
washes, and
then retries as standard.
Stable production is
achieved
by reducing
machining defects.

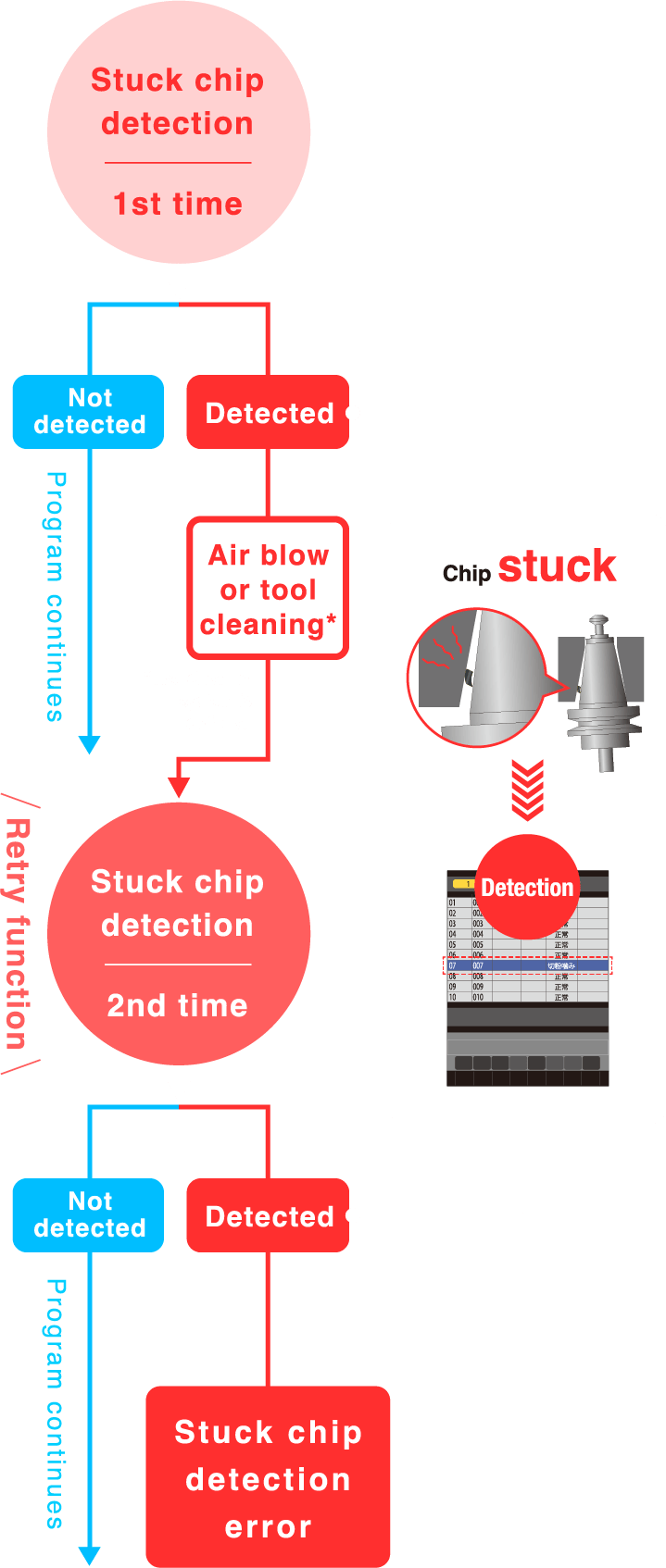

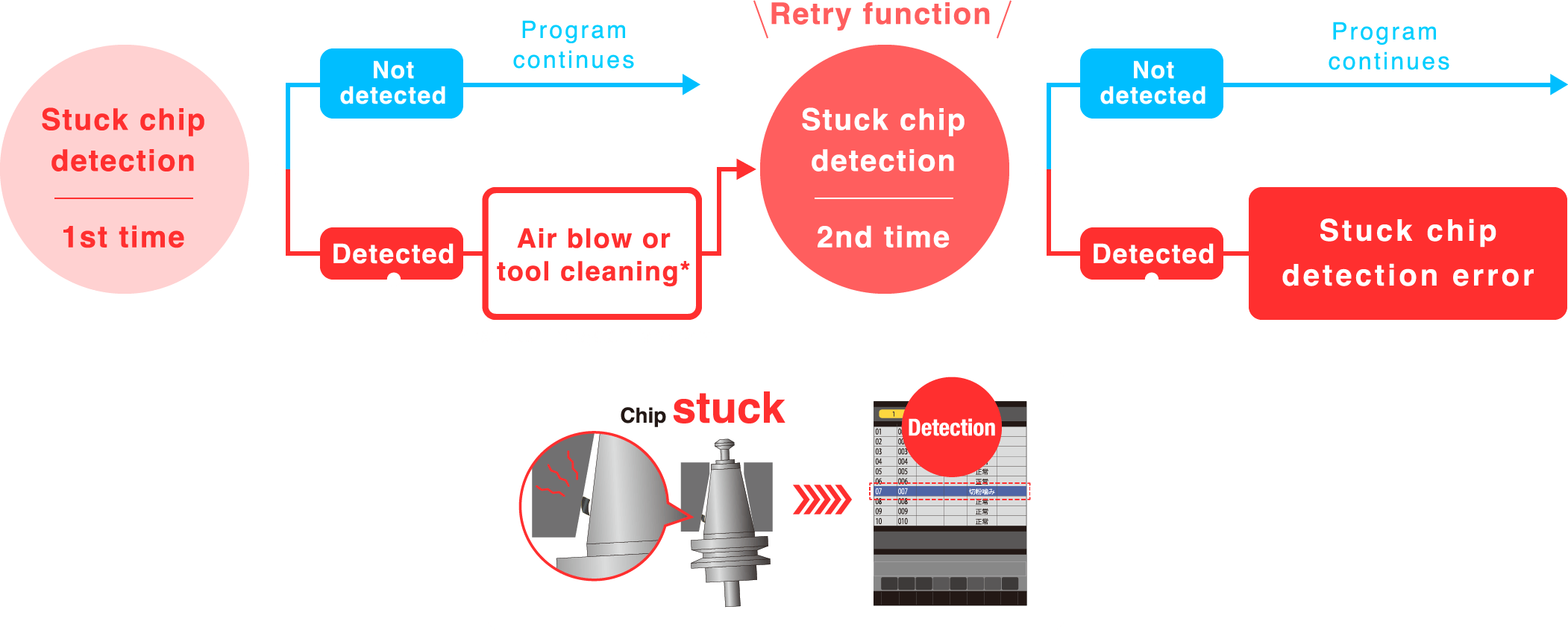

The S series is equipped with a "stuck
chip detection function" as standard.
Machining defects are prevented by
detecting the stuck chips
that caught
between the spindle and the holder
during ATC.
Troublesome short-period stoppages can
also
be reduced by automatically
cleaning and retrying.

Significantly reduced
running costs with
high energy-saving
performance using
SPEEDIO
Blue Technology.

Power consumption is lowered by
employing
a power regeneration system
and high-efficiency spindle motor.
Air consumption has also been reduced
by optimizing air-related functions.
This reduces running costs, contributing
to environmentally-friendly
manufacturing.

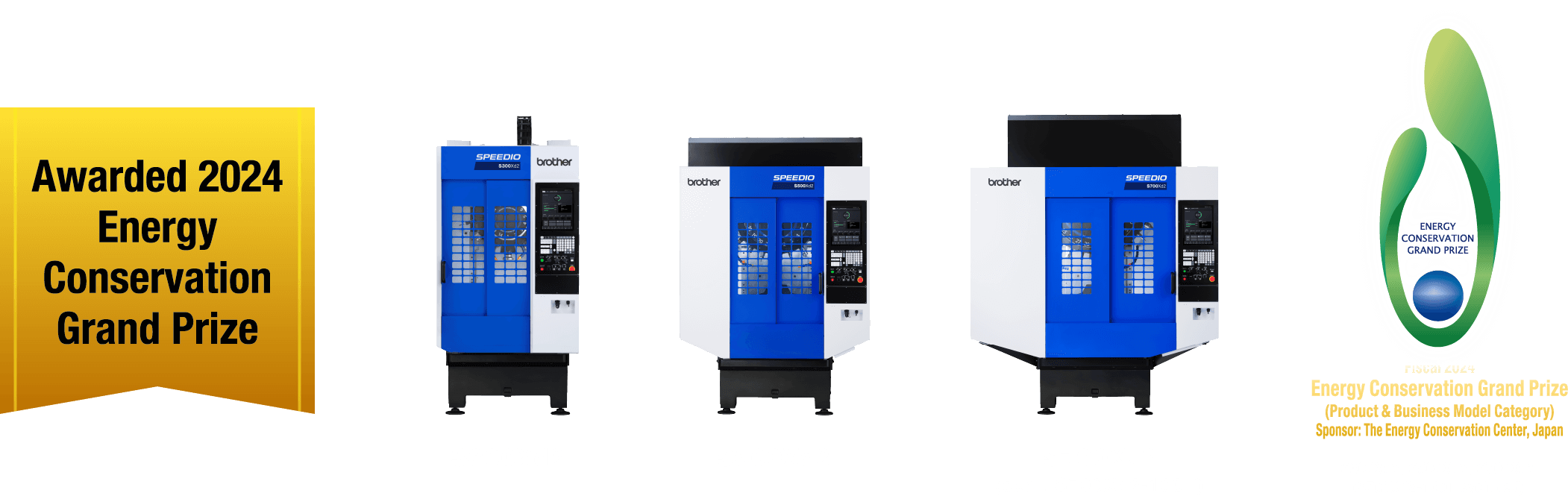

SPEEDIO S Series awarded 2024 Energy Conservation Grand Prize

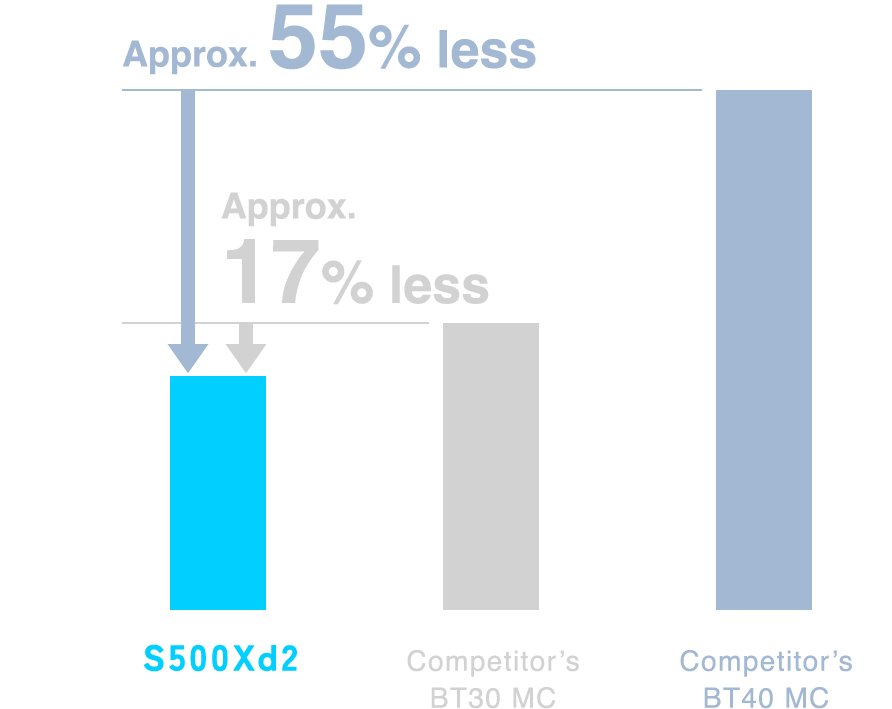

Low power consumption,
high energy-saving performance

The S500Xd2 reduces power consumption by
30% and
air consumption by 70% compared to
competitors' BT30 machines.
Total power
consumption has been reduced by 46%.

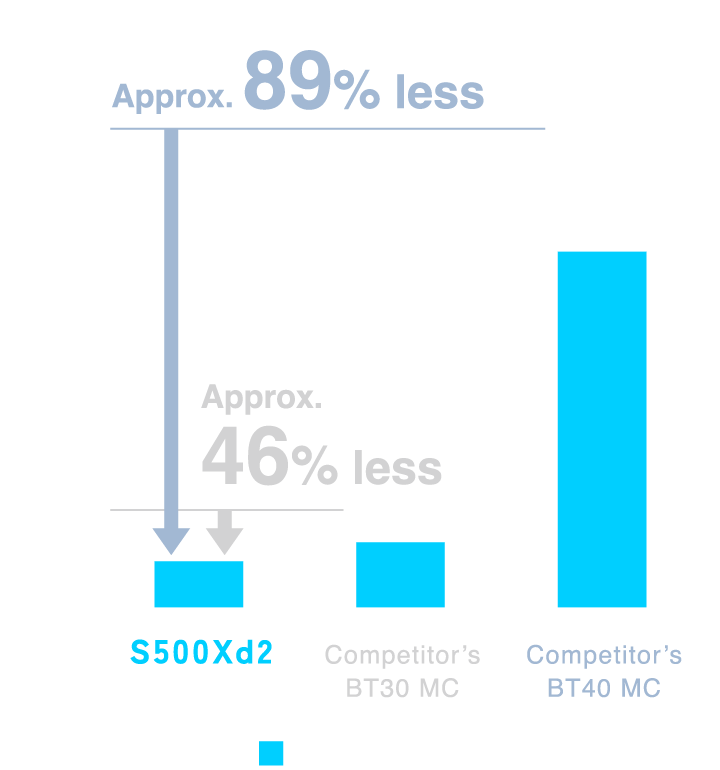

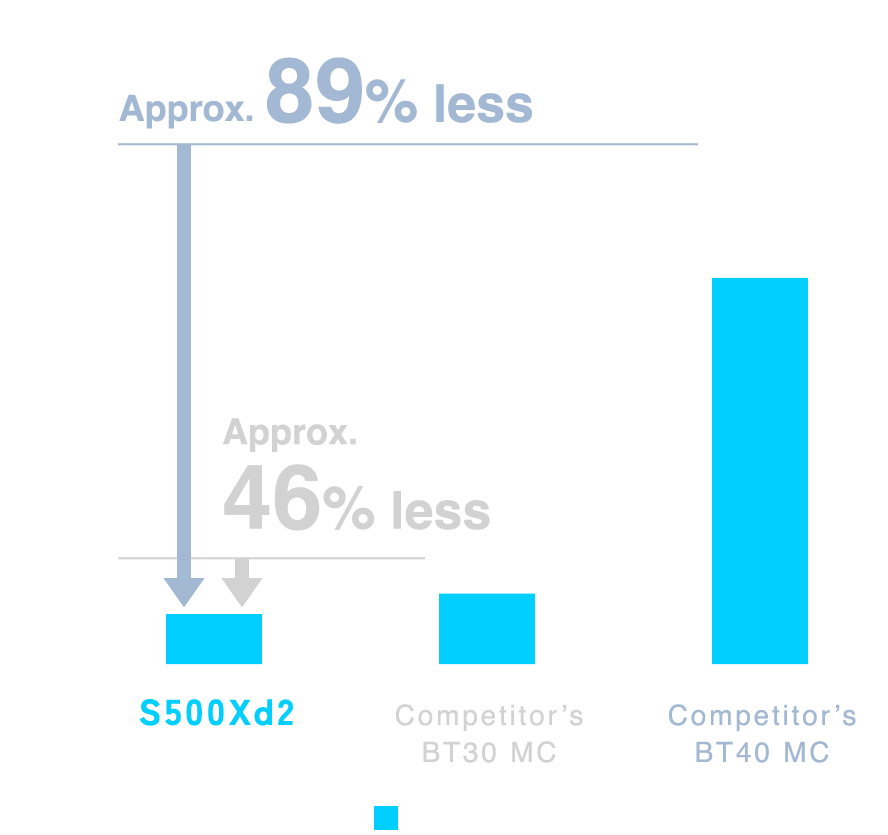

Air and power consumption have been reduced by approximately 89% over the No. 40 machines and by approximately 46% over the No. 30 machines of our competitors.

*1 Value when air converted to power
*This is an example of an inverter case machined with SPEEDIO.

Cut running costs and generate profit

Energy consumption can be reduced by the
introduction of highly efficient equipment,
which can lower running costs.

■Production quantity per day: 200 pcs.

		vs. competitor's BT30 MC	vs. competitor's BT40 MC
Annual power consumption	1,430kWh	2,635kWh	12,970kWh
Annual electricity charge	18,726INR	34,506INR	169,845INR
Annual operating hours	1,920hours	2,240hours	3,787hours

vs. competitor's BT30 MC	vs. competitor's BT40 MC
-1,205kWh	-11,540kWh
-15,780INR	-151,119INR
-320hours	-1,867hours

* This example shows when inverter cases are machined with the SPEEDIO.
* Simulation calculations based on Japanese electricity rates.
* 1INR=1.68 yen

■Machining conditions

Machining program

Inverter case

■Main machining details

Facing

D50 face mill and others

Drilling

D4.0 drill and others

Milling

D20 end mill and others

Tapping

M5 x 0.8 tap and others
■Calculation conditions

Operating days
per month

20 days

Cycle time

Equipment cycle time
(measured value)
Workpiece removal/attachment
(30 s)

Annual electricity
charge

Expected 22 yen per kWh

■Machined image

Detailed Specifications

Model

Spindle speed (min-1)
12,000
10,000 high-torque spindle (option)
20,000, 27,000 (options)
12,000
10,000 high-torque spindle (option)
20,000, 27,000^*1 (options)
12,000
10,000 high-torque spindle (option)
20,000, 27,000^*1 (options)

Travels (mm)
X:300 Y:450 Z:300
X: 500 Y: 450 Z: 300/380^*2
X: 700 Y: 450 Z: 300/380^*2

Rapid traverse rate (m/min)
X/Y/Z : 50/50/56
X/Y/Z : 50/50/56
X/Y/Z : 50/50/56

Required floor space (mm)
1,080 x 2,161
1,560 x 2,081
2,050 x 2,081

Tool storage capacity (tools)
14/21
14/21/28
14/21/28/100

Simultaneous 5-axis
machining specification
Selection possible
Selection possible
Selection possible

*1 Cannot be selected for Z-axis 380 mm and 100-tool magazine spec.

*2 380 is the value for Z-axis 380 mm (optional) and 100-tool magazine spec.

Product Features

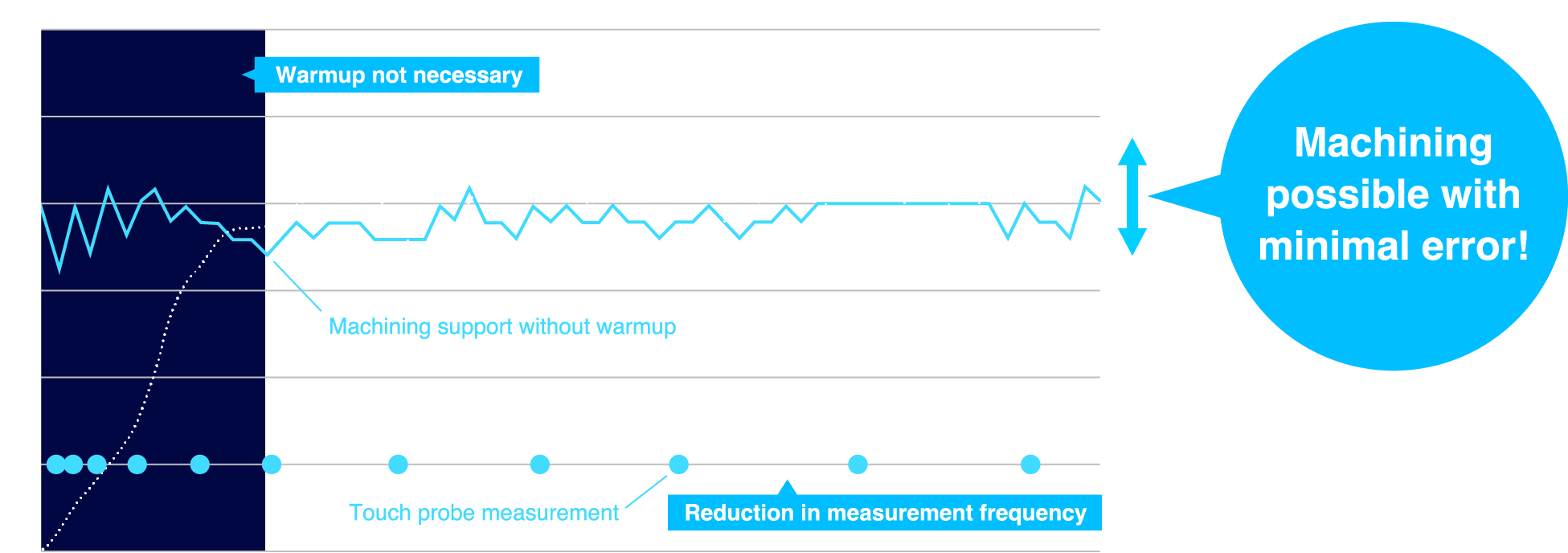

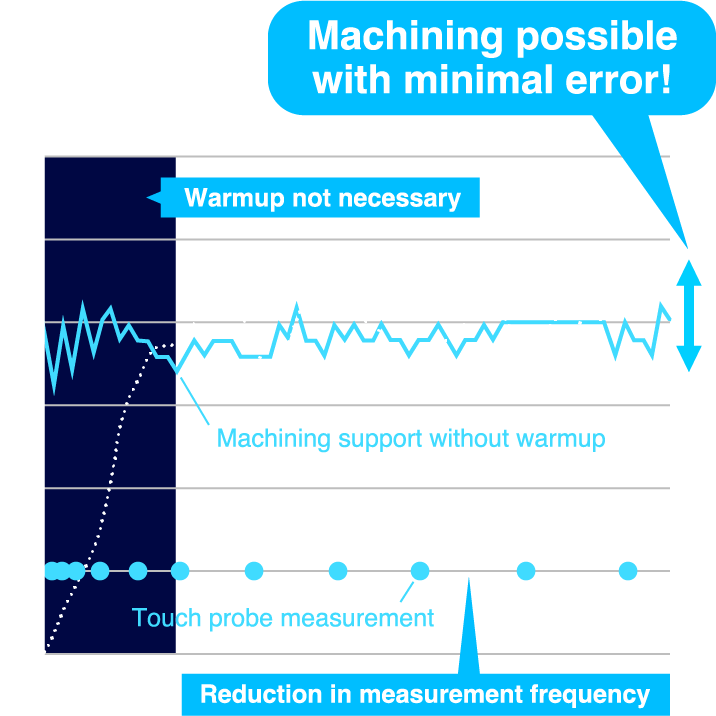

Machining support without
warmup
that minimizes
machining errors caused
by thermal distortion

Brother’s proprietary technology ensures a
machine structure that minimizes thermal
distortion.
Also equipped with an original
measurement processing function that reduces
the number of actual measurements by a touch
probe according to the size of displacement.
This eliminates the need for warmup operation,
minimizing effects on productivity to achieve
highly accurate machining.

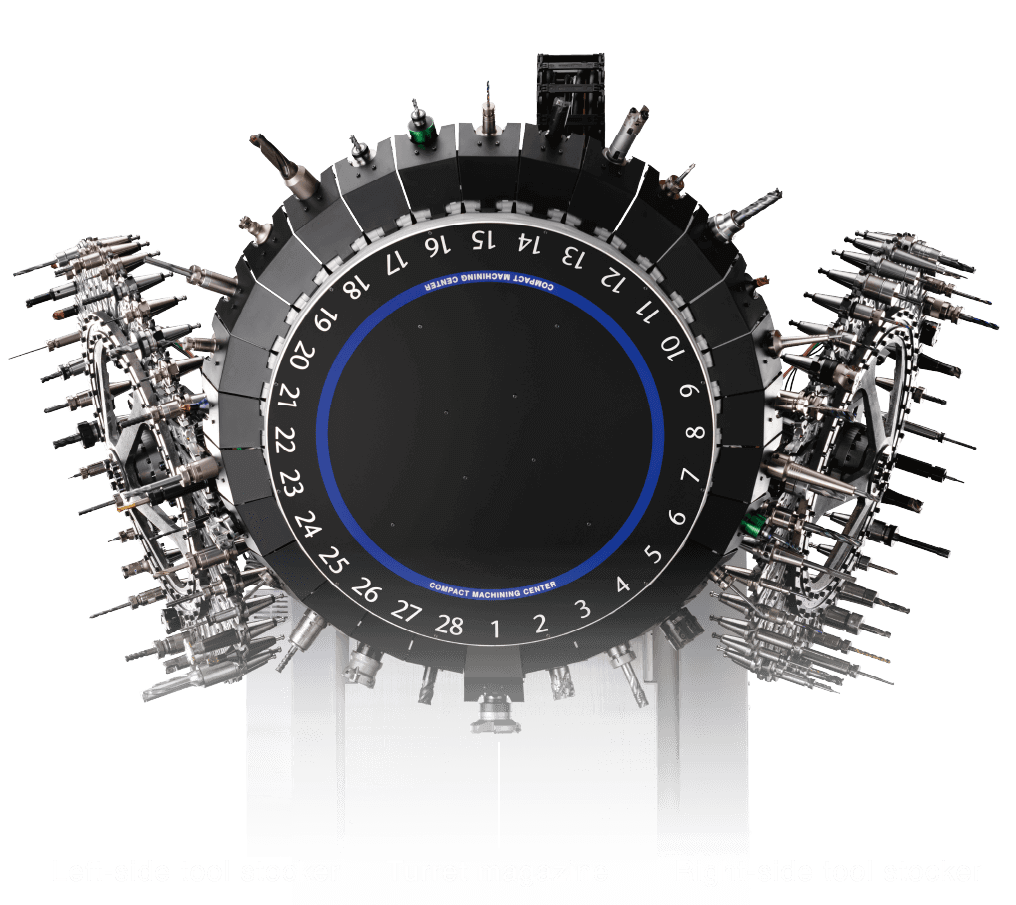

Newly developed 100-tool
magazine achieves
space
saving and
high productivity

A tool stocker that can store 36 tools is
installed on the right and left sides of the
28-tool turret magazine,
enabling storage of
100 tools, the largest capacity in the SPEEDIO
series.
Brother’s original tool handling
mechanism achieves stable tool change.

100-tool magazine spec.

Option

Turret magazine: 28 tools

Tool stocker
(left/right):36 tools each

Total storage
capacity:
100 tools

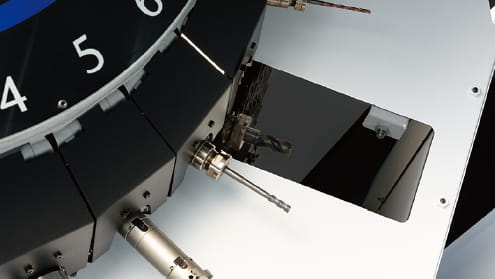

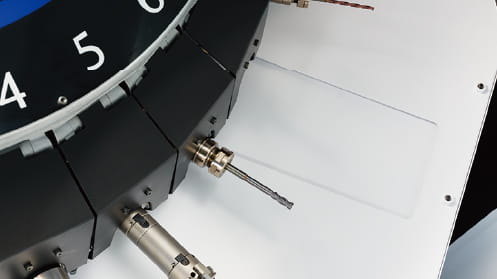

The stocker shutter separates the tool stocker from
the machining chamber, minimizing the effect of chips on tools.

High-speed, high-accuracy simultaneous 5-axis machining

Equipped with a variety of functions such as
tool center point control and submicron
command to
realize high-speed, high-accuracy simultaneous 5-axis machining.

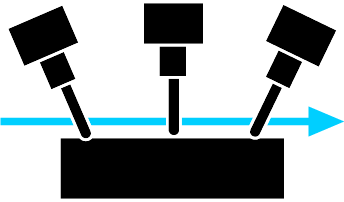

Tool center point control

Equipped with tool center point control where machining is performed by changing the tool direction relative to the workpiece.
Optimal acceleration/deceleration by look-ahead up to 1,000 blocks achieves simultaneous 5-axis machining.

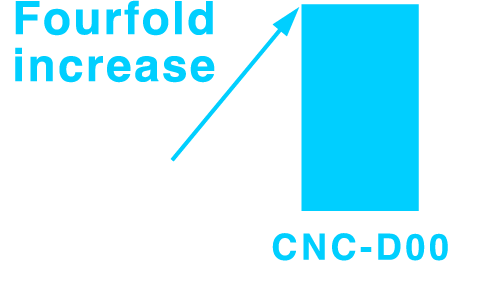

Processing speed of minute
line segments

The CPU capacity has been greatly increased to enhance the processing speed of minute line segments by four times the previous controller. This enables high-speed processing of CAM data with small tolerance.

Productivity improvement

In addition to the compactness of the BT30, the original look-ahead acceleration/deceleration processing maximizes the machine's performance (max. speed and acceleration) to achieve high-speed simultaneous 5-axis machining.

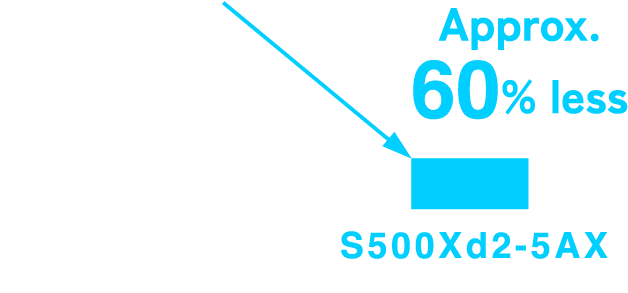

■Comparison with
　cycle time by
　the BT40 MC
　Workpiece: Impeller

■Comparison with
cycle time by the BT40 MC
Workpiece: Impeller

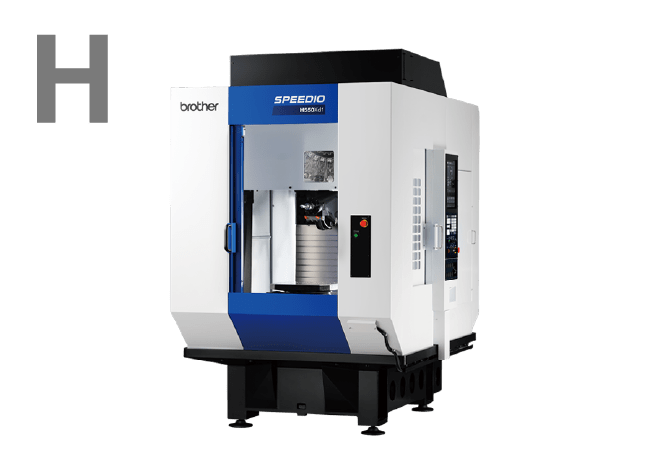

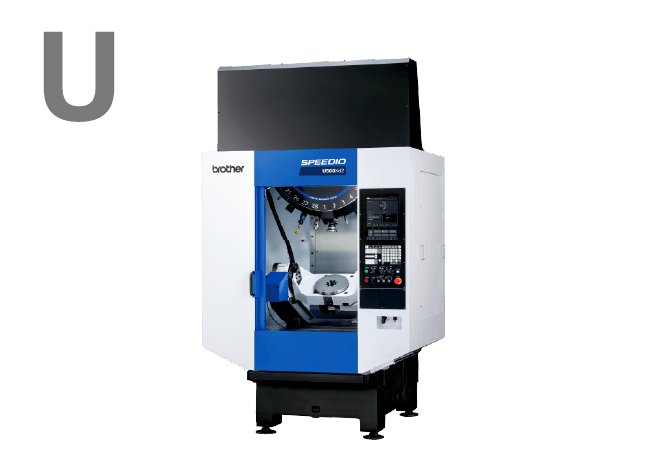

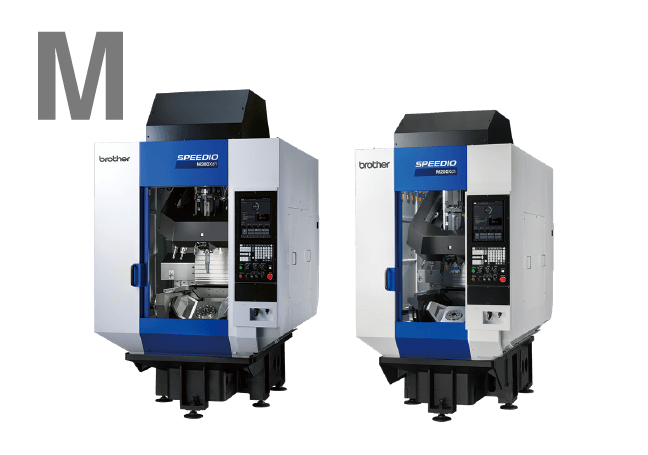

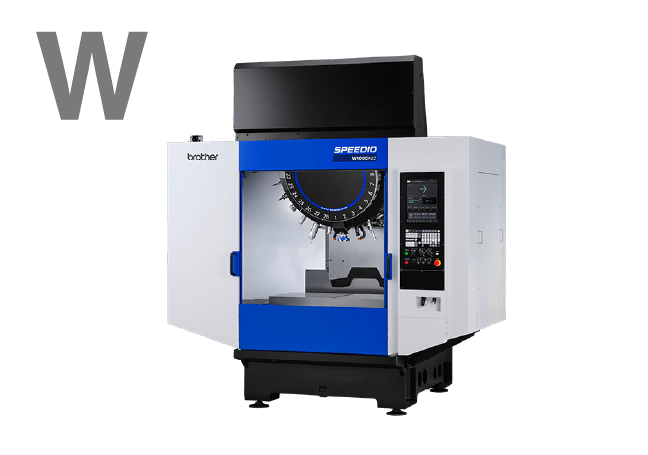

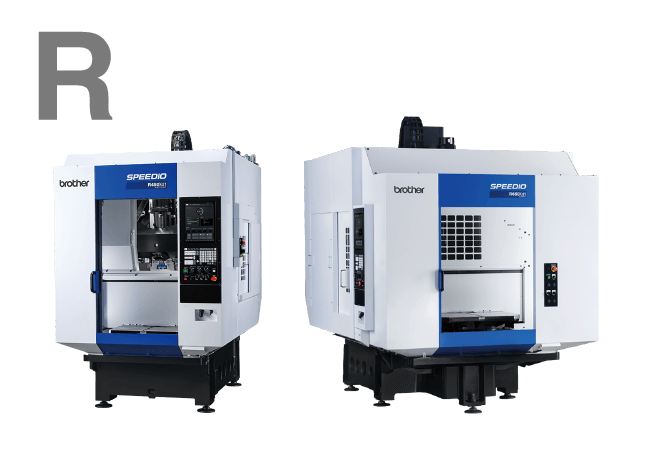

Extensive lineup to meet diverse range of needs

In addition to the best-selling S series, Brother
offers an extensive lineup of products to meet
the diverse needs,
including models equipped with pallet changer, multi-face machining
centers, and multi-tasking machines.
