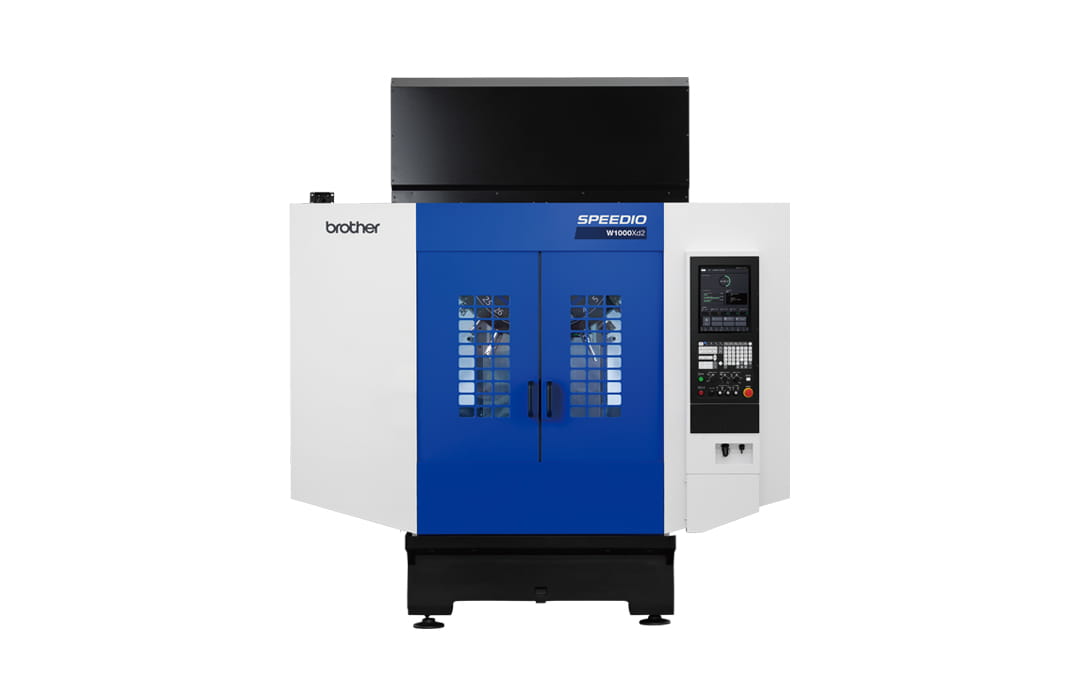

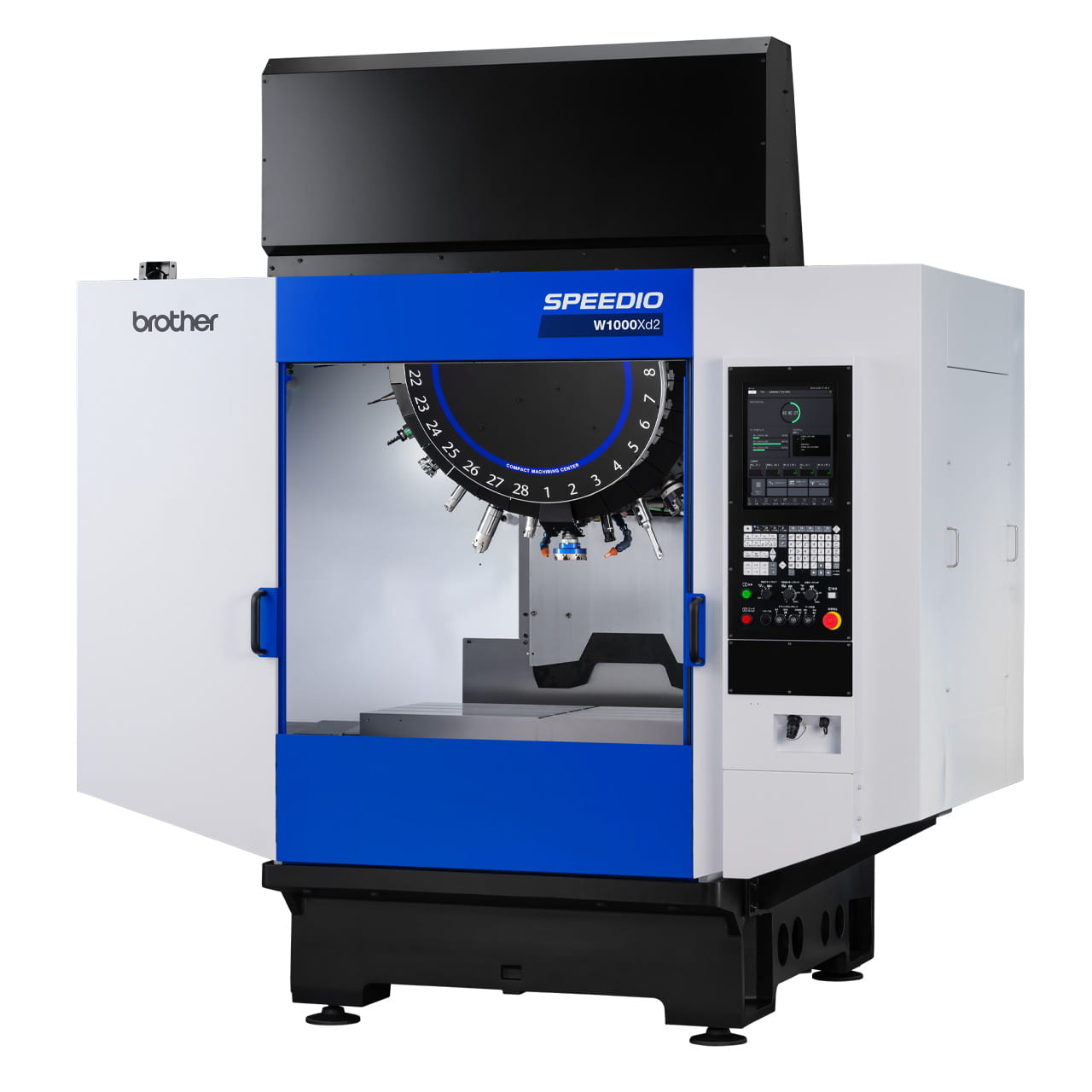

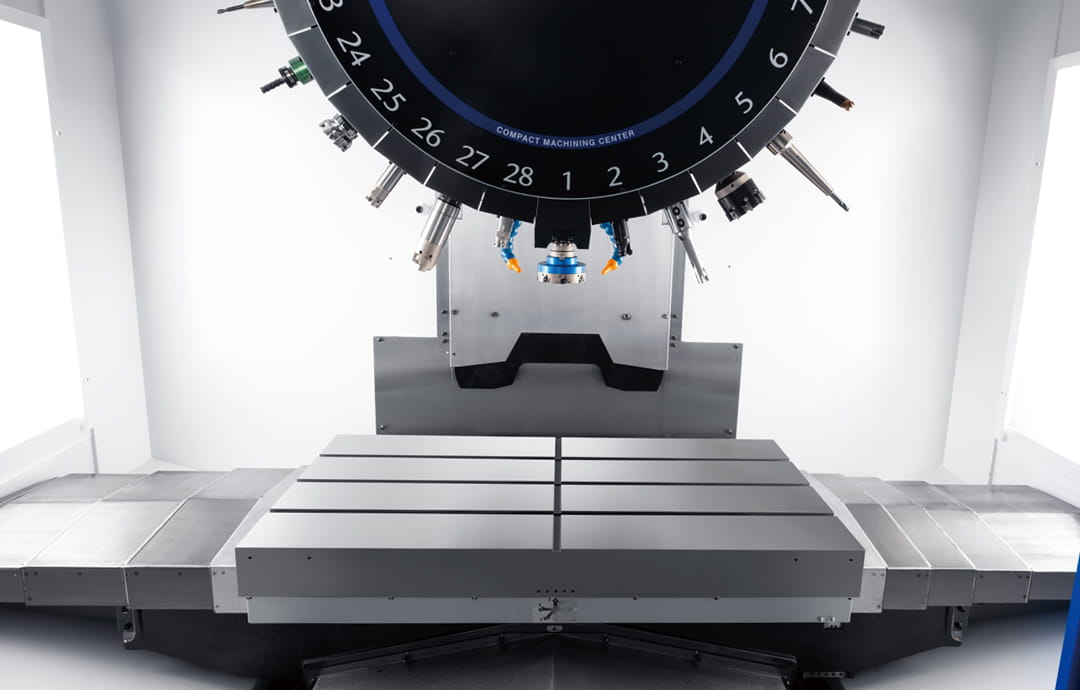

SPEEDIO W1000Xd2
Wide Travel Compact Machining Center
- Travels [mm (inch)]: X: 1000 (39.4) Y: 500 (19.7) Z: 380 (15.0)
- Max. spindle speed (min-1): 12,000/ (Optional) 20,000/ (Optional) 10,000 high-torque
- Tool storage capacity(pcs.): 14/ 21/ 28
[ BT30 Vertical compact machining center ]

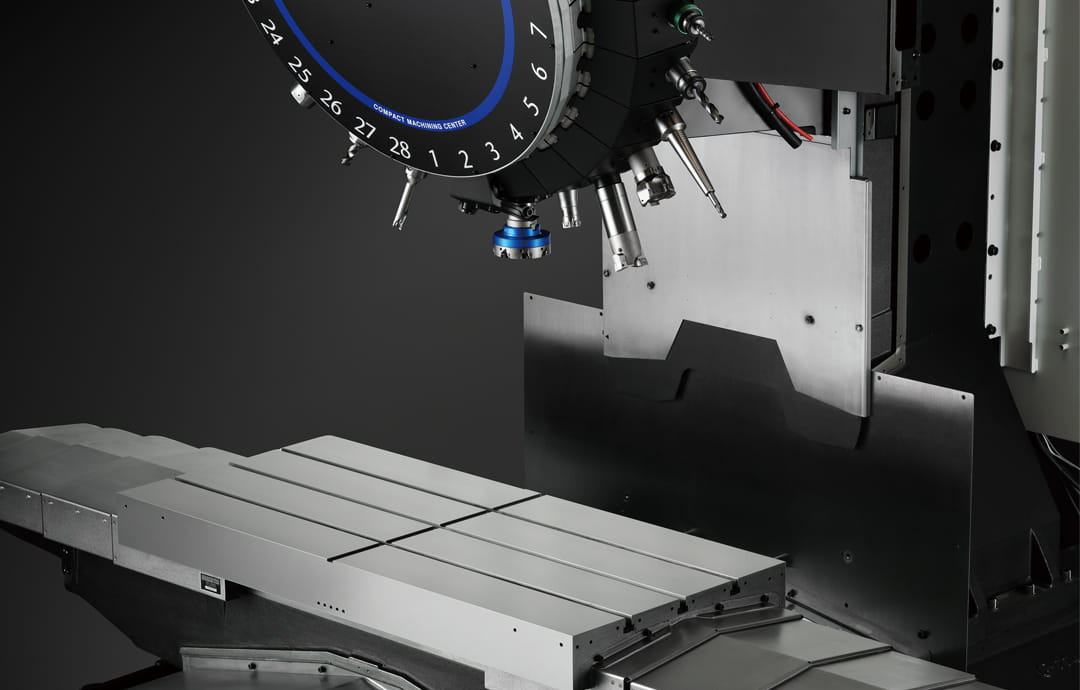

Wide model offering the largest machining area
among BT30 machines
Supports multi-part machining and large workpieces
Information
Overview
The wide machining area can accommodate constantly varying onsite needs, such as large workpiece machining, multi-part machining of small parts, and multi-product small-volume production with various jigs placed side by side, which enhances flexibility throughout the plant.
The Z-axis travel and the distance between the table top and spindle nose end have been increased to secure ample machining area in the Z direction and improve tool accessibility.
Z-axis travel
300mm → 380mm
Distance between table top and spindle nose end
180mm～480mm → 150mm～530mm
The maximum table loading capacity has been increased to 500 kg. This expands choices of jigs and enables process integration or flexible jig design.
Max. loading capacity 500kg *
*Parameter setting needs to be changed.
High column 150, 250, and 350 mm are available to meet different needs. Mounting a trunnion jig with a turning diameter of 540 mm enables multi-face machining of large parts.
Lightweight and low inertia features of BT30 machines and the original NC controller drive the machine performance to the fullest to provide high productivity.
High-speed tool change has been achieved by faster and optimized spindle start/stop, Z-axis up/down, and magazine operation. Tools up to 3 kg can be changed in the shortest time. Tools up to 4 kg can also be changed with minimal increase in time.
14/21-tool magazine (Standard tools)
Chip-Chip 1.3s / Tool-Tool 0.6s
28-tool magazine (Standard tools)
Chip-Chip 1.4s / Tool-Tool 0.7s
28-tool magazine (Heavy tools)
Chip-Chip 1.4s / Tool-Tool 0.8s
Non-cutting time has been reduced by simultaneously performing tool change and positioning X/Y and additional axes.
Using a low inertia spindle and high acceleration/deceleration spindle motor has achieved faster spindle start/stop.
Spindle start/stop time : 0.15s or less *
* High-torque specifications
This function sets the optimal acceleration for X/Y axes according to the table loading capacity.
Equipped with an original measurement processing function that reduces the number of actual measurements by a touch probe according to the size of displacement.
This eliminates the need for warmup operation, minimizing effects on productivity to achieve highly accurate machining.
High rigidity has been achieved based on a special design of structural parts, including the base, column, and table, and use of a high-torque spindle motor.
The machine ensures stable machining in a broad range while demonstrating high machining capabilities.
A new 20,000 min-1 spindle motor has been developed. Compatible with the Coolant Through Spindle (CTS), this motor further improves productivity of small-diameter drilling. A variety of spindle specifications are available, including the standard 12,000 min-1 spec. and high-torque spec.
High-torque spec. (optional)
Max. torque : 92N・m
Max. output : 26.2kW
20,000min-1 spec. (optional)
Max. torque : 27N・m
Max. output : 15.4kW
12,000min-1 spec. (standard)
Max. torque : 40N・m
Max. output : 18.9kW
For 10,000 min-1 high-torque specifications (optional), the spindle bearing diameter has been enlarged to enhance rigidity.
The machine demonstrates its capabilities in a broad range of machining, including heavy-duty machining of steel.
Spindle bearing diameter (high-torque spec.)
Larger by 10%
Heavy tools up to 4 kg can be mounted. Combined with large travels, the machine can meet a wide variety of applications.
* Parameter setting needs to be changed. (Tool indexing time is changed.)
Equipped with a variety of functions, including tool center point control and submicron command, to achieve high-speed and highly accurate simultaneous 5-axis machining.
* Changing to the conversation language is not possible for the simultaneous 5-axis specifications (5AX).
Equipped with tool center point control where machining is performed by changing the tool direction relative to the workpiece. Optimal acceleration/deceleration by look-ahead up to 1,000 blocks achieves simultaneous 5-axis machining.
The CPU capacity has been greatly increased to enhance the processing speed of minute line segments by four times the previous controller. This enables high-speed processing of CAM data with small tolerance.
In addition to the compactness of the BT30, the original look-ahead acceleration/deceleration processing maximizes the machine's performance (max. speed and acceleration) to achieve high-speed simultaneous 5-axis machining.
Comparison with cycle time by a competitor’s BT40 MC
Workpiece: Impeller
Vibration adjustment analyzes waveform data using a PC app to suggest the recommended spindle speed. Optimal machining conditions drive machining performance to the fullest.
The CTS option can be selected from 3 MPa or 7 MPa. With this option, the machine can operate to its fullest potential in high-speed drilling or deep-hole drilling.
Intuitive operation is possible with new apps and 15-inch vertical LCD touch panel display.
Waste-free operation is possible in setup, machining adjustment, production, and recovery process, leading to improved work efficiency and operating rate.
Accessibility to the machine has been enhanced to enable smooth setup including workpiece change.
Intuitive operation is possible with apps and the vertical touch panel screen. Relevant functions are grouped according to purpose, such as setup and machining, leading to efficient operation. Production and operation states are visualized, allowing faster understanding. Streamlined operation is possible in setup, machining adjustment, production, and recovery processes, leading to improved work efficiency and operating rate.
Setup support
Equipped with functions to easily perform setup, such as an ATC tool app that enables all magazine tool settings to be performed on one screen, menu programming that enables you to create NC programs by following instructions on the screen, and an on-screen help function.
Machining adjustment support
Equipped with functions to easily perform optimal machining adjustment to improve productivity, such as a machining parameter adjustment app that enables you to easily adjust parameters according to machining details and a machining load waveform display/saving function.
Production support
Equipped with functions to improve the operating rate, such as real time tool monitoring to eliminate defects, displaying production performance, power consumption etc. as a graph, and PLC/network functions to meet peripheral equipment and automation requirements.
Recovery support
Equipped with functions to prevent failure or ensure quick recovery, such as maintenance time notice, displaying details when an alarm occurs, and guidance for recovery/check work.
Specifications
Product Specification
W1000Xd2
Max. spindle speed [min⁻¹]
12,000/ (Optional) 20,000/ (Optional) 10,000 high-torque
Travels [mm (inch)]
X: 1000 (39.4) Y: 500 (19.7) Z: 380 (15.0)
Tool storage capacity [pcs.]
14/ 21/ 28
Rapid traverse rate (XYZ axes) [m/min (inch/min)]
50 x 50 x 56 (1,969 x 1,969 x 2,205)
Required floor space [mm (inch)]
2,410 x 2,233 [3,071] (94.9 x 87.9 [120.9])
BT dual contact spindle(BIG-PLUS)
Optional
Coolant Through Spindle(CTS)
Optional
| item | W1000Xd2 / W1000Xd2 RD*10 | W1000Xd2-5AX / W1000Xd2 -5AX RD*10 | ||
|---|---|---|---|---|
| CNC unit | CNC-D00 | CNC-D00v(DB) | ||
| Travels | X axis [mm (inch)] | 1,000 (39.4) | ||
| Y axis [mm (inch)] | 500 (19.7) | |||
| Z axis [mm (inch)] | 380 (15.0) | |||
| Distance between table top and spindle nose end [mm (inch)] | 150 - 530 (5.9 - 20.9) | |||
| Table | Work area size [mm (inch)] | 1,100 x 500 (43.3 x 19.7) | ||
| Max.loading capacity (uniform load) [kg (lbs)] | 300 [500 *1] (661 [1,102 *1]) | |||
| Spindle | Spindle speed [min-1] *12 | 12,000min-1 specifications : 1 - 12,000
10,000min-1 high-torque specifications(Optional) : 1 - 10,000 20,000min-1 specifications(Optional) : 1 - 20,000 |
||
| Speed during tapping [min-1] | MAX. 6,000 | |||
| Tapered hole | 7/24 tapered No.30 | |||
| BT dual contact system (BIG-PLUS) | Optional | |||
| Coolant Through Spindle (CTS) | Optional | |||
| Feed rate | Rapid traverse rate (XYZ-area) [m/min (inch/min)] | 50 x 50 x 56 (1,969 x 1,969 x 2,205) | ||
| Cutting feed rate [mm/min (inch/min)] | X, Y, Z : 1 - 30,000 (0.04 - 1,181)*2 | |||
| ATC unit | Tool shank type | MAS-BT30 | ||
| Pull stud type*3 | MAS-P30T-2 | |||
| Tool storage capacity [pcs.] | 14 / 21 / 28 | |||
| Max. tool length [mm (inch)] *4 | 250 (9.8) | |||
| Max. tool diameter [mm (inch)] *4 | ⌀110 (4.3) | |||
| Max. tool weight [kg (lbs)]*4 | 3.0 (6.6) [4.0 (8.8) *5] / tool, (TOTAL TOOL WEIGHT: 25 (55.1) for 14 tools, 35 (77.2) for 21 or 28 tools) | |||
| Tool selection method | Random shortcut method | |||
| Tool change time*6 | ||||
| Tool To Tool | 0.6 / 0.7 (14 or 21 tools / 28 tools) | |||
| Chip To Chip | 1.3 / 1.4 (14 or 21 tools / 28 tools) | |||
| Electric motor | Main spindle motor (10 min/continuous) [kW]*7 | 12,000min-1 specifications : 10.1/7.0
10,000min-1 10,000min-1 high-torque specifications (optional) : 12.8/9.2 20,000min-1 specifications(Optional) : 7.4/5.1 |
||
| Axis feed motor [kW] | X,Y axis: 1.0, Z axis: 2.0 | |||
| Power source | Power supply | AC 200 to 230 V±10％, 3-phase, 50/60Hz±2% | ||
| Power capacity (continuous) [kVA] | 10.4 | |||
| Air supply | Regular air pressure [MPa] | 0.4 - 0.6 (recommended value : 0.5MPa) *8 | ||
| Required flow [L/min] | 45 | |||
| Machine dimensions | Height [mm (inch)] | 2,633 (103.7) | ||
| Required floor space (with control unit door open) [mm (inch)]*11 | 2,410 x 2,233 [3,071] (94.9 x 87.9 [120.9]) | |||
| Weight | 3,350 (7,385) | |||
| Accuracy*9 | Accuracy of bidirectional axis positioning (ISO230-2:1988) [mm (inch)] | 0.006 - 0.020 (0.00024 - 0.00079) | ||
| Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] | Less than 0.004 (0.00016) | |||
| Front door | 2doors | |||
| Standard accessories | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.), leveling plate (4 pcs.) | |||
- *1 Parameter setting needs to be changed. (Table travel time is changed.)
- *2 Value when using high accuracy mode B
- *3 Brother specifications apply to the pull studs for CTS.
- *4 The maximum tool length, maximum diameter, and maximum weight are limited depending on the spindle speed in use, configuration, center of gravity, etc. The figures shown here are for reference only. Please contact your local distributor for details.
- *5 Parameter setting needs to be changed. (Tool indexing time is changed.)
- *6 Measured in compliance with JIS B6336-9 and MAS011-1987.
- *7 Spindle motor output differs depending on the spindle speed.
- *8 Regular air pressure varies depending on the machine specifications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommended value.
- *9 Measured in compliance with ISO standards and Brother standards. Please contact your local distributor for details.
- *10 The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with “RD” at the end of the model name.
- *11 Dimensions not including the coolant tank.
- *12 The 16,000min-1 specification is discontinued as of June 2026.
| Item | W1000Xd2 | W1000Xd2-5AX | |
|---|---|---|---|
| CNC model | CNC-D00 | CNC-D00v (DB) | |
| Control axes | 5 axes (X, Y, Z, 2 additional axes) | ||
| Simultaneously controlled axes | Positioning | 5 axes (X, Y, Z, 2 additional axes) | |
| Interpolation |
Linear : 4 axes (X, Y, Z, 1 additional axis) Circular : 2 axes Helical/Conical : 3 axes (X, Y, Z) |
Linear: 5 axes (X, Y, Z, 2 additional axes) Circular: 2 axes Helical/Conical: 4 axes (3 linear axes + 1 additional axis, 2 linear axes + 2 additional axes) |
|
| Least input increment | 0.001 mm, 0.0001 inch, 0.001 deg. 0.0001 mm, 0.00001 inch, 0.0001 deg. (optional) |
0.0001 mm, 0.00001 inch, 0.0001 deg. | |
| Max.programmable dimension | ±999999.999 mm, ±99999.9999 inch ±999999.9999 mm, ±99999.99999 inch (optional) |
±999999.9999 mm, ±99999.99999 inch | |
| Display | 15-inch color LCD touch display | ||
| Memory capacity | 500 Mbytes, 3 Gbytes (optional) (Total capacity of program and data bank) |
3 Gbytes (Total capacity of program and data bank) |
|
| External communication | USB memory interface, Ethernet, RS232C (optional) | ||
| No.of registrable programs | 4,000 (Total capacity of program and data bank) | ||
| Program format | NC language, conversation (changed by parameter) Conversation from conversation program to NC language program available |
NC language * Conversation language not available |
|
- * “Control axes” and “Simultaneously controlled axes” indicate the maximum number of axes, which will differ depending on the destination country and the machine specifications.
- * Ethernet is a registered trademark of Xerox Corporation in the United States.
| Operation | Dry run Machine lock Program restart Rapid traverse override Cutting feed override Background editing Screen shot Operation level External input signal key Shortcut keys < optional > |
|
|---|---|---|
| Programming | Absolute / Incremental Inch / Metric Coordinate system setting Corner C / Corner R Rotational transformation Synchronized tap Subprogram Graphic display |
|
| Measurement | Automatic workpiece measurement *1 Tool length measurement |
|
| High speed and high accuracy | Machining parameter adjustment High-accuracy mode AIII High-accuracy mode BI (look-ahead 160 blocks) Backlash compensation Tool center point control *3 *4 (Look-ahead 1,000 blocks) < optional > |
|
| Monitoring | Machining load monitoring ATC monitoring Overload prediction Waveform display / Waveform output to memory card Automatic thermal distortion compensation (X, Y, and Z axes) Production performance display Tool life / Spare tool Stuck chips detection function |
|
| Maintenance | Tap return function Status log Alarm log Operation log Maintenance notice Motor insulation resistance measurement Tool washing filter with filter clogging detection Battery-free encoder Breake load test |
|
| Automatic / Network | Computer remote OPC UA Auto notification Built-in PLC (LD/ST/FBD) < optional > |
|
| Energy saving | Automatic power off Standby mode Automatic coolant off Automatic work light off Chip shower off delay Chip shower energy savings operation Energy savings mode |
|
| Support apps | Adjust machine parameters ATC tool Tool life Waveform display Production performance Energy saving/ Power consumption Recovery support Inspection PLC Machining support without warmup Software control panel |
|
| Accessories | File viewer Notebook Calculator Register shortcut Display off |
|
| NC language Functions | Menu programming Local coordinate system Expanded workpiece coordinate system One-way positioning Inverse time feed Programmable data input Tool length compensation Cutter compensation Scaling Mirror image External sub program call Macro Tape operation / FTP load operation Multiple skip function < optional > |
|
| Functions limited to conversation language *6 | Operation program Schedule program Automatic tool selection Automatic cutting condition setting Automatic tool length compensation setting Automatic cutter compensation setting Automatic calculation of unknown number input Machining order control |
|
- *1 For the measuring instrument, please select an optional touch probe or provide one yourself.
- *2 When the submicron command is used, changing to the conversation language program is disabled.
- *3 There are restrictions on the axis configuration.
- *4 Available only on the W1000Xd2-5AX.
- *5 Standard on the W1000Xd2-5AX.
- *6 Conversation language not available on the W1000Xd2-5AX.

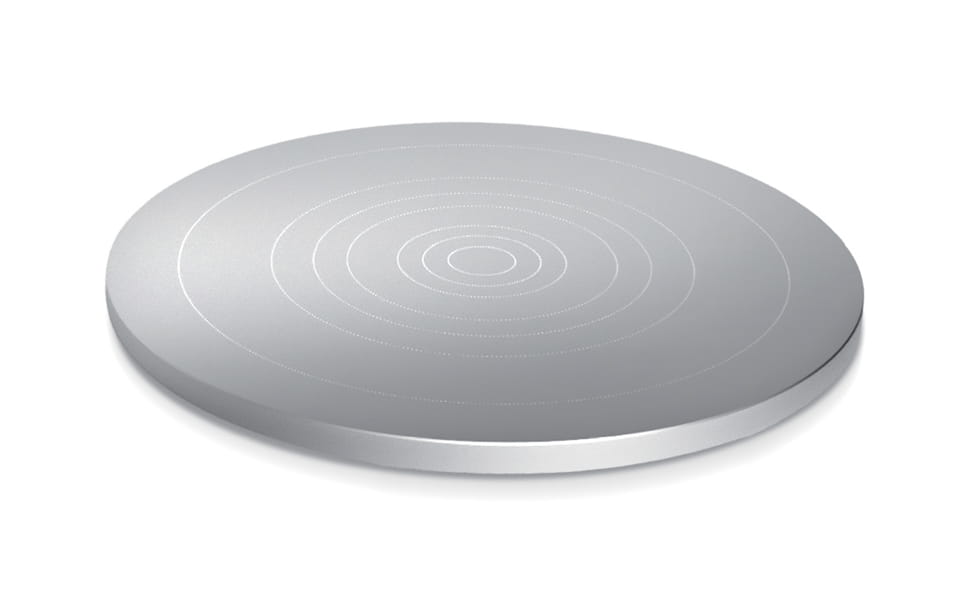

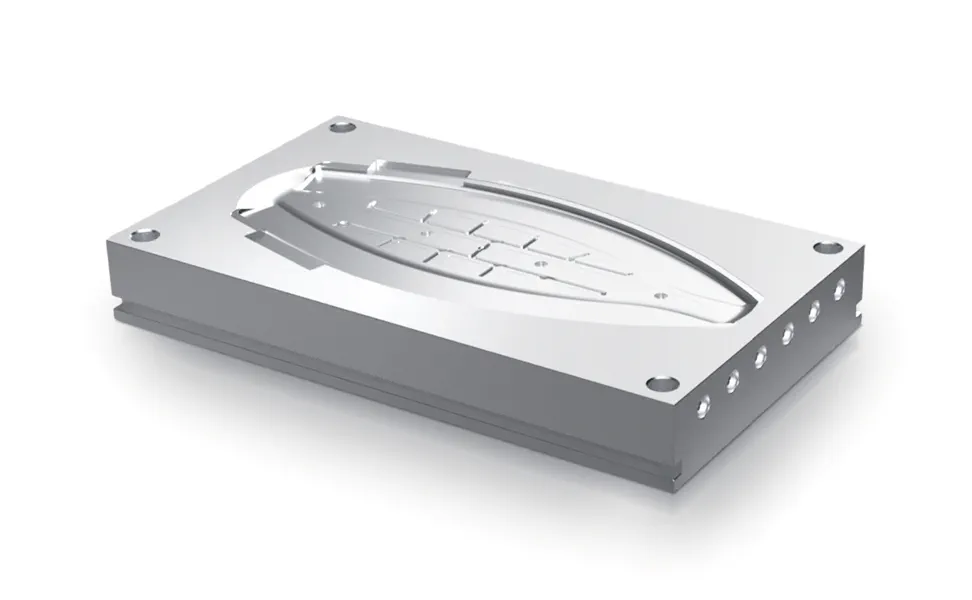

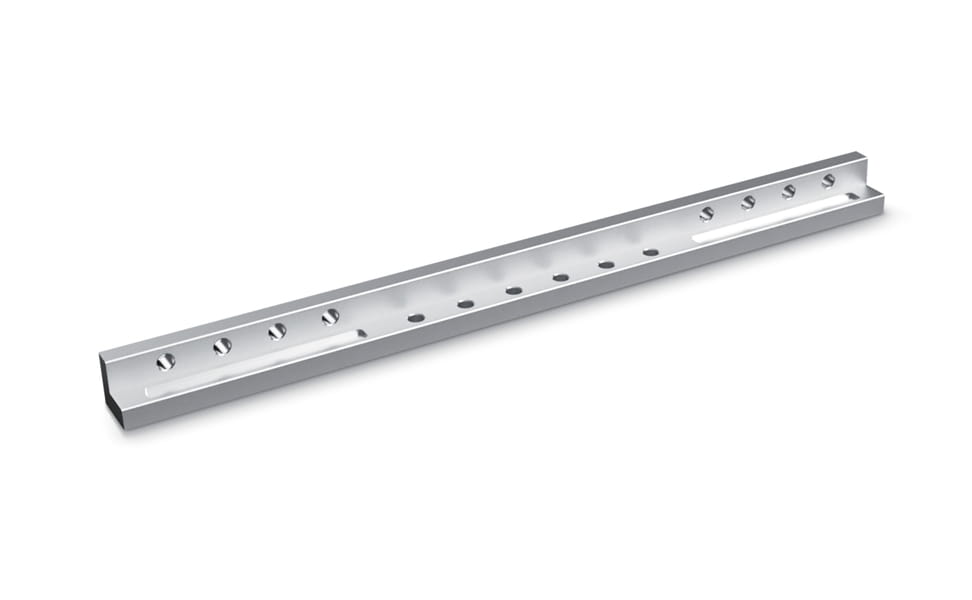

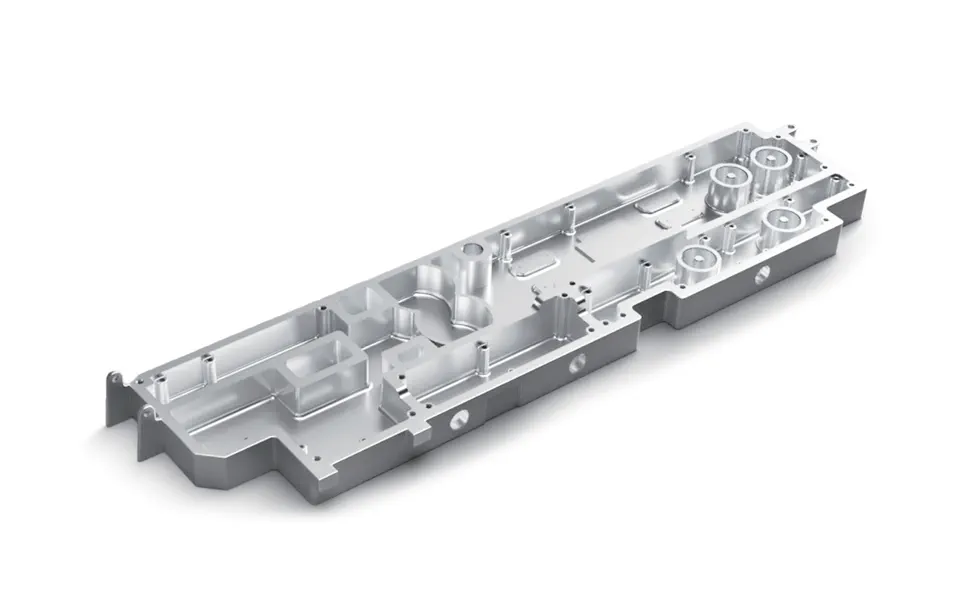

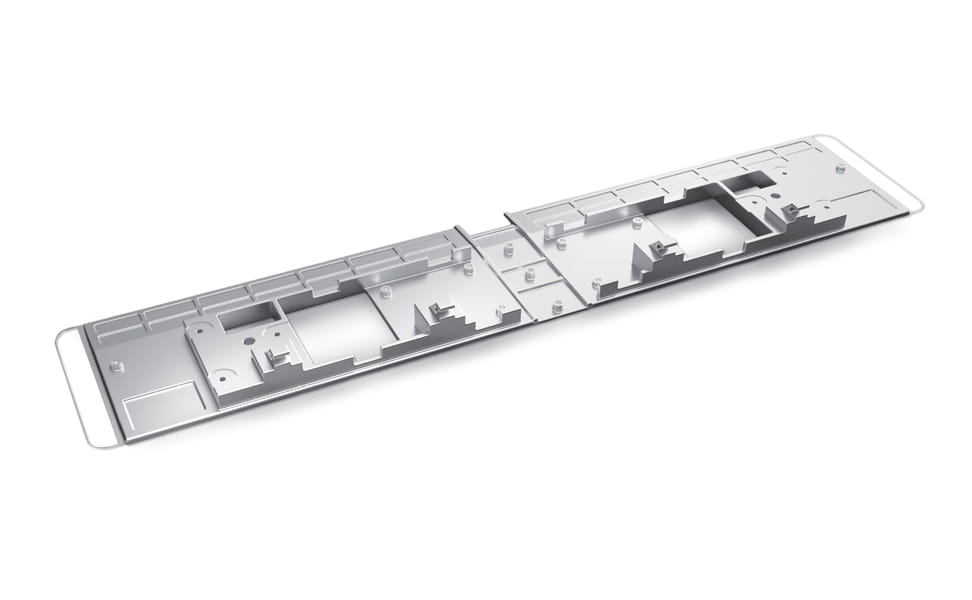

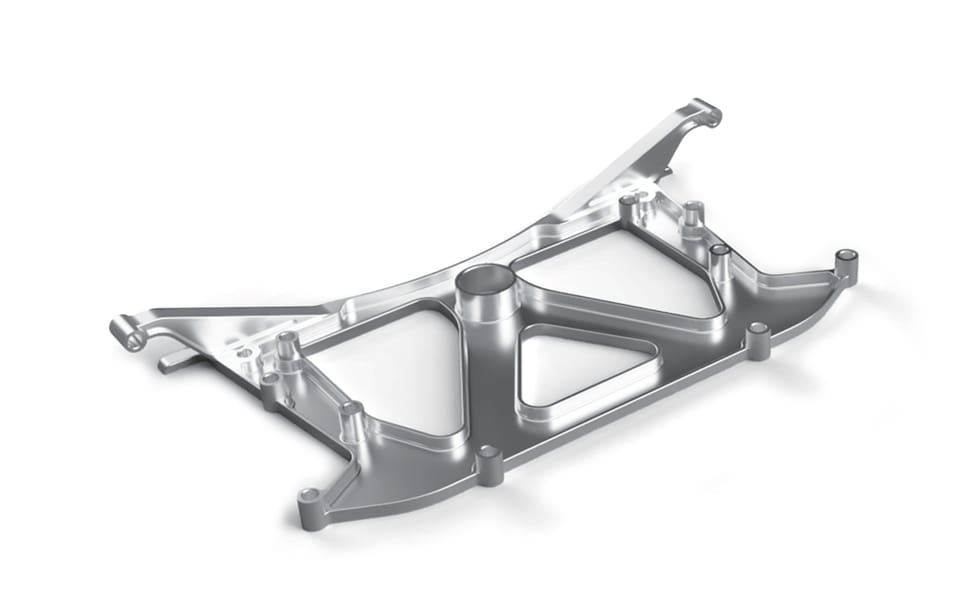

Example
Aluminum alloy
Aluminum alloy
Aluminum alloy
Aluminum alloy
Aluminum alloy
Aluminum alloy
